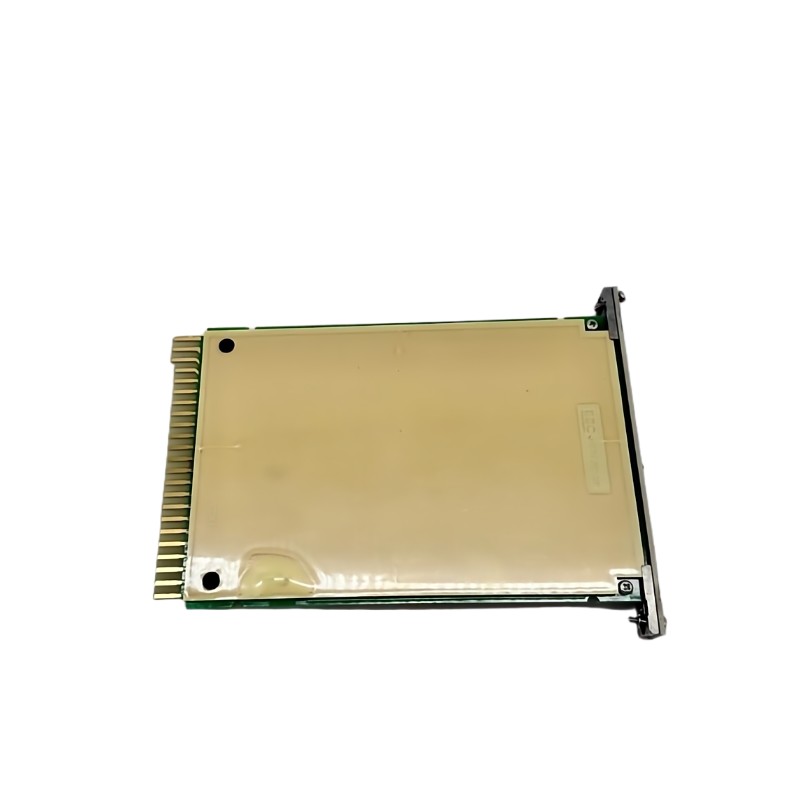

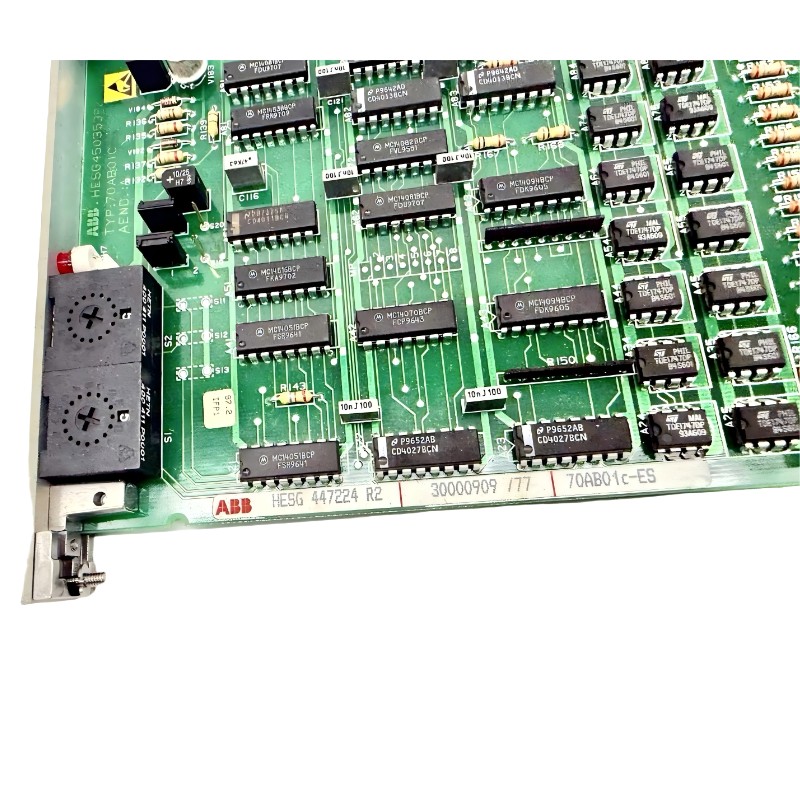

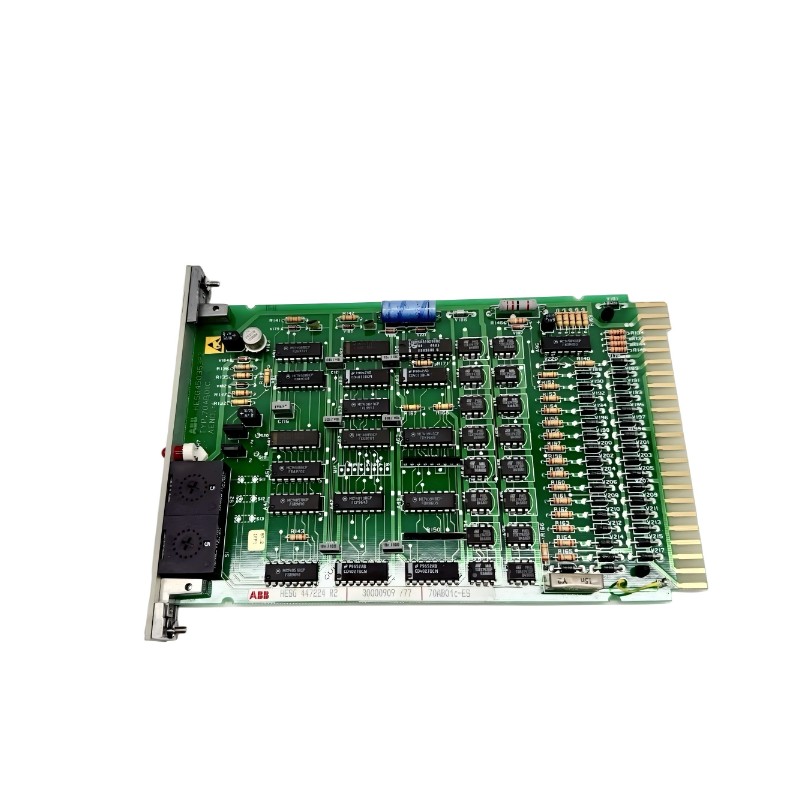

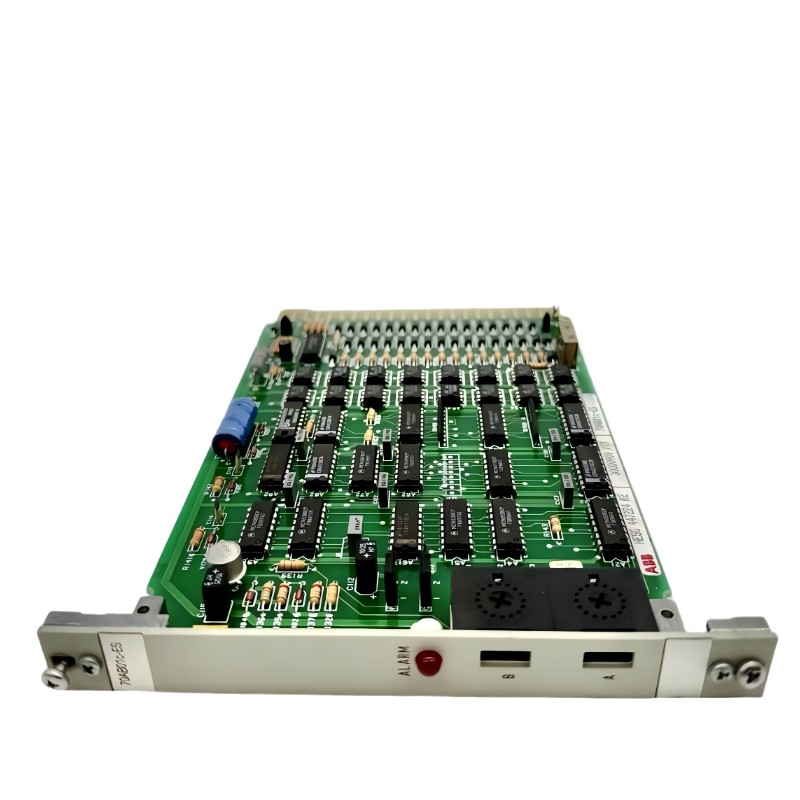

ABB 70AB01C-ES HESG447224R2 Output Module

Overview

The ABB 70AB01C-ES HESG447224R2 is a high-performance output module designed for ABB industrial automation systems. It provides reliable signal output to field devices, ensuring precise control and seamless integration with automated processes. Built for robustness, it performs consistently in demanding industrial environments.

General Information

Part Number: HESG447224R2

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: 70AB

Type: Output Module

Mounting: Rack or panel installation within automation cabinets

Technology: Digital and analog output control, fault monitoring, hot-swappable design

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input Source: Backplane or dedicated power terminal

Protection: Overvoltage, short-circuit, and reverse polarity protection

Indicators: LEDs for power, output activity, and fault detection

Communication & Interface

Bus Interface: Compatible with ABB control systems (Advant / AC500 / Freelance series)

Output Channels: Multiple digital and analog outputs for precise device control

Diagnostics: Output supervision, fault detection, and module status reporting

Operator Interface: LED indicators for each channel, diagnostic outputs

Reset Features: Supports software and hardware reset for maintenance

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 standard

Vibration & Shock: Designed for industrial automation standards

Dimensions & Weight

Dimensions (L × W × H): 180 × 120 × 90 mm

Weight: 1.5 kg
