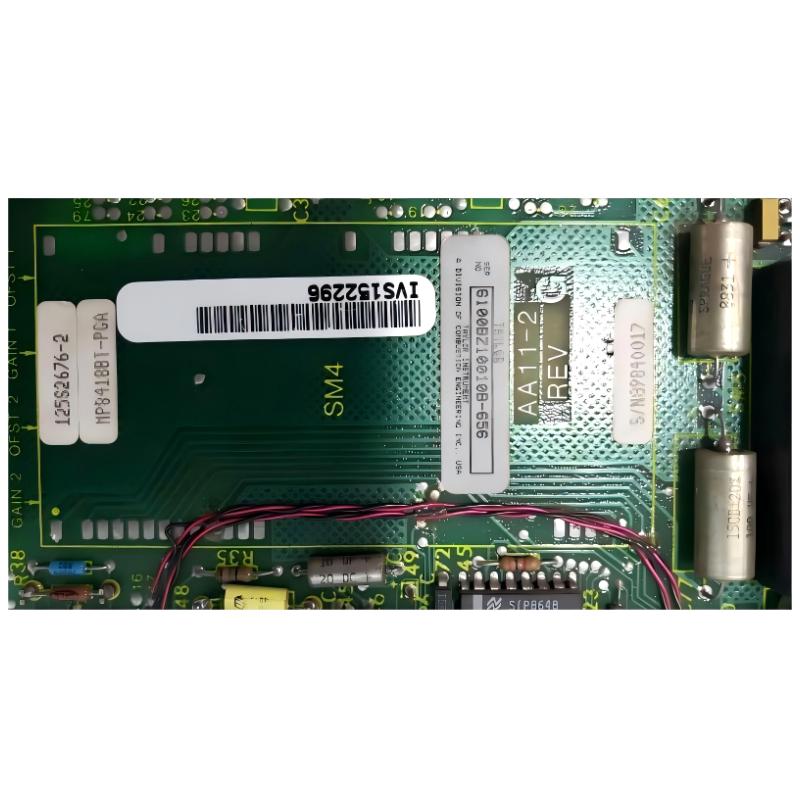

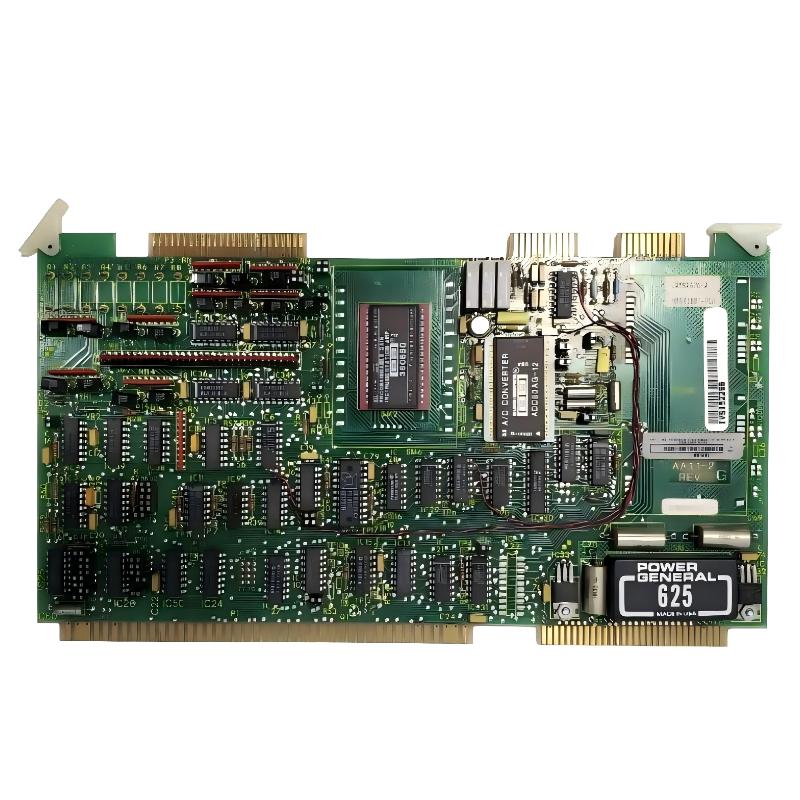

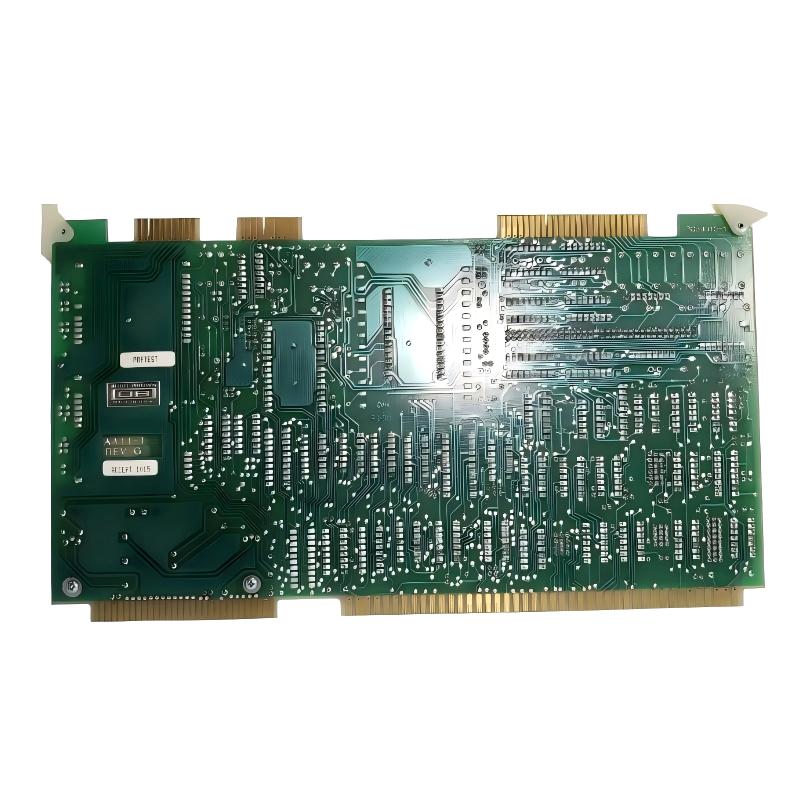

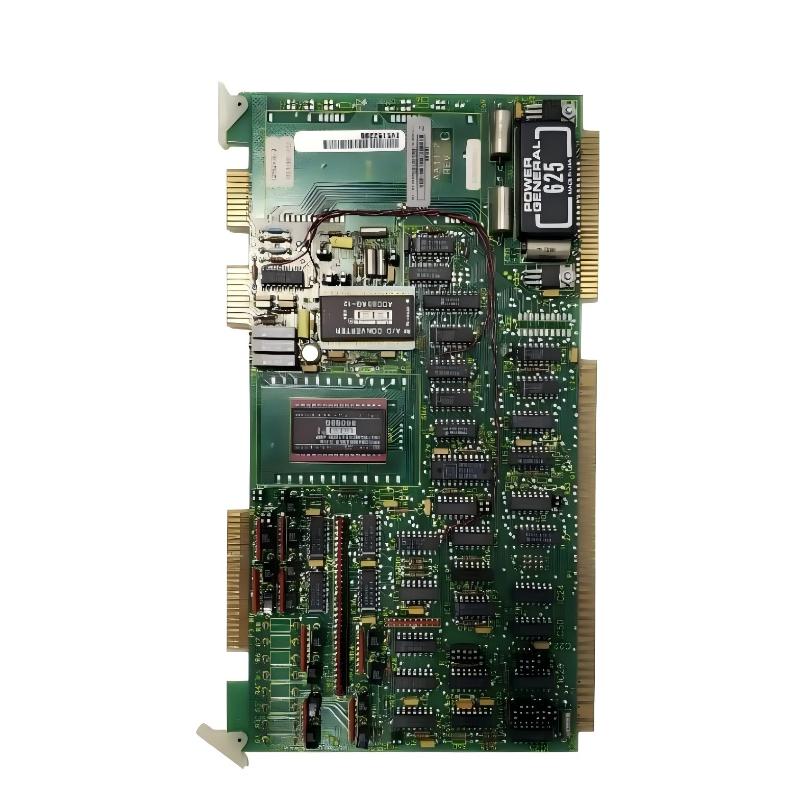

ABB 6100BZ10010B Analog Input Expansion Board

Overview
The ABB 6100BZ10010B Analog Input Expansion Board is designed to extend the analog input capabilities of ABB automation systems. It provides precise signal acquisition and seamless integration with existing control modules, enabling enhanced system flexibility and accurate process monitoring.

General Information

• Part Number: 6100BZ10010B

• Manufacturer: ABB

• Country of Origin: Switzerland

• Series: 6100BZ

• Type: Analog Input Expansion Board

• Mounting: Rail-mounted within control systems

• Technology: Analog signal processing, I/O expansion, industrial-grade electronics

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: ≤ 5 W

• Input: Powered from the main control backplane

• Protection: Surge and reverse-polarity protection

• Indicators: LEDs for power and signal status

Communication & Interface

• Ethernet / Fieldbus Port: Not applicable (Analog input expansion only)

• Bus Coupler Role: Expands analog input channels for the control system

• Diagnostics: Provides real-time monitoring of input channels and fault detection

• Operator Interface: LED indicators for channel status and diagnostics

• Reset Features: Supports soft and hardware reset

Environmental

• Operating Temperature: −20 to +60 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 or suitable for indoor industrial environments

Dimensions & Weight

• Dimensions (L × W × H): 200 × 100 × 35 mm

• Weight: ~ 0.45 kg

New In Stock – Order Now for Fast Shipping!
