ABB CI801-eA 3BSE022366R2 Fieldbus Communication Interface Recommended products

Overview

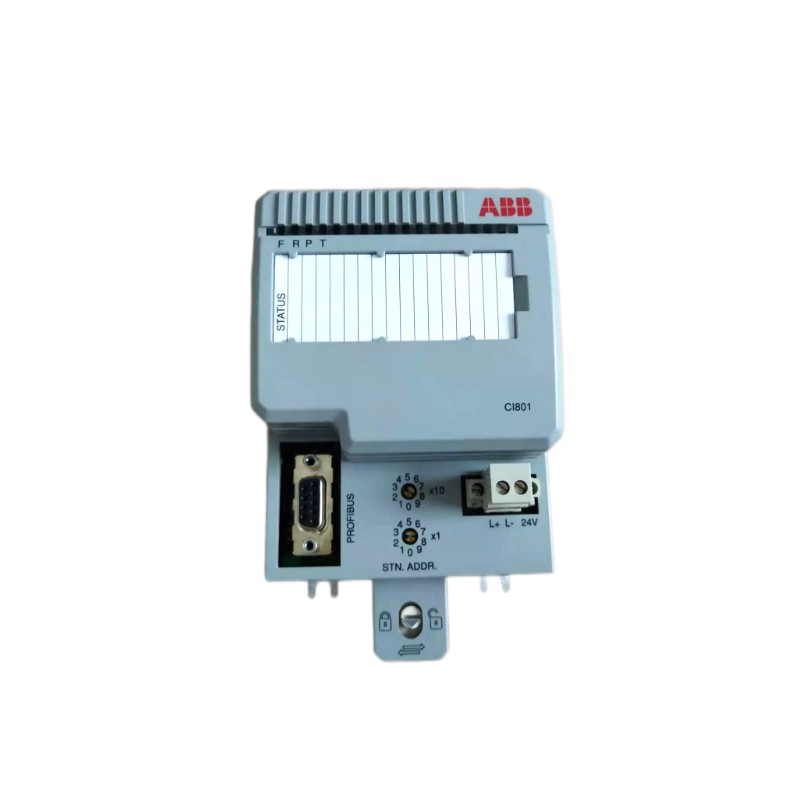

The ABB CI801-eA (3BSE022366R2) is a PROFIBUS DP-V1 communication interface module designed for the S800 I/O system. It facilitates seamless integration between ABB's S800 I/O modules and PROFIBUS-based controllers, enabling efficient data exchange and system coordination in industrial automation applications.

General Information

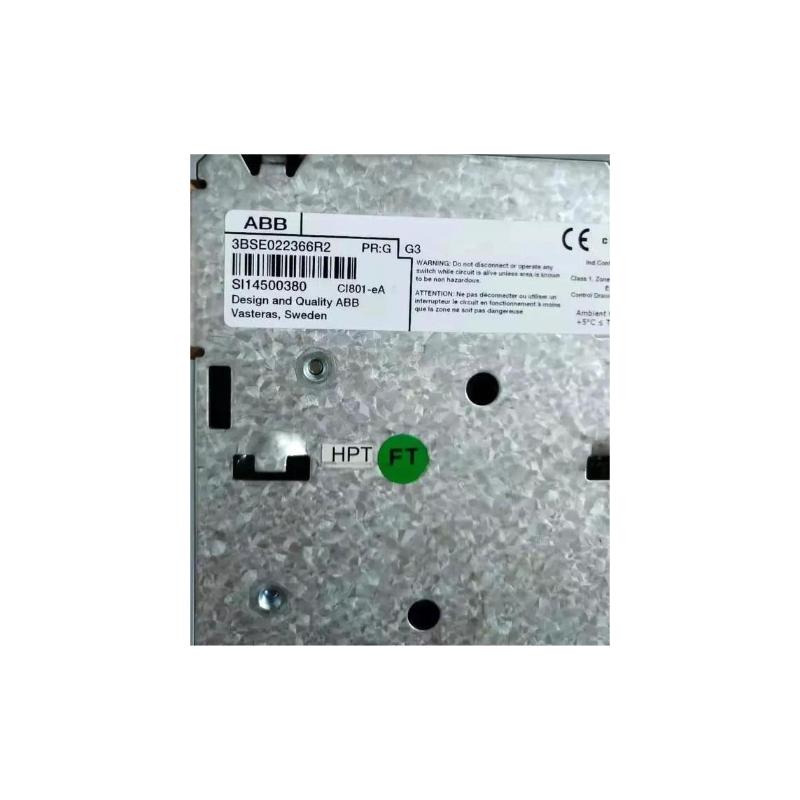

• Part Number: 3BSE022366R2

• Manufacturer: ABB Ltd.

• Brand Origin: Sweden

• Series: S800 I/O

• Type: Fieldbus Communication Interface (FCI)

• Mounting: DIN rail installation

• Application: Interfacing S800 I/O modules with PROFIBUS DP-V1 controllers

Power Specifications

• Supply Voltage: 24 V DC

• Current Consumption: ≤20 mA

• Power Consumption: Approximately 0.48 W

• Protection: Overvoltage and reverse polarity protection

• Indicators: LEDs for power, status, and communication

Communication & Interface

• Fieldbus Protocol: PROFIBUS DP-V1

• Data Rate: Up to 12 Mbps

• ModuleBus Interface: For communication with S800 I/O modules

• HART Pass-through: Supported for HART-enabled devices

• Hot Configuration InRun (HCI): Supported for dynamic configuration changes

• Diagnostic Features: Comprehensive diagnostics for system health monitoring

Environmental

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95% RH, non-condensing

• Protection Class: IP20

Dimensions & Weight

• Dimensions: 85.8 × 136 × 58.5 mm

• Weight: 0.3 kg

Genuine brand-new inventory, available anytime with fast quotation support.
