Overview

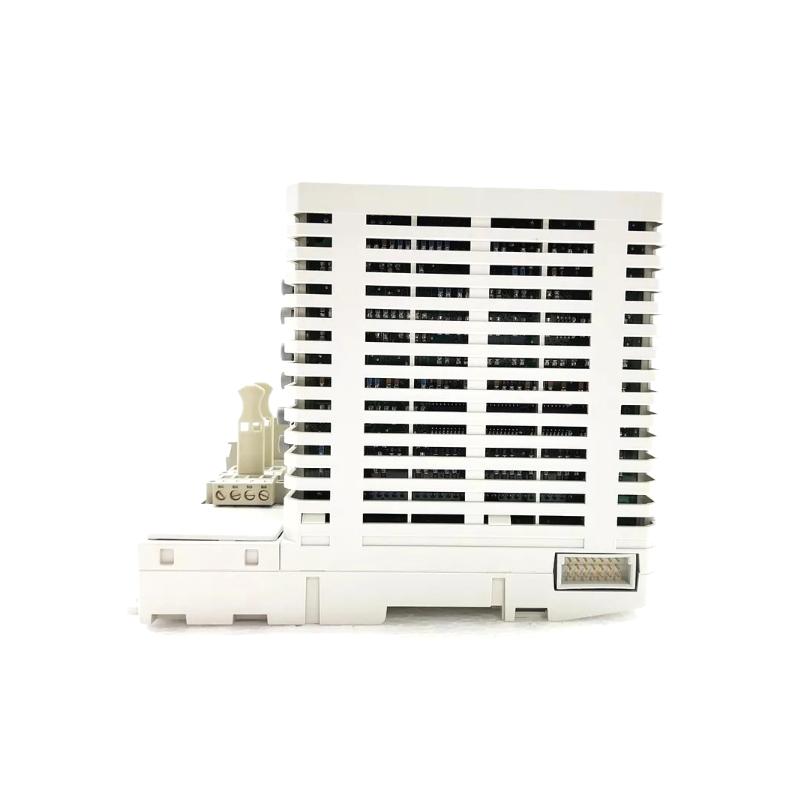

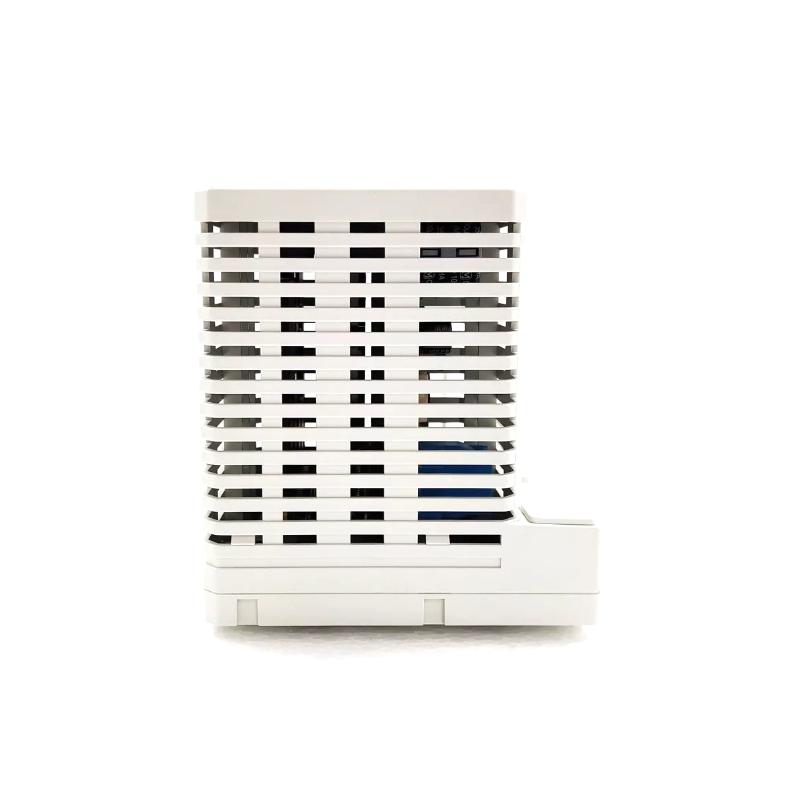

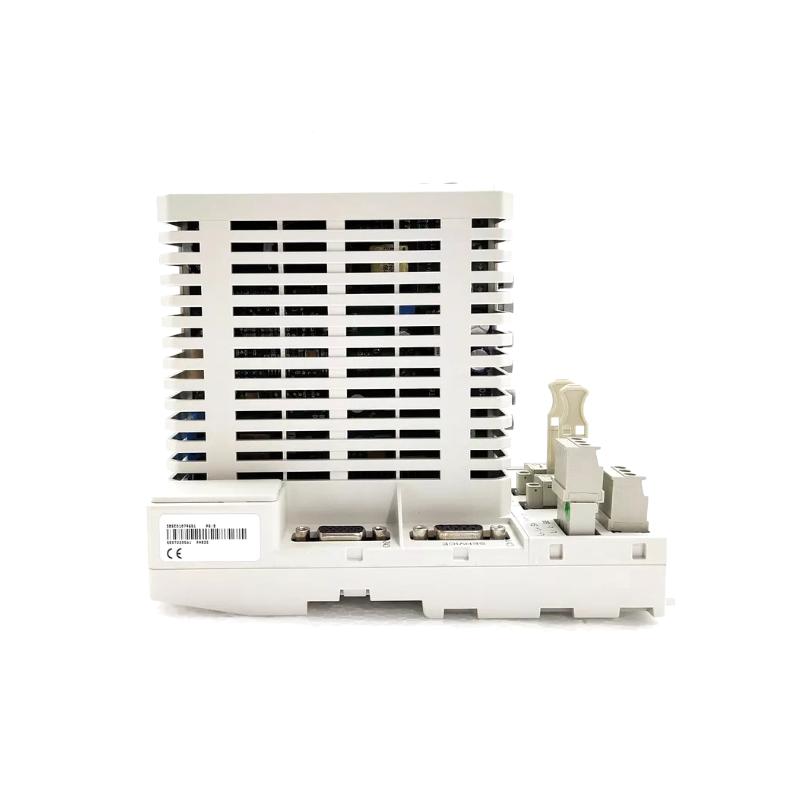

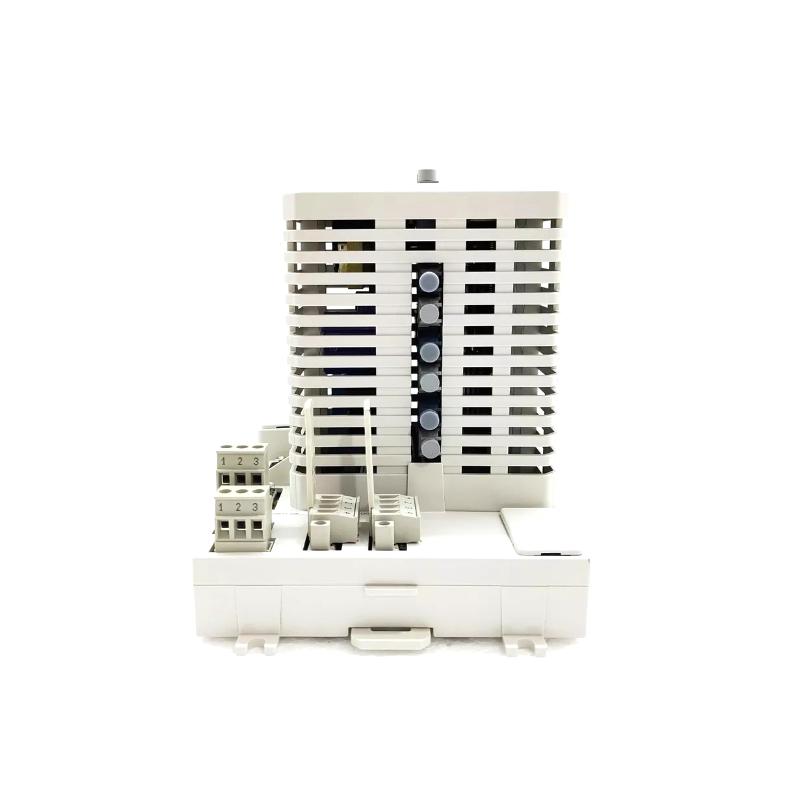

The ABB PM825 (3BSE010796R1) is a high-performance AC 800M processor module designed for ABB’s industrial control and automation systems. It provides reliable and efficient control processing, supporting complex logic, communication interfaces, and redundancy for demanding industrial applications.
General Information
Part Number: 3BSE010796R1
Manufacturer: ABB Ltd.
Brand Origin: Switzerland
Series: AC 800M
Type: Processor Module
Mounting: Rack-mounted or DIN-rail installation
Function: Central processing and communication unit for control systems
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 7 W
Input Power Source: From control system power supply
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power, status, and communication activity
Communication & Interface
Ethernet Ports: 2 × 10/100 Mbps
Serial Interface: RS-232 for configuration and diagnostics
Supported Protocols: Modbus TCP, PROFIBUS, EtherNet/IP, OPC
Redundancy: Supported for fault-tolerant control
Diagnostics: System status, error detection, and event logging
Configuration: Managed through ABB Control Builder software
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: 5% to 95% RH, non-condensing
Protection Class: IP20 (for standard industrial enclosures)
Dimensions & Weight
Dimensions: 225 x 108 x 135 mm
Weight: 1 kg
