Overview

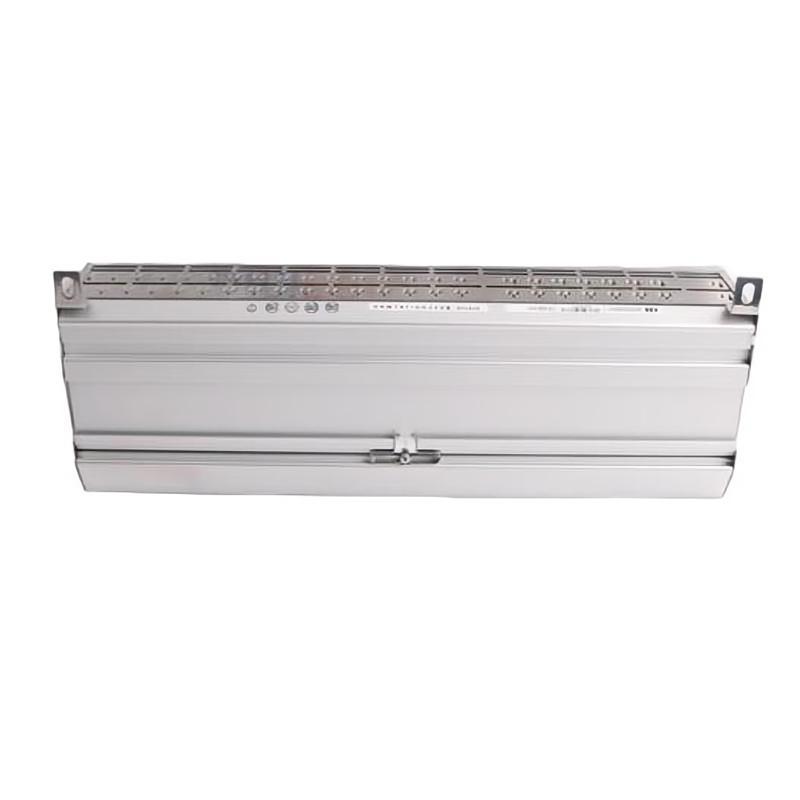

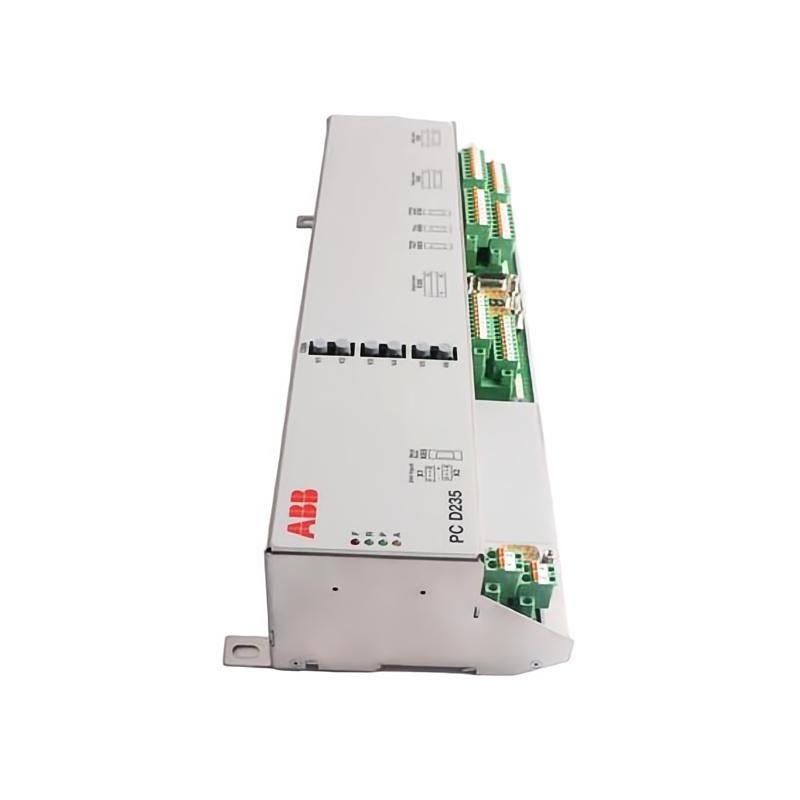

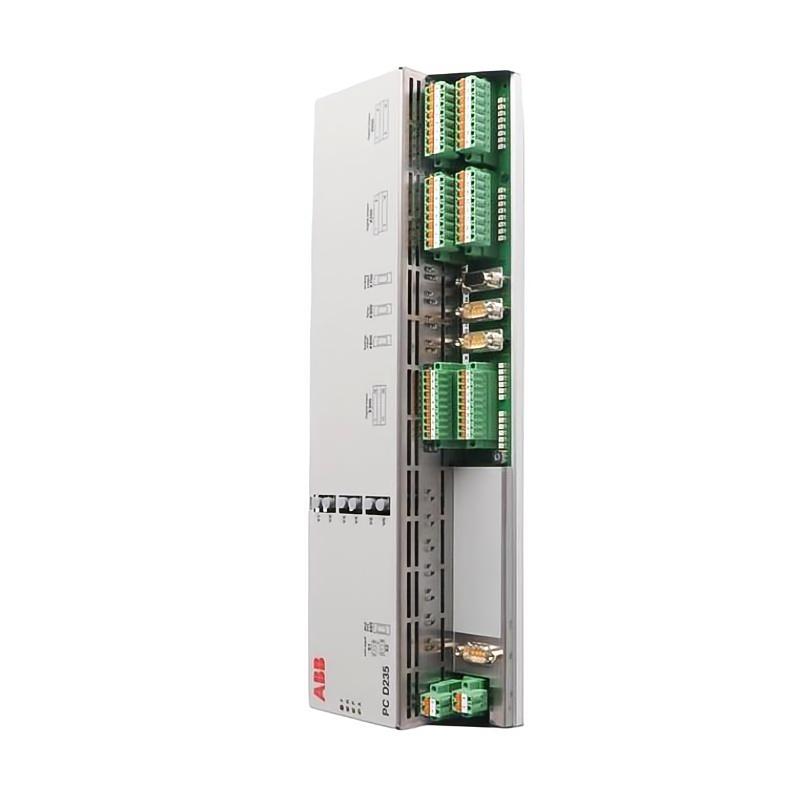

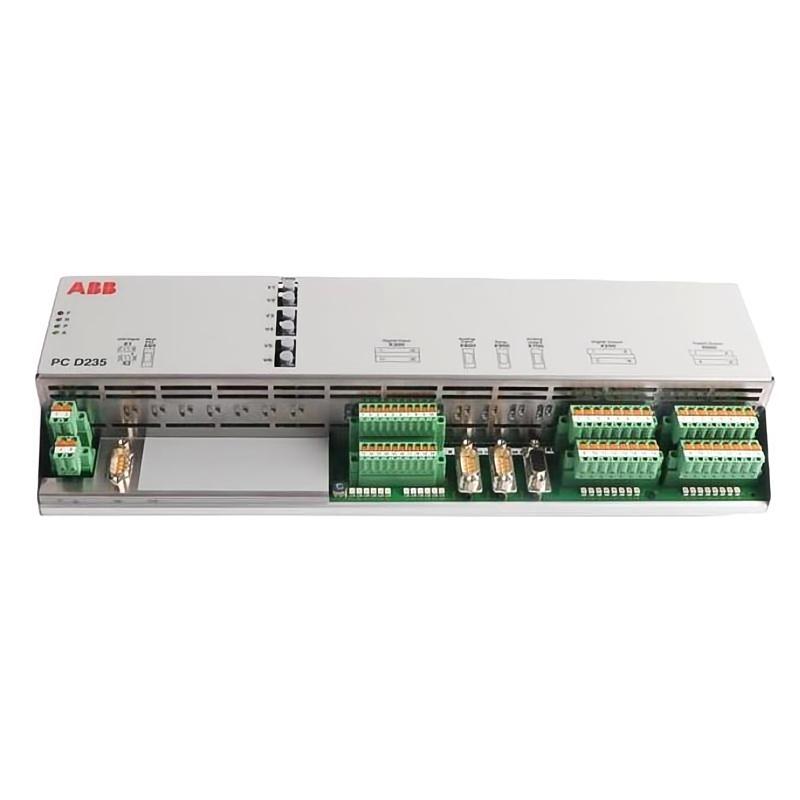

The ABB PCD235 (3BHE032025R0101) is a programmable control and interface module designed for ABB industrial automation systems. It provides reliable communication, precise process control, and seamless integration between controllers and field devices, ensuring efficient and stable operation in industrial environments.
General Information
Manufacturer: ABB
Country of Origin: Switzerland
Part Number: 3BHE032025R0101
Product Name: PCD235
Series: PCD Series
Product Type: Programmable Control / Interface Module
Mounting: Rack or chassis installation
Application: Process automation, drive control, and industrial monitoring systems
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 14 W
Power Source: Backplane supply
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power, communication, and fault status
Communication & Interface
Communication Type: System bus communication
Interface: ABB proprietary high-speed control bus
Function: Real-time data transfer and control between controllers and field modules
Diagnostics: Integrated fault detection and status monitoring
Configuration: Front-panel LEDs and setup interface
Reset: Supports hardware and system reset
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Class: IP20 (for installation inside control cabinets)
Dimensions & Weight
Dimensions: 155 × 380 × 85 mm
Weight: Approx. 0.40 kg
