Overview

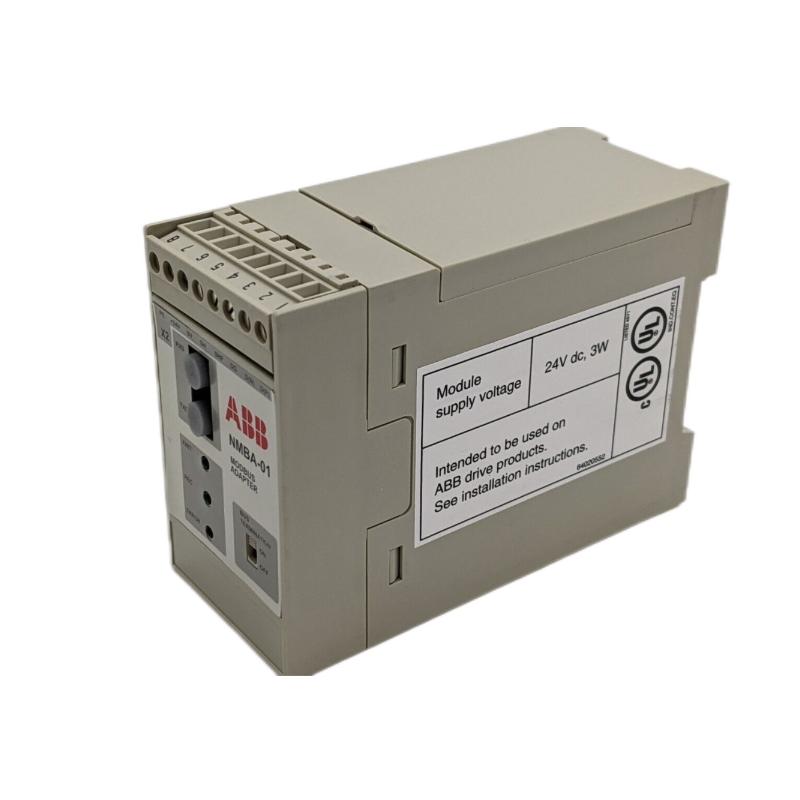

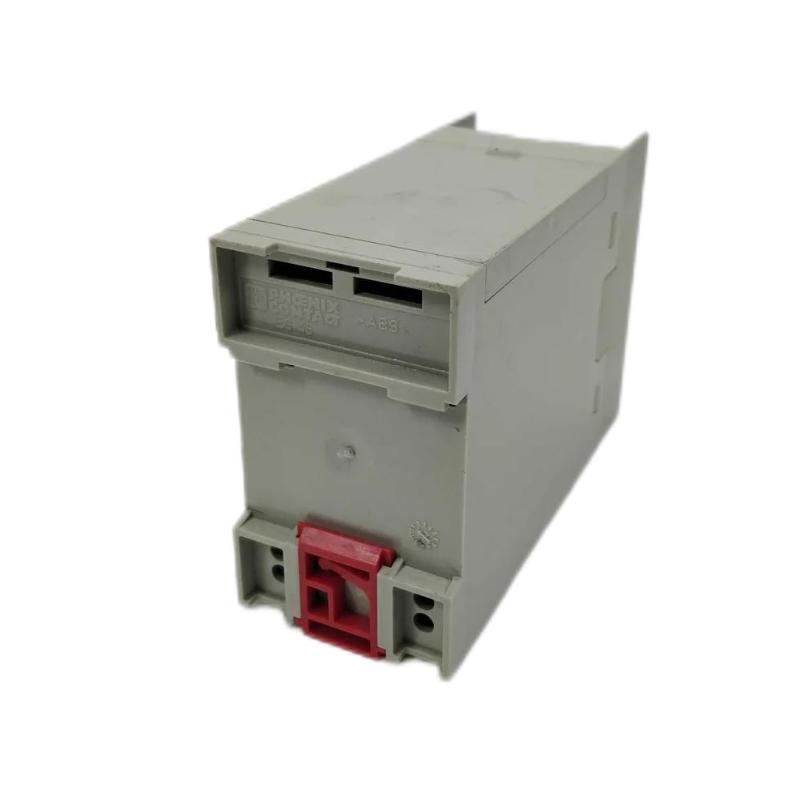

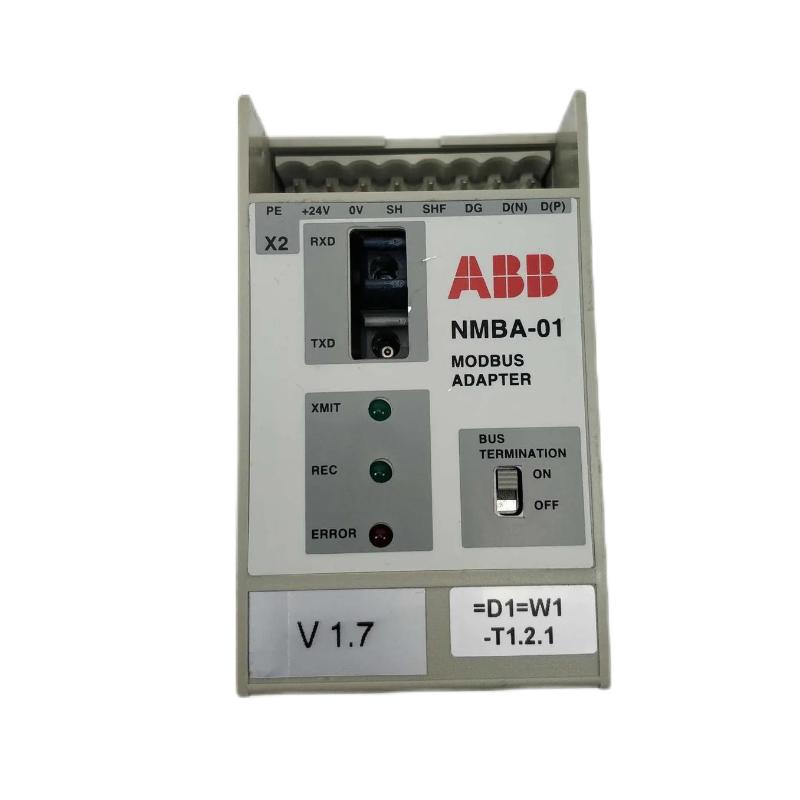

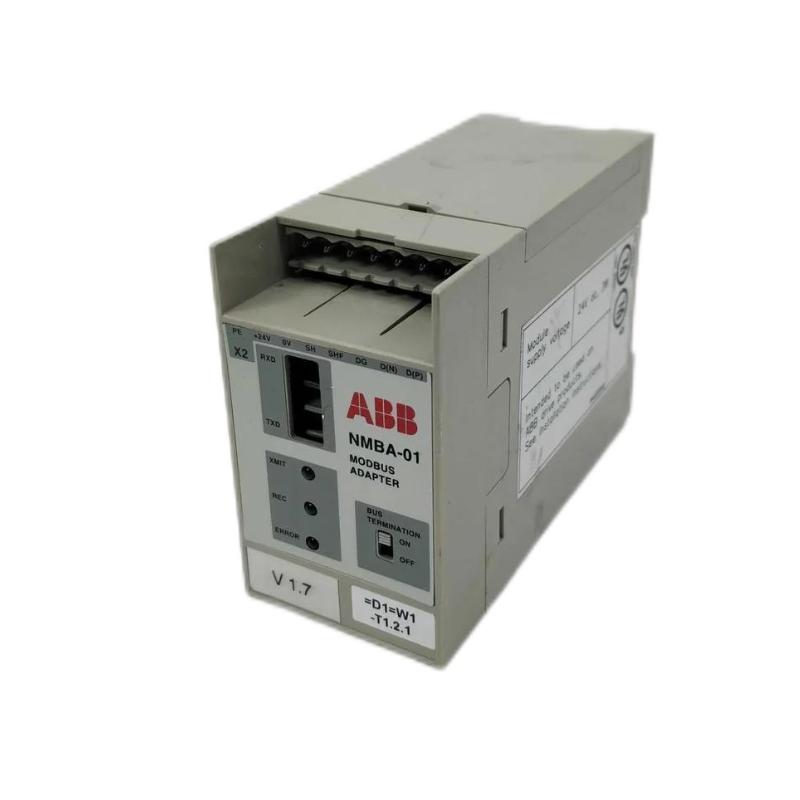

The ABB NMBA-01 (3BHE035093R0001) is a monitoring and interface module used in ABB industrial automation systems. It provides reliable signal acquisition and communication between controllers and field devices, ensuring accurate system monitoring and process control in industrial environments.
General Information
Manufacturer: ABB
Country of Origin: Switzerland
Part Number: 3BHE035093R0001
Product Name: NMBA-01
Series: NMBA Series
Product Type: Monitoring / Interface Module
Mounting: Rack or chassis installation
Application: Process monitoring, automation control, and system diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 8 W
Power Source: Backplane supply
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power, status, and fault
Communication & Interface
Communication Type: System bus communication
Interface: ABB proprietary high-speed control bus
Function: Signal acquisition, system monitoring, and data transfer
Diagnostics: Built-in fault detection and status monitoring
Configuration: Front-panel LEDs and setup interface
Reset: Supports hardware and system reset
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Class: IP20 (for cabinet installation)
Dimensions & Weight
Dimensions: 120 × 350 × 75 mm
Weight: Approx. 0.32 kg
