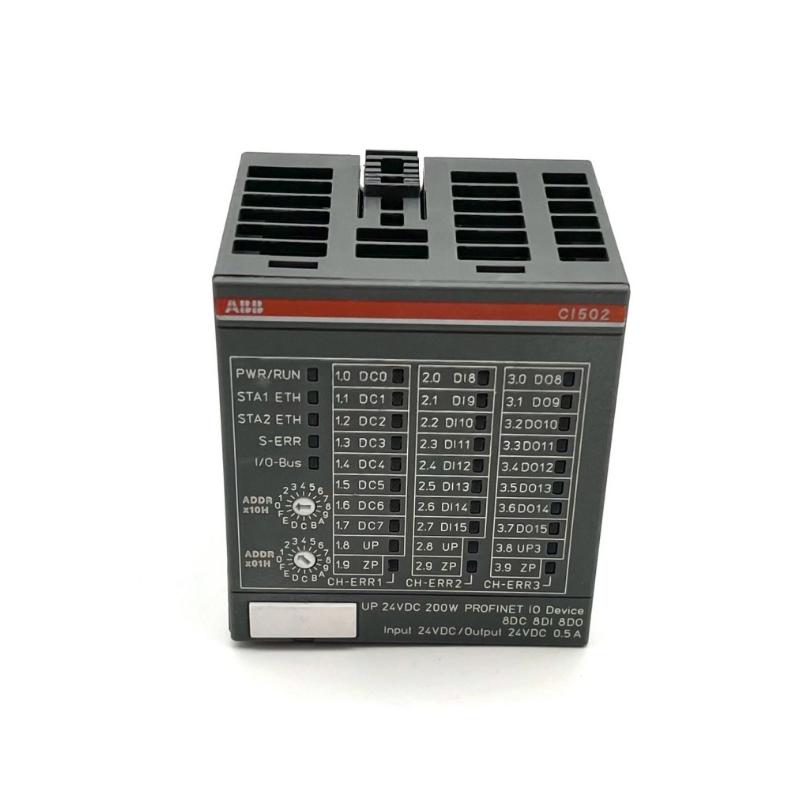

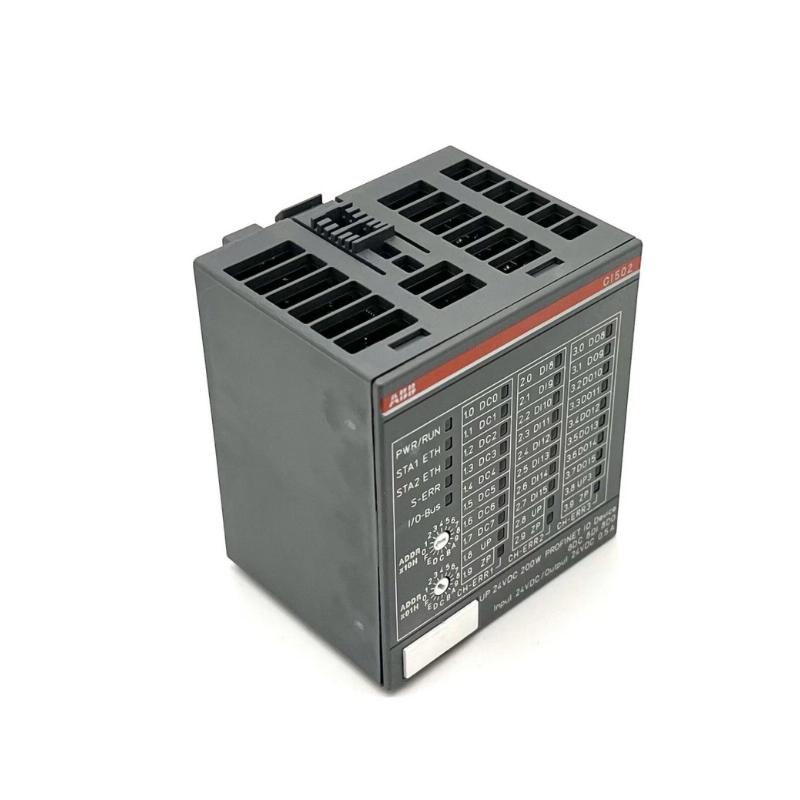

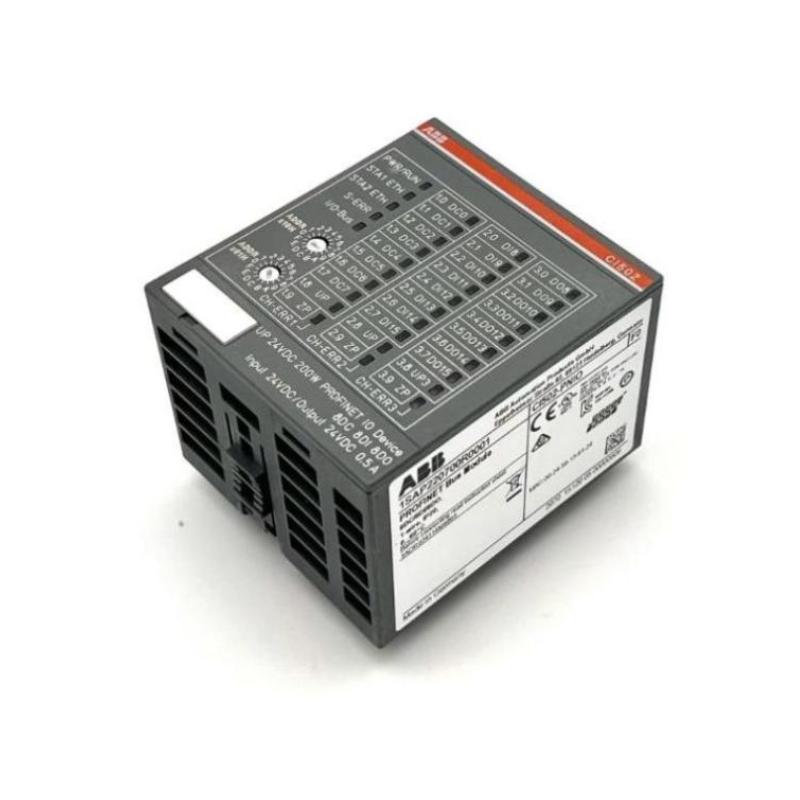

ABB CI502 1SAP220700R0001 Communication Module

Overview

The ABB CI502 is a control interface / communication gateway module used in ABB control and automation systems. It facilitates communication between field devices, networks, and higher-level controllers, supporting protocol conversion and data bridging.

General Information

• Part Number: 1SAP220700R0001 (CI502)

• Manufacturer: ABB

• Series: CI (Communication Interface)

• Type: Control Interface / Communication Module

• Mounting: Racking or chassis-based mounting

• Technology: Ethernet and serial interfaces, protocol bridging and diagnostics

Power Specifications

• Input Voltage: 24 V DC

• Power Consumption: Approx. 3–5 W

• Protection: Surge suppression and reverse-polarity protection on power input

• Indicators: LEDs for power, network link, activity, fault status

Communication & Interface

• Ethernet Ports: Dual RJ-45 10/100 Mbps for network connectivity

• Serial Ports: RS-232 / RS-485 ports for legacy device connections

• Microprocessor: Embedded CPU for protocol handling and diagnostics

• LAN Management: Supports network health monitoring, port redundancy, and loop detection

• Operator Interface: Status LEDs; local port for diagnostics

• Reset Features: Hardware reset via button or system reset via software

I/O & Channels

• Relay / Digital Channels: None — strictly a communication module

• External Load Support: Not applicable (data communications only)

Environmental

• Operating Temperature: –20 °C to +60 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Class: IP20

Dimensions

• Size (L × W × H): 180 × 120 × 60 mm

• Weight: ~0.75 kg
