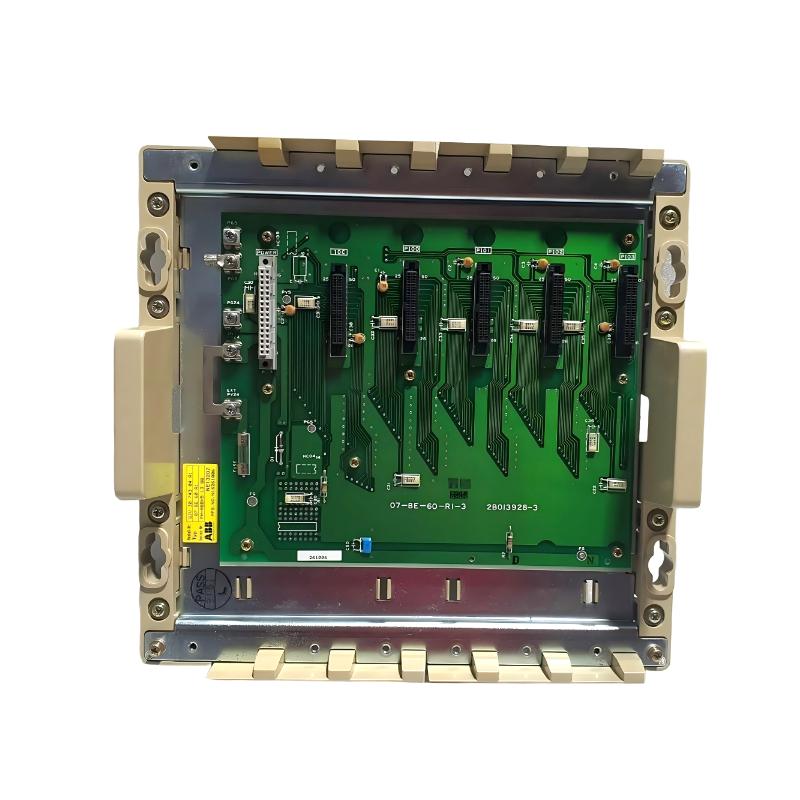

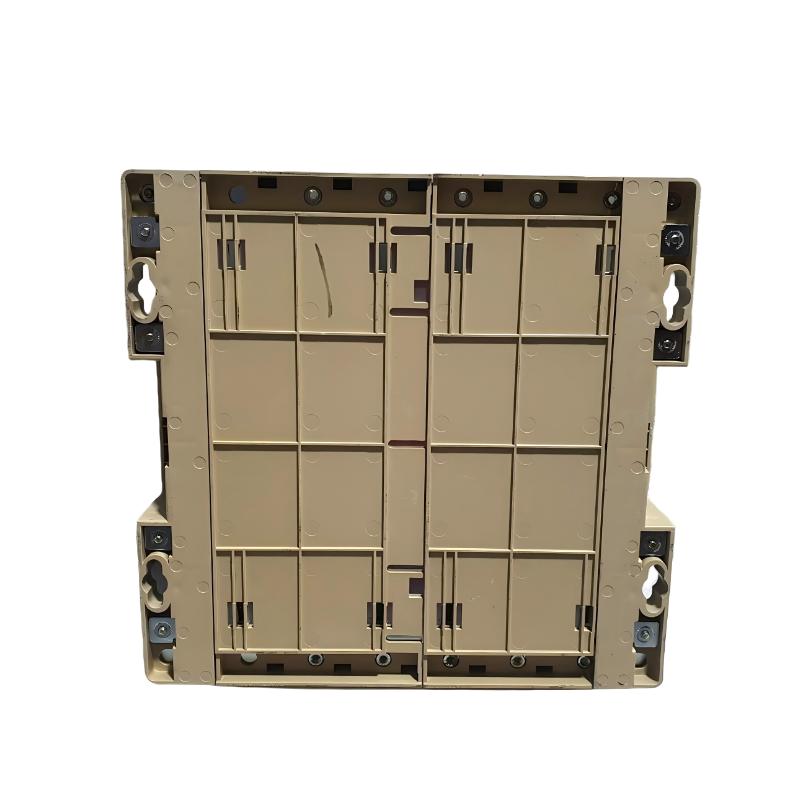

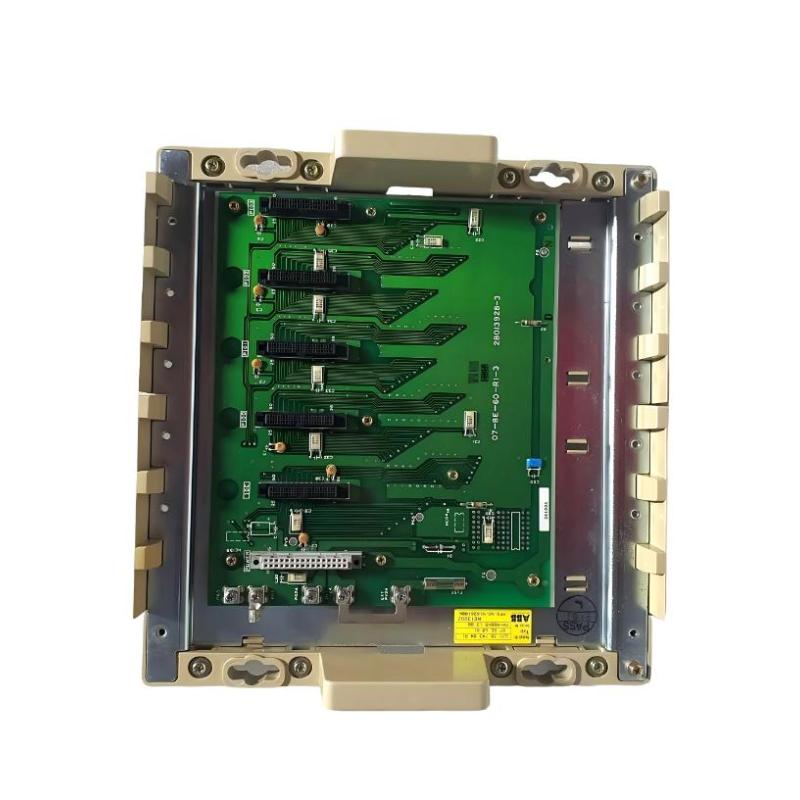

ABB 07 BE 60 R1 GJV3074304R1 | 6-Slot Rack

Overview

The ABB 07 BE 60 R1 GJV3074304R1 is a 6-slot rack used in ABB's automation systems, designed to house various control and I/O modules. This rack provides the necessary power, cooling, and communication infrastructure to ensure the smooth operation of the modules within. It is a critical component in modular control systems, offering flexibility and scalability for industrial automation.

General Information

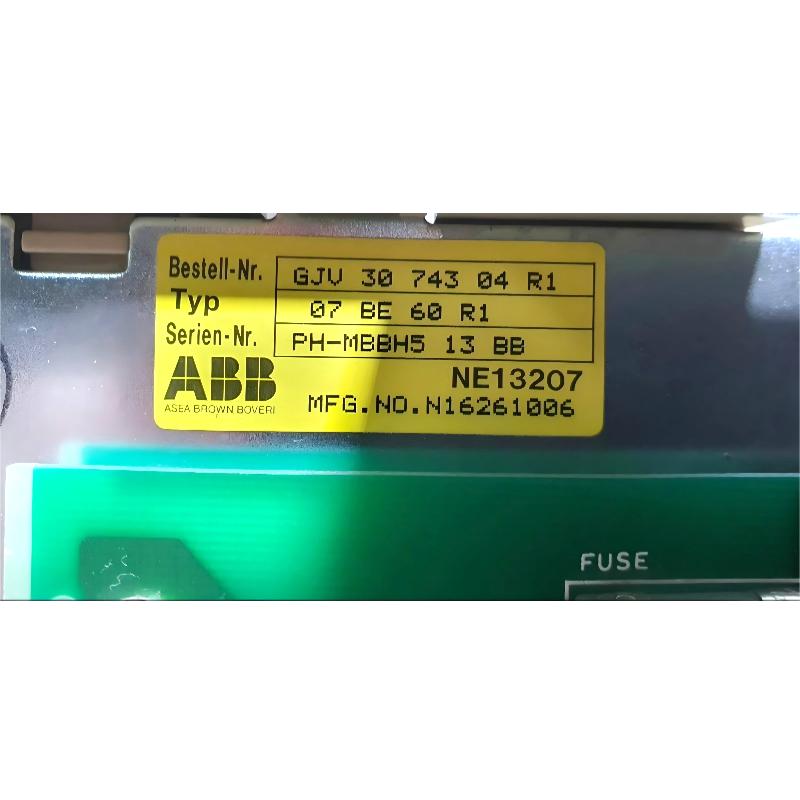

Part Number: GJV3074304R1

Manufacturer: ABB

Series: BE (Automation System)

Type: 6-Slot Rack

Mounting: Panel or rack-mounted installation

Technology: Modular system for control and I/O modules, power and communication distribution

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Varies depending on modules installed

Input: Powered from the main power supply

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, fault detection, and communication status

Communication & Interface

Communication Ports: Provides communication links between installed modules

Diagnostic Features: Monitors the status of installed modules, alerts for faults

Operator Interface: LED indicators for module status and troubleshooting

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 260 × 160 × 150 mm (approx.)

Weight: ~ 2.5 kg (depending on installed modules)
