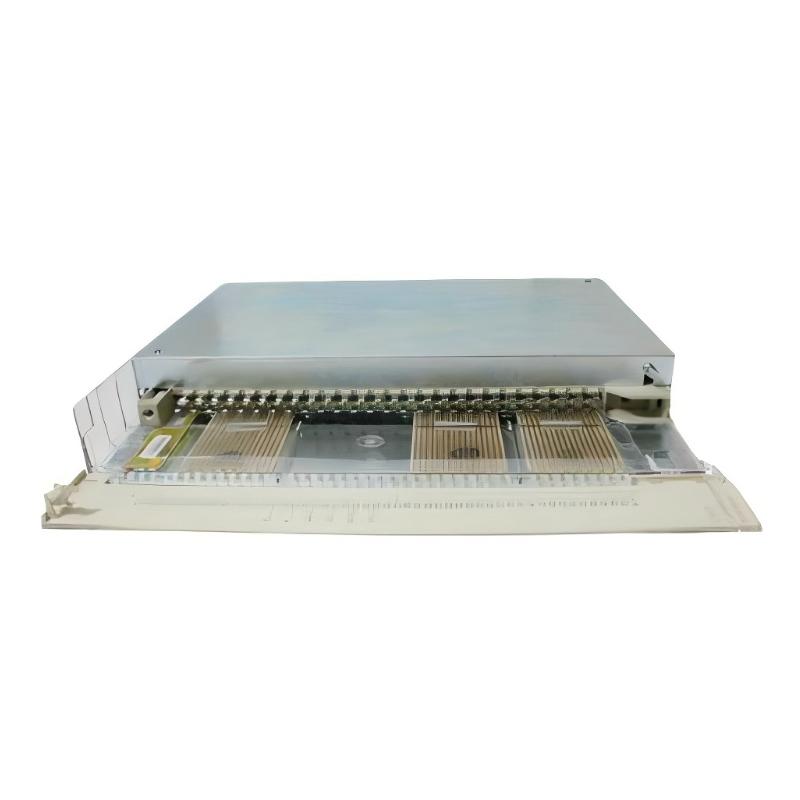

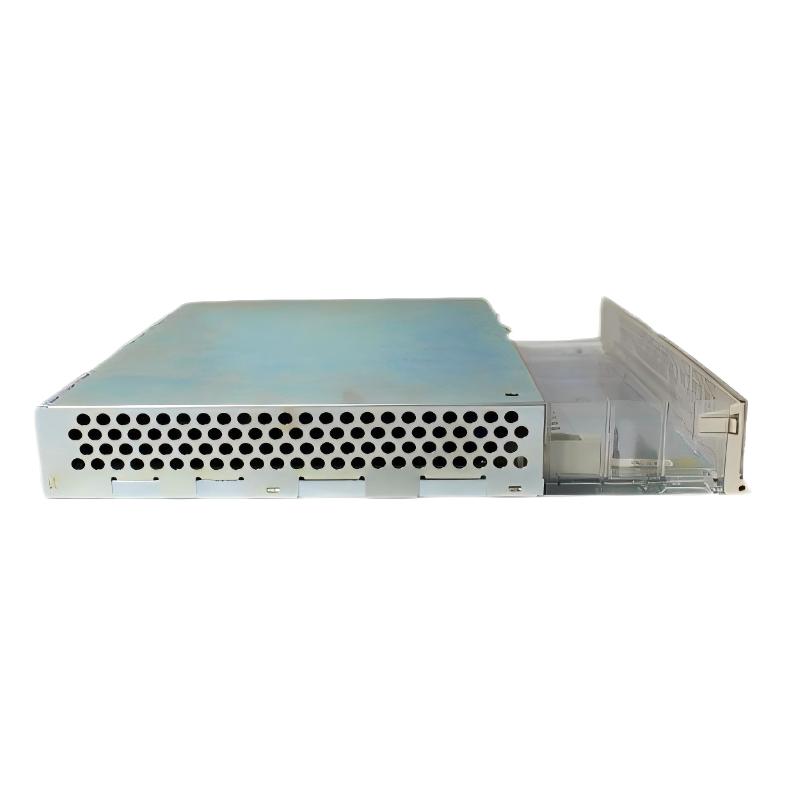

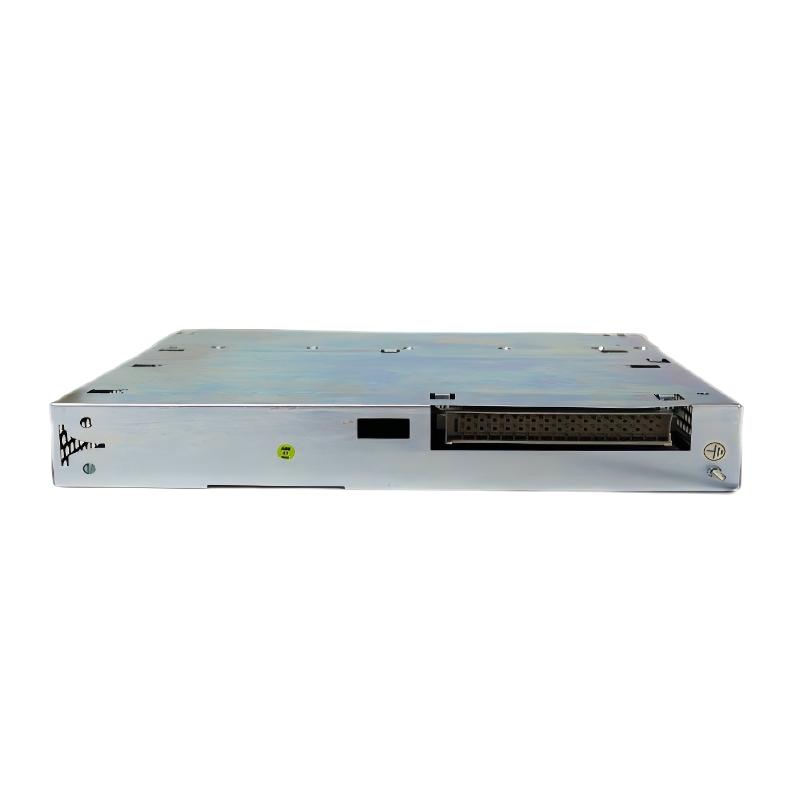

ABB CI670 3BHT300017R1 | Masterfieldbus Interface Module Original

Overview

The ABB CI670 is a communication interface module used in ABB’s MasterFieldbus systems. It acts as a slave device, allowing ABB control systems to communicate with and manage field devices over a MasterFieldbus network.

General Information

Part Number: 3BHT300017R1

Manufacturer: ABB

Series: CI (Communication Interface)

Type: MasterFieldbus Interface Module (Slave)

Mounting: Rack or cabinet installation within the control system

Technology: Fieldbus communication, diagnostics support, galvanic isolation

Power Specifications

Supply Voltage: Provided via the ABB control system backplane

Power Consumption: Moderate, typical for communication modules

Protection: Industrial-grade design with surge and electrical protection

Indicators: LEDs for power, communication link, and fault

Communication & Interface

Protocol: MasterFieldbus (slave mode)

Bus Connection: Interfaces ABB control system with field devices

Diagnostics: Provides network and device status monitoring

Isolation: Galvanic isolation between bus and internal circuitry

Operator Interface: LED indicators for status and troubleshooting

I/O & Channels

Data Channels: Handles process and diagnostic data over MasterFieldbus

Relay Channels: None

External Load Support: Not applicable, module is for communication only

Environmental

Operating Temperature: Industrial cabinet environment

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial cabinet conditions

Dimensions & Weight

Dimensions (L × W × H): 240 × 275 × 40 mm

Weight: ~1.2 kg

Brand-new original products ready to ship, quotes provided instantly, customer service online.
