ABB GV C736 BE101 3BHE019719R0101 IGCT Module Price Advantage

Overview

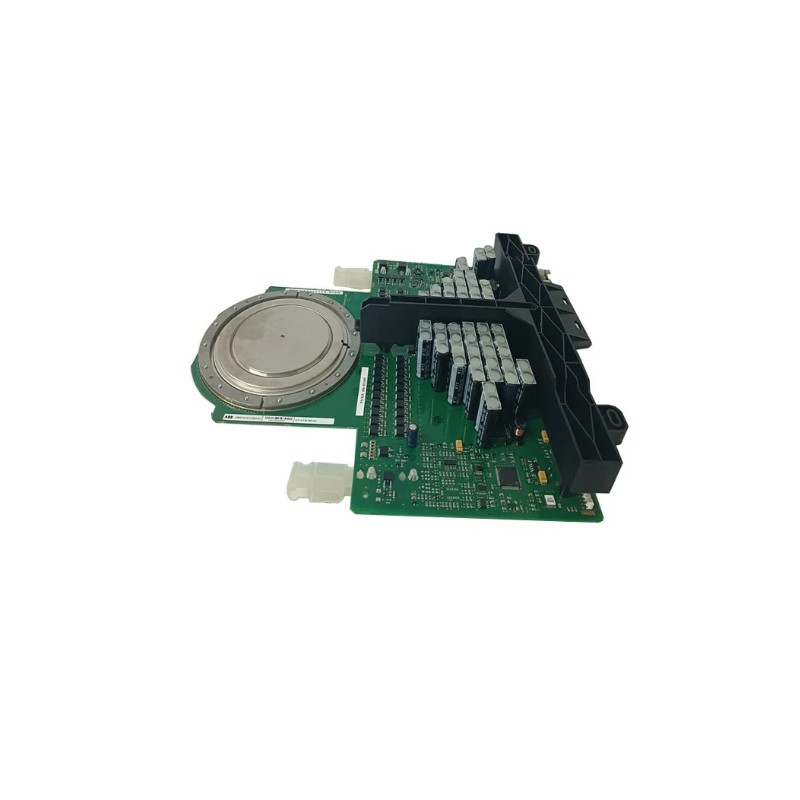

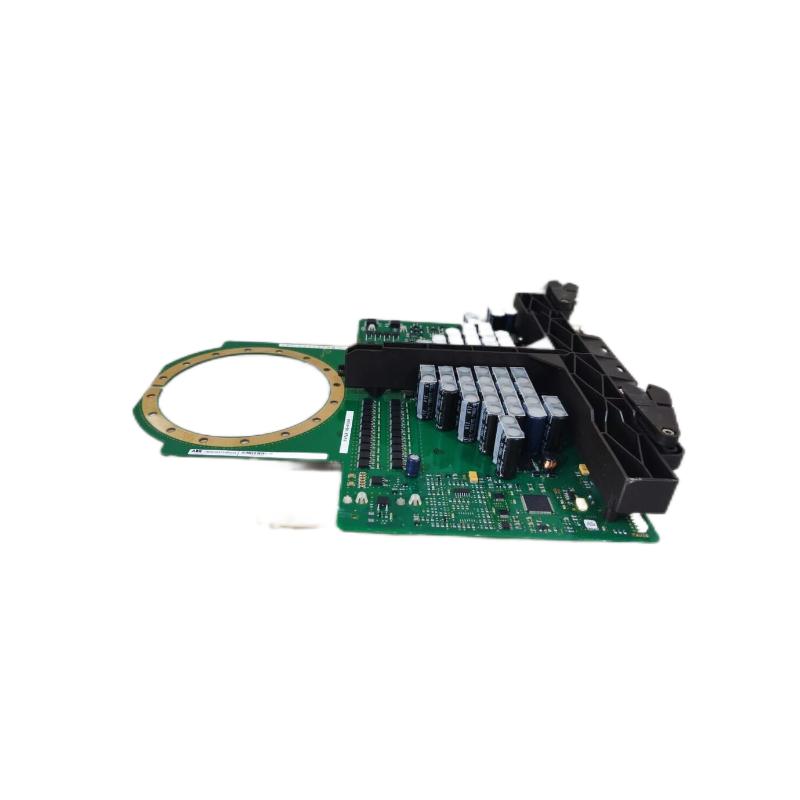

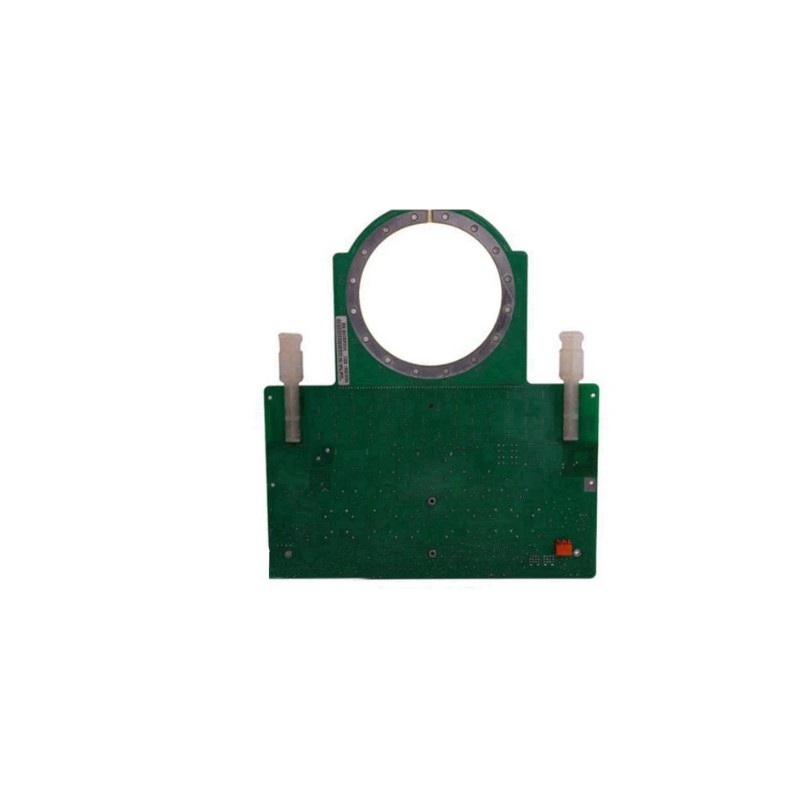

The ABB GV C736 BE101 (3BHE019719R0101) is a gate unit designed for use in medium-voltage AC drives, such as the ACS5000 series. It integrates advanced IGCT (Integrated Gate-Commutated Thyristor) technology to provide efficient control of motor drives, ensuring high performance and reliability in industrial applications.

General Information

• Part Number: 3BHE019719R0101

• Product Name / Model: GV C736 BE101

• Manufacturer: ABB

• Series / Module Type: Gate Unit

• Type: IGCT Module

• Country of Origin: China

• Mounting / Format: DIN rail

• Application Area: Medium-voltage AC drives, industrial automation, motor control

Electrical Specifications

• Input Voltage: 380–500 VAC

• Current Rating: 10–20 A

• Frequency Range: 0–500 Hz

• Switching Frequency: 8 kHz

• Power Supply: 24 V DC

• Signal Types Supported: Analog and digital signals

• Communication Protocols Supported: Not specified

Environmental Parameters

• Operating Temperature: –10 to +55 °C

• Storage Temperature: Not specified

• Relative Humidity: Not specified

• Cooling Method: Natural convection

• Protection Rating: Not specified

Dimensions & Weight

• Dimensions (L × W × H): 160  × 140  × 120mm

• Weight: 2.3 kg

All goods are brand new originals, with stable stock and instant support.
