ABB GFD563A101 3BHE046836R0101 Excitation Device Control Unit Rave reviews

Overview

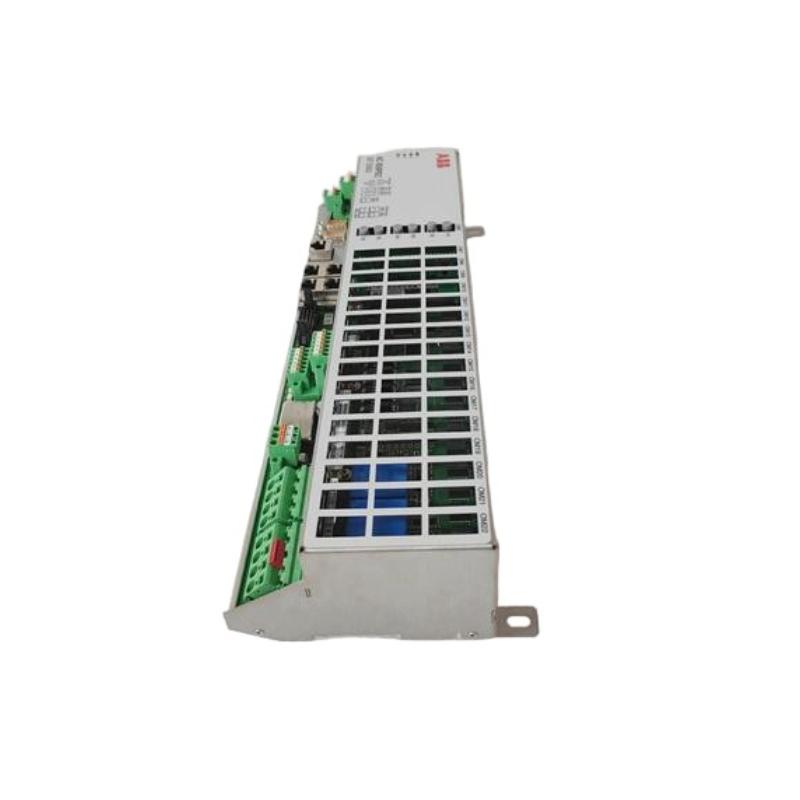

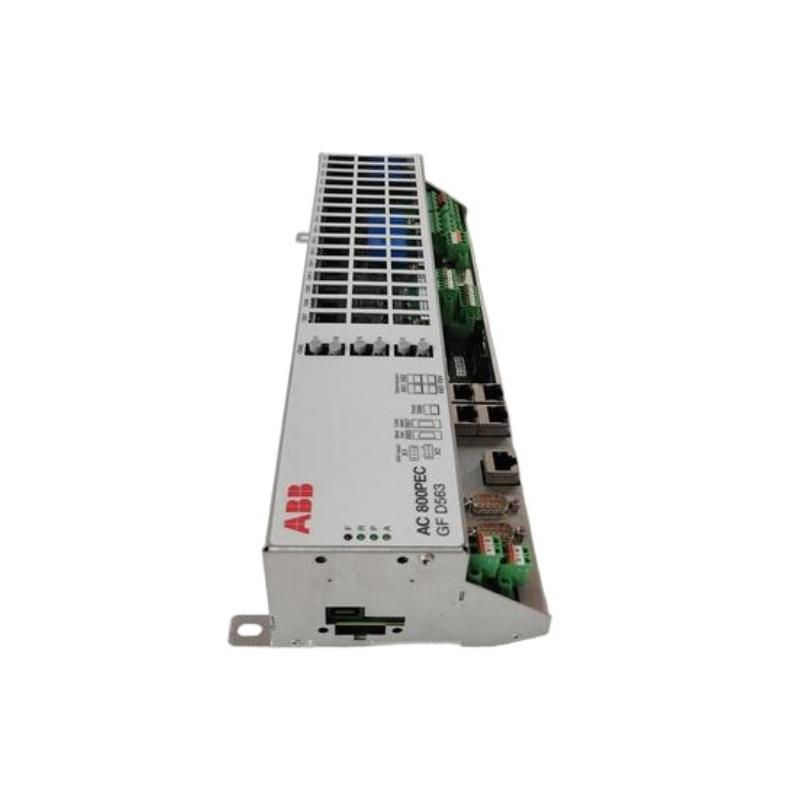

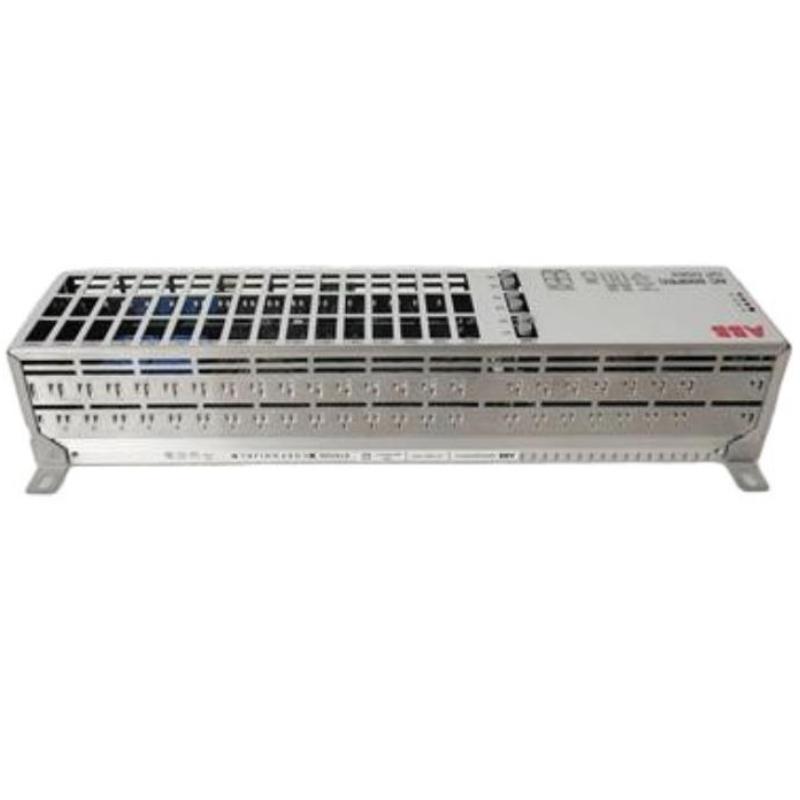

The ABB GFD563A101 (3BHE046836R0101) is a high-performance excitation device control unit designed for industrial automation applications. It is part of ABB's AC 800PEC product family, known for its reliability and advanced technology. This modular unit can be configured to meet diverse application requirements, particularly in power generation and industrial automation systems.

General Information

• Part Number: 3BHE046836R0101

• Product Name / Model: GFD563A101

• Manufacturer: ABB

• Series / Module Type: AC 800PEC

• Type: Excitation Device Control Unit

• Country of Origin: Switzerland

• Mounting / Format: DIN rail

• Application Area: Power generation, industrial automation, marine applications, oil and gas production

Electrical Specifications

• Input Voltage: 190 to 550 VAC

• Input Current: 0 to 5 A

• Output Voltage: 0 to 10 VDC

• Output Current: 0 to 20 A

• Power Supply: 24 V DC

• Power Consumption: 10 W

• Communication Protocols Supported: Modbus TCP, PROFINET, TCP/IP, UDP

• Ethernet Standard: IEEE 802.3

• Data Rate: 10/100 Mbps

• Connectors: RJ45

Environmental Parameters

• Operating Temperature: –40 °C to +70 °C

• Storage Temperature: –25 °C to +85 °C

• Relative Humidity: 5% to 95% RH (non-condensing)

• Cooling Method: Natural convection

• Protection Rating: IP20

Dimensions & Weight

• Dimensions (L × W × H): Approximately 230 × 90 × 260 mm

• Weight: Approximately 3 kg

Factory-new items ready for shipment, supported by customer service.
