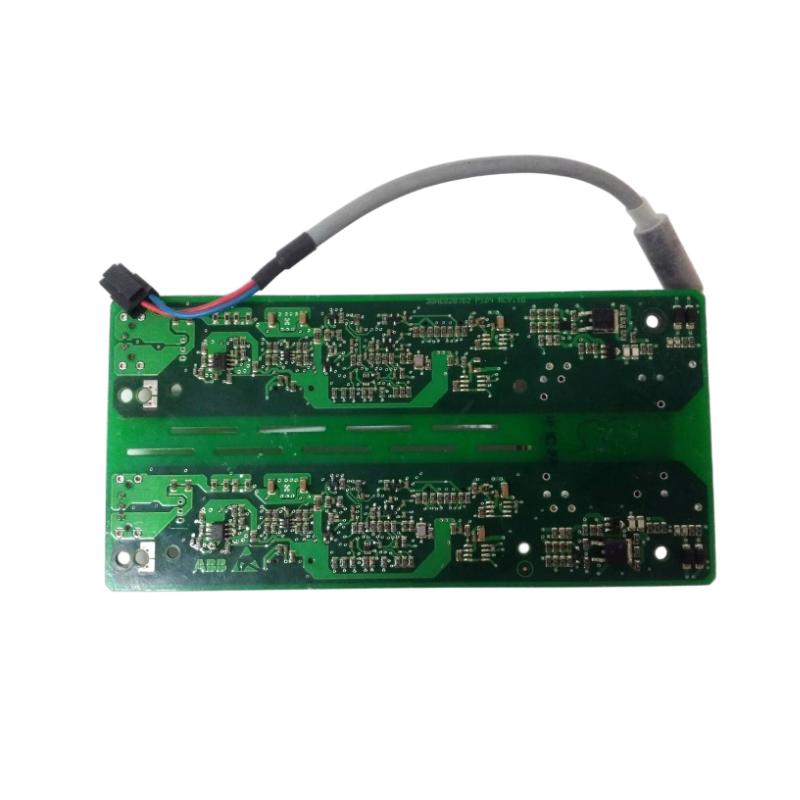

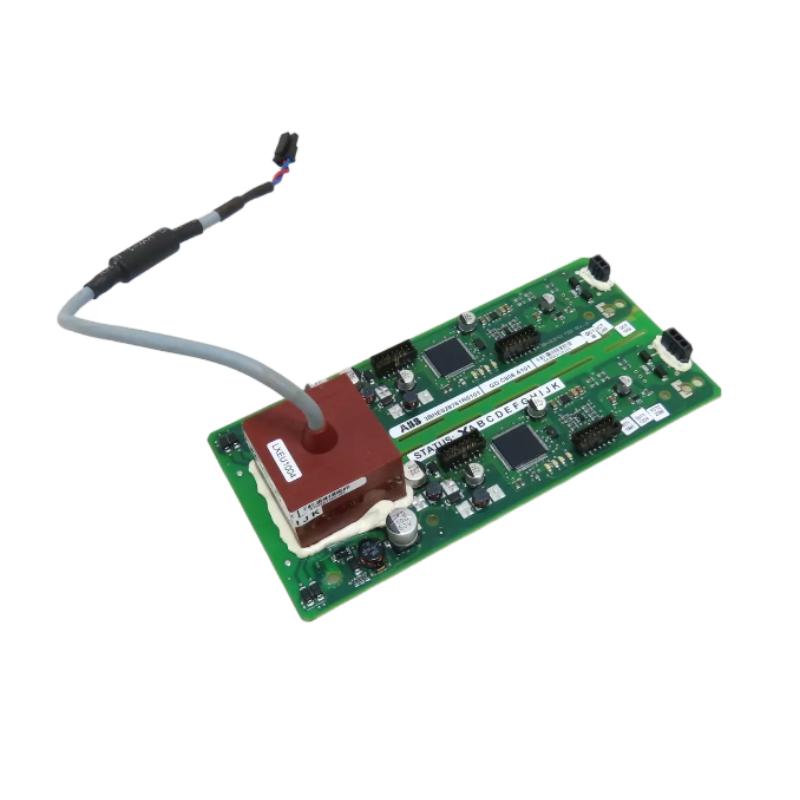

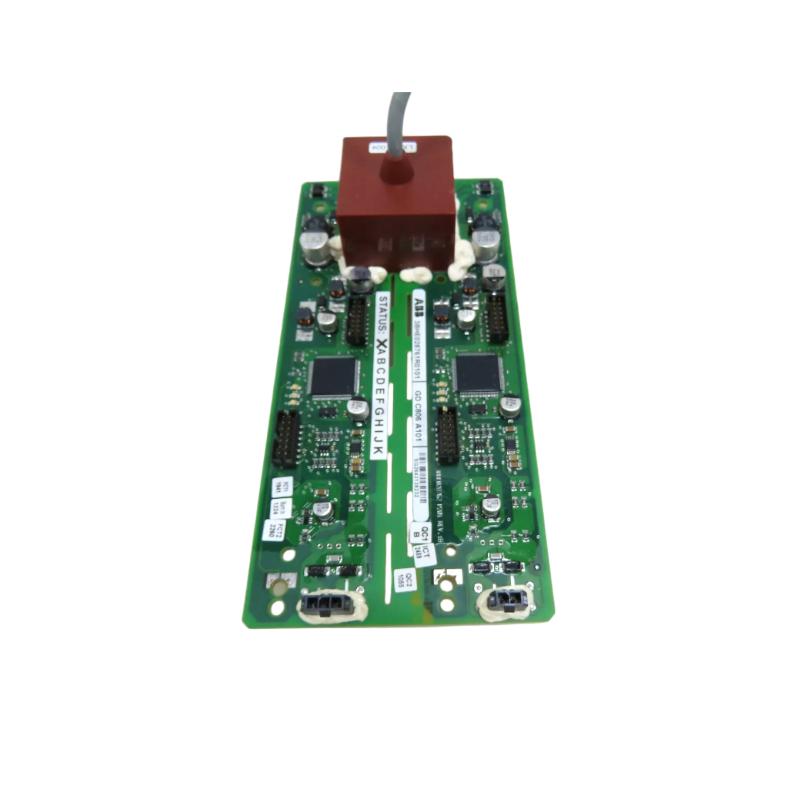

ABB GD C806 A0101 3BHE028761R0101 PCB Circuit Board Efficient delivery

Overview

The ABB GD C806 A0101 (Part No. 3BHE028761R0101) is a specialized PCB circuit board designed for use in ABB's industrial automation and drive systems. It is part of the GD C806 series, which encompasses various gate driver modules used for controlling power semiconductor devices such as IGBTs and MOSFETs.

General Information

• Part Number: 3BHE028761R0101

• Product Name / Model: GD C806 A0101

• Manufacturer: ABB

• Series / Module Type: Gate Driver Module

• Type: PCB Circuit Board

• Country of Origin: Sweden

• Mounting / Format: Rack or chassis module format for integration inside control systems

• Application Area: Industrial automation, drive systems, power converters

Electrical Specifications

• Rated Input Voltage: 24 V DC

• Overload Current: 8 mA

• Power Consumption: Not explicitly listed in available sources

• Signal Types Supported: Not explicitly listed in available sources

• Communication Protocols: Not explicitly listed in available sources

Environmental

• Operating Temperature: –20 °C to +60 °C

• Storage Temperature: Not explicitly listed in available sources

• Relative Humidity: Not explicitly listed in available sources

• Cooling Method: Natural convection

• Protection Rating: Not explicitly listed in available sources

Dimensions & Weight

• Dimensions (L × W × H): 200 × 196 × 26 mm

• Weight: 0.34 kg

100% verified new products in stock, ready for dispatch.
