Overview

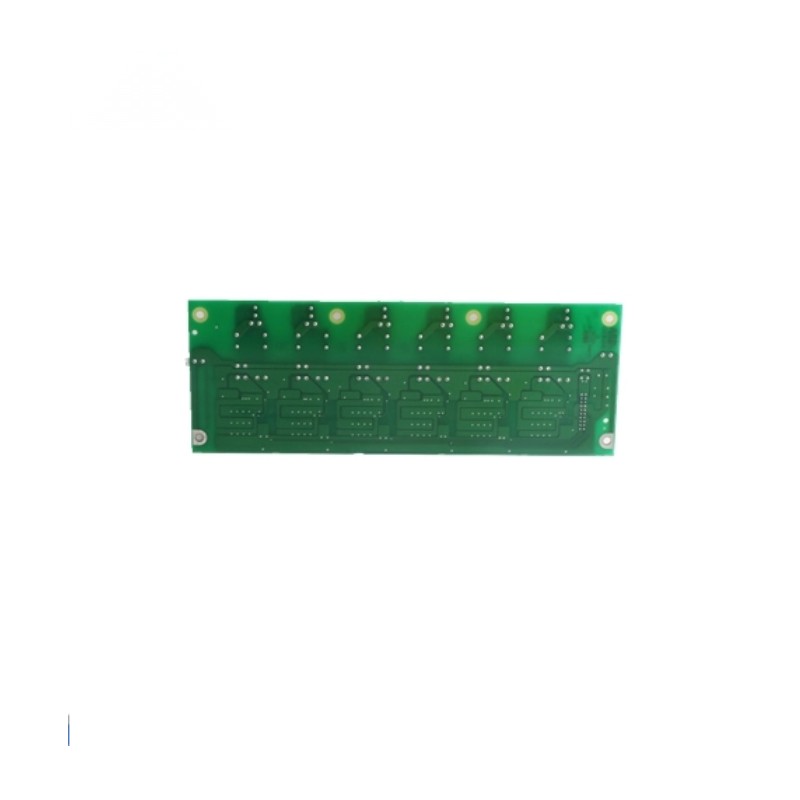

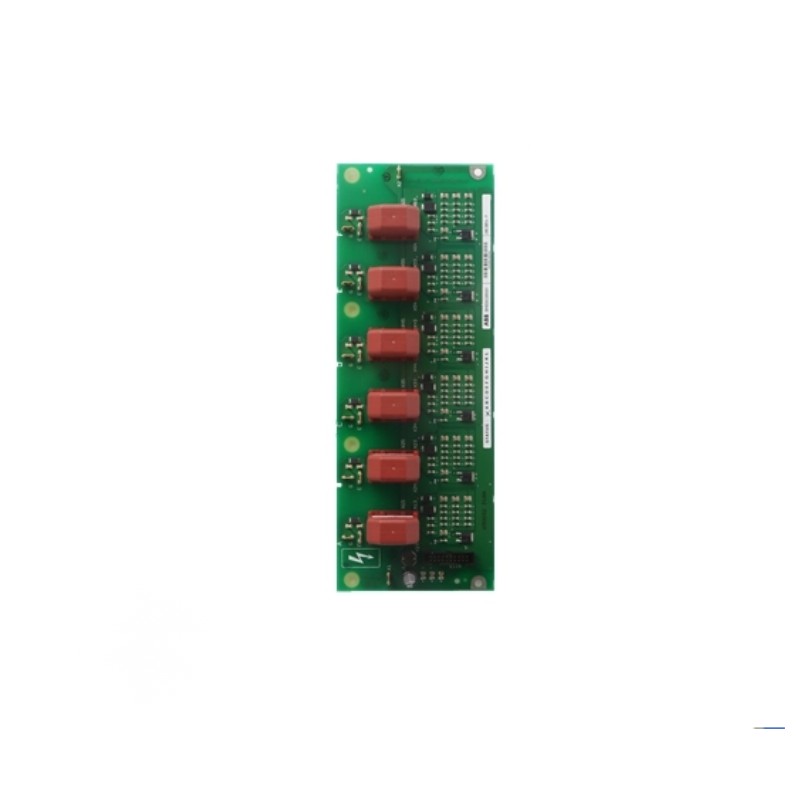

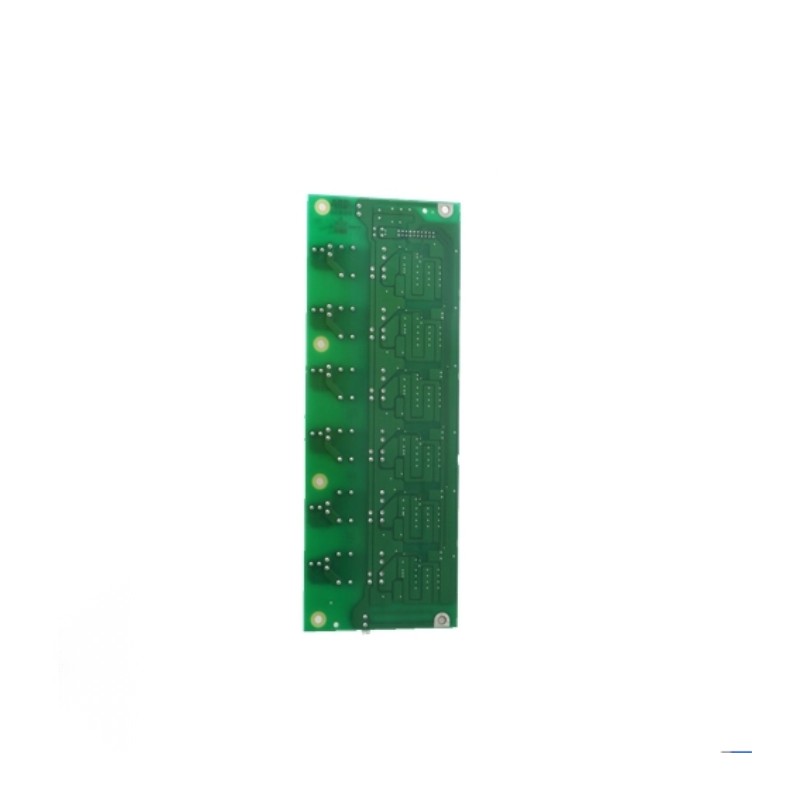

The ABB S-093H is a sensor module used in industrial automation and control systems. It provides precise measurement and monitoring capabilities, supporting reliable data acquisition for safety and process control applications.
General Information
Part Number: 3BHB030478R0309
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: S-093
Type: Sensor Module
Mounting: Panel or DIN-rail installation
Technology: Industrial-grade sensing technology with high accuracy and reliability
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power industrial module
Input Source: External 24 V DC supply
Protection: Overvoltage and short-circuit protection
Indicators: LED indicators for status and operation
Communication & Interface
Communication Ports: Signal output for integration with control systems
Module Role: Provides sensor data to PLCs or monitoring equipment
Diagnostics: Continuous self-check and fault detection
Operator Interface: Status LEDs
Reset Features: Supports module reset via power cycle or control signal
I/O & Channels
Input/Output Channels: Supports multiple sensor channels
Channel Type: Analog or digital signals (model-dependent)
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation in industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 100 × 50 × 40 mm
Weight: ~ 0.5 kg
