Overview

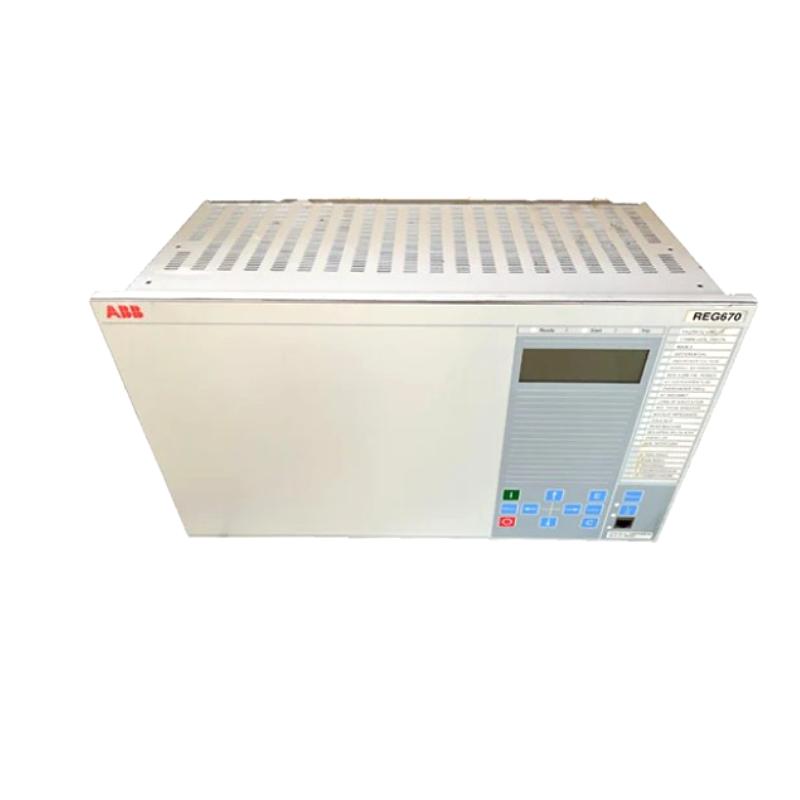

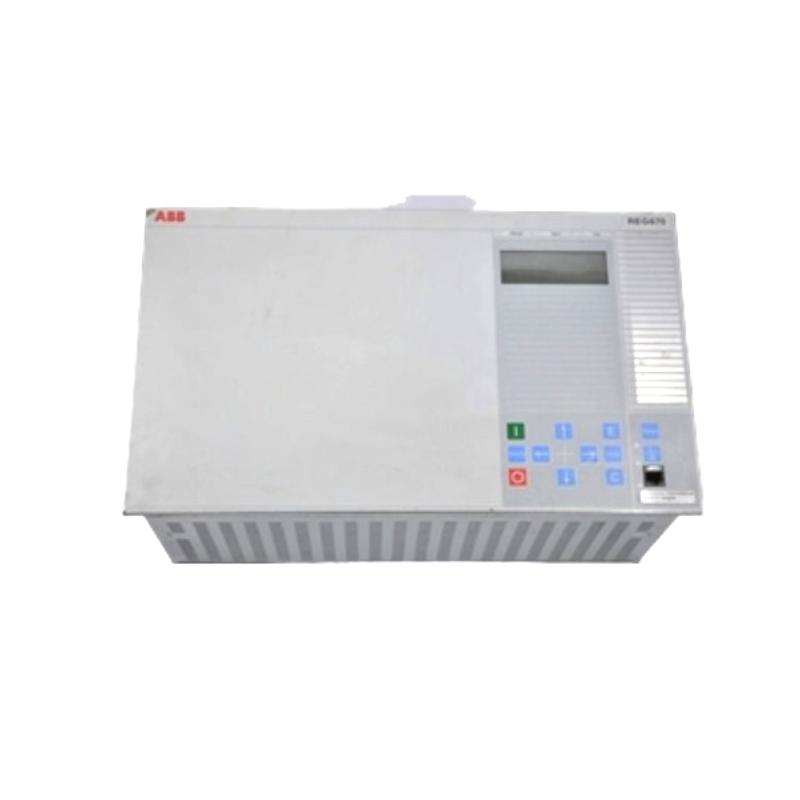

The ABB REG670 is a high-performance control and protection system module used in power generation and industrial automation. It provides advanced monitoring, protection, and control functions, supporting reliable operation and integration within ABB’s 670 series control platforms.
General Information
Part Number: 1MRK002826-AA
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: REG670
Type: Control System Module
Mounting: Panel or rack installation in industrial control cabinets
Technology: Modular architecture with integrated protection, control, and communication functions
Power Specifications
Supply Voltage: 24 V DC or 48 V DC (system-dependent)
Power Consumption: Efficient high-performance module
Input Source: External DC supply or system backplane
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for status, fault, and communication
Communication & Interface
Communication Ports: Ethernet, serial, and fieldbus interfaces
System Role: Central controller for protection, monitoring, and automation
Diagnostics: Continuous self-diagnostics and fault reporting
Operator Interface: LED indicators and engineering software configuration
Reset Features: Supports hardware and software reset
I/O & Channels
Local I/O: Expandable via compatible I/O modules
Function: Executes control logic, protection schemes, and monitoring functions
External Load Support: Not applicable (module only)
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 280 × 220 × 100 mm
Weight: ~ 2.5 kg
