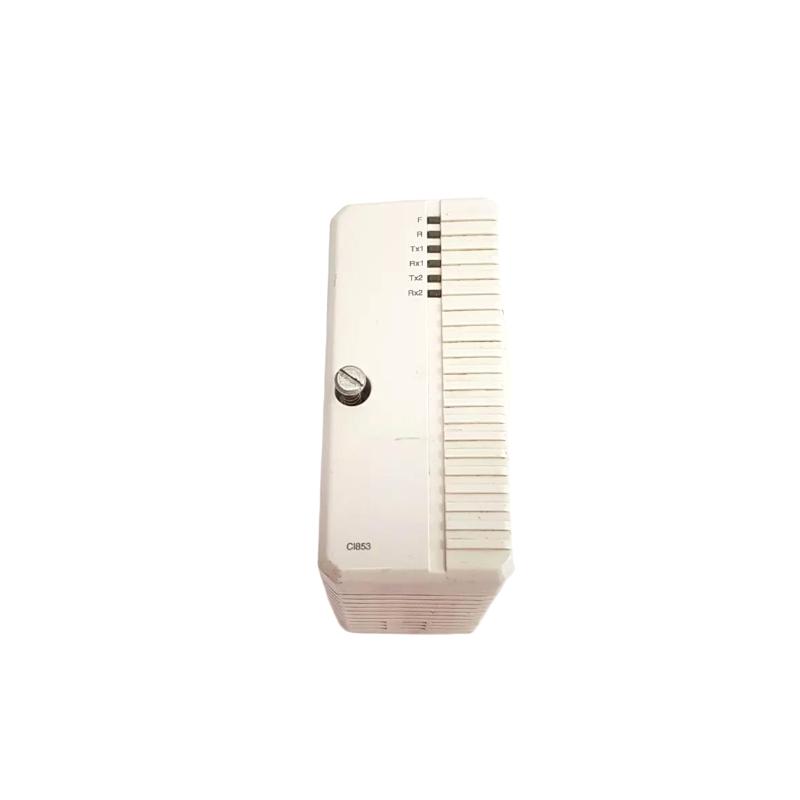

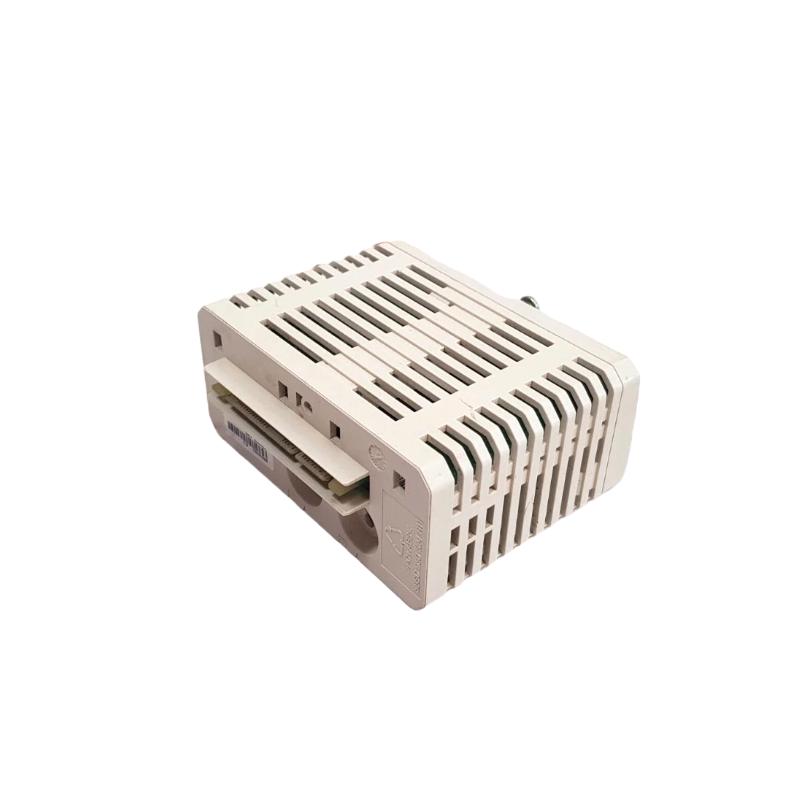

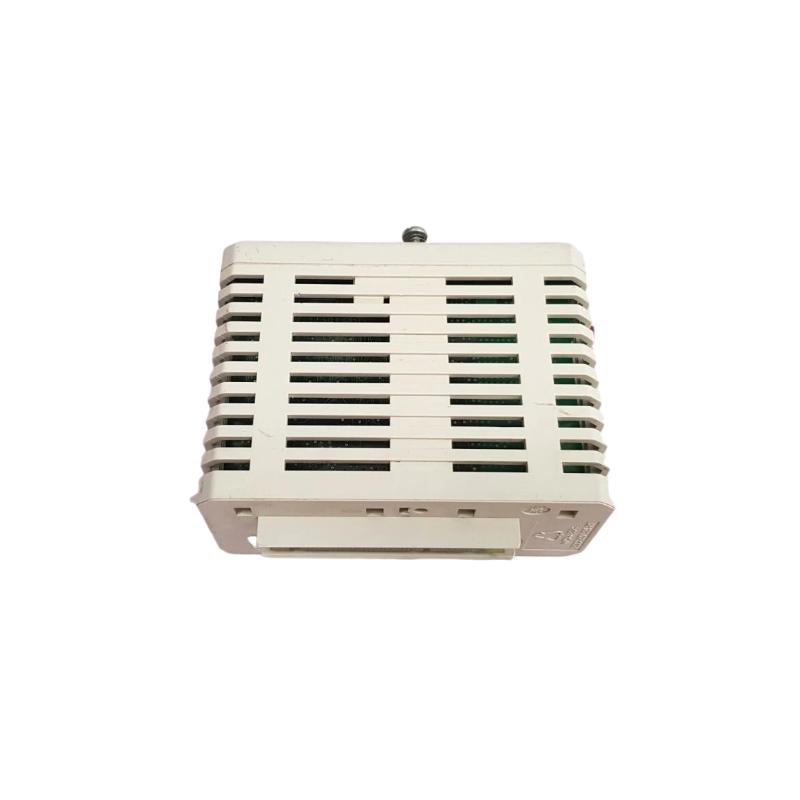

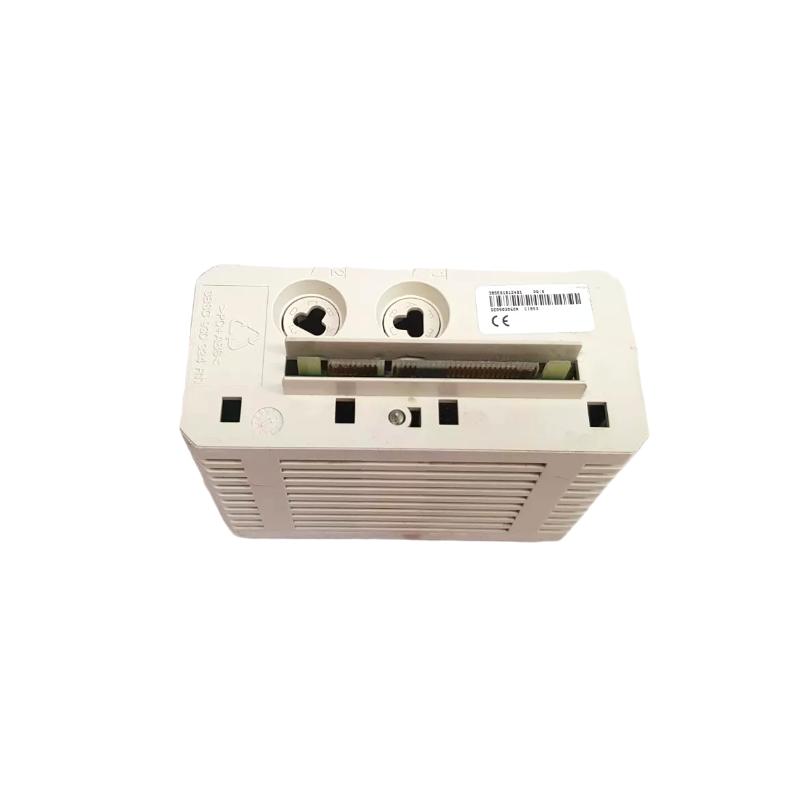

ABB CI853 3BSE018124R1 Communication Interface Module Quality Assurance

Overview

The ABB CI853 3BSE018124R1 is a communication interface module designed for ABB’s AC 800M and S800 I/O systems. It enables reliable and high-speed data exchange between the control system and field devices over PROFIBUS-DP, supporting advanced diagnostics and redundancy for critical industrial automation applications.

General Information

• Part Number: 3BSE018124R1

• Manufacturer: ABB

• Product Series: CI800 Series / S800 I/O

• Type: Communication Interface Module (PROFIBUS-DP)

• Country of Origin: Sweden

• Mounting: DIN-rail or baseplate installation within S800 I/O system

• System Compatibility: AC 800M Controller and S800 I/O subsystems

Power Specifications

• Supply Voltage: 24 V DC nominal

• Power Consumption: ≤ 3.5 W

• Input Source: Powered from I/O backplane

• Protection: Short-circuit, overvoltage, and reverse-polarity protection

• Indicators: LEDs for power, communication link, and fault status

Communication & Interface

• Interface Type: PROFIBUS-DP slave

• Bus Speed: Up to 12 Mbps

• Supported Devices: PROFIBUS-compatible field modules and controllers

• Diagnostics: Bus supervision, fault detection, and redundancy monitoring

• Configuration: Managed via ABB Control Builder or Compact Control Builder software

• Redundancy Support: Yes, supports redundant CI853 module pairing

Environmental

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for installation inside industrial cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 185 × 59 × 127.5 mm

• Weight: 0.2 kg

Brand-new originals directly supplied, 24/7 customer support, quotes provided instantly.
