ABB 5SHY3545L0016 3BHB020720R0002 | IGCT Module Quality Selection
| Release time | Nov 14, 2025 |
|---|---|
| Brand | ABB PLC |
| Product Numbe | ABB 5SHY3545L0016 3BHB020720R0002 |
| Country Of Origin | Sweden |
| Dimensions | 150 × 100 × 40 mm |
| Weight | 1.5 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview

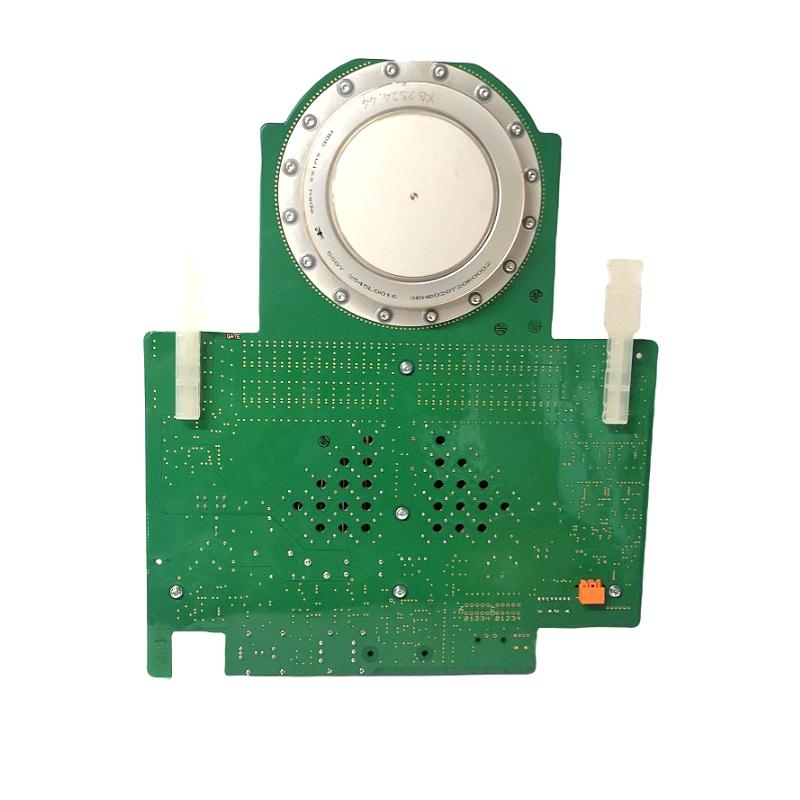

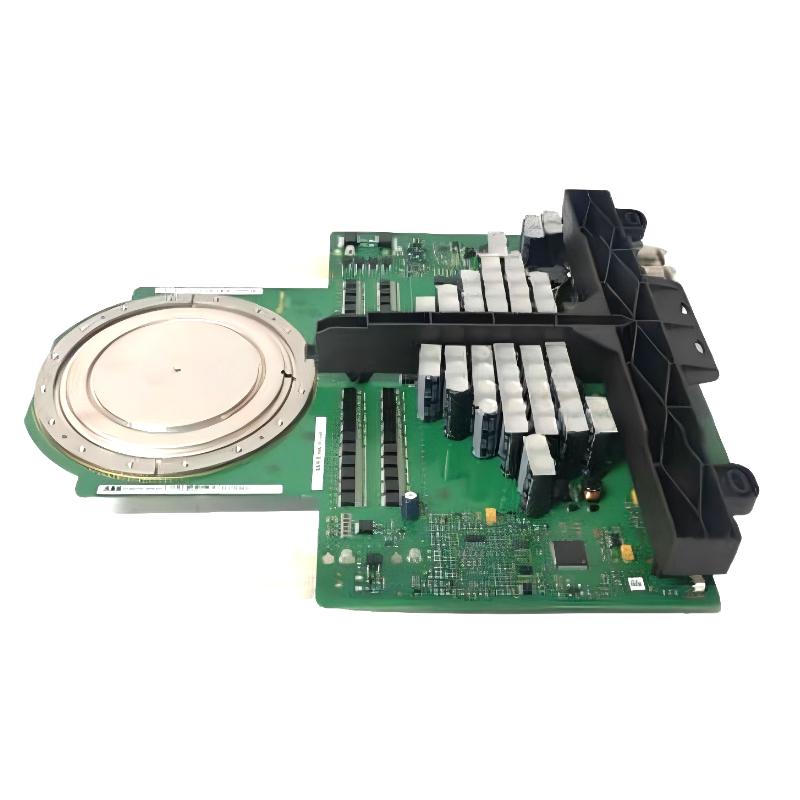

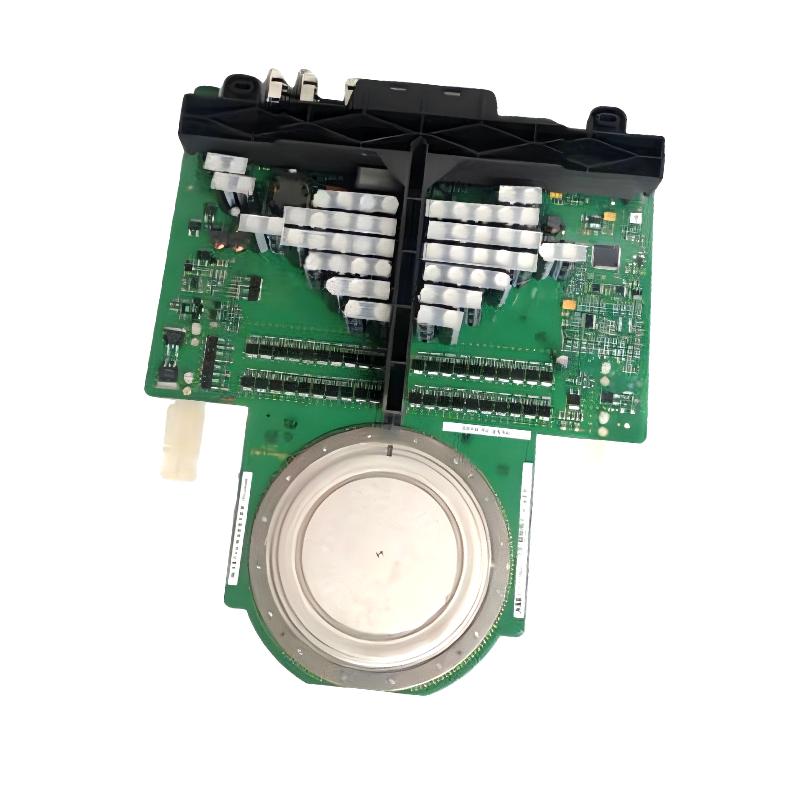

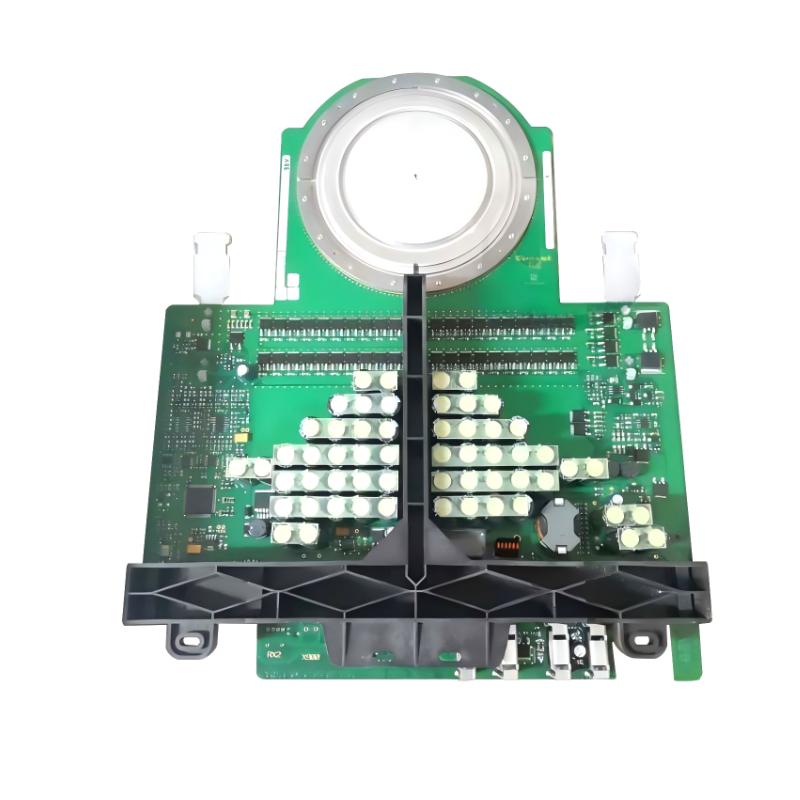

The ABB 5SHY3545L0016 3BHB020720R0002 is an Insulated Gate Commutated Thyristor (IGCT) module designed for power electronics applications. It provides high efficiency and fast switching capabilities, enabling reliable operation in various industrial power control systems, such as motor drives and power converters.
General Information
Brand: ABB
Country of Origin: Switzerland
Type: IGCT Module
Technology: Power electronics, high-speed switching
Mounting: Rack or chassis installation
Power Specifications
Supply Voltage: 24 V DC (typical control voltage)
Power Consumption: Dependent on application
Input: Powered from the control system or external power supply
Protection: Surge and reverse-polarity protection
Indicators: LEDs for power and operational status
Communication & Interface
Ethernet / Fieldbus Port: Not applicable
Bus Coupler Role: Controls and switches high-power signals in power electronics systems
Diagnostics: Fault detection, system monitoring
Operator Interface: LED indicators for status and diagnostics
Reset Features: Manual reset
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for controlled environments)
Dimensions & Weight
Dimensions (L × W × H): 150 × 100 × 40 mm
Weight: 1.5 kg
Original products, ready for immediate pickup.
