Overview

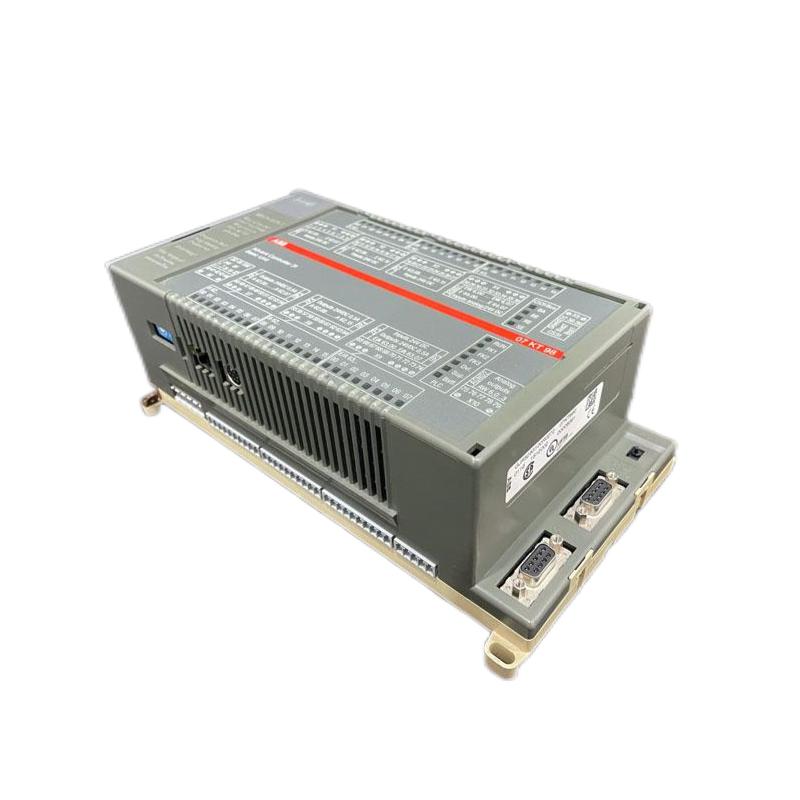

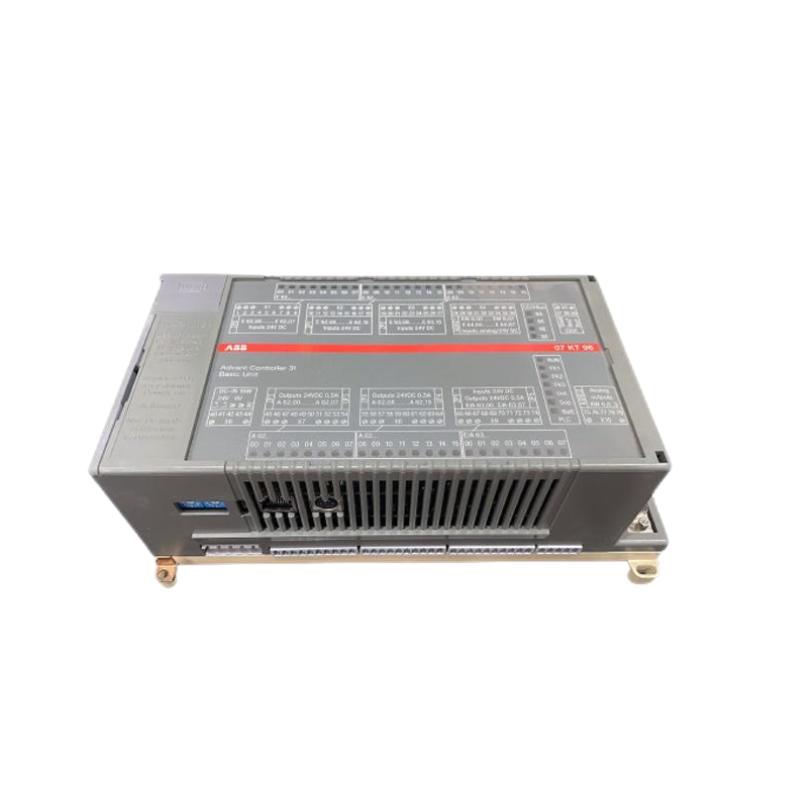

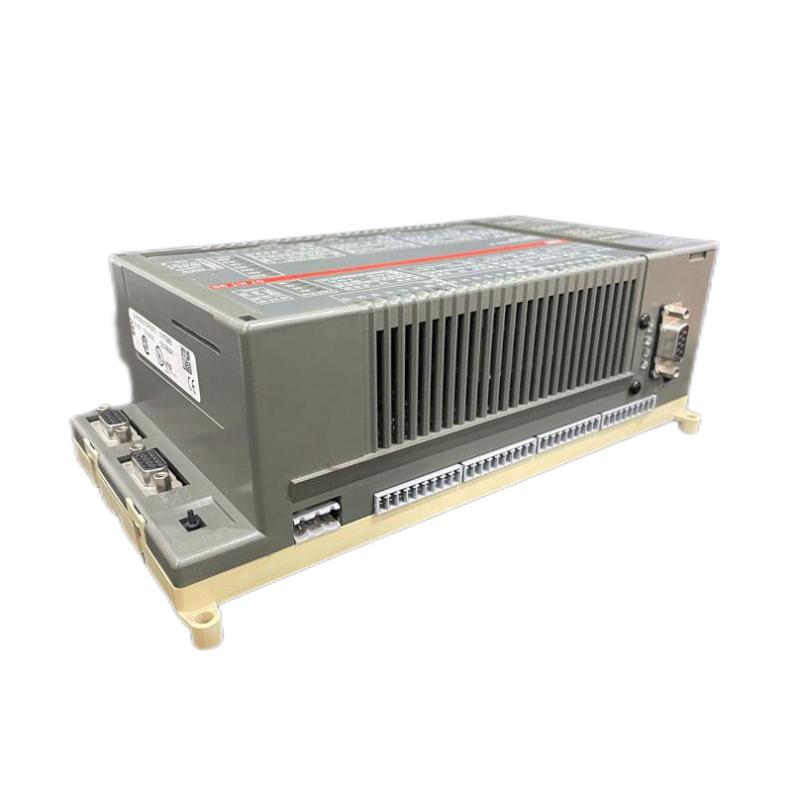

The ABB 07KT98 (GJR5253100R0272) is a high-performance processor module designed for the ABB Advant Controller 400 series. It functions as the system’s central processing unit (CPU), managing control logic execution, communication tasks, and overall system coordination. Engineered for industrial automation, it ensures reliable and efficient operation in process control and manufacturing environments.
General Information
Brand: ABB
Country of Origin: Sweden
Part Number: GJR5253100R0272
Series: Advant Controller 400
Product Type: Processor Module / CPU Unit
Mounting Method: Rack-mounted within the Advant system chassis
Function: Executes process control logic, supervises data communication, and coordinates system operations
Technology: High-speed microprocessor with integrated diagnostics and communication interfaces
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Powered via the system backplane
Protection Features: Overvoltage, surge, and reverse polarity protection
Indicators: LED indicators for power, operation, and fault conditions
Communication & Interface
Communication Ports: System bus, serial interface, and I/O bus
Supported Protocols: Advant fieldbus and internal system communication standards
Diagnostics: Built-in self-test and fault detection via LED status display
Configuration: Configured through ABB engineering or maintenance tools
Reset Options: Supports both software and hardware reset
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (suitable for cabinet installation)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 240 × 140 × 85 mm
Weight: Approx. 1.6 kg
