Overview

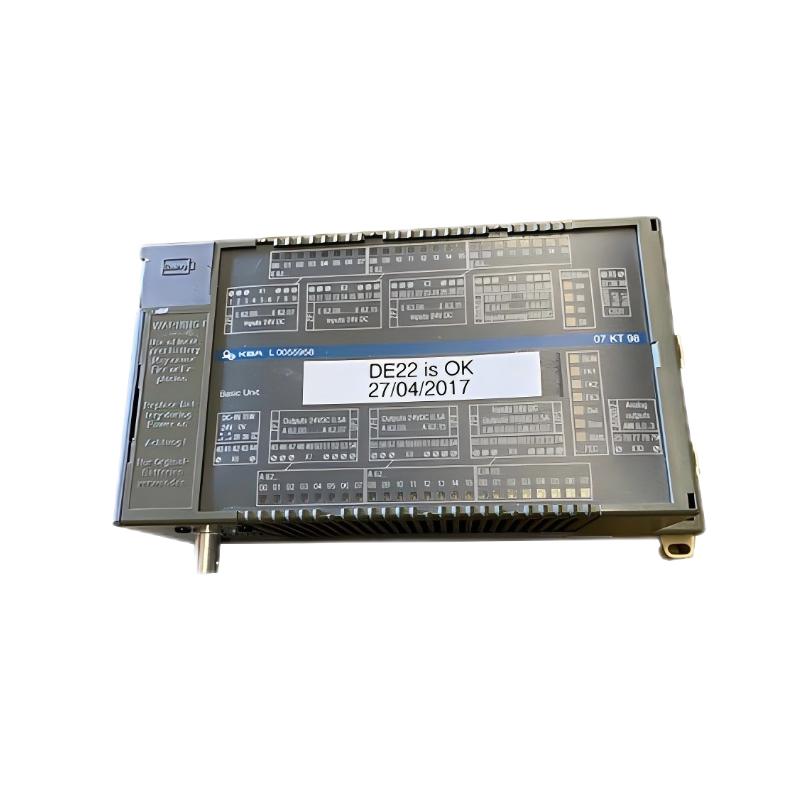

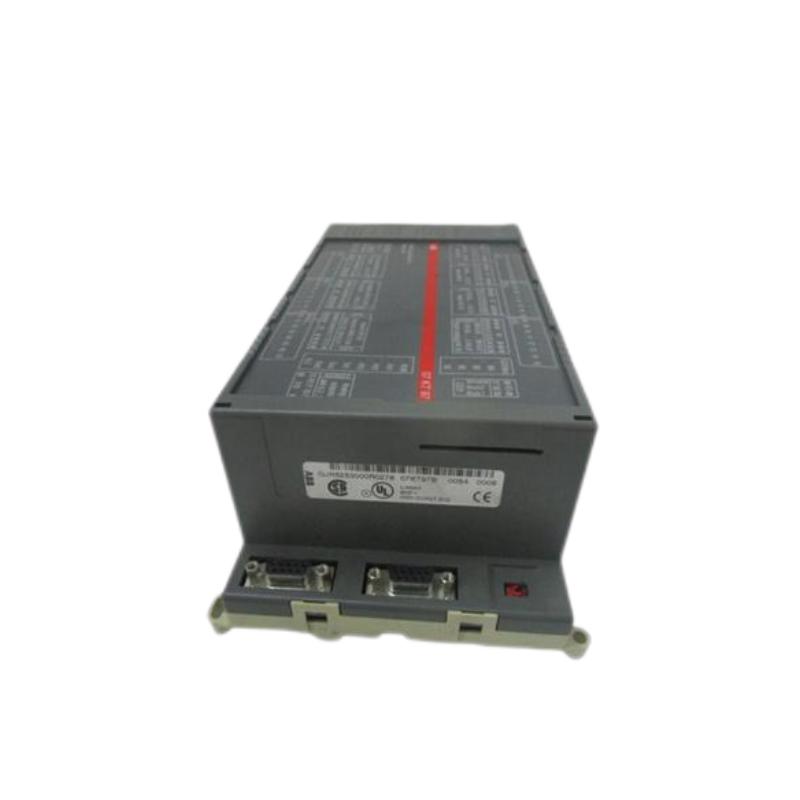

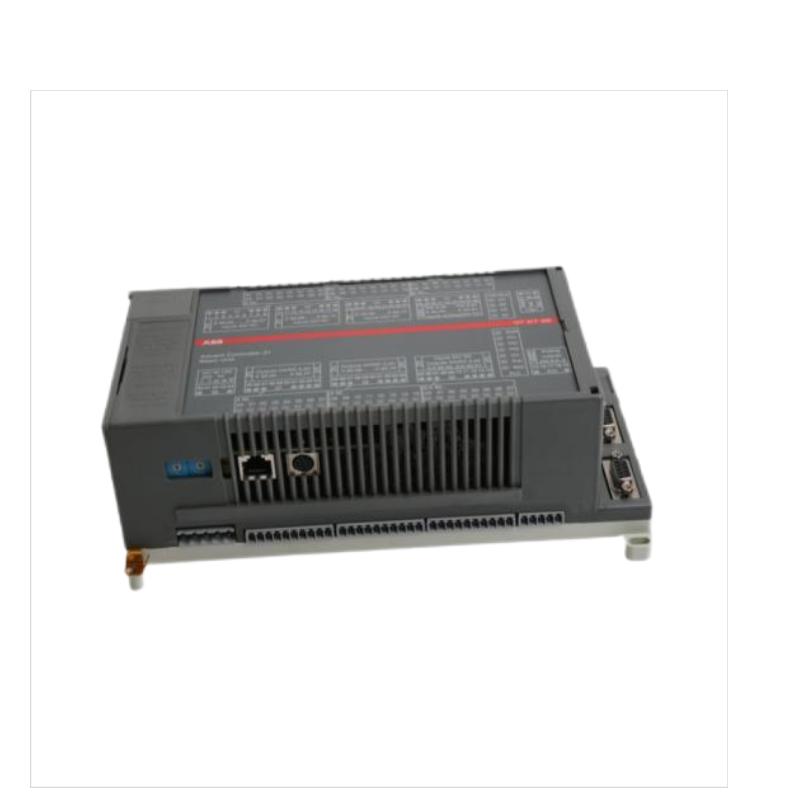

The ABB 07KT98 (GJR5253100R0220) is a high-performance processor module designed for use within the ABB Advant Controller 400 system. It operates as the main CPU, responsible for executing control logic, managing data communication, and coordinating system operations. With its robust design and reliable performance, this module is widely used in industrial process control and factory automation applications.
General Information
Brand: ABB
Country of Origin: Sweden
Part Number: GJR5253100R0220
Series: Advant Controller 400
Product Type: Processor Module / CPU Unit
Mounting Method: Rack-mounted within the Advant system chassis
Function: Executes process control logic, manages system communication, and supervises I/O operations
Technology: High-speed microprocessor with integrated communication and diagnostic capabilities
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Powered through the system backplane
Protection Features: Overvoltage, surge, and reverse polarity protection
Indicators: LED indicators for power, communication, and fault status
Communication & Interface
Communication Ports: System bus, serial interface, and I/O bus connections
Supported Protocols: Advant fieldbus and internal system communication
Diagnostics: Built-in self-test and fault indication through LED display
Configuration: Performed via ABB engineering or maintenance software
Reset Options: Supports both hardware and software reset
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (suitable for cabinet installation)
Cooling Method: Natural convection air cooling
Dimensions & Weight
Dimensions (L × W × H): 240 × 140 × 85 mm
Weight: Approx. 1.6 kg
