Overview

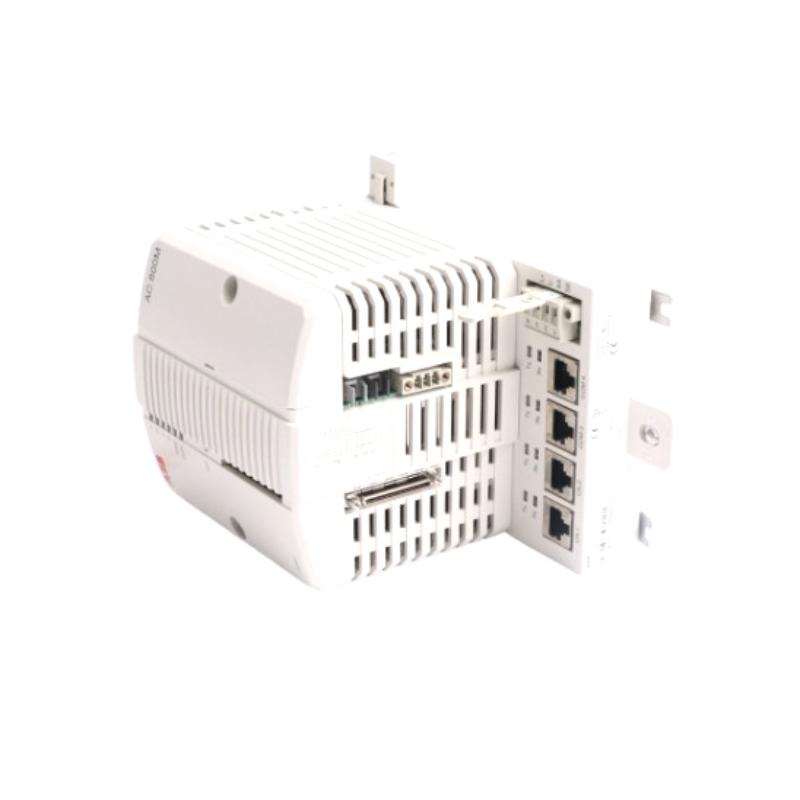

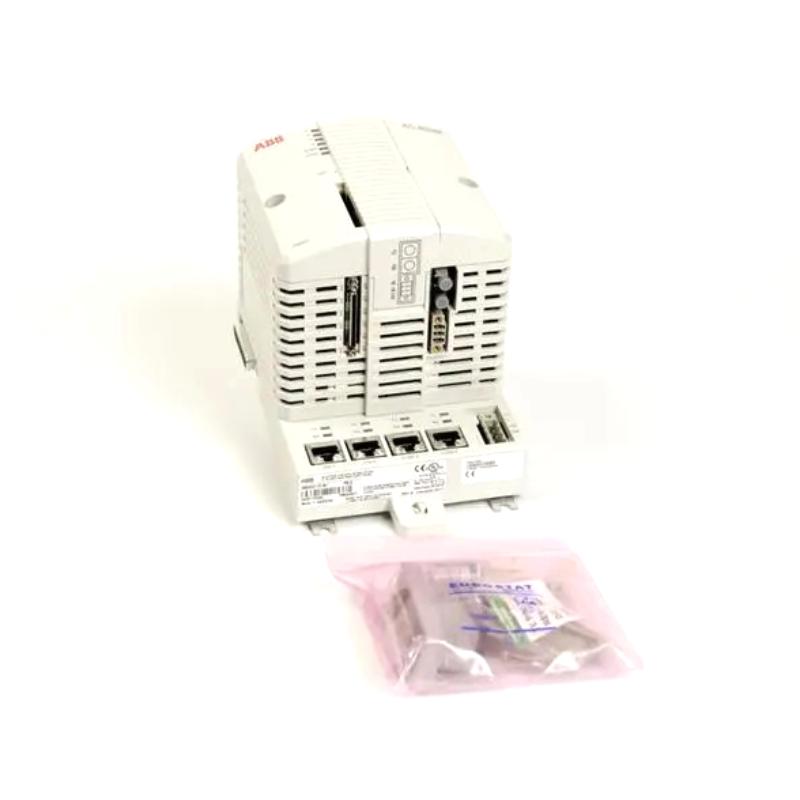

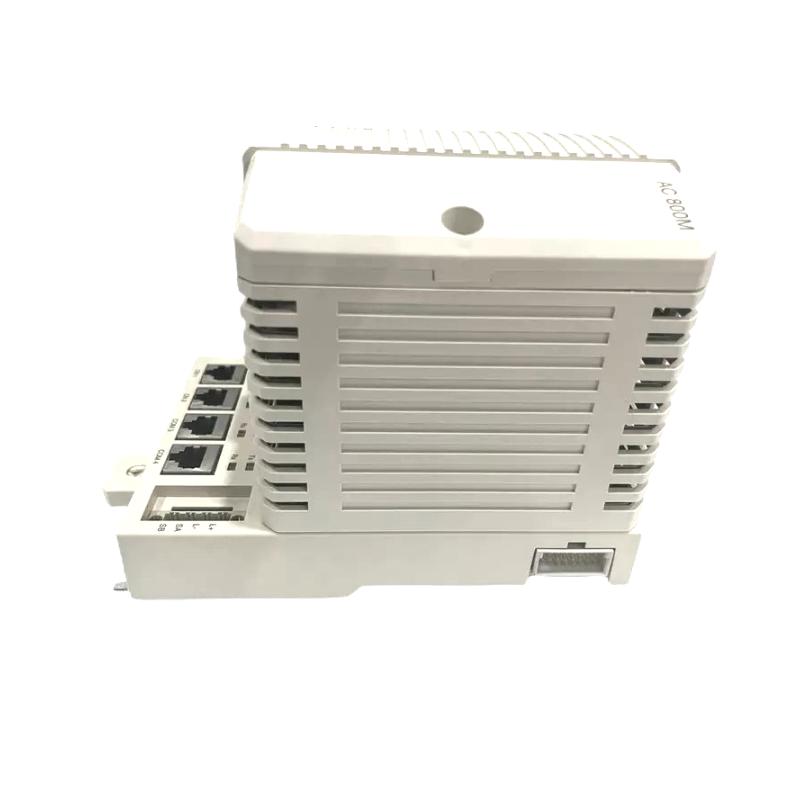

The ABB PM865K01 3BSE031151R1 is a high-integrity processor unit developed for the ABB AC 800M automation system. It provides powerful and reliable performance for safety and process control applications, certified up to SIL3 for use in safety-critical environments.
General Information
Part Number: PM865K01 3BSE031151R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Type: High-Integrity Processor Unit
Series: AC 800M
Technology: Dual-CPU architecture with integrated diagnostics, redundancy, and memory backup
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 6.5 W
Protection: Reverse-polarity and transient protection
Backup: Internal lithium battery for memory retention
Communication & Interface
Interfaces: Dual Ethernet ports, serial communication ports, and system backplane (CEX-Bus)
Diagnostics: Continuous system monitoring and fault detection
Integration: Compatible with AC 800M modules and safety systems
Environmental
Operating Temperature: –20 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet, IP20 protection
Dimensions & Weight
Dimensions: 135 × 186 × 119 mm
Weight: 1.2 kg
