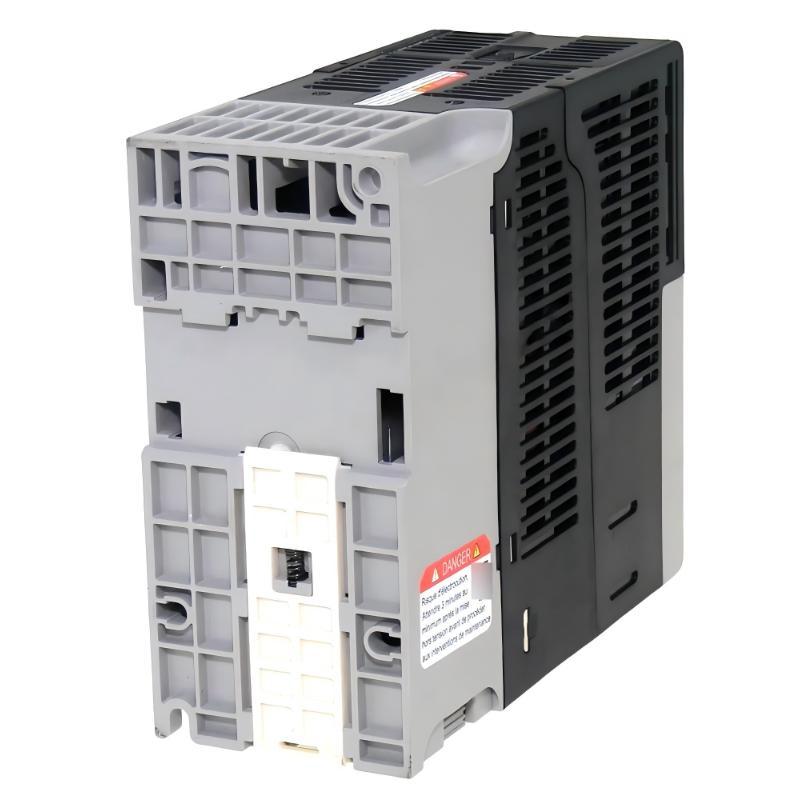

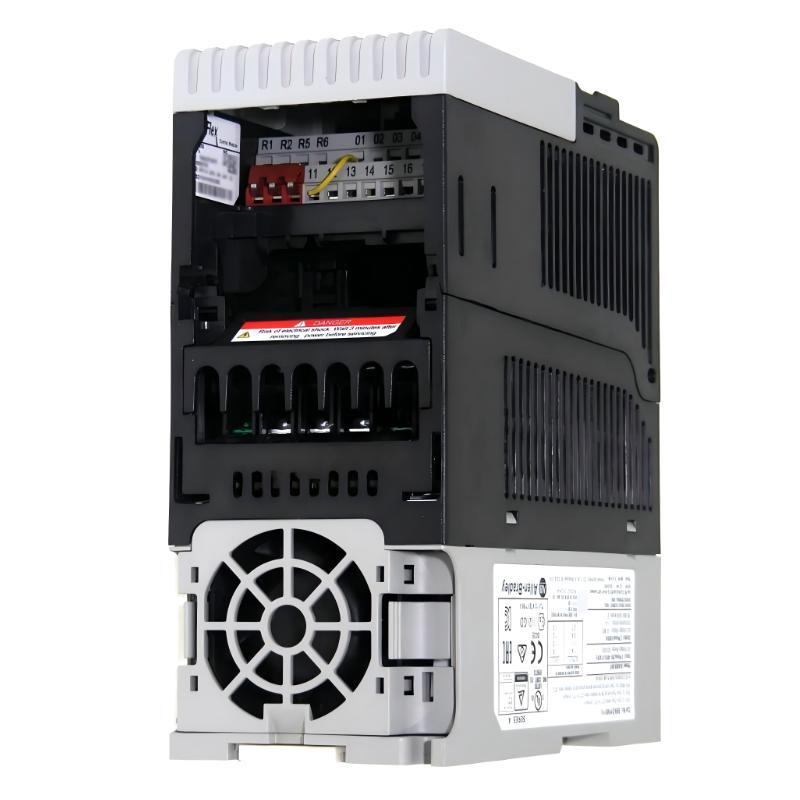

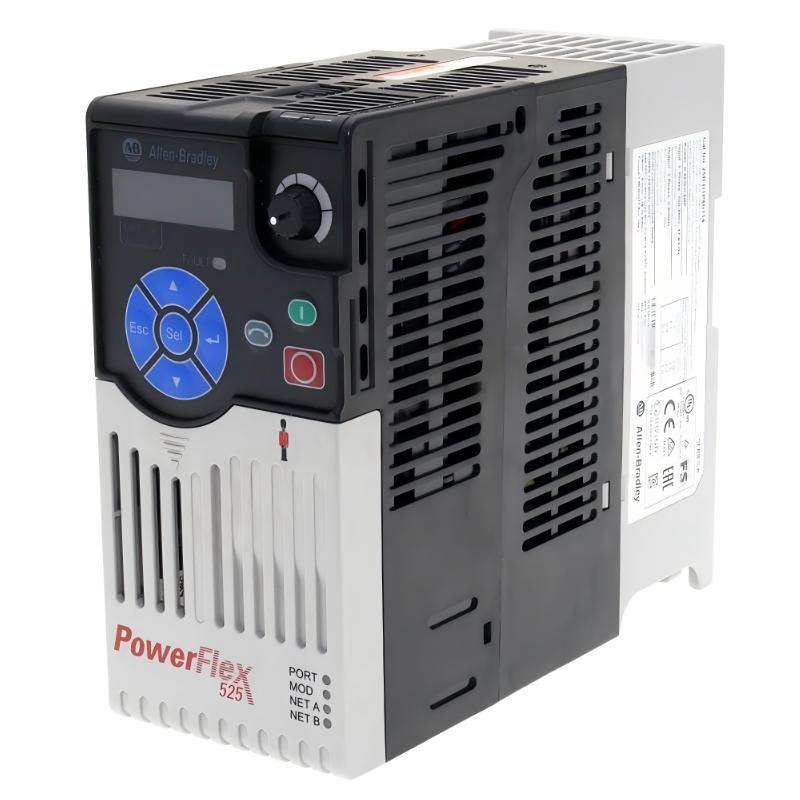

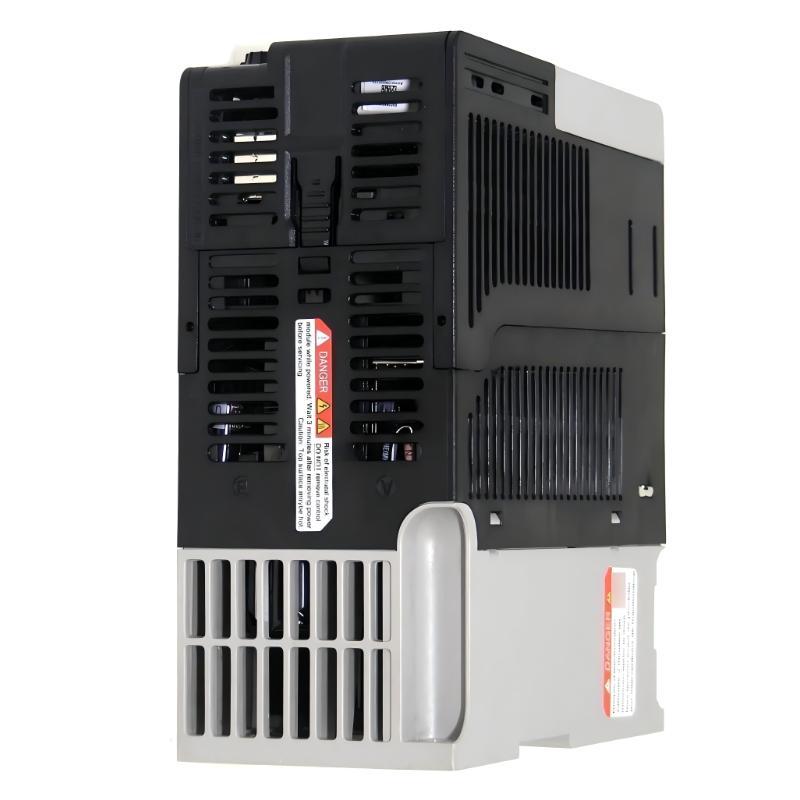

Allen Bradley 25B-D1P4N114 PowerFlex 525 AC Drive

Overview

The Allen Bradley 25B-D1P4N114 PowerFlex 525 AC Drive is a compact variable frequency drive designed for efficient motor speed control and flexible automation applications. It provides reliable operation, simplified setup, and advanced control functions for small machines, conveyors, pumps, and general industrial equipment.

General Information

Part Number: 25B-D1P4N114

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 525

Type: AC Variable Frequency Drive (VFD)

Application: Industrial motor control, machine automation, and process equipment

Control Technology: Sensorless vector control and V/Hz control

Installation: Compact panel mounting design for industrial control cabinets

Power Specifications

Input Voltage: 480 V AC, Three-Phase

Output Power: 0.75 kW (1 HP)

Output Current: 1.4 A

Frequency Range: 0 to 500 Hz

Motor Control Modes: V/Hz control and sensorless vector control

Overload Capacity: 150% overload for 1 minute

Protection Functions: Overcurrent, overvoltage, undervoltage, overload, and motor protection

Communication & Interface

Communication Interface: Embedded EtherNet/IP communication

Network Support: Supports integration with industrial Ethernet automation networks

Programming Interface: USB programming and configuration support

Operator Interface: Built-in LCD keypad for setup and monitoring

Control Connections: Digital inputs, relay outputs, and analog I/O terminals

Diagnostics: Fault monitoring, alarm indication, and drive status feedback

Environmental

Operating Temperature: -20 to +50 °C without derating

Storage Temperature: -40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Protection Rating: IP20 / open type enclosure

Application Environment: Industrial control panels and automation systems

Dimensions & Weight

Dimensions (H × W × D): 172 × 72 × 152 mm

Weight: 1.1 kg
