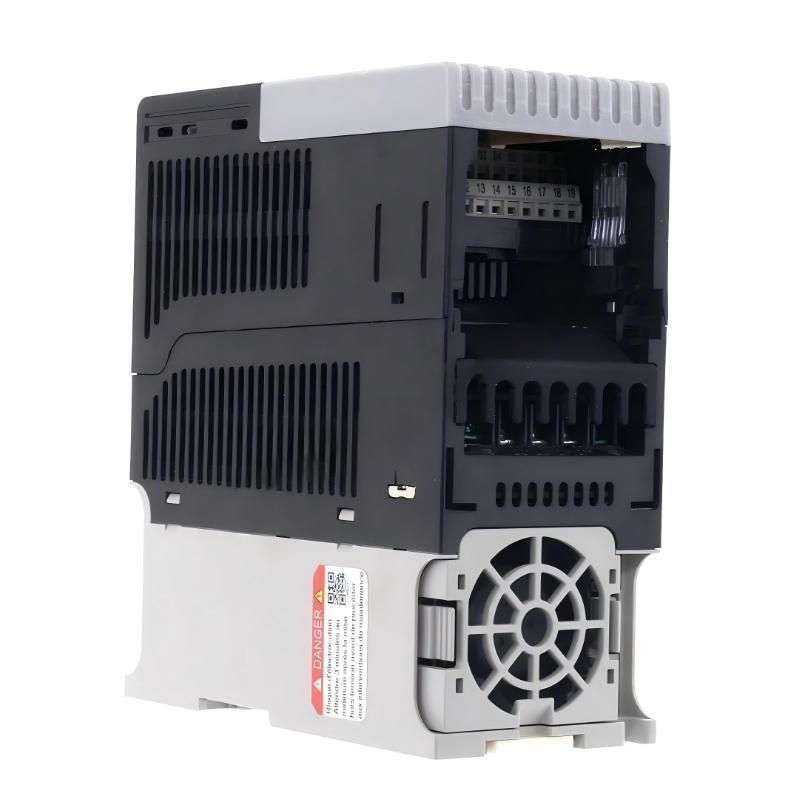

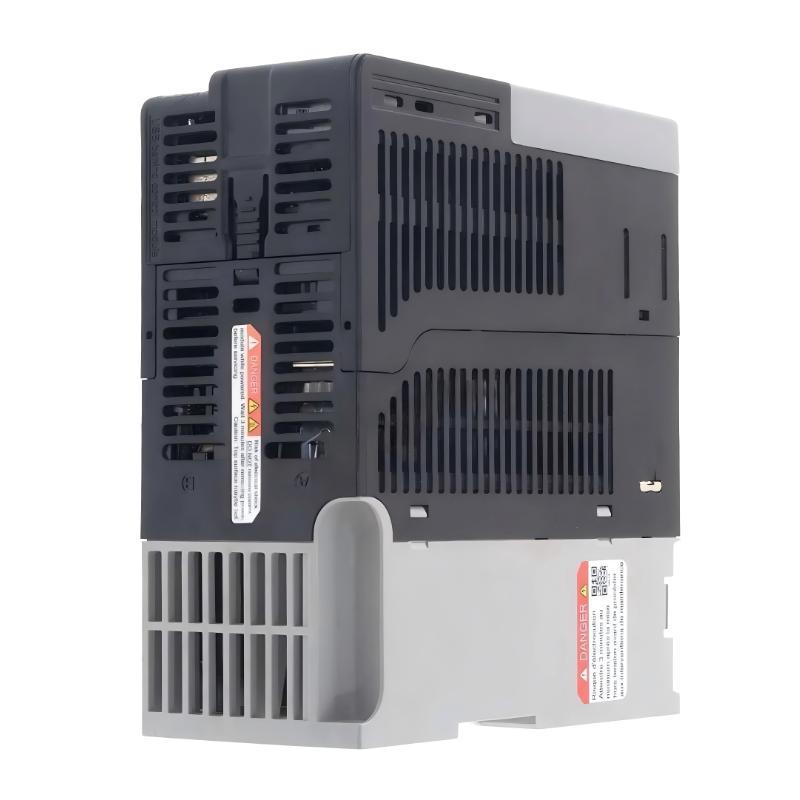

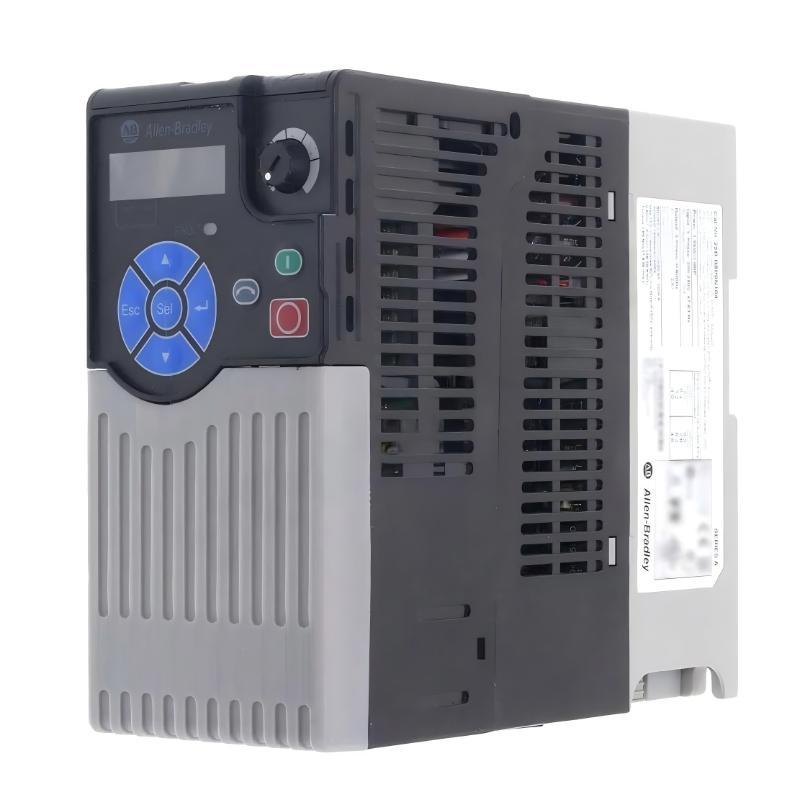

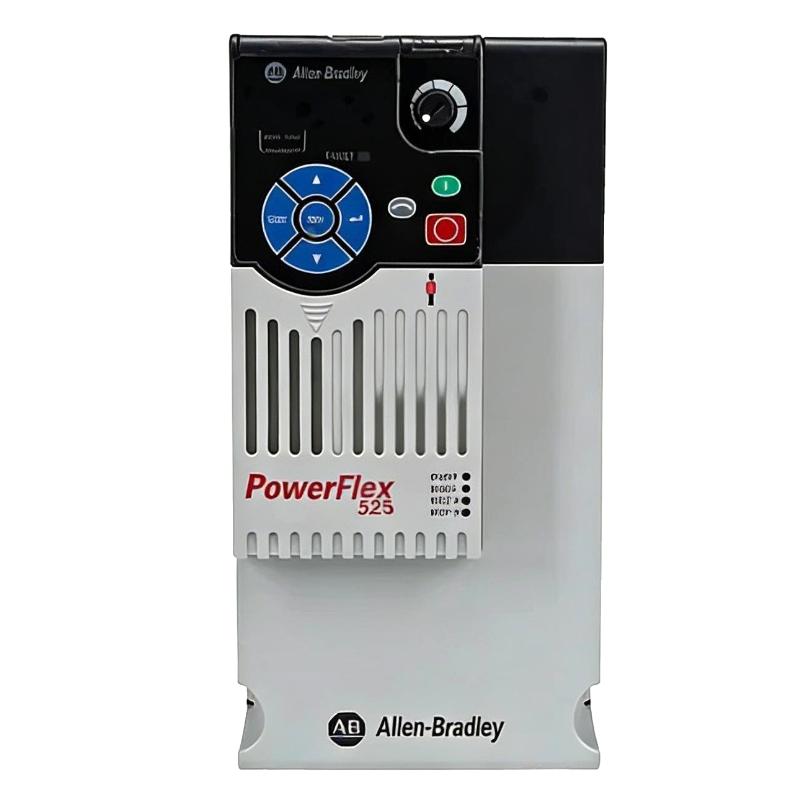

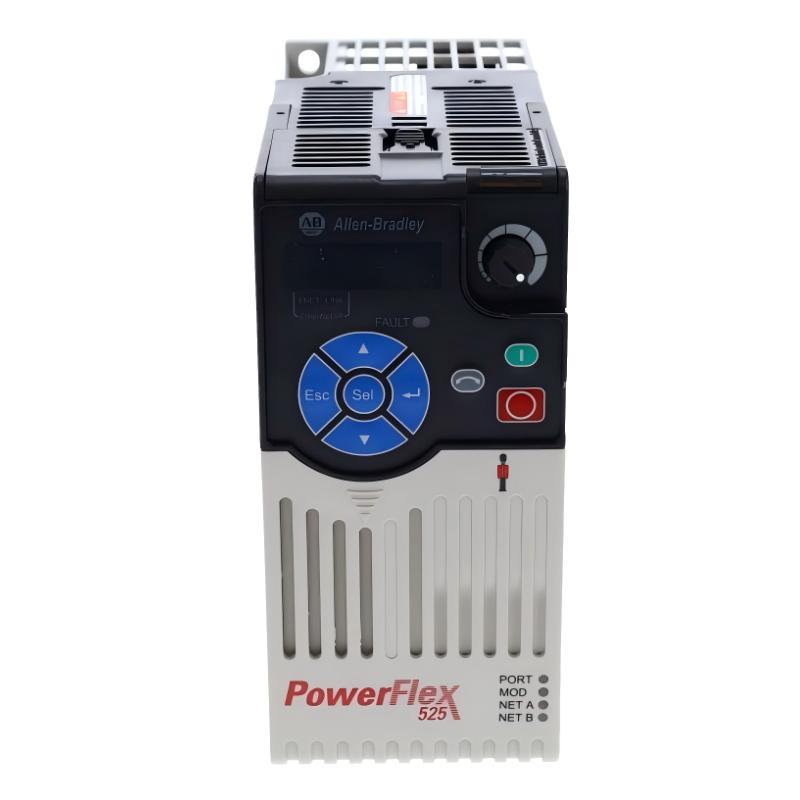

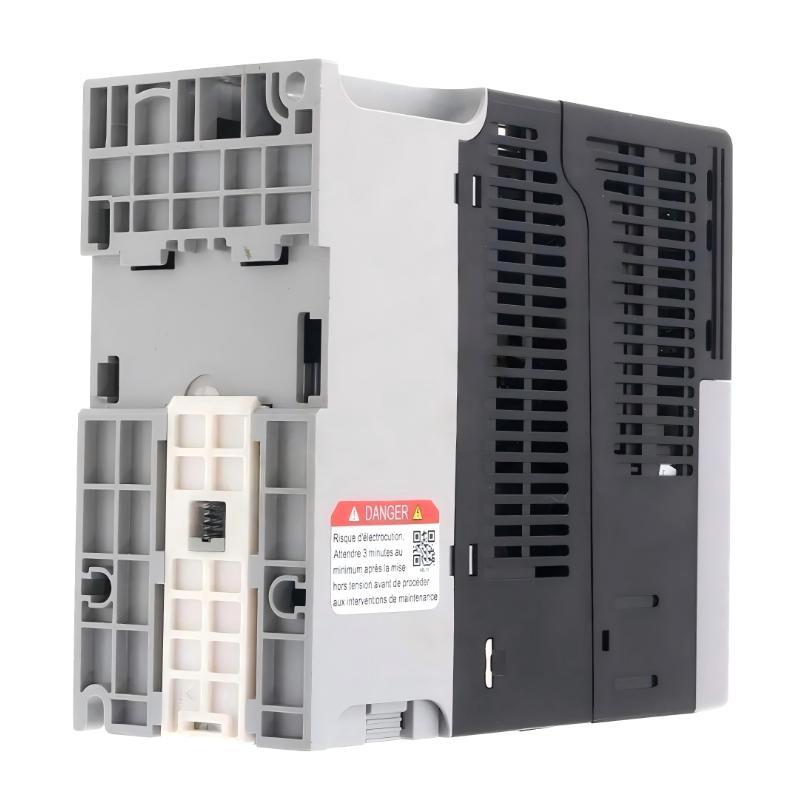

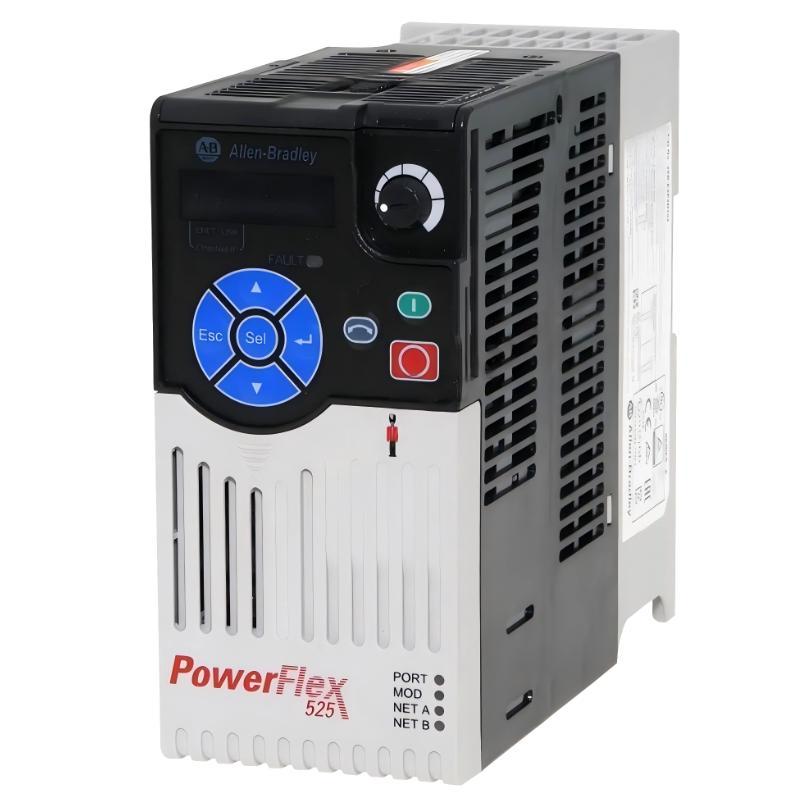

Allen Bradley 25B-B8P0N104 PowerFlex 525 AC Drive

Overview

The Allen Bradley 25B-B8P0N104 PowerFlex 525 AC Drive is a compact variable frequency drive designed for reliable motor speed control and efficient operation in industrial automation systems. It supports flexible machine designs with advanced control functions for conveyors, fans, pumps, and general-purpose applications.

General Information

Part Number: 25B-B8P0N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 525

Type: AC Variable Frequency Drive (VFD)

Application: Industrial motor control, automation machinery, and process equipment

Control Technology: Sensorless vector control and V/Hz control

Installation: Compact panel mounting design for industrial cabinets

Power Specifications

Input Voltage: 480 V AC, Three-Phase

Output Power: 1.5 kW (2 HP)

Output Current: 4.2 A

Frequency Range: 0 to 500 Hz

Motor Control Modes: V/Hz control and sensorless vector control

Overload Capacity: 150% overload for 1 minute

Protection Functions: Overcurrent, overvoltage, undervoltage, overload, and motor protection

Communication & Interface

Communication Interface: Embedded EtherNet/IP communication

Network Support: Supports integration with industrial automation networks

Programming Interface: USB programming and configuration support

Operator Interface: Built-in LCD keypad for setup and parameter adjustment

Control Connections: Digital inputs, relay outputs, and analog I/O terminals

Diagnostics: Fault monitoring, alarm reporting, and drive status feedback

Environmental

Operating Temperature: -20 to +50 °C without derating

Storage Temperature: -40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Protection Rating: IP20 / open type enclosure

Application Environment: Industrial control panels and automation systems

Dimensions & Weight

Dimensions (H × W × D): 172 × 72 × 152 mm

Weight: 1.1 kg
