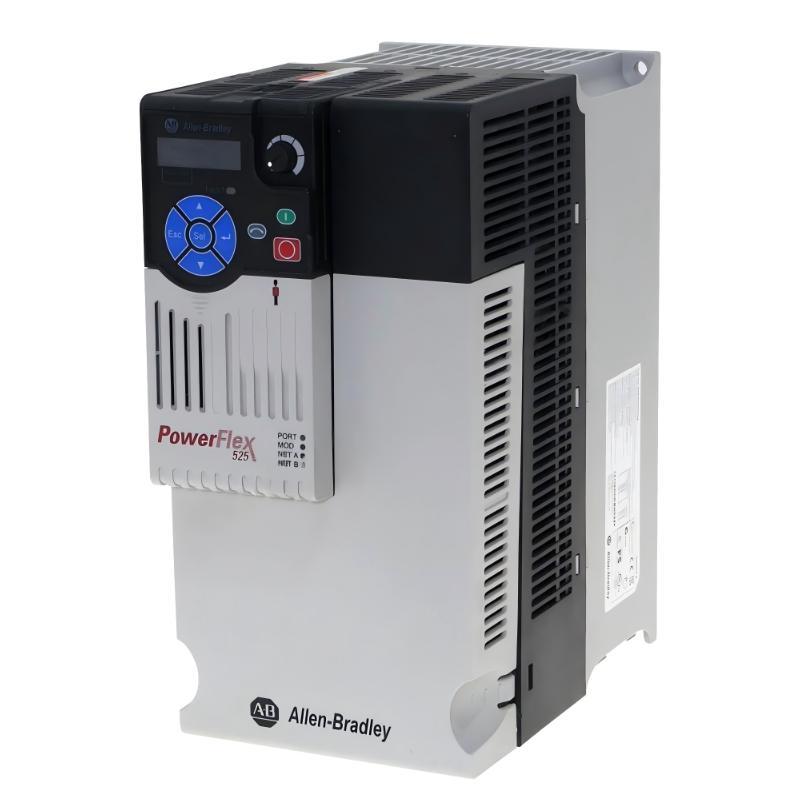

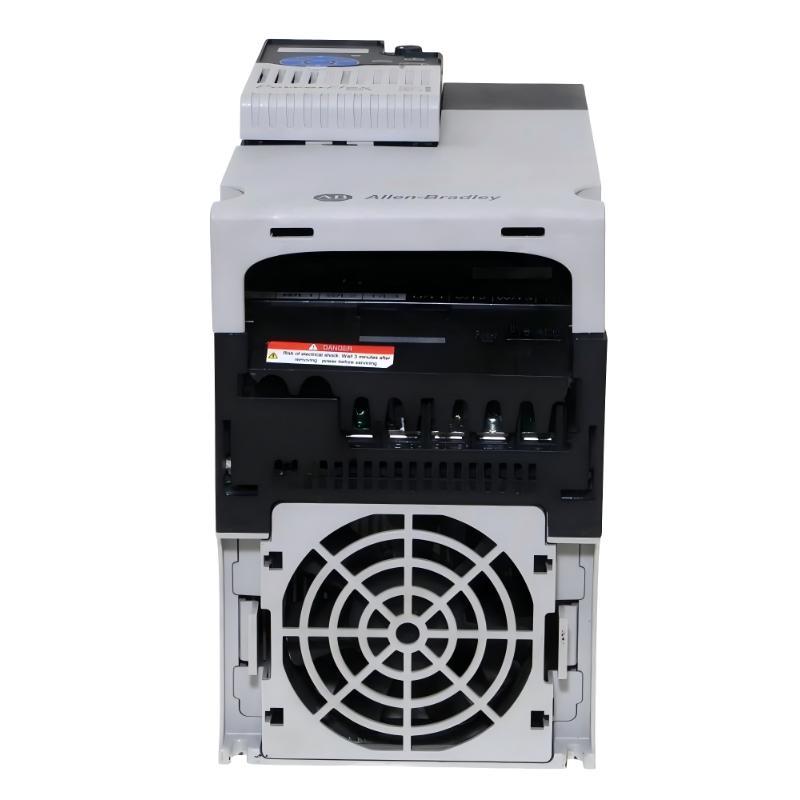

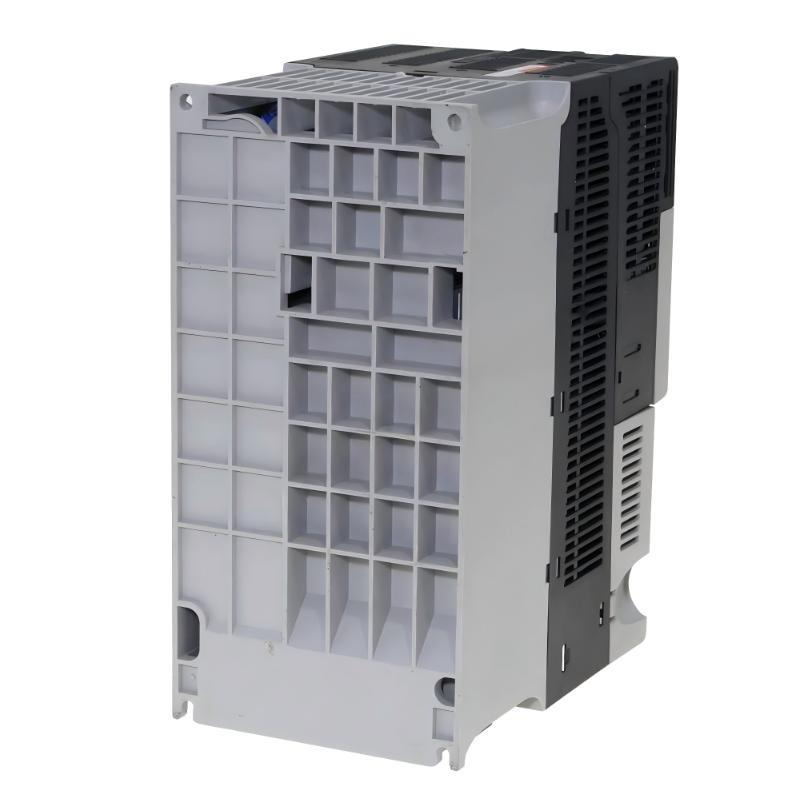

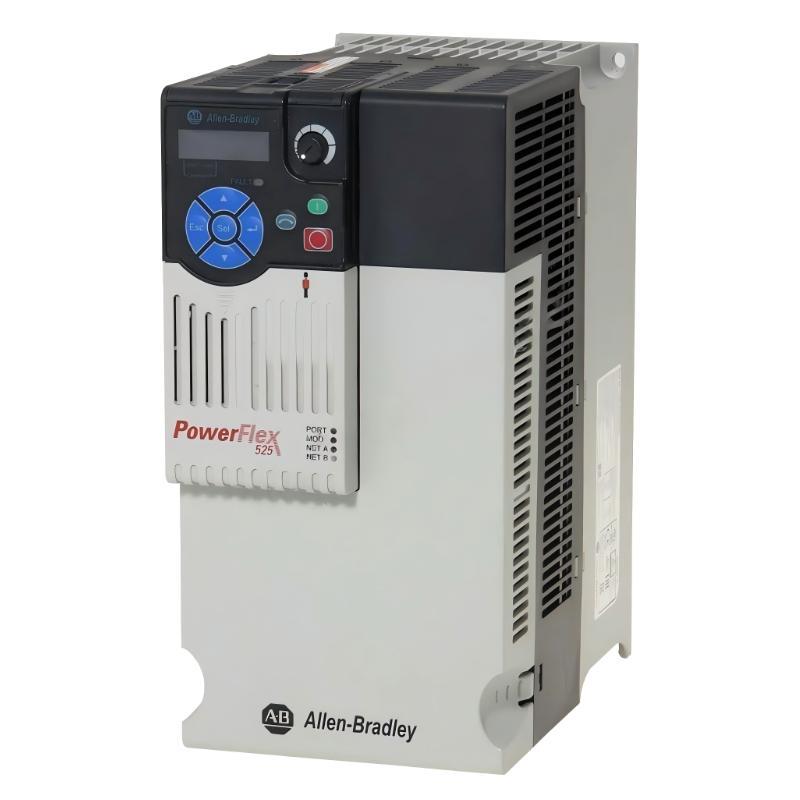

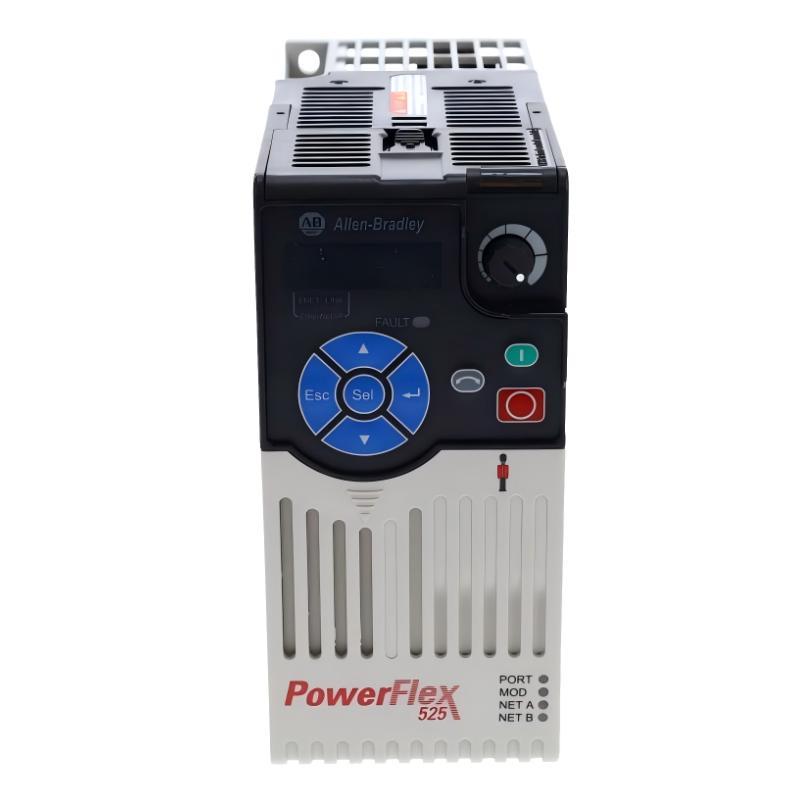

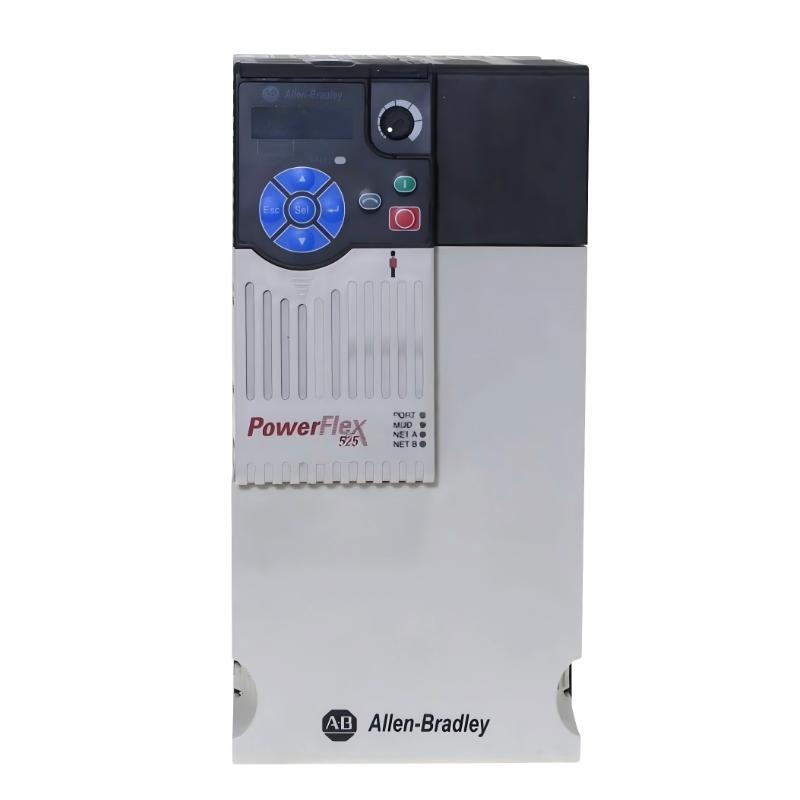

Allen Bradley 25B-B032N104 PowerFlex 525 AC Drive

Overview

The Allen Bradley 25B-B032N104 PowerFlex 525 AC Drive is a compact variable frequency drive designed for reliable motor control in industrial automation systems. It combines flexible programming, efficient operation, and advanced control features for applications such as conveyors, pumps, fans, and machine equipment.

General Information

Part Number: 25B-B032N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 525

Type: AC Variable Frequency Drive (VFD)

Application: Industrial motor speed control, automation machinery, and process equipment

Control Technology: Sensorless vector control and V/Hz control

Installation: Panel-mounted design for industrial control cabinets

Power Specifications

Input Voltage: 480 V AC, Three-Phase

Output Power: 15 kW (20 HP)

Output Current: 32 A

Frequency Range: 0 to 500 Hz

Motor Control Modes: V/Hz control and sensorless vector control

Overload Capacity: 150% overload for 1 minute

Protection Functions: Overcurrent, overvoltage, undervoltage, overload, and motor protection

Communication & Interface

Communication Interface: Embedded EtherNet/IP communication

Network Support: Integration with industrial automation networks

Programming Interface: USB configuration and programming port

Operator Interface: Built-in LCD keypad for setup and monitoring

Control Terminals: Digital inputs, relay outputs, and analog I/O

Diagnostics: Fault monitoring, status display, and troubleshooting functions

Environmental

Operating Temperature: -20 to +50 °C without derating

Storage Temperature: -40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Protection Rating: IP20 / open type enclosure

Application Environment: Industrial control panels and automation systems

Dimensions & Weight

Dimensions (H × W × D): 260 × 130 × 212 mm

Weight: 3.9 kg
