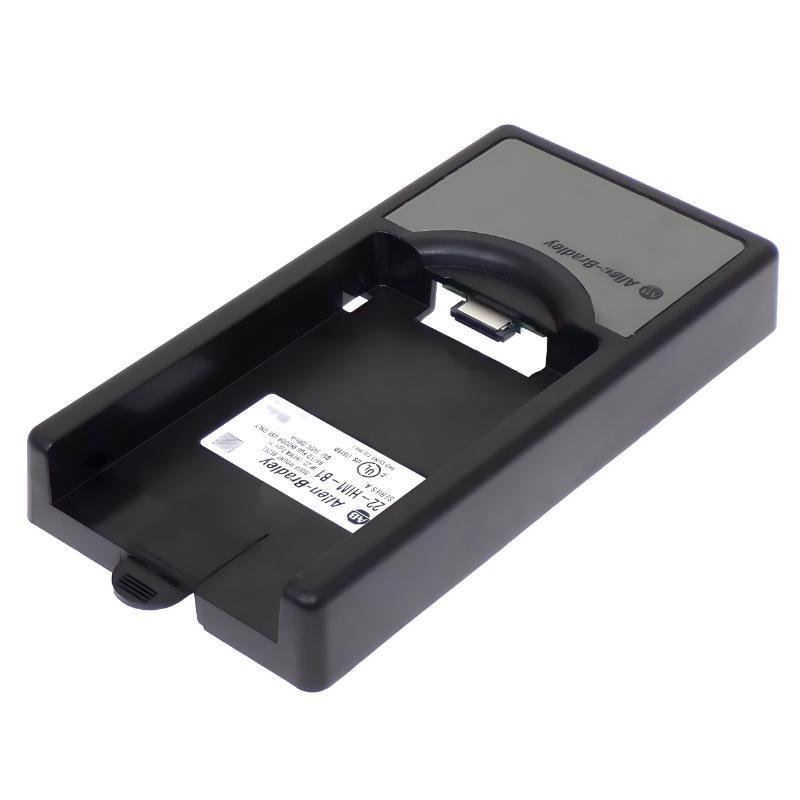

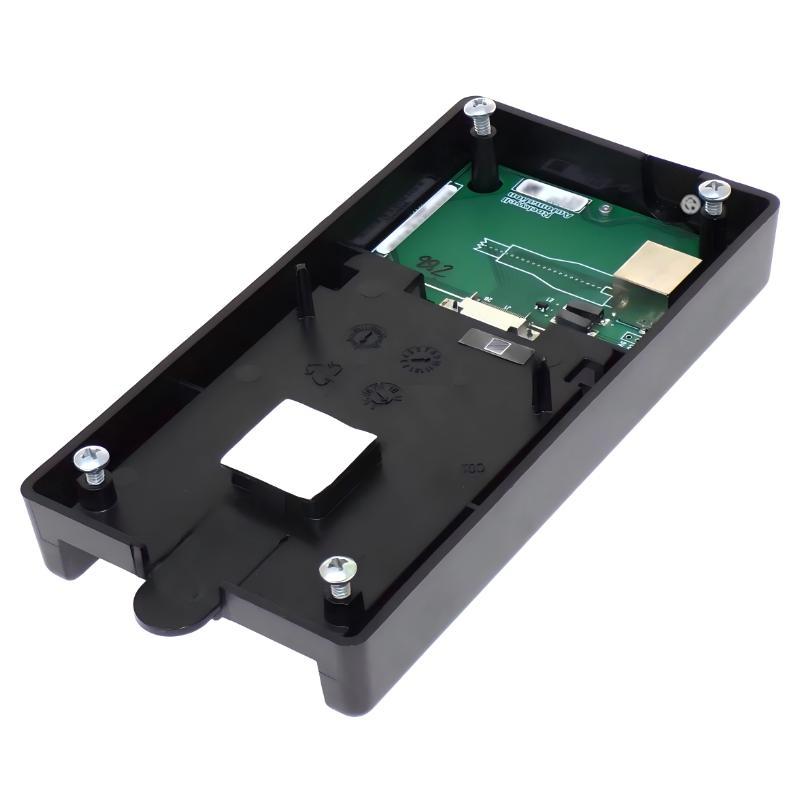

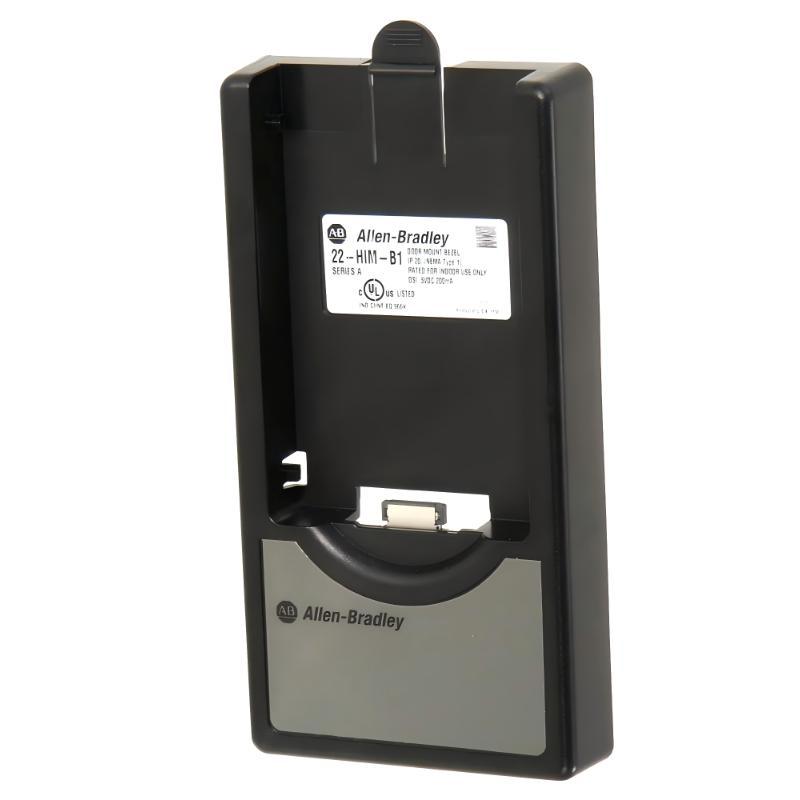

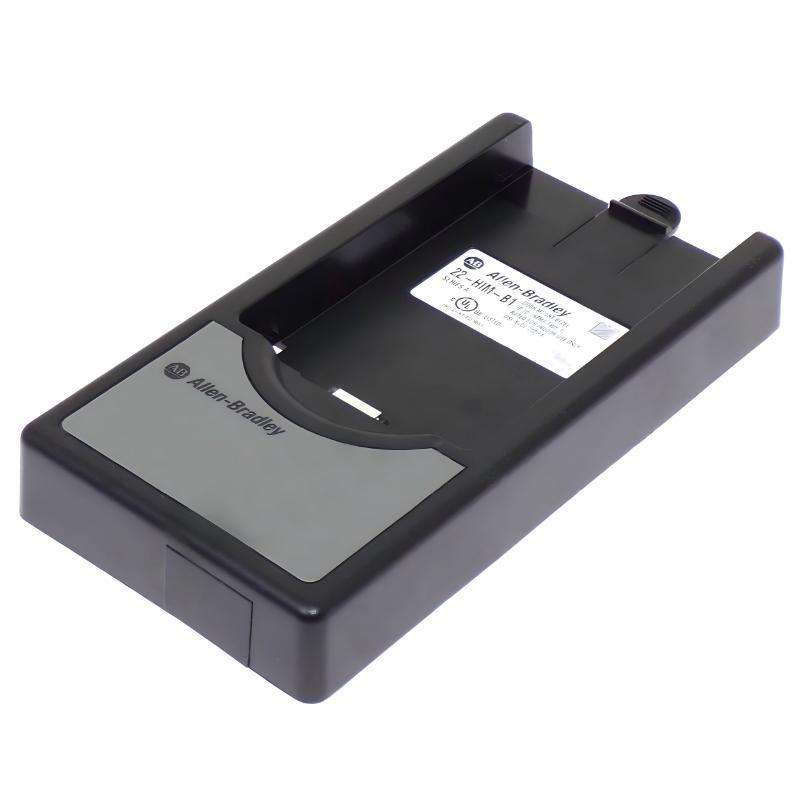

Allen Bradley 22-HIM-B1 PowerFlex Mounting Panel Kit

Overview

The Allen Bradley 22-HIM-B1 PowerFlex Mounting Panel Kit is an accessory designed for convenient installation of PowerFlex human interface modules (HIM). It provides a secure mounting solution for remote keypad applications, allowing operators to access drive parameters, monitoring functions, and control settings in industrial environments.

The kit supports flexible panel installation and improves operator accessibility for drive configuration and maintenance.

General Information

Part Number: 22-HIM-B1

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex Accessories

Type: HIM Mounting Panel Kit

Application: Remote keypad mounting for PowerFlex AC drives

Mounting: Panel installation

Compatible Devices: PowerFlex drive human interface modules

Function: Provides mechanical support and remote operator interface mounting

Construction: Industrial-grade mounting accessory

Power Specifications

Power Supply: Not applicable (passive mounting accessory)

Input Voltage: None

Power Consumption: None

Electrical Protection: Not applicable

Function: Mechanical installation support for HIM devices

Communication & Interface

Interface Type: HIM connection interface

Communication: Supports communication between remote HIM and connected drive

Connection Method: Drive-compatible HIM cable connection

Configuration: Supports remote parameter access and drive monitoring

Application: Operator control and diagnostic interface extension

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control panel applications

Protection Rating: Suitable for standard industrial enclosure environments

Cooling Method: Natural air cooling

Dimensions & Weight

Dimensions (L × W × H): 191.1 × 25.2 × 93 mm

Weight: 0.14 kg
