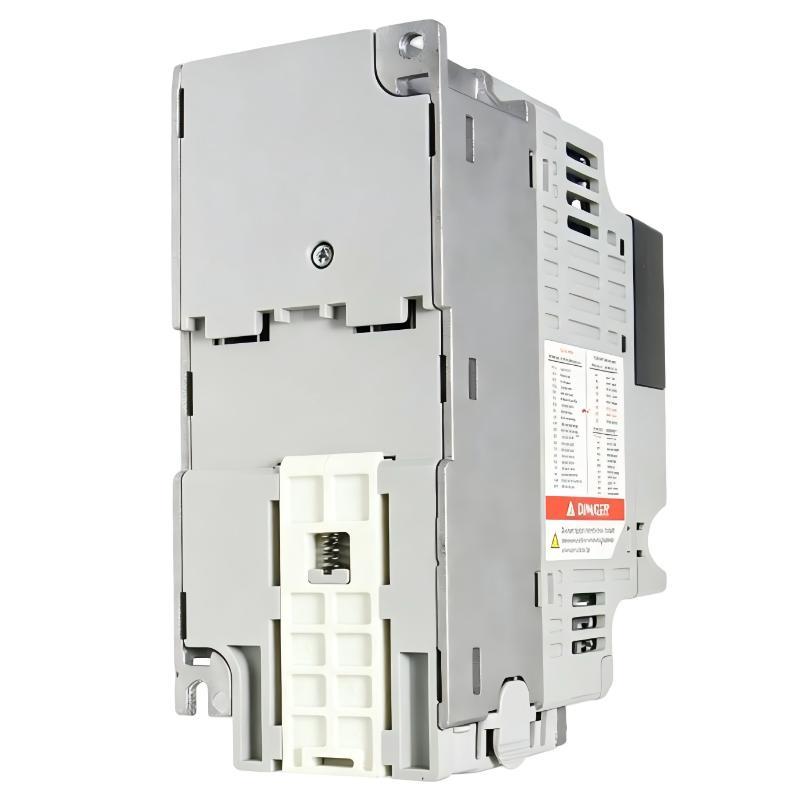

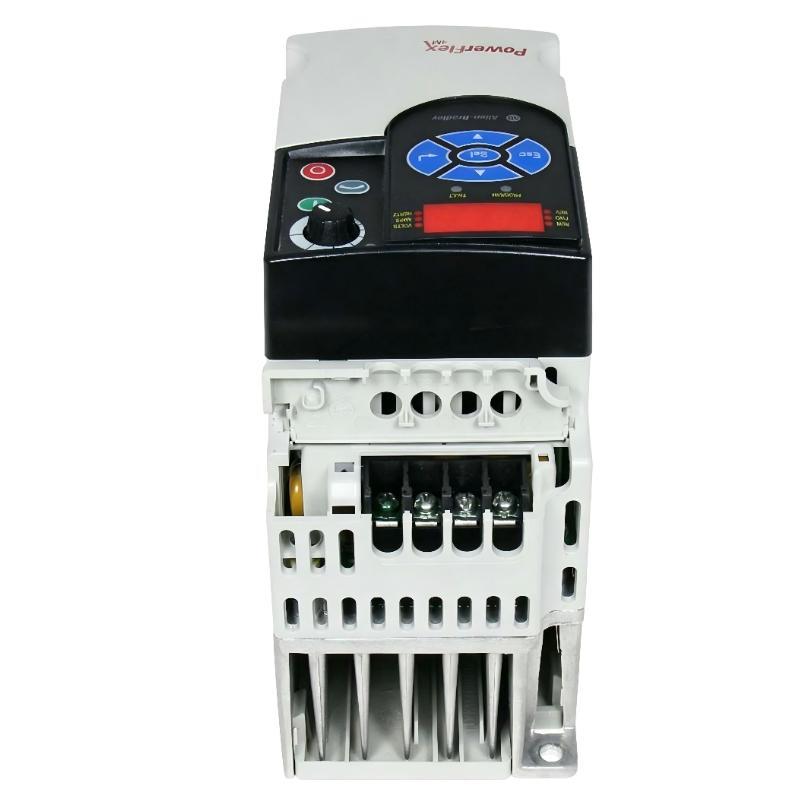

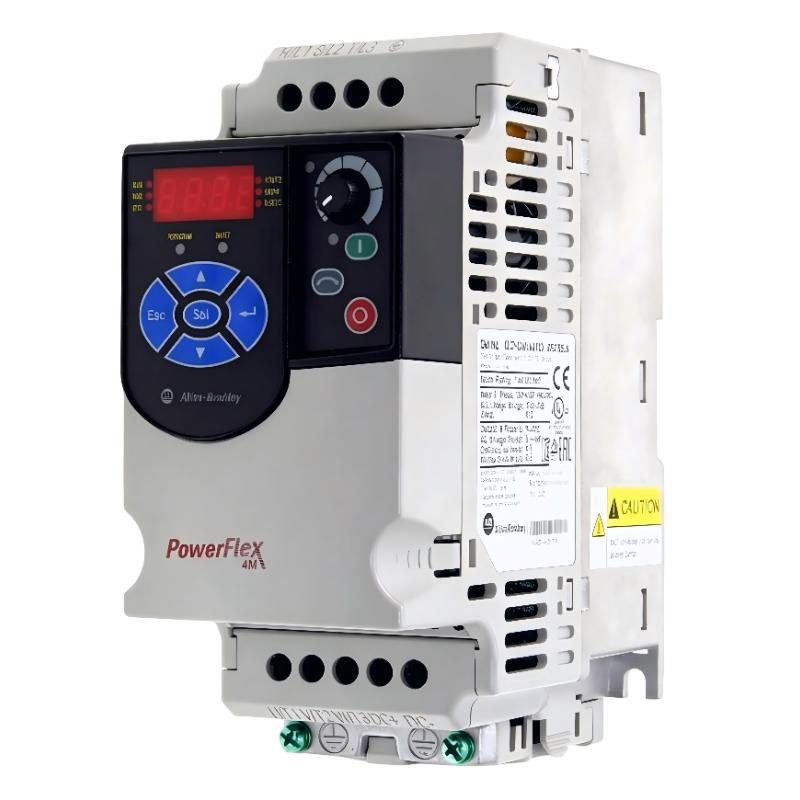

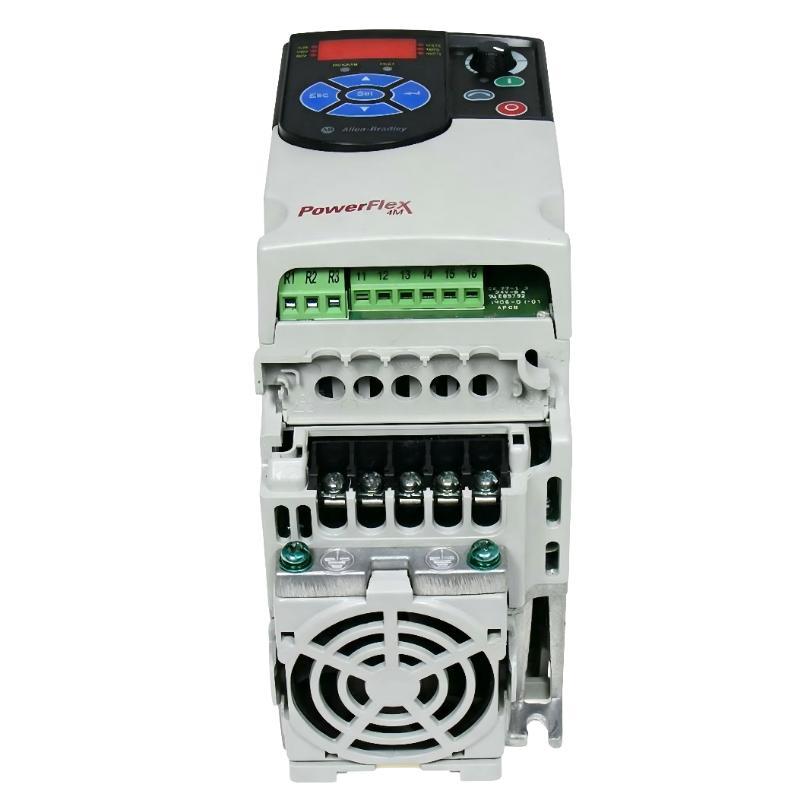

Allen Bradley 22F-D4P2N103 PowerFlex 4M AC Drive

Overview

The Allen Bradley 22F-D4P2N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for efficient motor speed control in industrial automation systems. It provides reliable operation, flexible parameter configuration, and built-in protection features for conveyors, pumps, fans, and small machine applications.

The drive supports simple commissioning, stable performance, and convenient diagnostics to help maintain reliable motor operation.

General Information

Part Number: 22F-D4P2N103

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 4M

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control and V/Hz control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 480 V AC

Input Phase: Three-phase

Output Power: 2.2 kW

Output Current: Approx. 4.2 A

Output Frequency: 0 to 400 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and smooth speed regulation

Communication & Interface

Communication Interface: RS-485 serial communication port

Communication Protocol: Modbus RTU

Programming Interface: Integrated keypad and parameter configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference input

Outputs: Programmable relay output signals

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 174 × 72 × 136 mm

Weight: 1.6 kg
