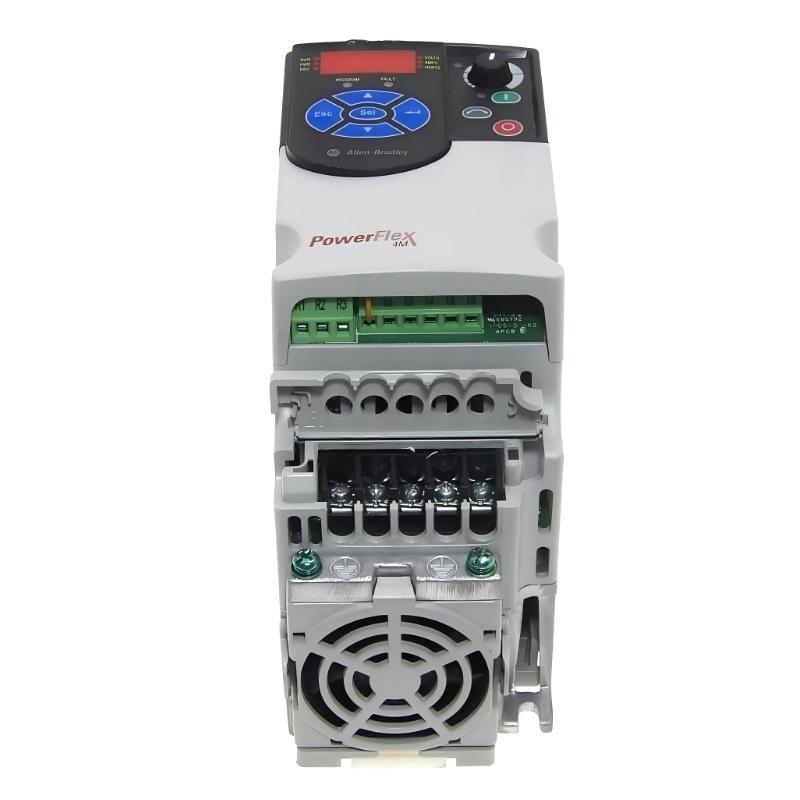

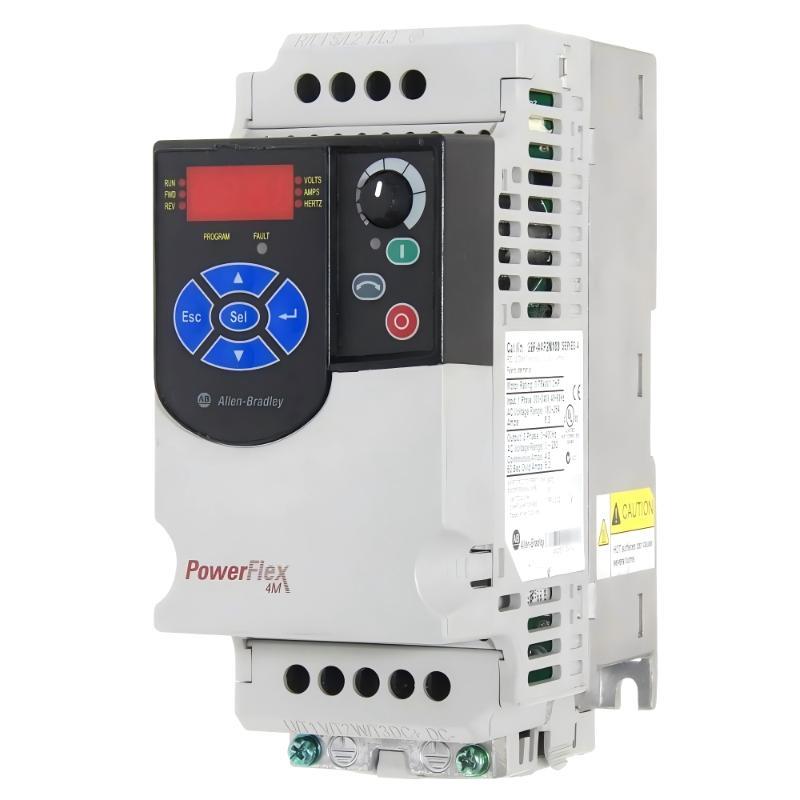

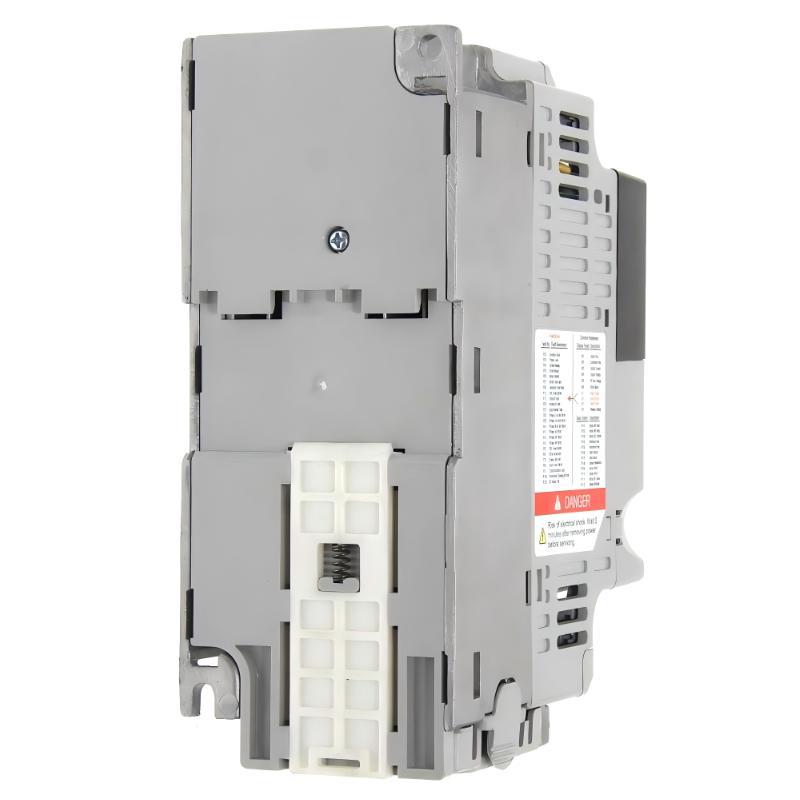

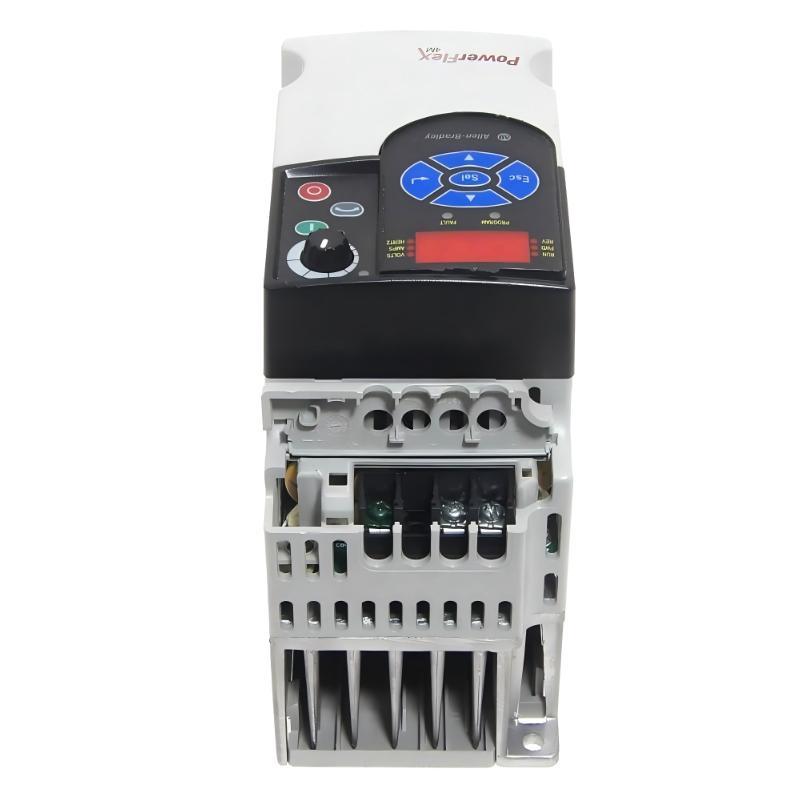

Allen Bradley 22F-A4P2N103 PowerFlex 4M AC Drive

Overview

The Allen Bradley 22F-A4P2N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for reliable motor speed control in small industrial automation applications. It provides simple configuration, efficient operation, and integrated protection features for applications such as conveyors, fans, pumps, and machine systems.

The drive offers convenient commissioning, flexible control settings, and stable performance for general-purpose motor applications.

General Information

Part Number: 22F-A4P2N103

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 4M

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control and V/Hz control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 240 V AC

Input Phase: Single-phase

Output Power: 1.1 kW

Output Current: Approx. 4.2 A

Output Frequency: 0 to 400 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and stable speed regulation

Communication & Interface

Communication Interface: RS-485 serial communication port

Communication Protocol: Modbus RTU

Programming Interface: Integrated keypad and parameter configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference input

Outputs: Programmable relay output signals

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 174 × 72 × 136 mm

Weight: 1.6 kg
