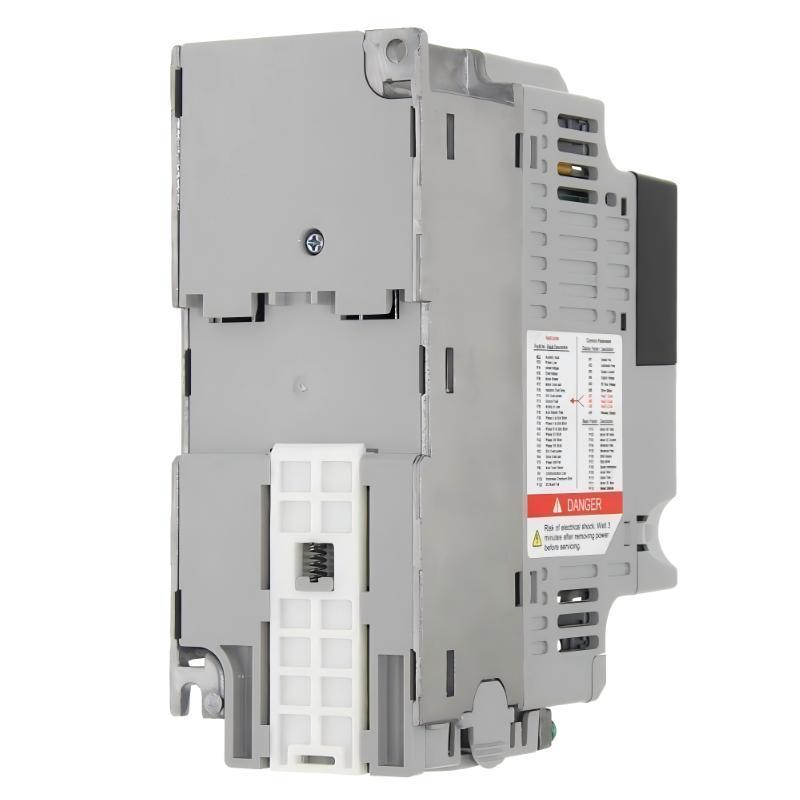

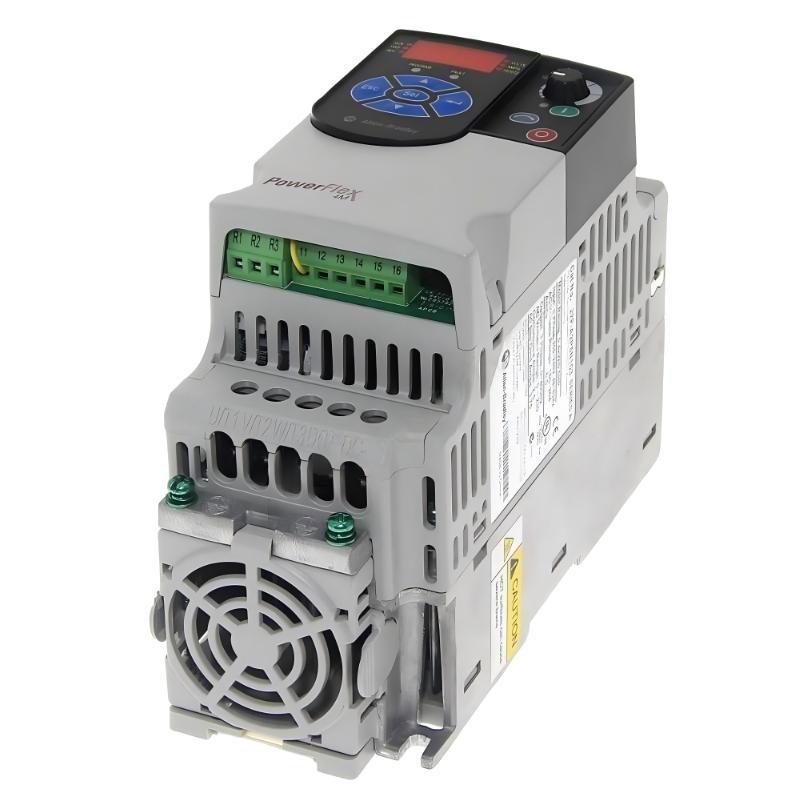

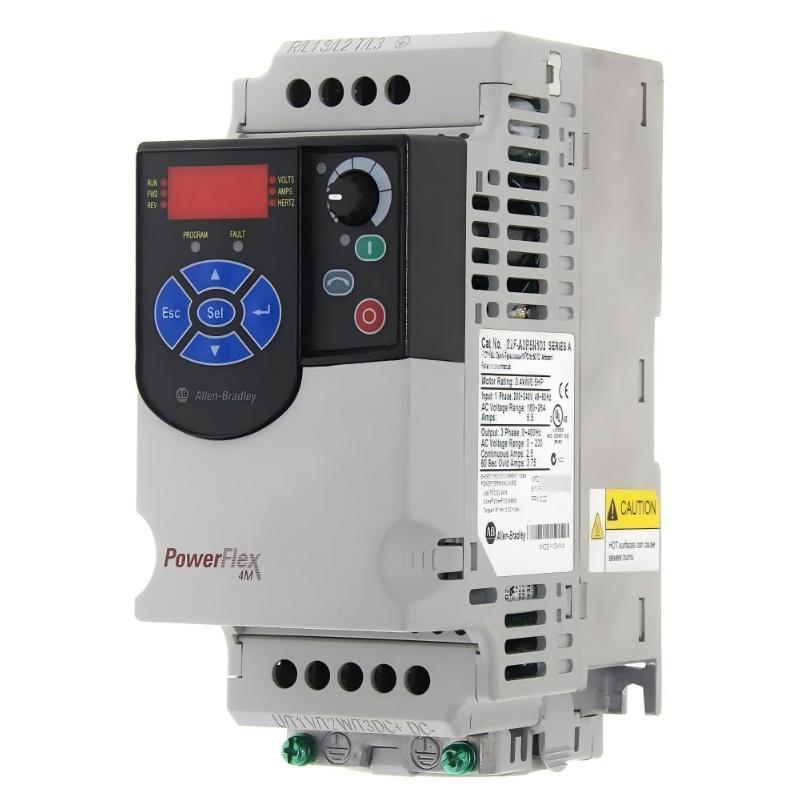

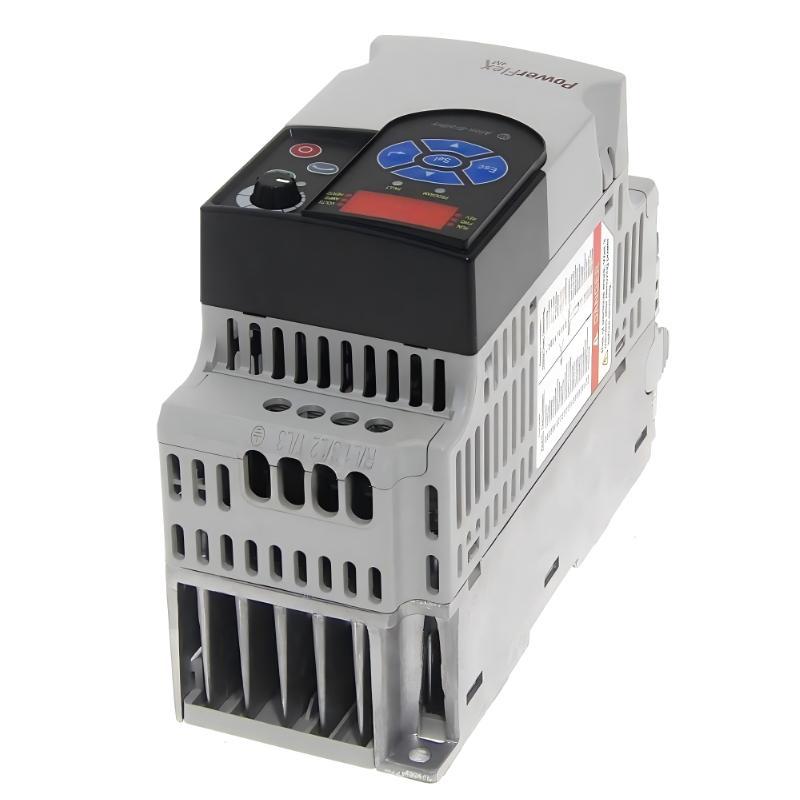

Allen Bradley 22F-A2P5N103 PowerFlex 4M AC Drive

Overview

The Allen Bradley 22F-A2P5N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for simple and reliable motor control in industrial automation applications. It provides efficient speed regulation, flexible parameter adjustment, and built-in protection functions for small machines, conveyors, fans, and pumps.

The drive features a compact design, easy commissioning, and reliable operation for space-limited control applications.

General Information

Part Number: 22F-A2P5N103

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 4M

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control and V/Hz control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 240 V AC

Input Phase: Single-phase

Output Power: 0.75 kW

Output Current: Approx. 2.5 A

Output Frequency: 0 to 400 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and stable speed control

Communication & Interface

Communication Interface: RS-485 serial communication port

Communication Protocol: Modbus RTU

Programming Interface: Integrated keypad and parameter configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference input

Outputs: Programmable relay output signals

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 174 × 72 × 136 mm

Weight: 1.6 kg
