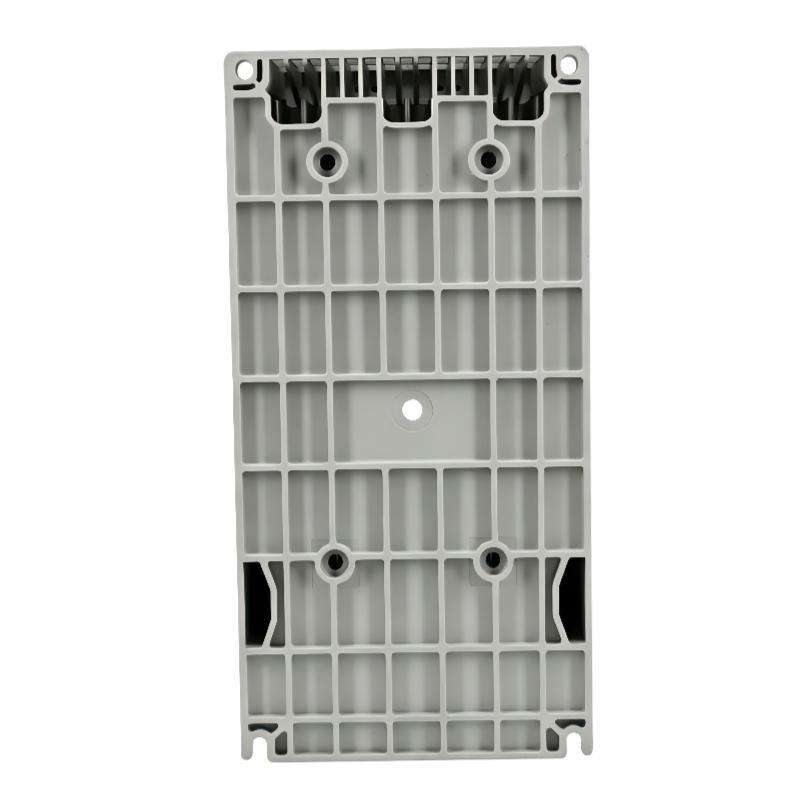

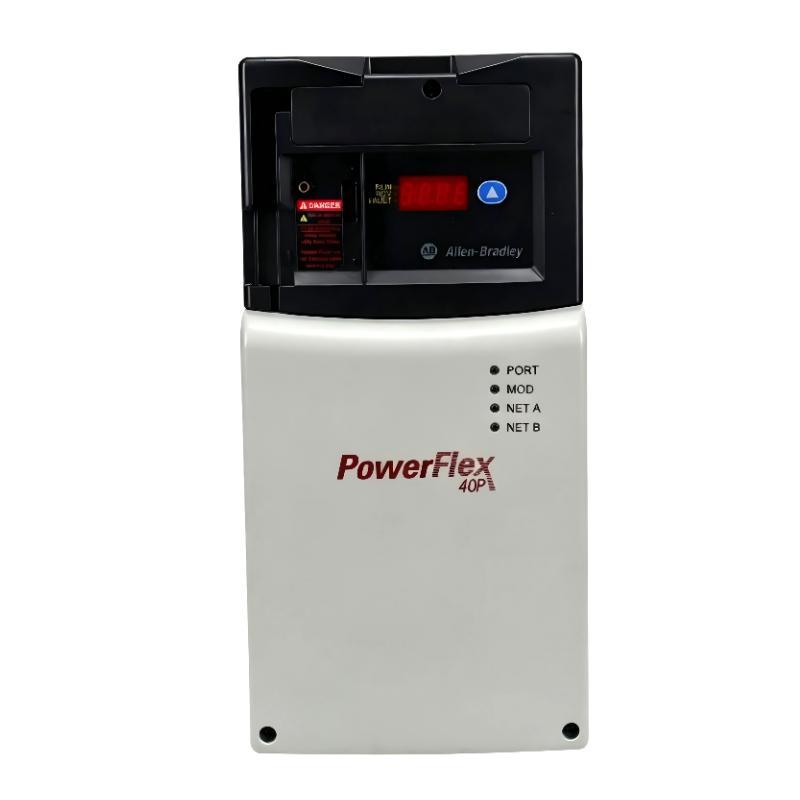

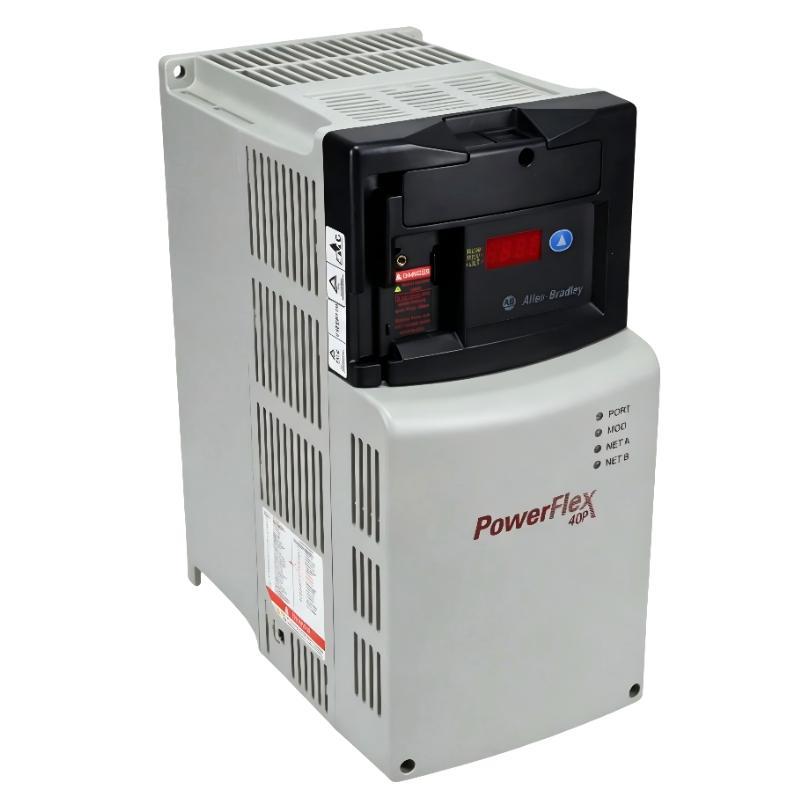

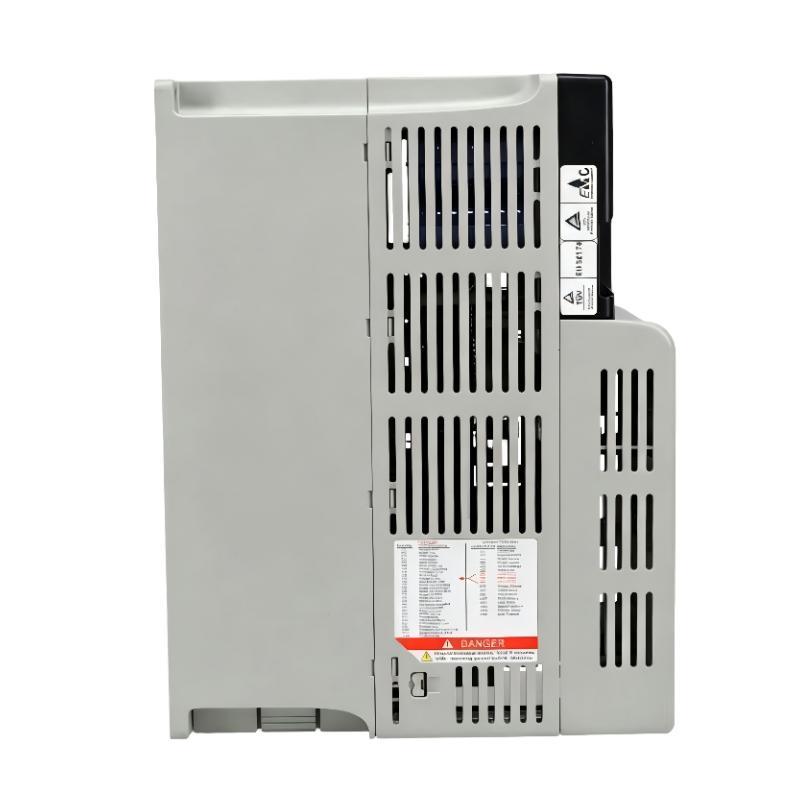

Allen Bradley 22D-D012N104 PowerFlex 40P AC Drive

Overview

The Allen Bradley 22D-D012N104 PowerFlex 40P AC Drive is a compact variable frequency drive designed for precise motor speed control and reliable performance in industrial automation systems. It provides advanced motor control functions, flexible programming, and integrated protection features for applications including conveyors, machine tools, pumps, and material handling equipment.

The drive supports encoder feedback, efficient commissioning, and diagnostic monitoring to improve motion control accuracy and system reliability.

General Information

Part Number: 22D-D012N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 40P

Type: AC Variable Frequency Drive

Application: Precision industrial motor control

Mounting: Panel mounting

Control Method: Sensorless vector control, V/Hz control, and encoder feedback control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 480 V AC

Input Phase: Three-phase

Output Power: 9.2 kW

Output Current: Approx. 12 A

Output Frequency: 0 to 400 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and accurate speed regulation

Communication & Interface

Communication Interface: RS-485 serial communication port

Communication Protocol: Modbus RTU

Programming Interface: Integrated keypad and parameter configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference inputs

Encoder Interface: Supports encoder feedback for improved motor control performance

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 260 × 130 × 180 mm

Weight: 4.3 kg
