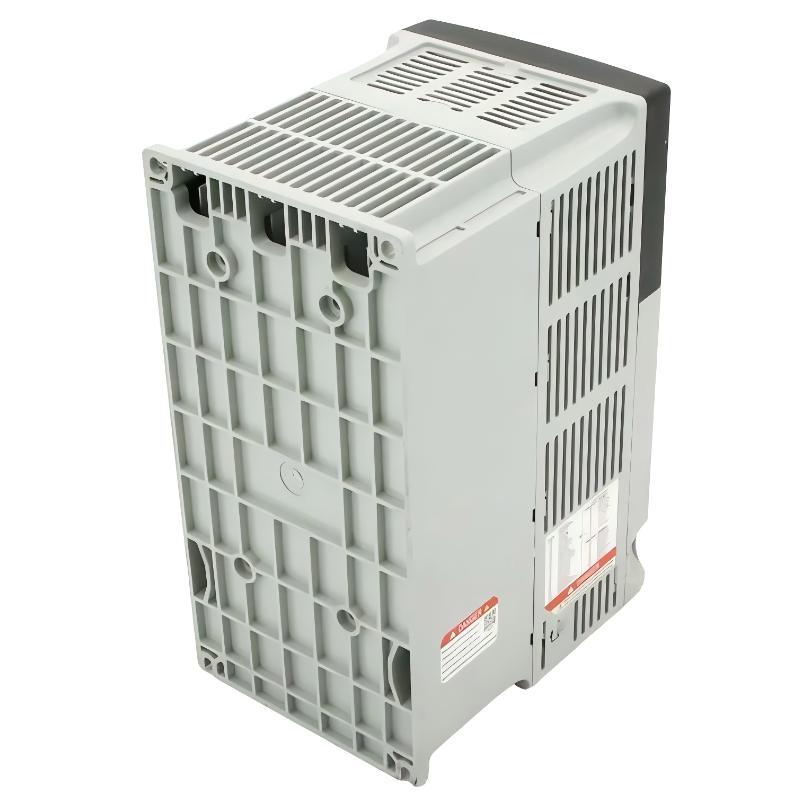

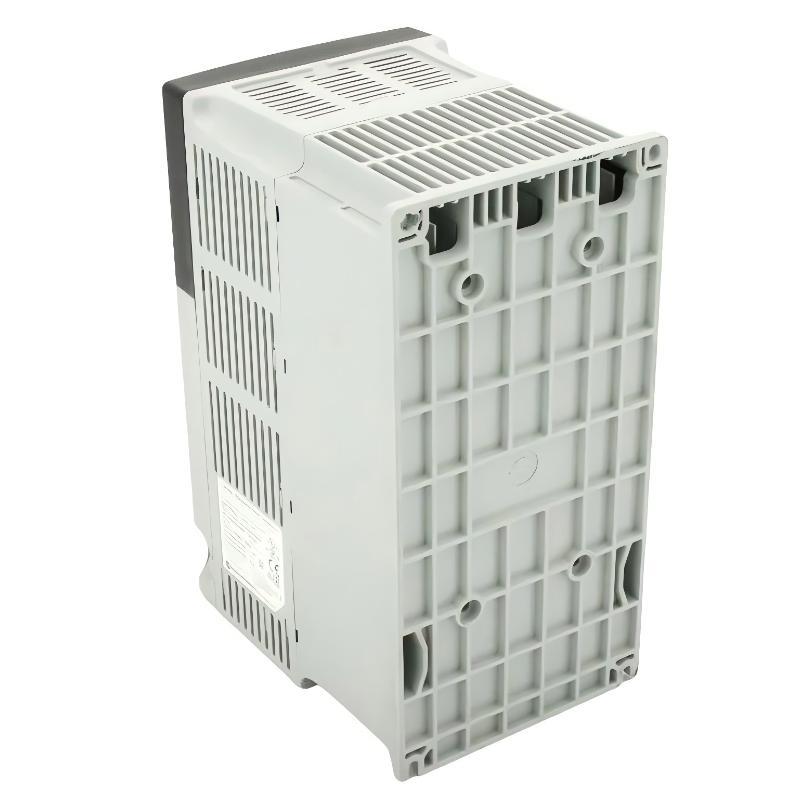

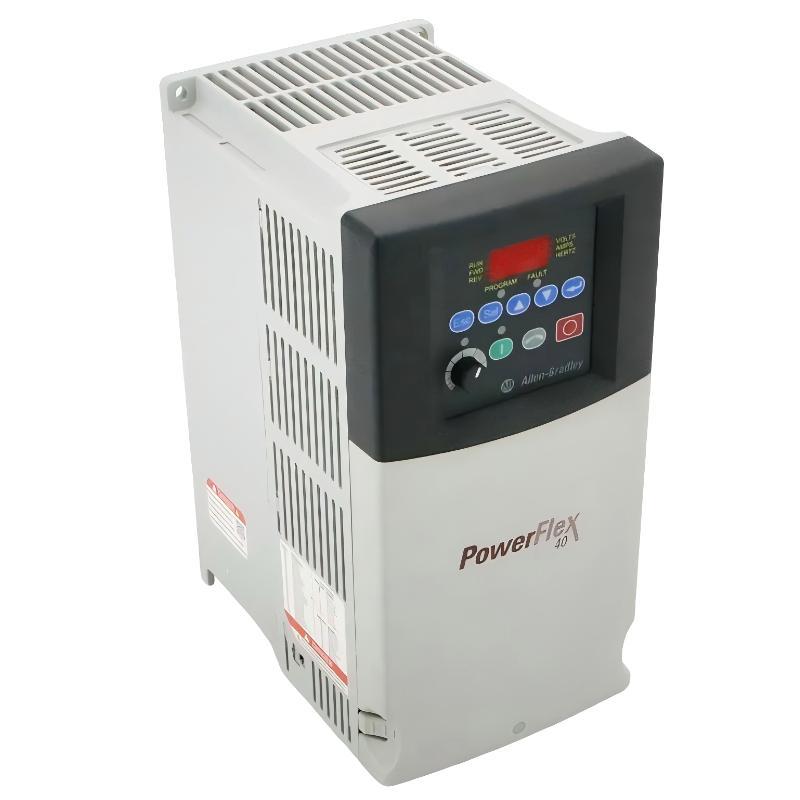

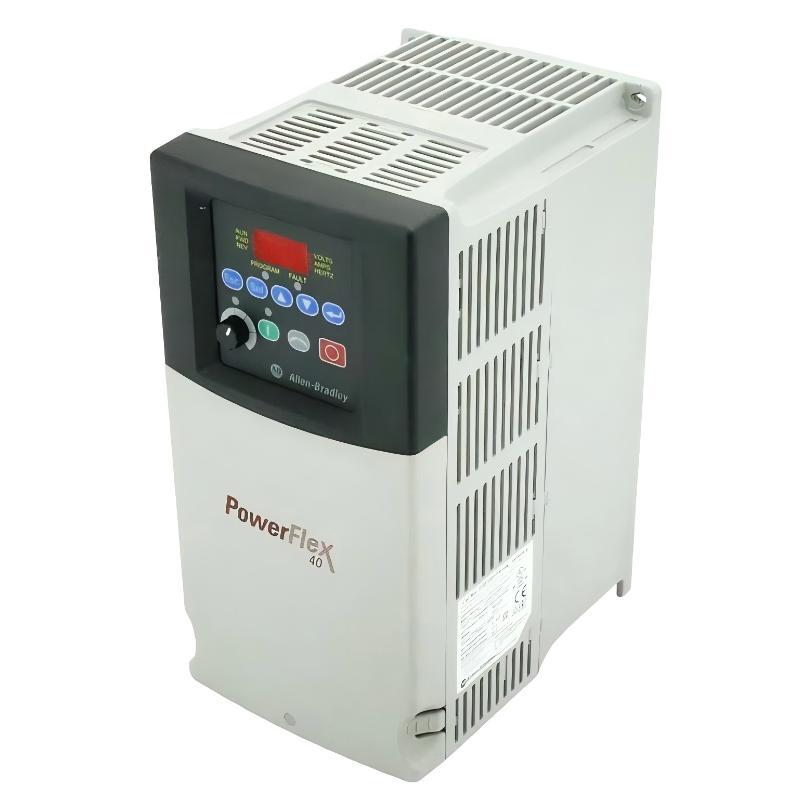

Allen Bradley 22B-D017N104 PowerFlex 40 AC Drive

Overview

The Allen Bradley 22B-D017N104 is a PowerFlex 40 AC drive designed for efficient motor speed control in industrial automation applications. It provides reliable variable frequency operation, flexible parameter configuration, and stable performance for conveyors, pumps, fans, and other motor-driven equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22B-D017N104

Series: PowerFlex 40

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation systems

Input Phase: Three-phase

Frame Size: Frame C

Dimensions: 260 × 130 × 180 mm

Weight: 4.3 kg

Power Specifications

Input Voltage: 380 to 480V AC

Output Power: 10 HP class drive

Rated Current: Designed for medium-duty industrial motor applications

Motor Control Method: Adjustable frequency control with programmable acceleration and deceleration functions

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Forced air cooling design for reliable operation

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad for parameter setup and drive monitoring

Input Signals: Start/stop commands, speed reference, and programmable digital inputs

Output Signals: Drive status monitoring and operating feedback

Network Support: Supports industrial communication options for automation system integration

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 260 × 130 × 180 mm

Weight: 4.3 kg
