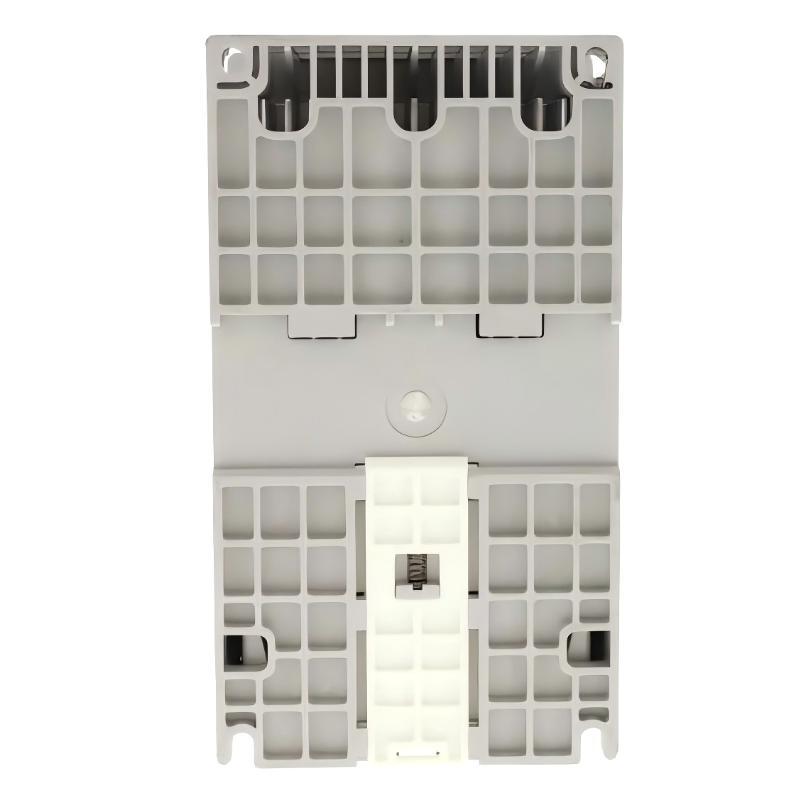

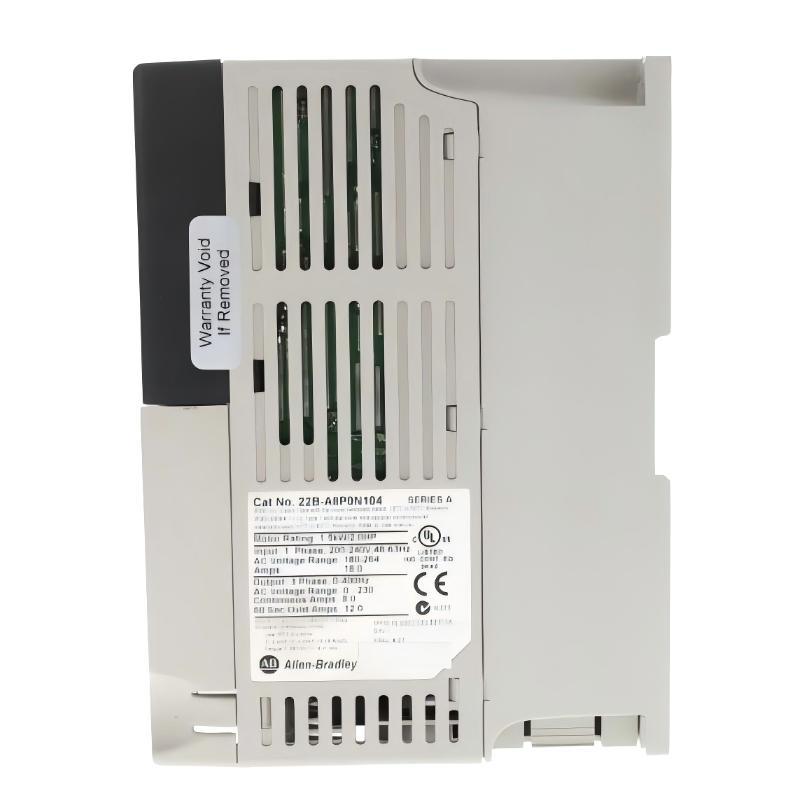

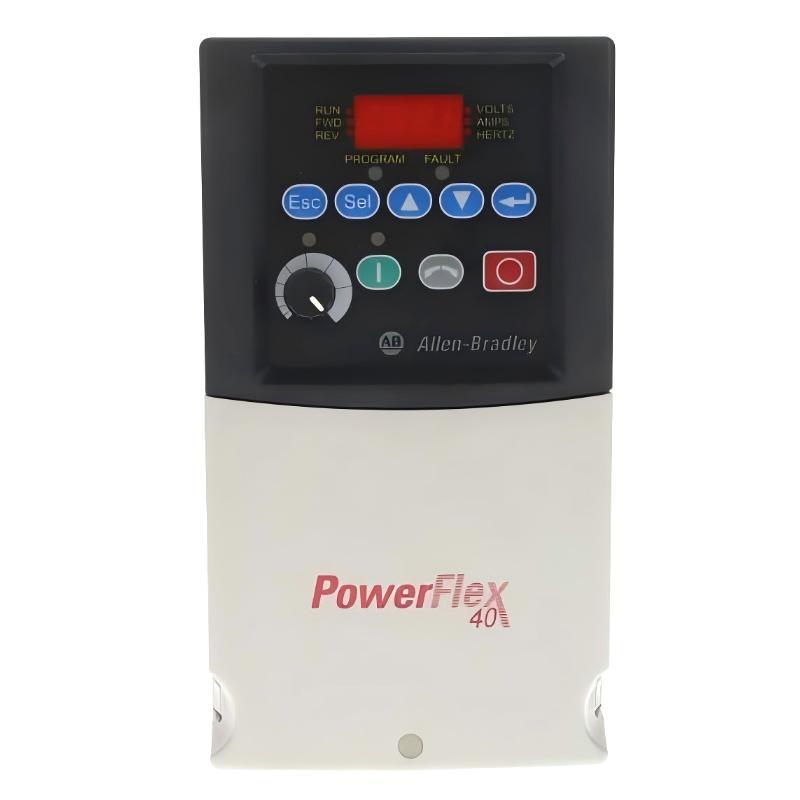

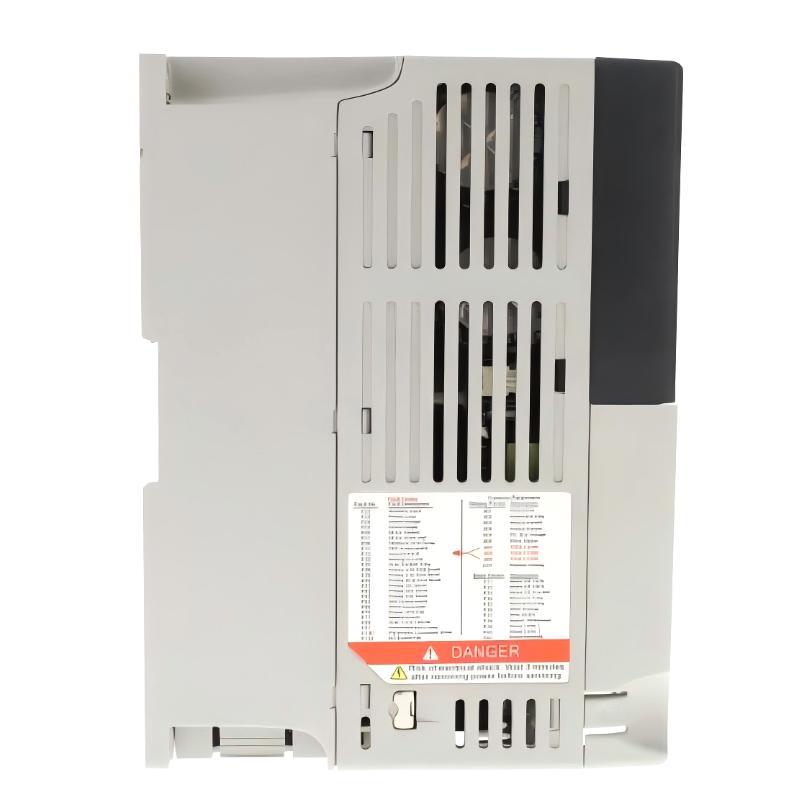

Allen Bradley 22B-A8P0N104 PowerFlex 40 AC Drive

Overview

The Allen Bradley 22B-A8P0N104 is a PowerFlex 40 AC drive designed for reliable motor speed control in industrial automation applications. It provides flexible configuration, efficient variable frequency operation, and stable performance for machine systems, conveyors, pumps, and general motor-driven equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22B-A8P0N104

Series: PowerFlex 40

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation systems

Input Phase: Three-phase

Frame Size: Frame B

Dimensions: 180 × 100 × 136 mm

Weight: 2.2 kg

Power Specifications

Input Voltage: 380 to 480V AC

Output Power: 3 HP class drive

Rated Current: Designed for medium-duty motor control applications

Motor Control Method: Adjustable frequency control with programmable speed regulation

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Air cooling design for reliable operation

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad for parameter setup and monitoring

Input Signals: Start/stop commands, speed reference, and programmable digital inputs

Output Signals: Drive status monitoring and operating feedback

Network Support: Supports industrial communication options for system integration

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 180 × 100 × 136 mm

Weight: 2.2 kg
