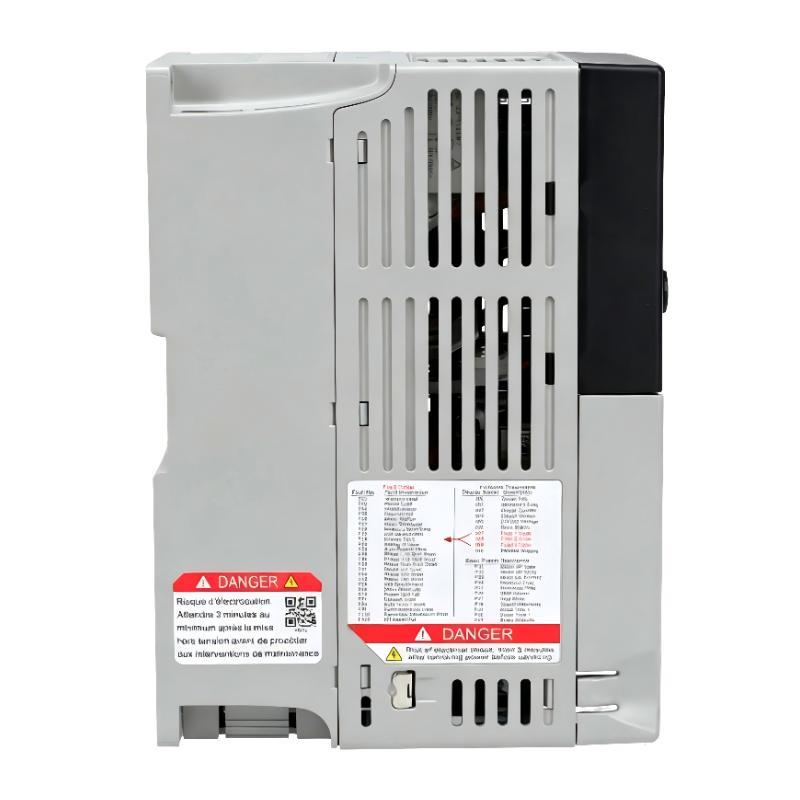

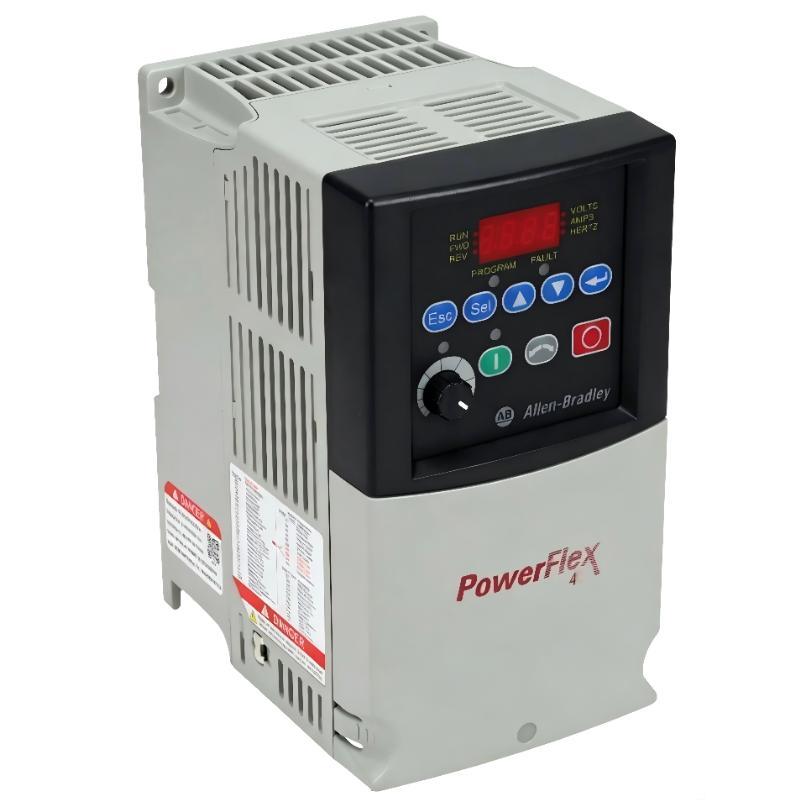

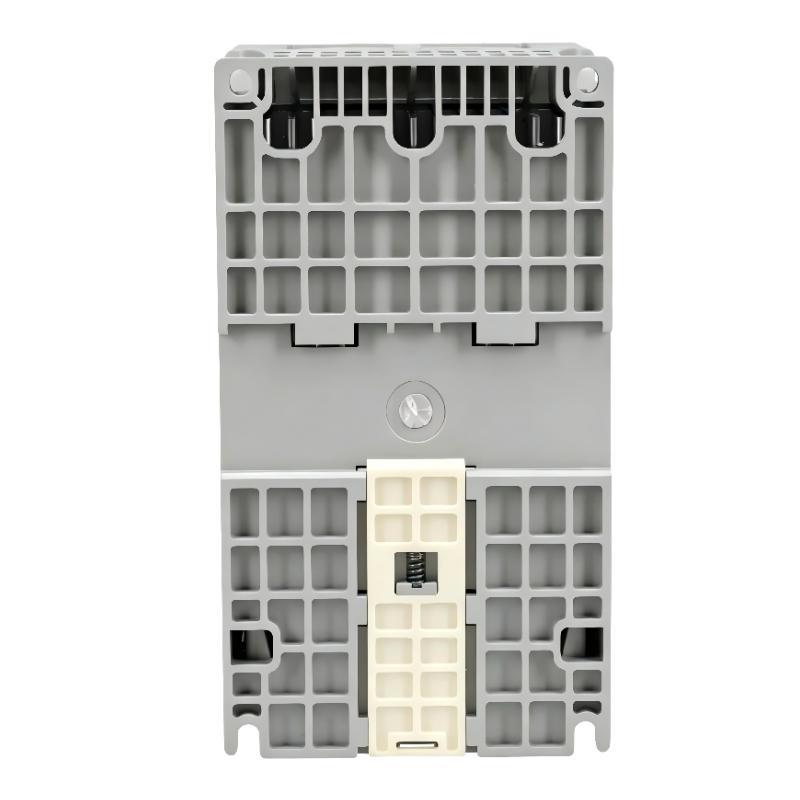

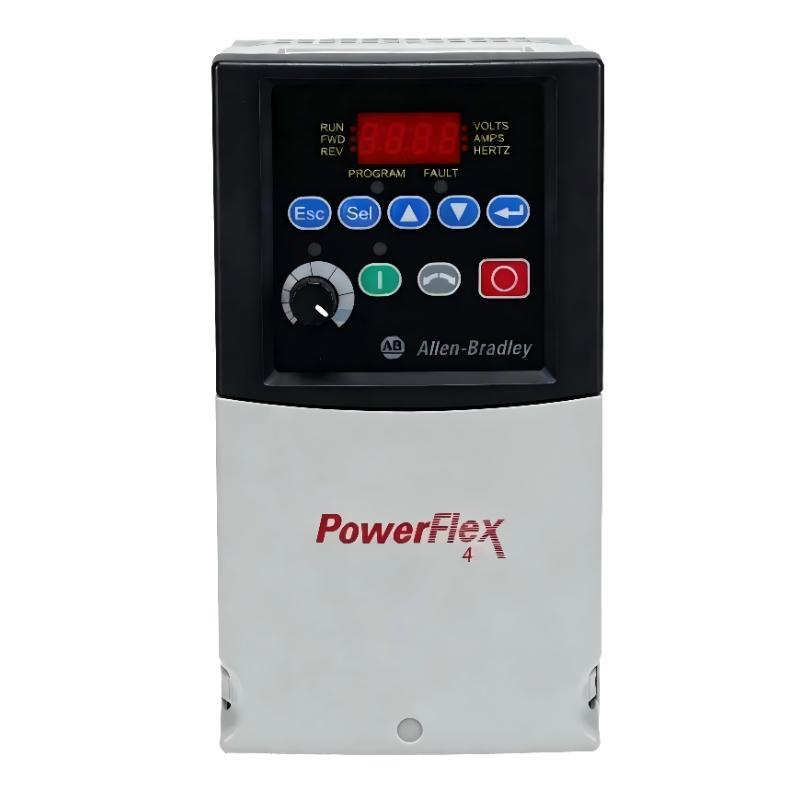

Allen Bradley 22A-B017N104 PowerFlex 4 AC Drive

Overview

The Allen Bradley 22A-B017N104 is a PowerFlex 4 AC drive designed for efficient motor speed control in industrial automation applications. It provides reliable variable frequency operation, compact installation, and flexible configuration for machine systems requiring accurate motor control.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22A-B017N104

Series: PowerFlex 4

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial equipment automation

Input Phase: Three-phase

Frame Size: Frame B

Dimensions: 180 × 100 × 136 mm

Weight: 2.2 kg

Power Specifications

Input Voltage: 380 to 480V AC

Output Power: 7.5 HP class drive

Rated Current: Designed for medium-duty motor control applications

Motor Control Method: Adjustable frequency control with programmable acceleration and deceleration settings

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Air cooling design for continuous operation stability

Communication & Interface

Control Interface: Digital and analog terminal control

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad and parameter adjustment

Input Signals: Start/stop commands, speed reference, and digital control inputs

Output Signals: Drive status monitoring and operating feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 180 × 100 × 136 mm

Weight: 2.2 kg
