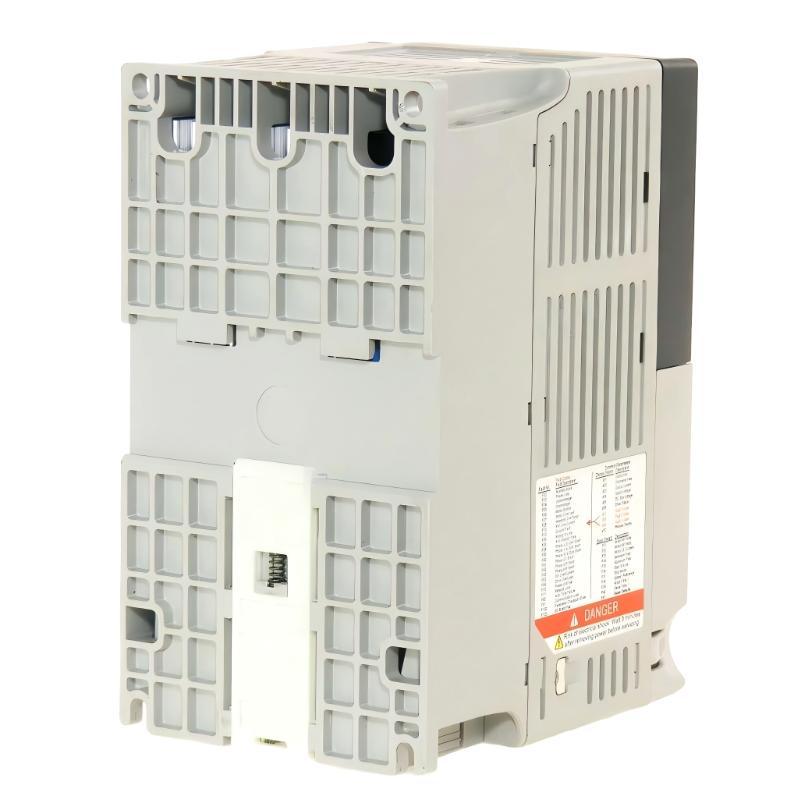

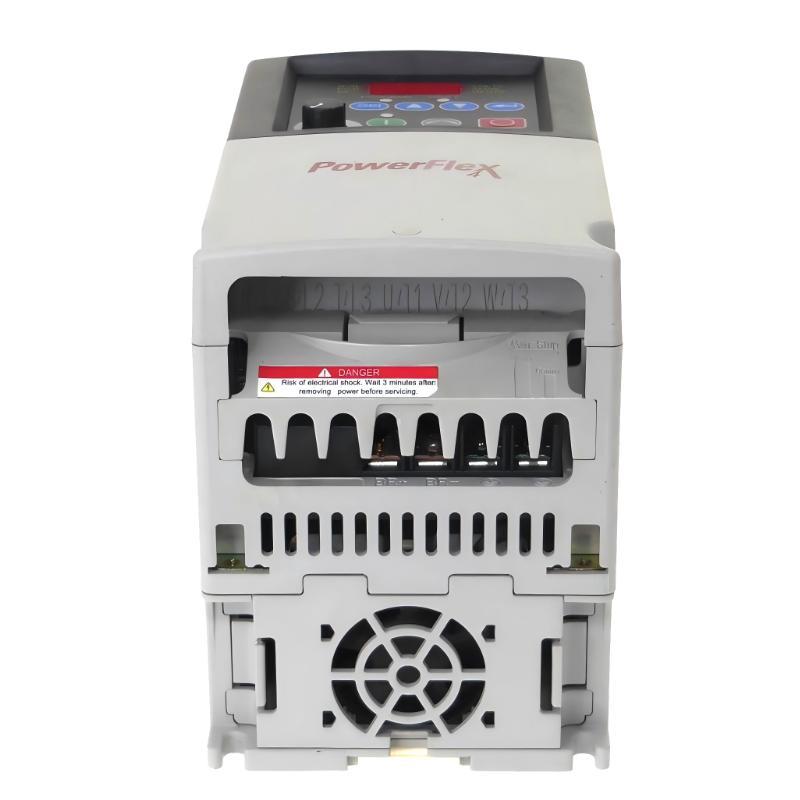

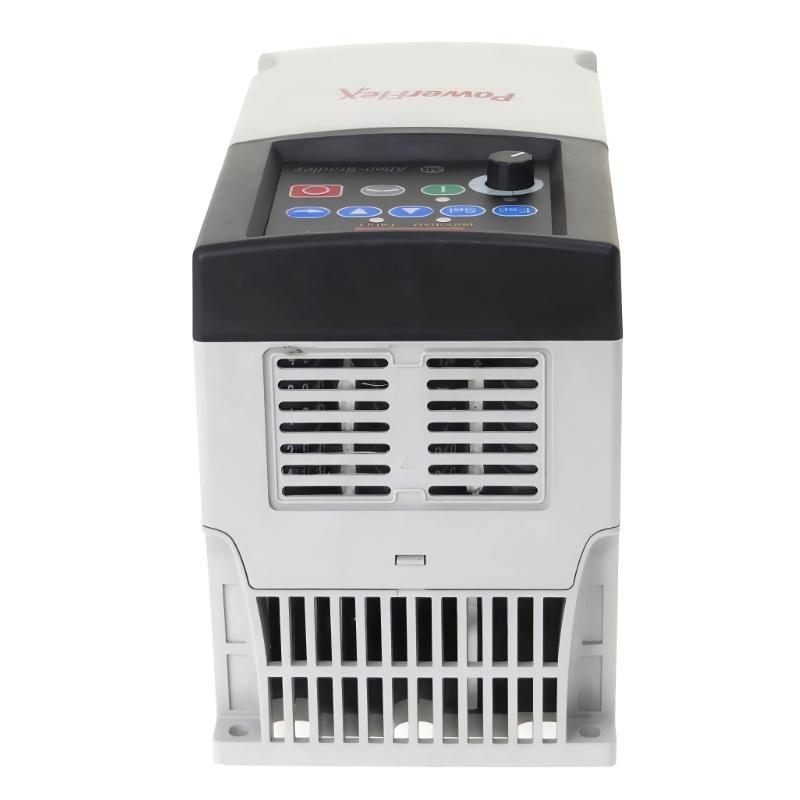

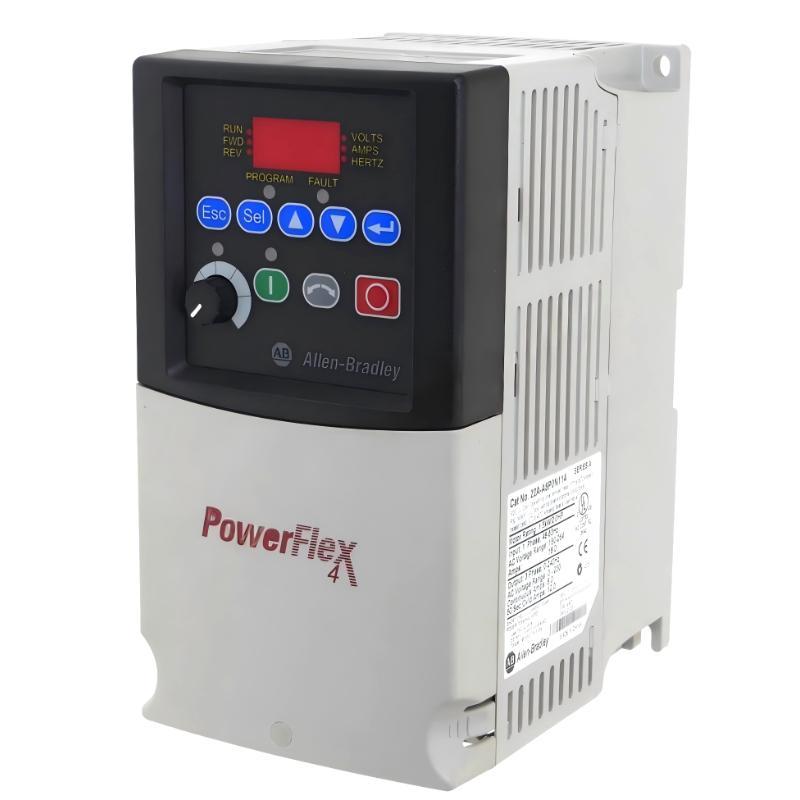

Allen Bradley 22A-A8P0N114 PowerFlex 4 AC Drive

Overview

The Allen Bradley 22A-A8P0N114 is a PowerFlex 4 AC drive designed for compact motor control applications. It provides reliable speed regulation, simple configuration, and efficient operation for industrial machines, conveyors, fans, pumps, and general automation equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22A-A8P0N114

Series: PowerFlex 4

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation systems

Input Phase: Single-phase

Frame Size: Frame B

Dimensions: 180 × 100 × 136 mm

Weight: 2.2 kg

Power Specifications

Input Voltage: 120V AC

Output Power: 1 HP class drive

Rated Current: Suitable for compact motor control applications

Motor Control Method: Adjustable frequency control with voltage and frequency regulation

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Air cooling design for stable operation

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Type: RS-485 communication support

Programming Interface: Local keypad and parameter configuration

Input Signals: Start/stop commands, speed reference, and digital control inputs

Output Signals: Drive status monitoring and operating feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 180 × 100 × 136 mm

Weight: 2.2 kg
