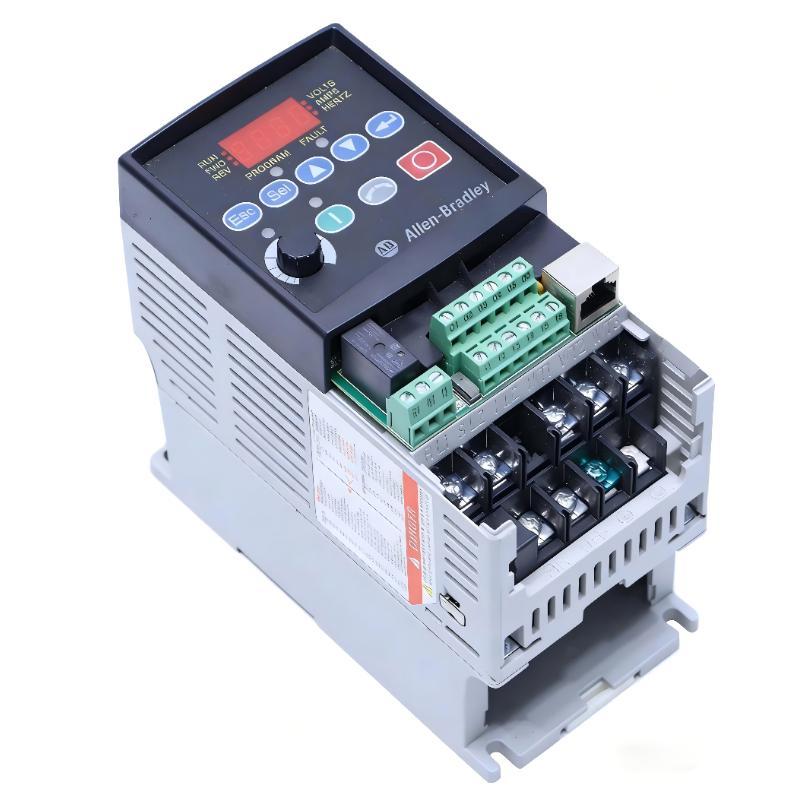

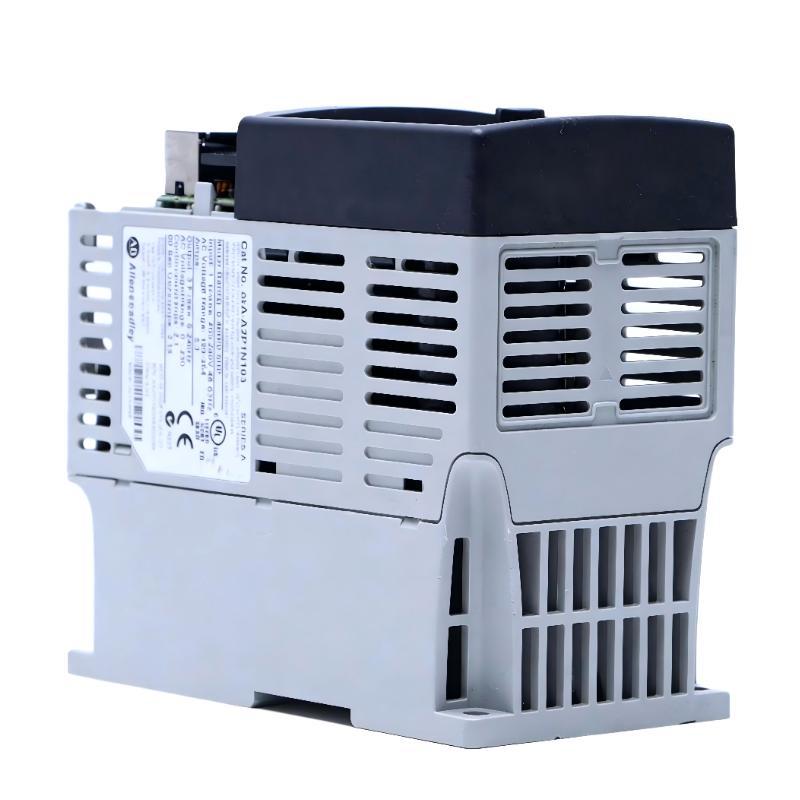

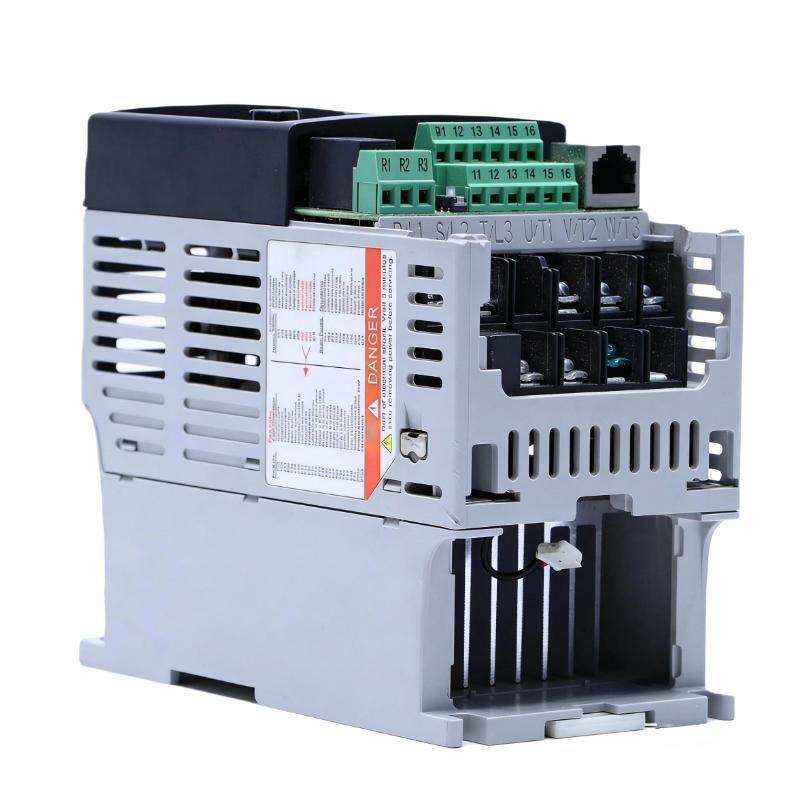

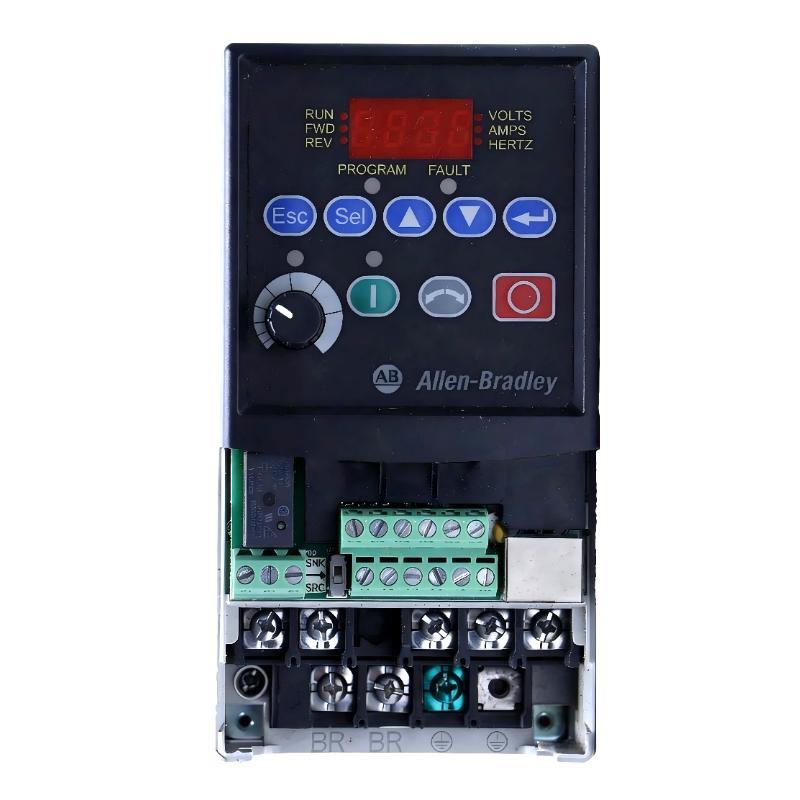

Allen Bradley 22A-A2P1N103 PowerFlex 4 AC Drive

Overview

The Allen Bradley 22A-A2P1N103 is a PowerFlex 4 AC drive designed for compact motor control applications. It provides adjustable speed control, efficient motor operation, and flexible configuration options for industrial machines, conveyors, pumps, and general automation equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22A-A2P1N103

Series: PowerFlex 4

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and machine automation

Input Phase: Three-phase

Frame Size: Frame A

Dimensions: 152 × 80 × 136 mm

Weight: 1.4 kg

Power Specifications

Input Voltage: 200 to 240V AC

Output Power: 1 HP class drive

Rated Current: Suitable for small industrial motor applications

Motor Control Method: Adjustable frequency control with voltage and frequency regulation

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Air cooling design for reliable operation

Communication & Interface

Control Interface: Digital and analog terminal control

Communication Type: RS-485 communication support

Programming Interface: Local keypad and parameter configuration

Input Signals: Start/stop commands, speed reference, and digital control inputs

Output Signals: Drive status monitoring and operating feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets and machine equipment

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 152 × 80 × 136 mm

Weight: 1.4 kg
