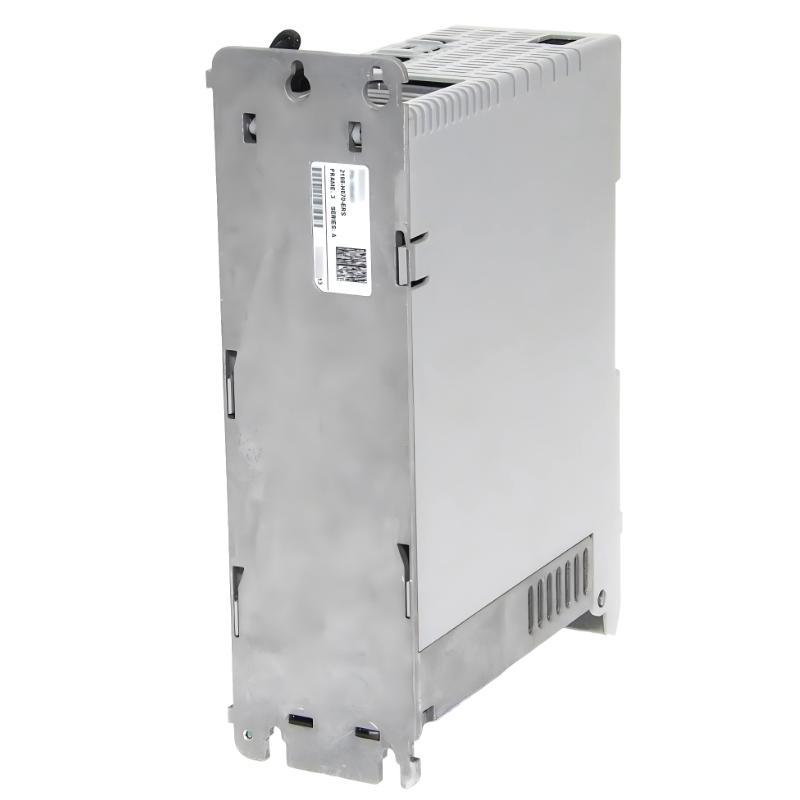

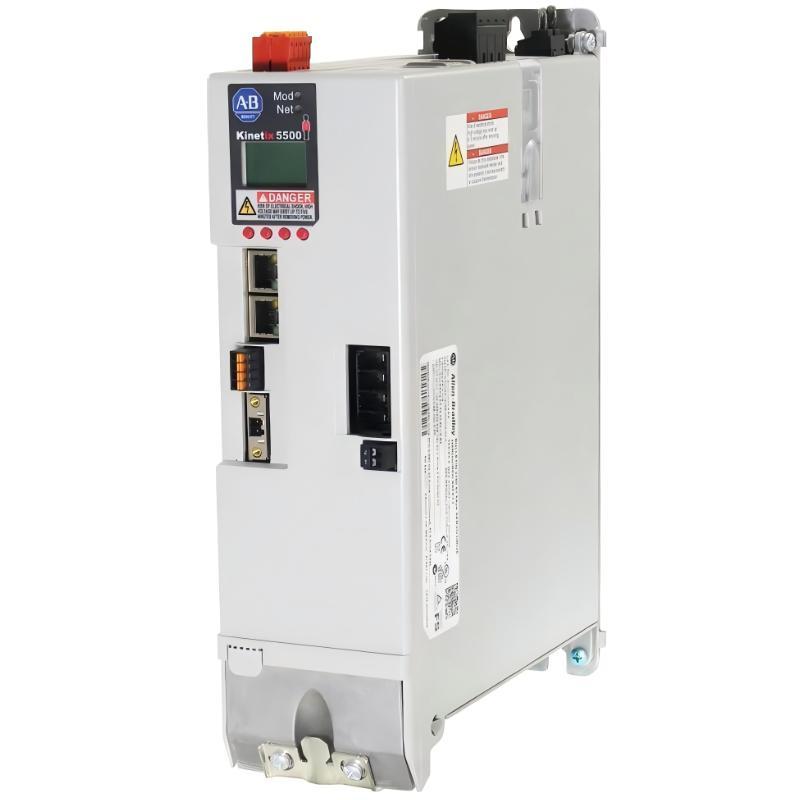

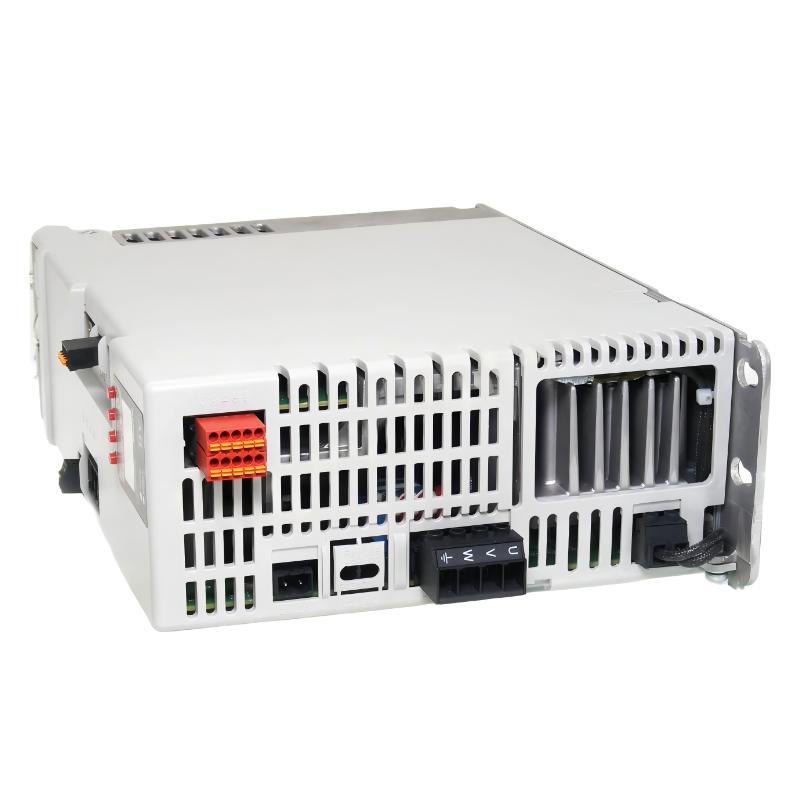

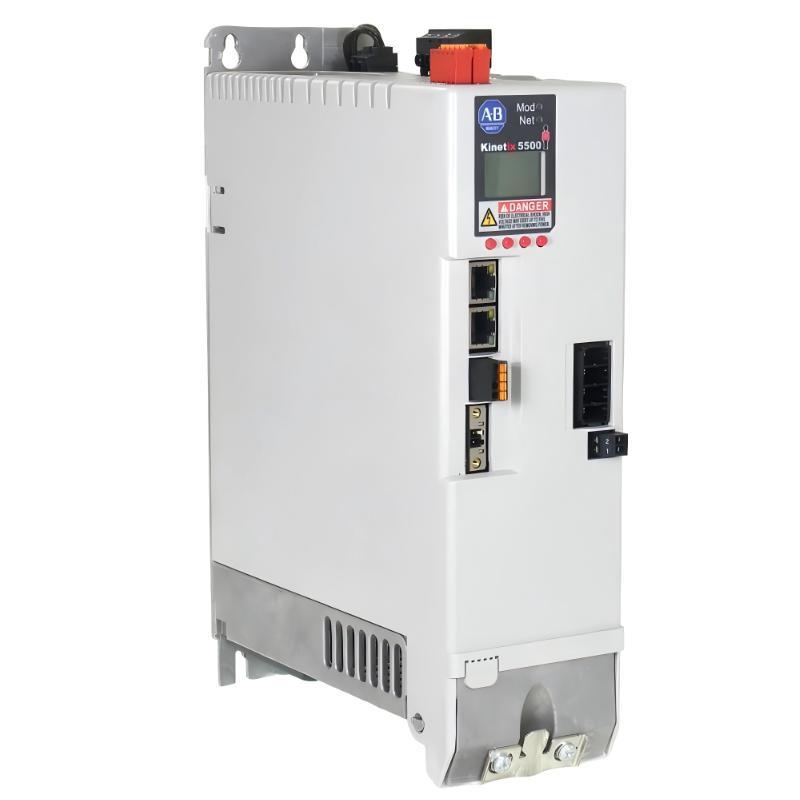

Allen Bradley 2198-H070-ERS Kinetix 5500 Servo Drive
| Release time | Jul 13, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 2198-H070-ERS |
| Country Of Origin | USA |
| Dimensions | 294 x 88.2 x 200 mm |
| Weight | 4.1 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 2198-H070-ERS Kinetix 5500 Servo Drive is a high-performance single-axis servo drive designed for advanced motion control applications. It delivers precise motor control, EtherNet/IP communication, and integrated safety functions to support reliable performance in demanding industrial automation systems.
General Information
Part Number: 2198-H070-ERS
Manufacturer: Allen Bradley
Brand: Allen Bradley
Country of Origin: United States
Series: Kinetix 5500
Type: Servo Drive
Input Voltage: 324 to 528 VAC
Axis Configuration: Single-axis servo drive
Output Current: 70 A
Motor Control Type: Digital servo control
Feedback Support: High-resolution motor feedback interface
Safety Function: Safe Torque-Off (STO)
Cooling Method: Forced Air Cooling
Mounting Type: Panel mounting installation
Power Specifications
Input Voltage: 324 to 528 VAC
Input Phase: Three Phase AC
Output Current: 70 A
DC Bus Voltage: 460 to 747 V DC
Motor Control: Position, velocity, and torque control
Power Supply Type: AC input with DC bus architecture
Protection Functions: Overvoltage, overcurrent, overload, short circuit, and thermal protection
Energy Management: Supports DC bus sharing within compatible Kinetix 5500 systems
Communication & Interface
Communication Interface: EtherNet/IP
Network Capability: Supports real-time communication with Logix controllers
Motion Control: Integrated CIP Motion support for coordinated motion applications
Feedback Interface: Supports high-resolution encoder feedback devices
Safety Interface: Integrated Safe Torque-Off function
Configuration Method: Software-based parameter configuration
Diagnostics: Drive status monitoring, fault reporting, and motion system diagnostics
Environmental
Operating Temperature: 0 to 50 °C
Storage Temperature: -40 to 85 °C
Cooling Type: Forced Air Cooling
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet environment
Protection Rating: IP20
Dimensions & Weight
Dimensions (H × W × D): 294 × 88.2 × 200 mm
Weight: 4.1 kg
