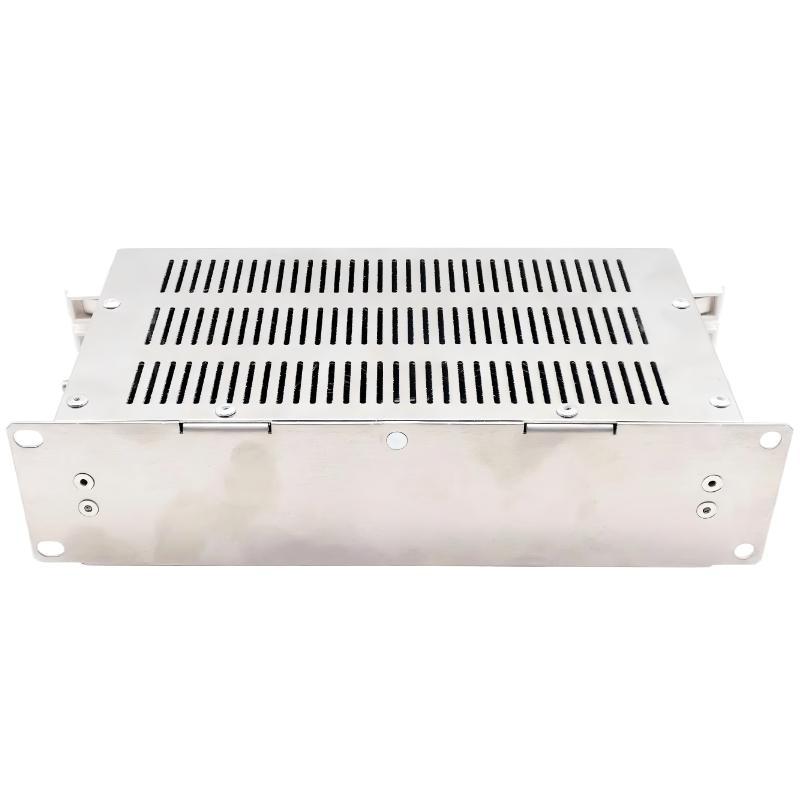

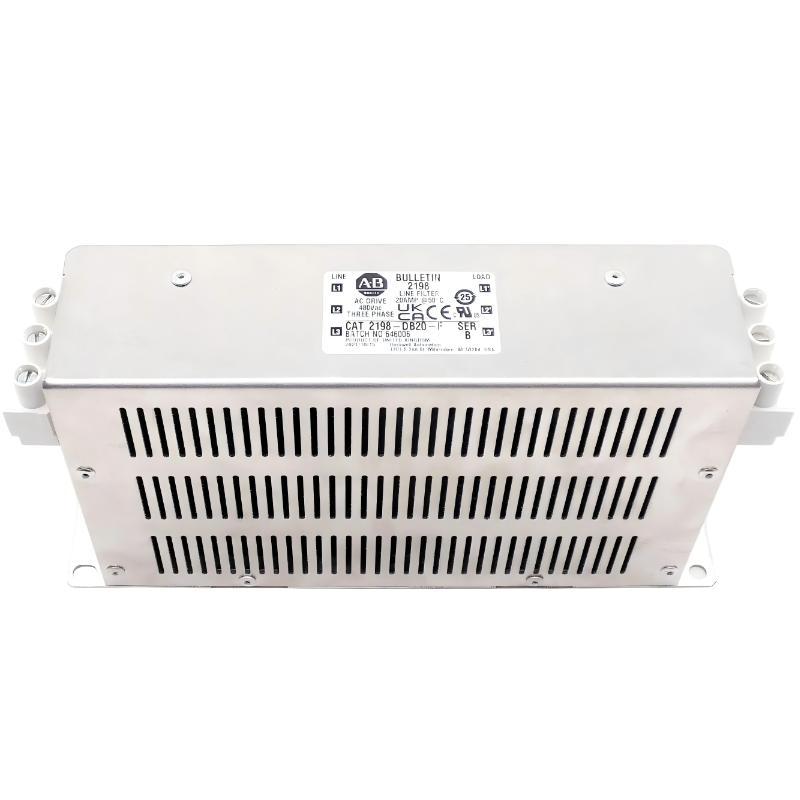

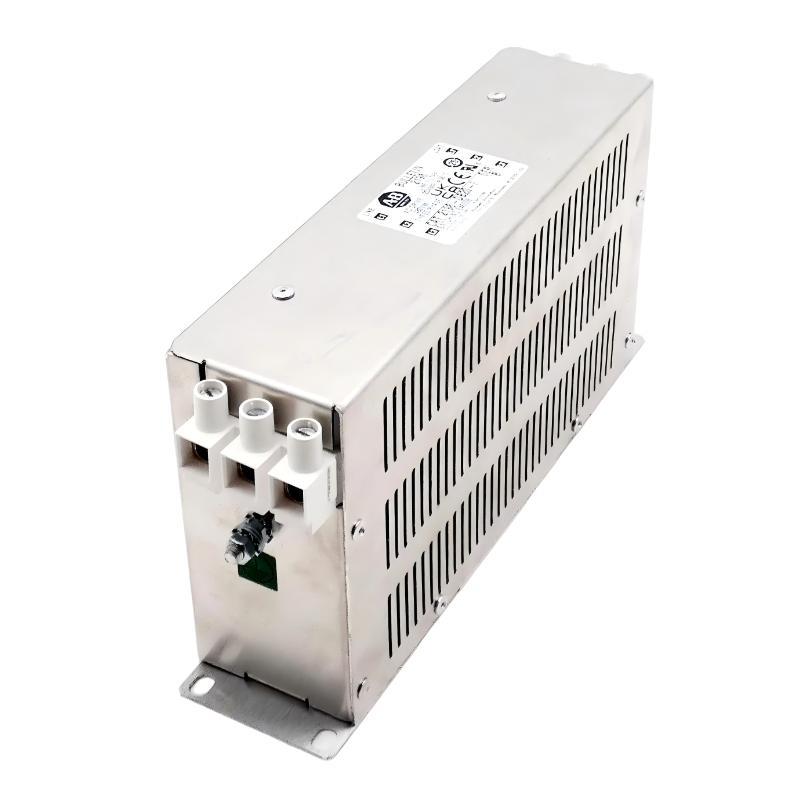

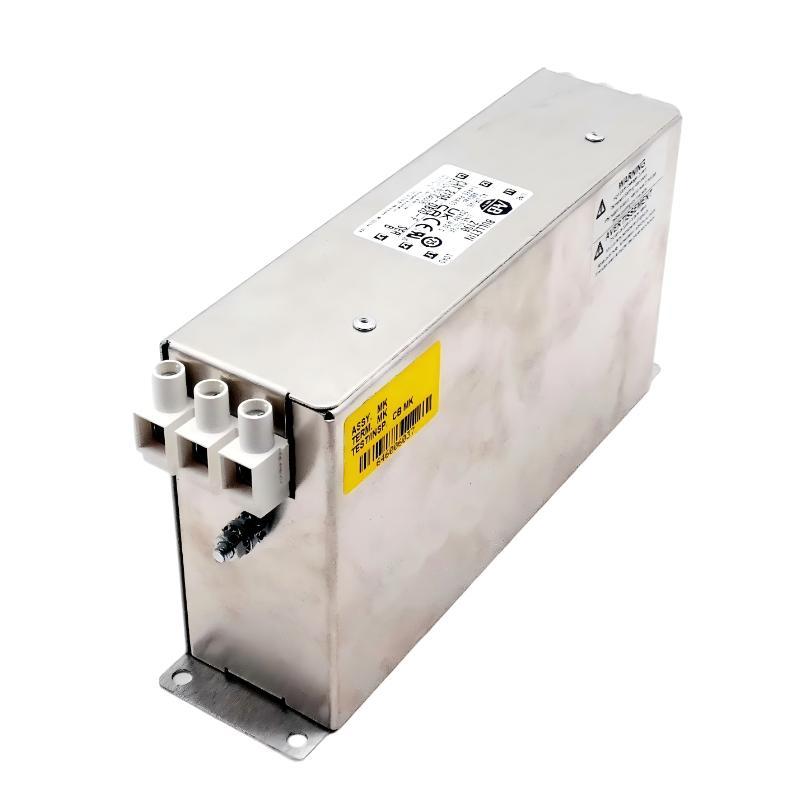

Allen Bradley 2198-DB20-F Kinetix 5500 AC Line Filter

Overview

The Allen Bradley 2198-DB20-F Kinetix 5500 AC Line Filter is a power conditioning accessory designed for Kinetix 5500 servo drive systems. It helps reduce electrical noise and electromagnetic interference, improving power quality and supporting reliable operation of motion control equipment in industrial environments.

General Information

Part Number: 2198-DB20-F

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Kinetix 5500

Type: AC Line Filter

Function: Power line noise suppression and EMC filtering

Compatibility: Kinetix 5500 Servo Drive Systems

Input Type: Three-phase AC power input

Filter Design: Compact industrial EMC filter module

Installation Method: Panel mounting installation

Application: Servo drive power supply filtering

Power Specifications

Rated Voltage: 480 VAC

Input Phase: Three Phase AC

Rated Current: 20 A

Filter Type: EMC/RFI suppression filter

Frequency Range: 50/60 Hz

Power Function: Reduces conducted noise from AC power lines

Protection Functions: Supports improved system protection against electrical interference

Communication & Interface

Communication Interface: None

Connection Type: Power terminal connection

Interface Function: AC power filtering between supply and servo drive

Control Communication: Not applicable

System Integration: Designed for use with Kinetix 5500 drive power systems

Diagnostics: Managed through connected drive system monitoring

Environmental

Operating Temperature: 0 to 50 °C

Storage Temperature: -40 to 85 °C

Cooling Type: Natural convection cooling

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: IP20

Dimensions & Weight

Dimensions (H × W × D): 290 × 53.2 × 116 mm

Weight: 1.63 kg
