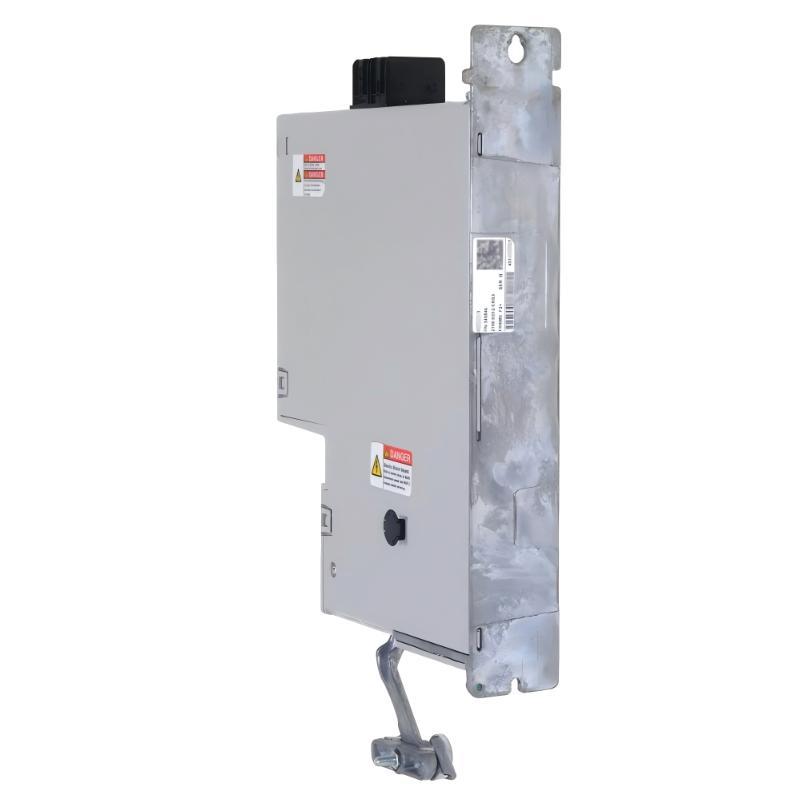

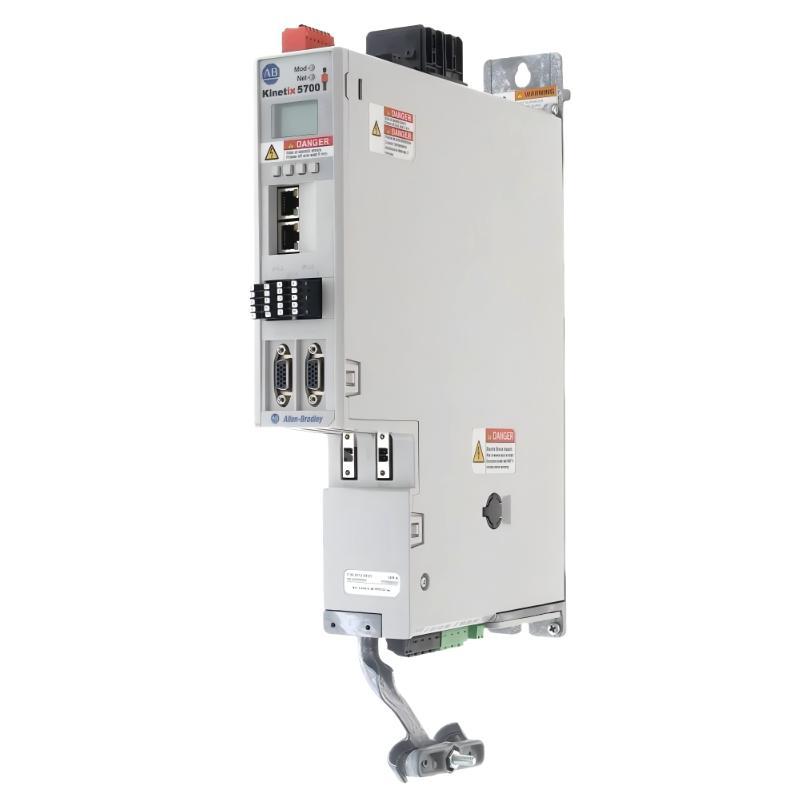

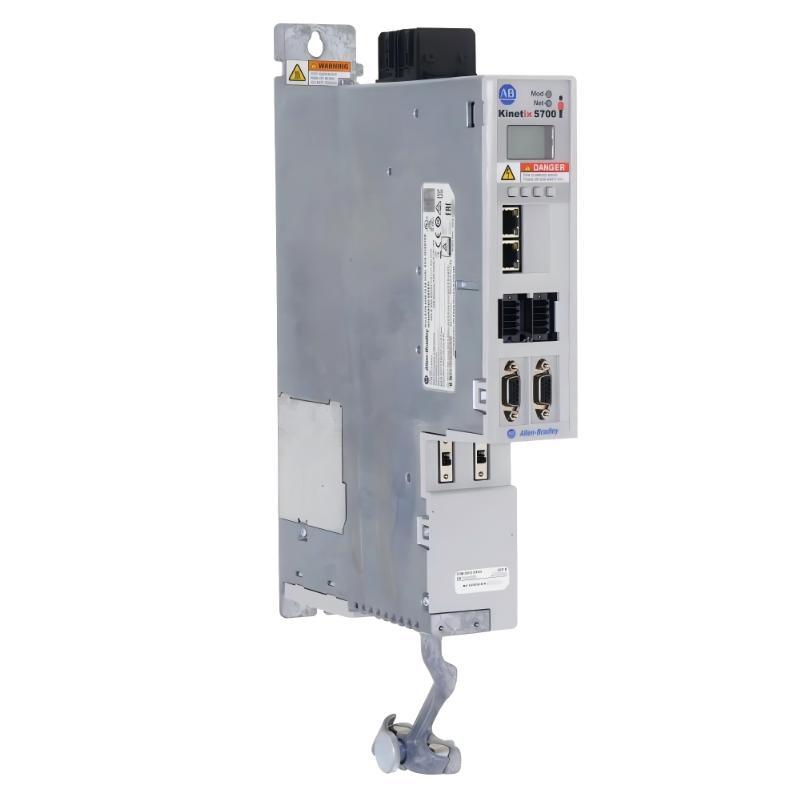

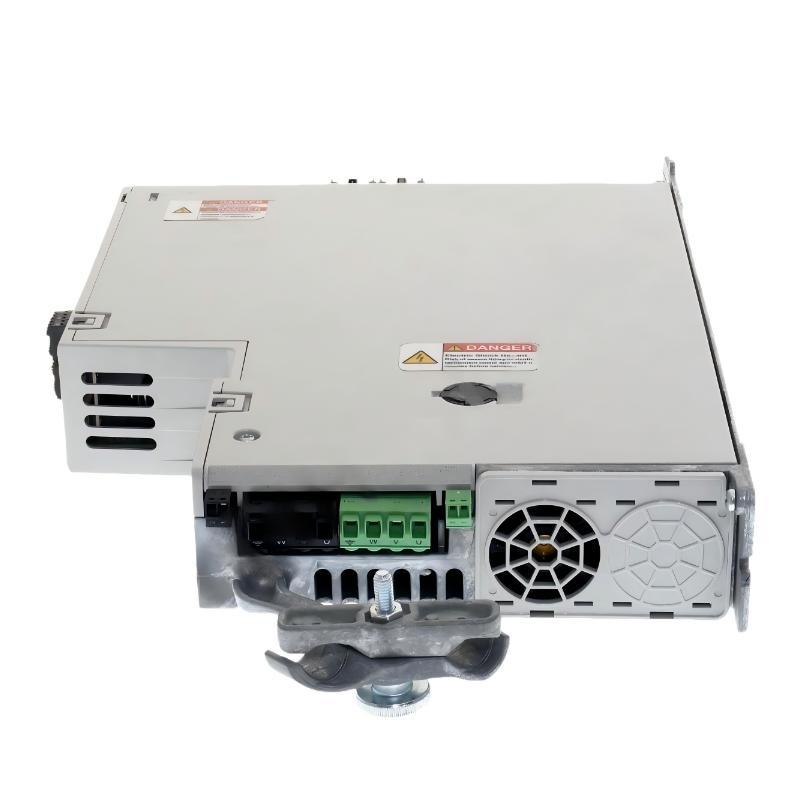

Allen Bradley 2198-D012-ERS3 Kinetix 5700 Dual-axis Servo Drive
| Release time | Jul 13, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 2198-D012-ERS3 |
| Country Of Origin | USA |
| Dimensions | 451 x 55 x 267.5 mm |
| Weight | 4.16 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 2198-D012-ERS3 Kinetix 5700 Dual-Axis Servo Drive is a high-performance motion control module designed for multi-axis automation applications. It provides precise control of two servo motors in a compact design, supporting EtherNet/IP communication, integrated safety functions, and efficient DC bus power sharing for advanced motion systems.
General Information
Part Number: 2198-D012-ERS3
Manufacturer: Allen Bradley
Brand: Allen Bradley
Country of Origin: United States
Series: Kinetix 5700
Type: Dual-Axis Servo Drive
Input Voltage: 324 to 528 VAC
Axis Configuration: Two-axis integrated servo drive
Output Current: 12 A per axis
Safety Function: Safe Torque-Off (STO)
Cooling Method: Forced Air Cooling
Mounting Type: Panel mounting installation
Drive Design: Modular multi-axis servo control system
Power Specifications
Input Voltage: 324 to 528 VAC
Input Phase: Three Phase AC
Output Current: 12 A per axis
DC Bus Voltage: 325 to 748 V DC
Motor Control: Digital servo control for position, velocity, and torque applications
Power Supply Type: AC input with DC bus architecture
Protection Functions: Overvoltage, overcurrent, overload, short circuit, and thermal protection
Energy Management: Supports shared DC bus configurations between connected drive modules
Communication & Interface
Communication Interface: EtherNet/IP
Network Capability: Supports real-time communication with Logix controllers
Motion Control: Integrated CIP Motion support for coordinated multi-axis operation
Feedback Interface: Supports high-resolution motor feedback devices
Safety Interface: Integrated Safe Torque-Off function
Configuration Method: Software-based parameter setup and drive configuration
Diagnostics: Drive status monitoring, fault reporting, and motion system diagnostics
Environmental
Operating Temperature: 0 to 50 °C
Storage Temperature: -40 to 85 °C
Cooling Type: Forced Air Cooling
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet environment
Protection Rating: IP20
Dimensions & Weight
Dimensions (H × W × D): 451 × 55 × 267.5 mm
Weight: 4.16 kg
In Stock Today – Reliable Motion Control Components for Automation Systems
QDo you provide technical support or installation services?
QCan I return products if they don’t meet my requirements?
QHow can I ensure compatibility with my existing systems?
QAre there discounts for new wholesale customers?
QCan I purchase different quantities of a product?
QWhat payment methods do you accept for wholesale orders?
QCan I get discounts for bulk purchases?
QWhat is the minimum order quantity (MOQ)?
QHow long does shipping take?
QHow can I verify the product before purchasing?
QDoes this product come with a warranty?
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613620394314 | |||||||
| +8613620394314 | ||||||||
| +8613620394314 | ||||||||
| Add | Room 1102, Jiuzhou Commercial Building, Siming District, Xiamen, China | |||||||
Warranty Conditions
At Qunlebu Co., Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
Normal wear and tear.
Negligence.
Extreme environmental conditions beyond product specifications.
