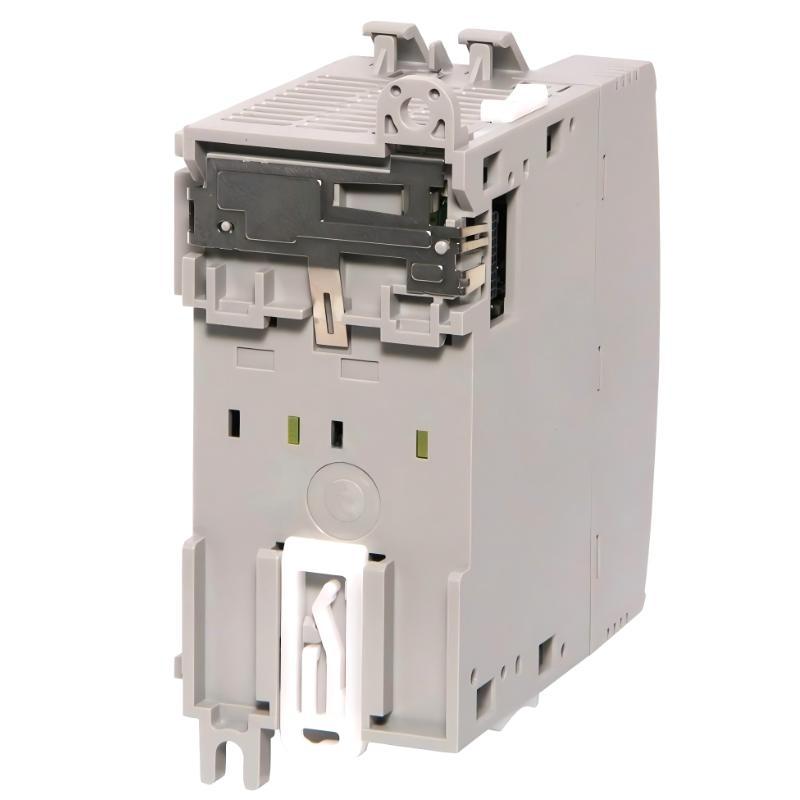

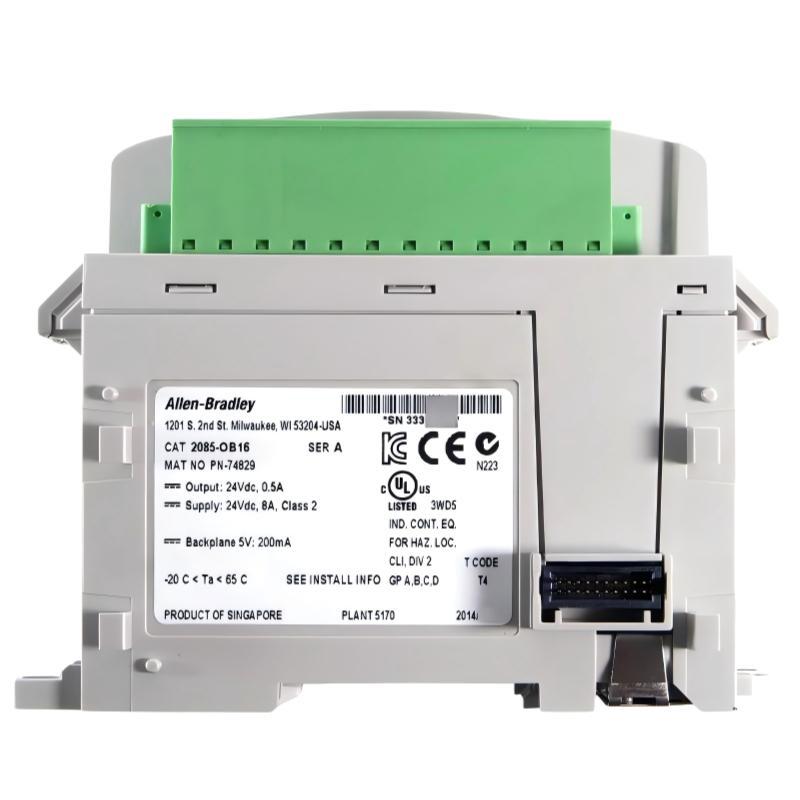

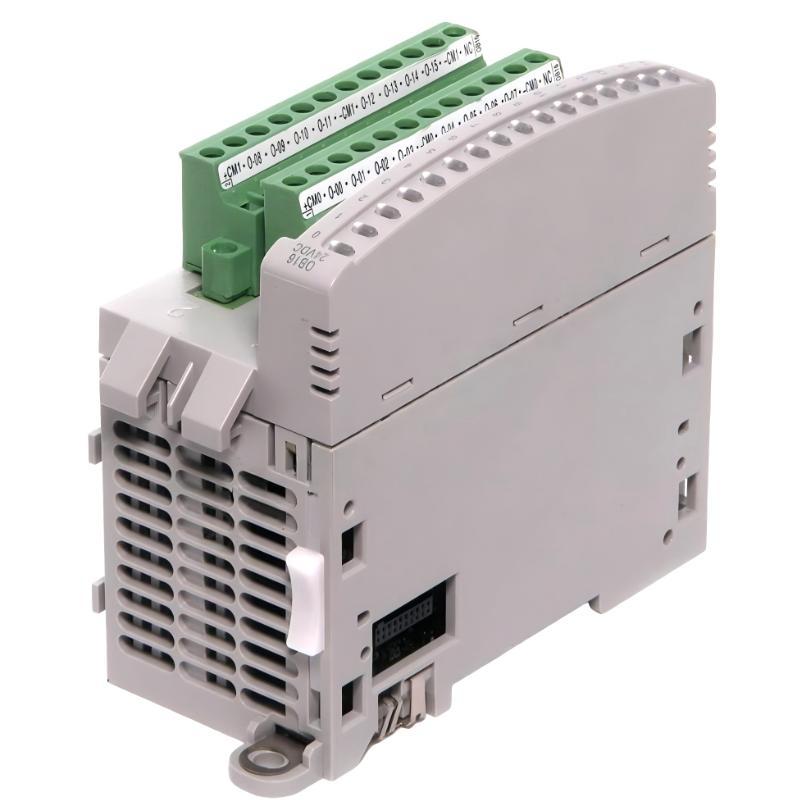

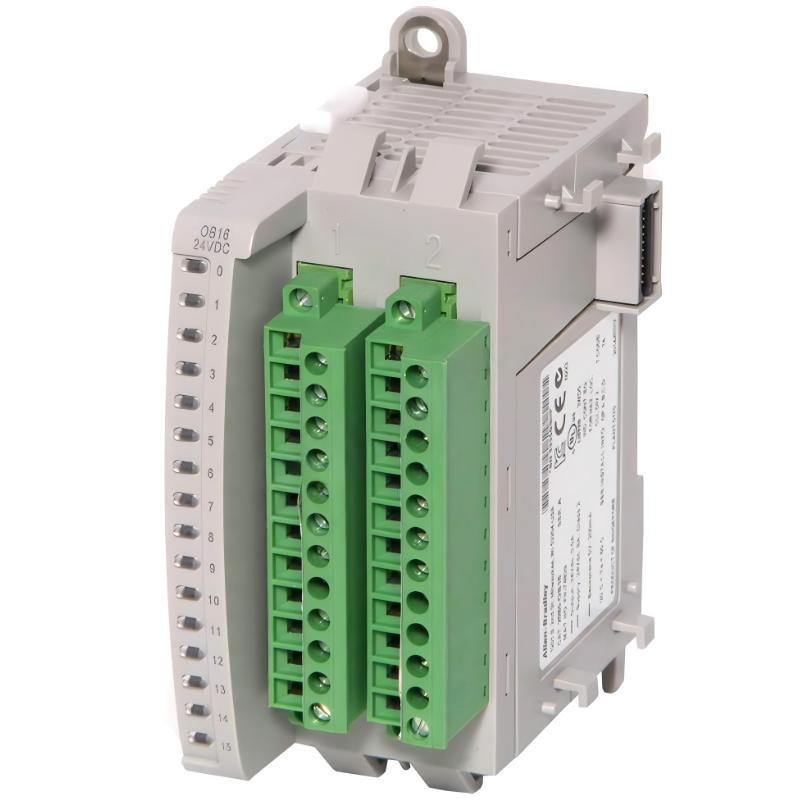

Allen Bradley 2085-OB16 Micro800 Digital Output Module

Overview

The Allen Bradley 2085-OB16 is a Micro800 digital output module designed to expand the discrete output capability of Micro850 and Micro870 programmable controllers. It provides 16 transistor output channels for controlling external devices such as relays, solenoids, indicators, and actuators in industrial automation systems.

This module offers a compact and reliable solution for applications requiring additional output points, flexible I/O expansion, and efficient machine control.

General Information

Part Number: 2085-OB16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Micro800 Series

Type: Digital Output Expansion Module

Application: Industrial machine control and discrete output management

Installation: Mounted with compatible Micro800 controller expansion systems

Function: Provides additional digital output channels for controlling external field devices

Compatibility: Micro850 and Micro870 programmable controllers

Technology: Compact modular I/O expansion with transistor output control

Power Specifications

Supply Voltage: 24 V DC

Power Source: Supplied through the Micro800 expansion system

Power Consumption: Low-power operation for compact automation applications

Output Type: 24 V DC transistor outputs

Protection: Designed with electrical protection features for reliable industrial operation

Indicators: LED status indicators for output activity and module condition monitoring

Communication & Interface

Output Channels: 16 digital output channels

Signal Type: 24 V DC transistor outputs

Output Function: Supports switching control for industrial loads and automation devices

Connection Method: Removable terminal block connection

Communication Interface: Micro800 expansion bus connection

Diagnostics: Provides output status monitoring and module diagnostics through controller software

Environmental

Operating Temperature: −20 to +65 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control panels and automation equipment

Protection Rating: Suitable for standard industrial enclosure environments

Resistance: Designed to withstand industrial vibration, electrical noise, and continuous operation conditions

Dimensions & Weight

Dimensions (L × W × H): 90 × 44.5 × 87 mm

Weight: 0.22 kg
