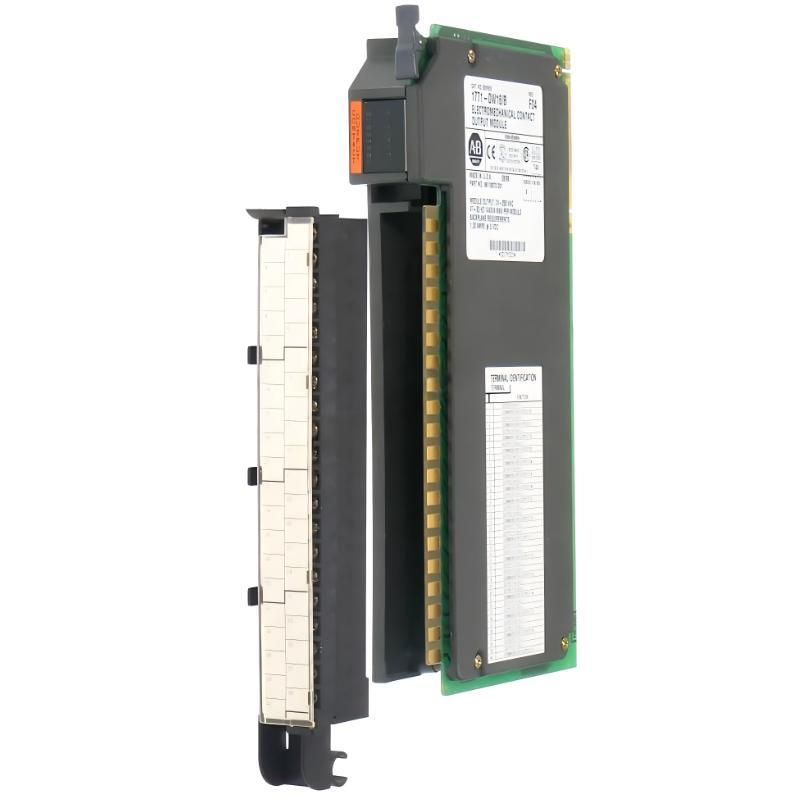

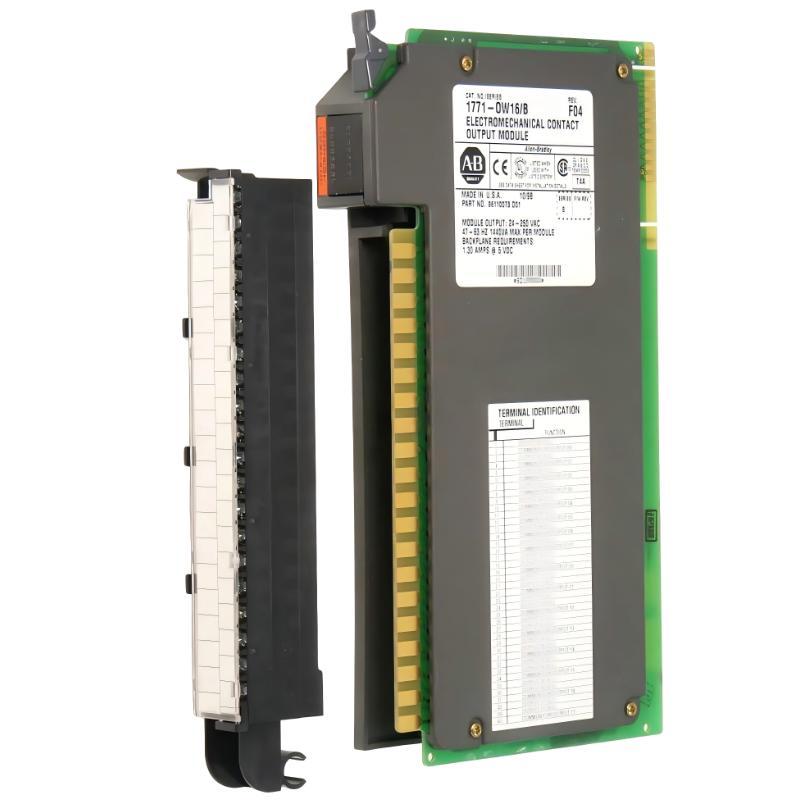

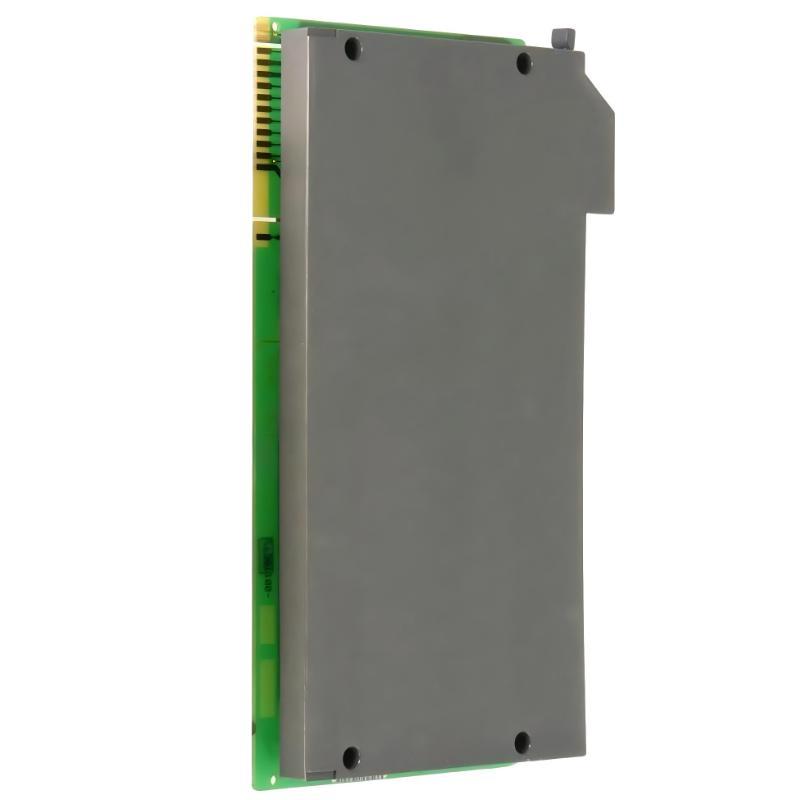

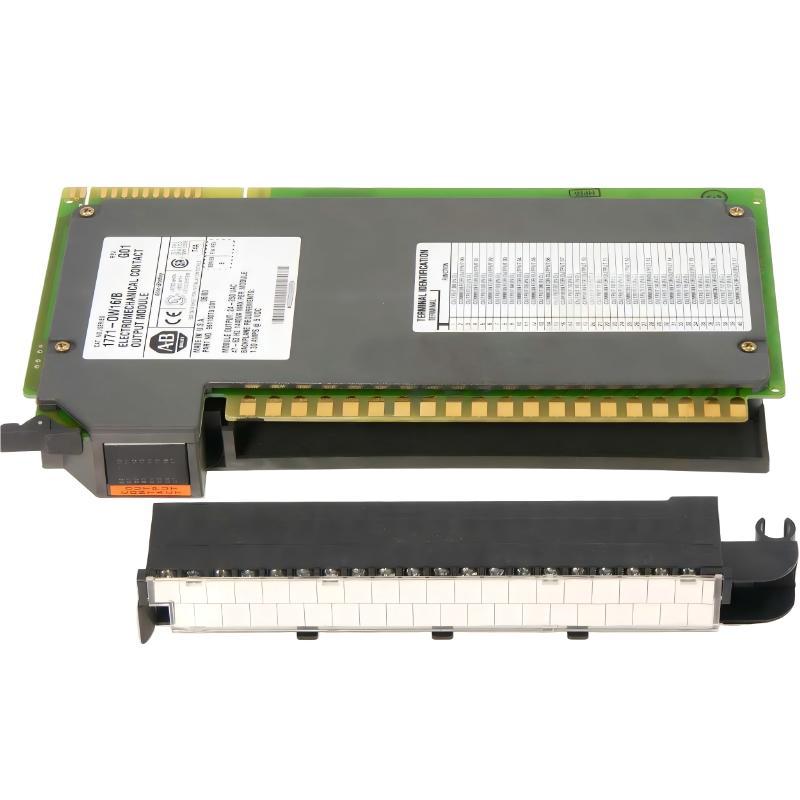

Allen Bradley 1771-OW16 Electromechanical Relay Contact Output Module

Overview

The Allen Bradley 1771-OW16 is an electromechanical relay contact output module designed for the 1771 PLC I/O platform. It provides reliable relay-based switching for industrial control applications, enabling safe and flexible control of AC and DC field devices such as solenoids, motors, and indicators.

General Information

Part Number: 1771-OW16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: 1771 I/O

Type: Electromechanical Relay Contact Output Module

Output Type: Relay Contact Outputs

Application: Industrial automation and mixed AC/DC load control

Power Specifications

Power Supply: Backplane powered

Backplane Current: Approx. 350 mA at 5 V DC

Output Voltage: Up to 250 V AC / 125 V DC (relay contact rating)

Output Channels: 16

Output Method: Electromechanical relay contacts

Status Indicators: Individual channel status LEDs

Communication & Interface

System Interface: 1771 PLC backplane

Output Configuration: 16 relay contact outputs

Load Compatibility: AC and DC industrial loads

Wiring Method: Terminal arm connection

Diagnostics: LED indication per channel and module status monitoring

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Relative Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 165 × 51 × 89 mm

Weight: 0.51 kg
