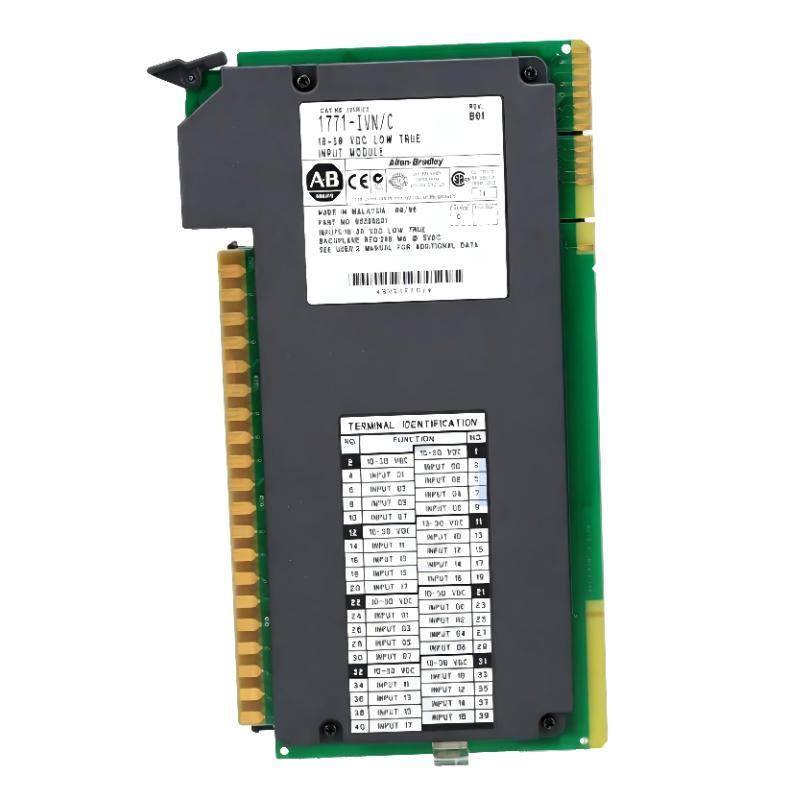

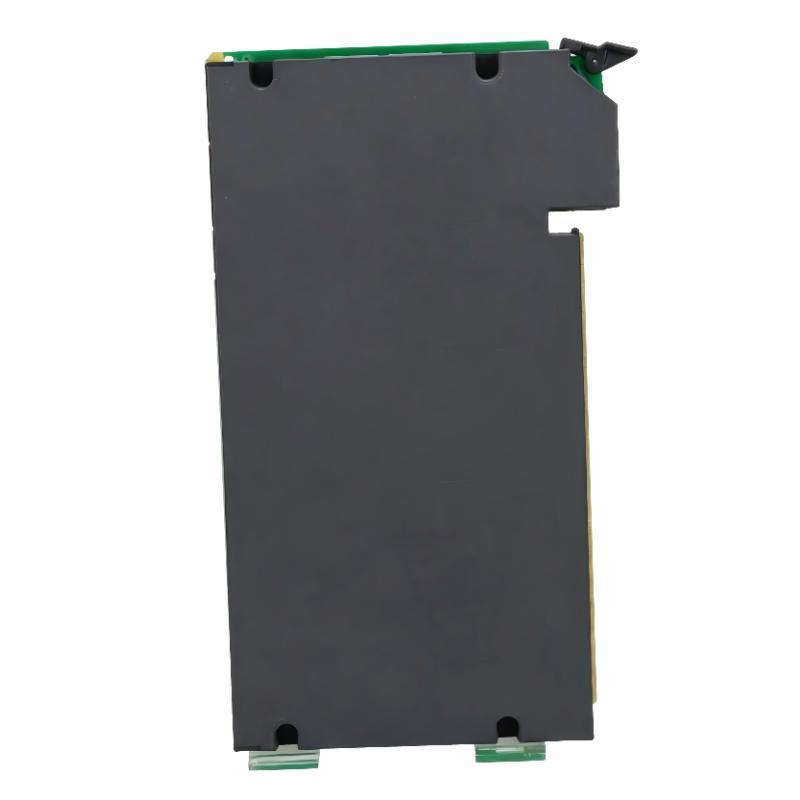

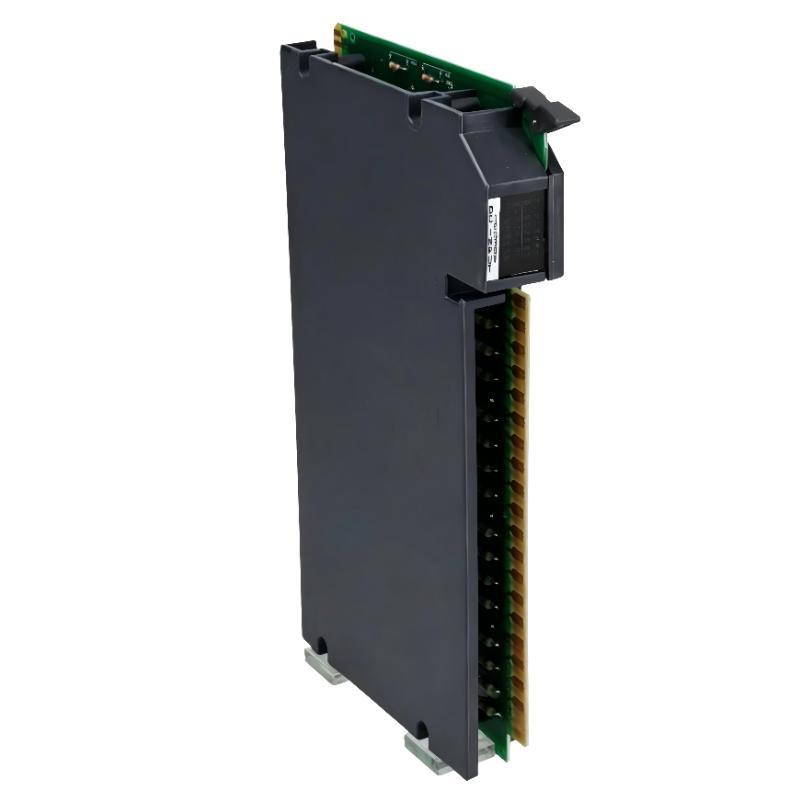

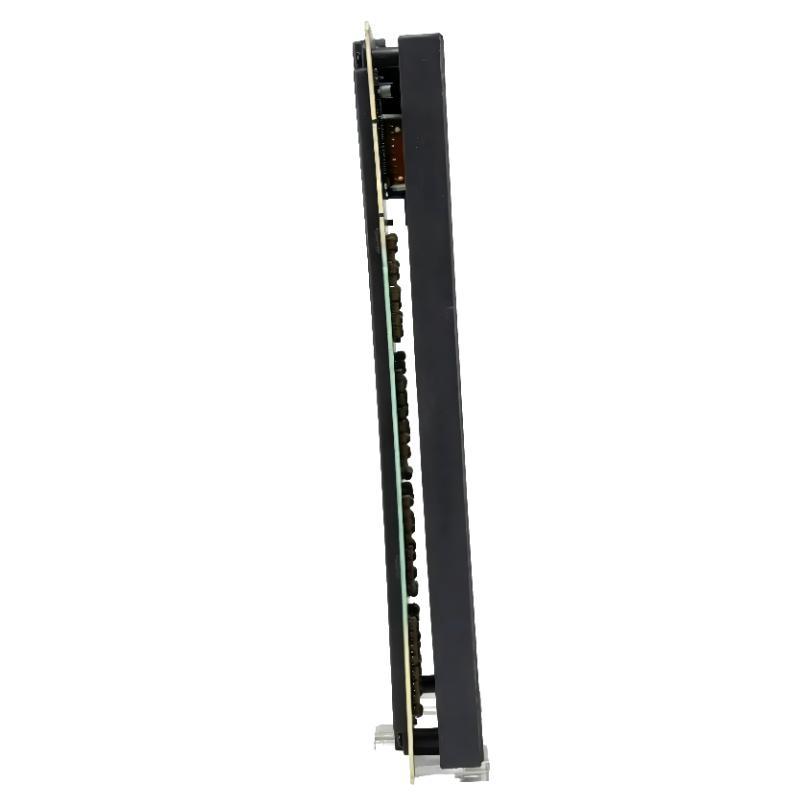

Allen Bradley 1771-IVN/C Low-Fidelity Input Module

Overview

The Allen Bradley 1771-IVN/C is a low-fidelity input module designed for the 1771 PLC I/O platform. It receives discrete input signals from field devices and transmits them to the PLC for reliable monitoring and control. The module is suitable for a wide range of industrial automation applications requiring dependable digital input processing.

General Information

Part Number: 1771-IVN/C

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: 1771 I/O

Type: Low-Fidelity Input Module

Input Type: Digital Inputs

Application: PLC digital input monitoring and industrial automation

Power Specifications

Power Supply: Backplane powered

Backplane Current: Approx. 250 mA at 5 V DC

Input Voltage: 24 V DC

Input Channels: 16

Input Filtering: Low-fidelity signal filtering

Status Indicators: Individual channel status LEDs

Communication & Interface

System Interface: 1771 PLC backplane

Input Configuration: 16 digital input channels

Signal Compatibility: Standard DC discrete input devices

Wiring Method: Terminal arm connection

Diagnostics: LED indication for channel and module status

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Relative Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 165 × 51 × 89 mm

Weight: 0.45 kg
