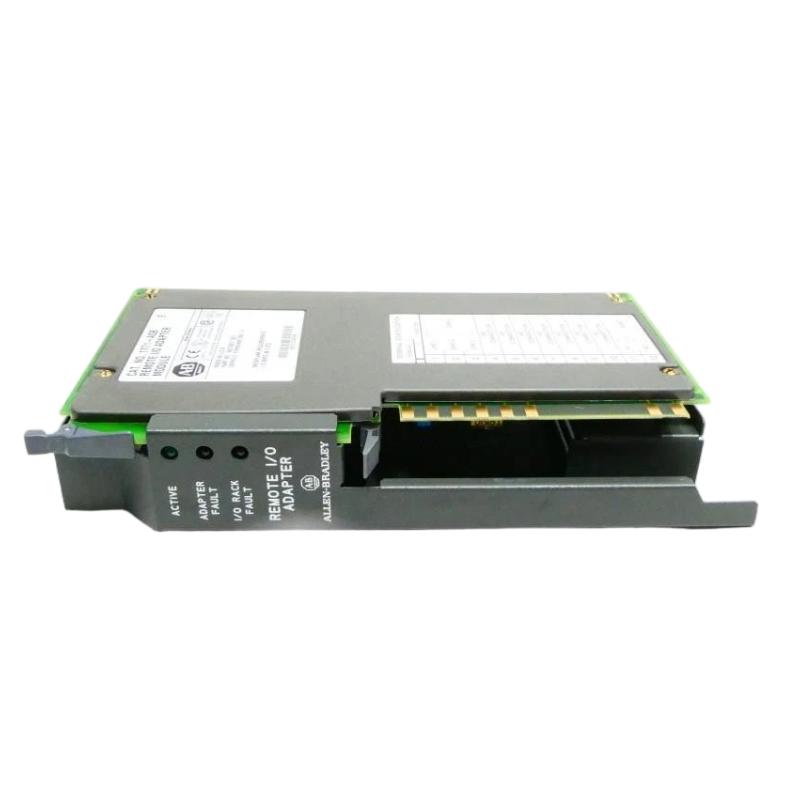

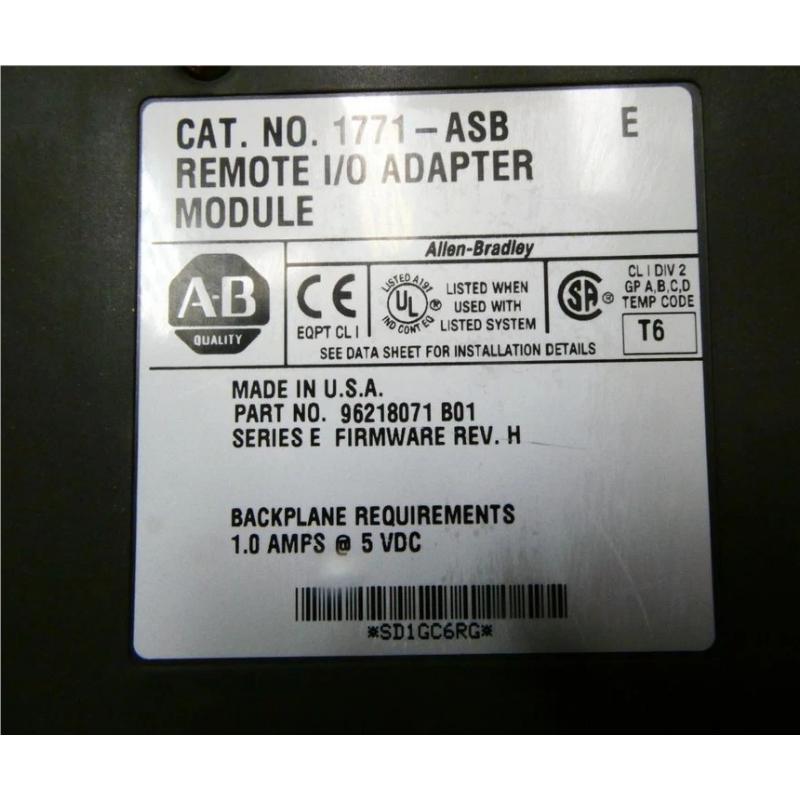

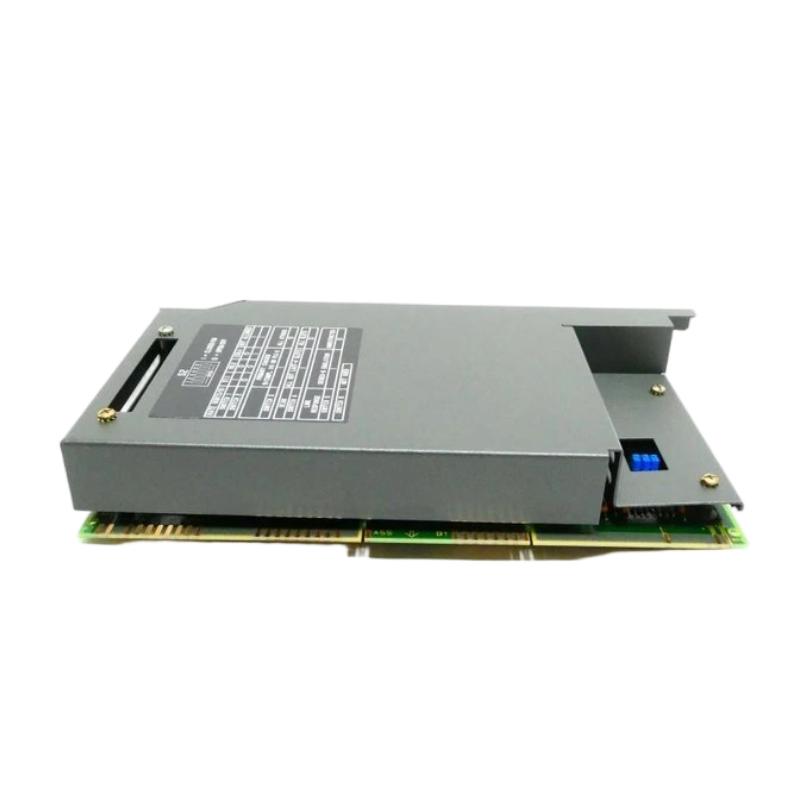

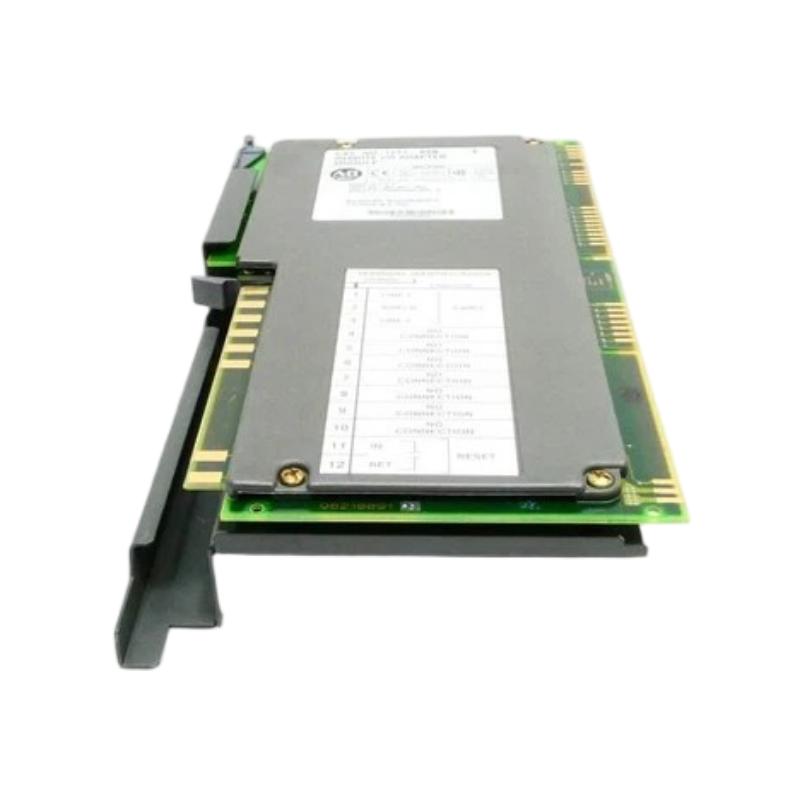

Allen Bradley 1771-ASB Remote I/O Adapter Module

Overview

The Allen Bradley 1771-ASB is a Remote I/O adapter module designed for PLC-5 and 1771 series systems. It provides a communication interface between the PLC processor and remote I/O chassis over a Remote I/O network, enabling distributed control architecture and flexible system expansion across industrial sites.

General Information

Part Number: 1771-ASB

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: 1771 I/O System / PLC-5

Product Type: Remote I/O Adapter Module

Mounting Type: Installed within 1771 I/O chassis

Function: Enables remote I/O communication between PLC processor and distributed racks

Design: Industrial remote communication interface module

Power Specifications

Input Power: Supplied via 1771 backplane

Operating Voltage: System-dependent PLC-5 architecture

Power Consumption: Low-power electronic module

Protection: Electrical isolation and industrial noise immunity design

Start-Up: Automatic network synchronization on system initialization

Communication & Interface

Interface Type: Remote I/O communication network

System Role: Adapter between PLC processor and remote I/O racks

Data Transfer: Cyclic high-speed I/O data exchange over RIO link

Diagnostics: LED status indicators for network and module health

System Integration: Compatible with PLC-5 and 1771 remote I/O systems

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial cabinet installation standard

Protection Rating: IP20 when installed in enclosure

Installation Environment: Industrial control cabinet required

Dimensions & Weight

Dimensions (H × W × D): 165 × 51 × 89 mm

Weight: 0.7 kg
