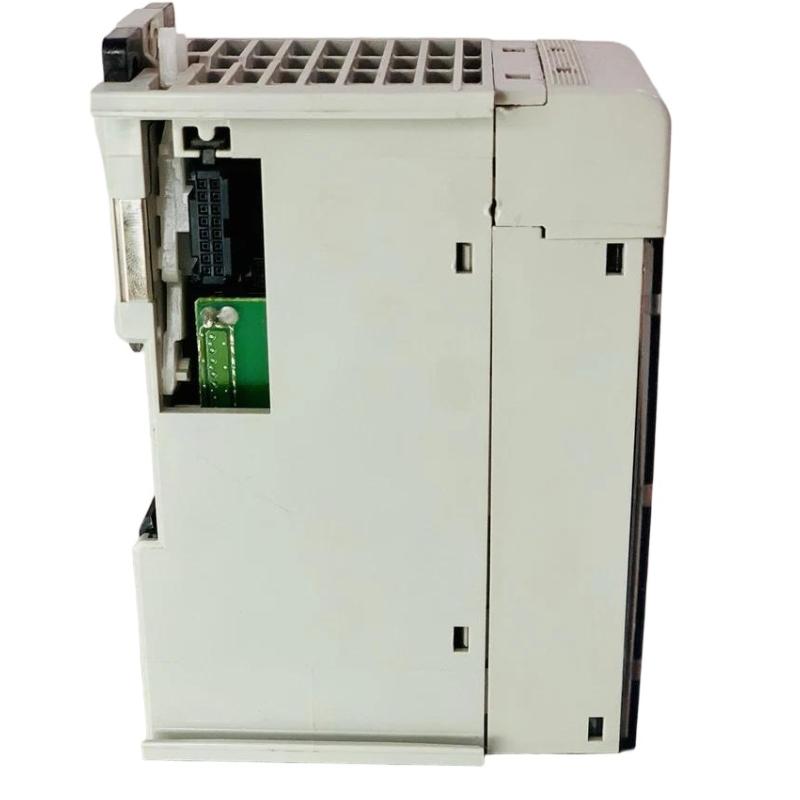

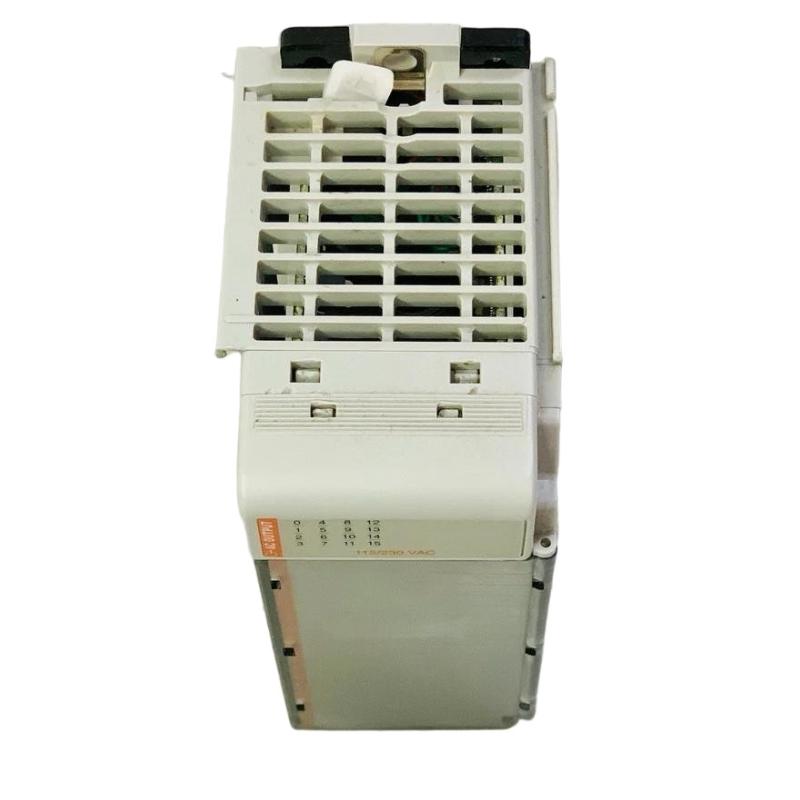

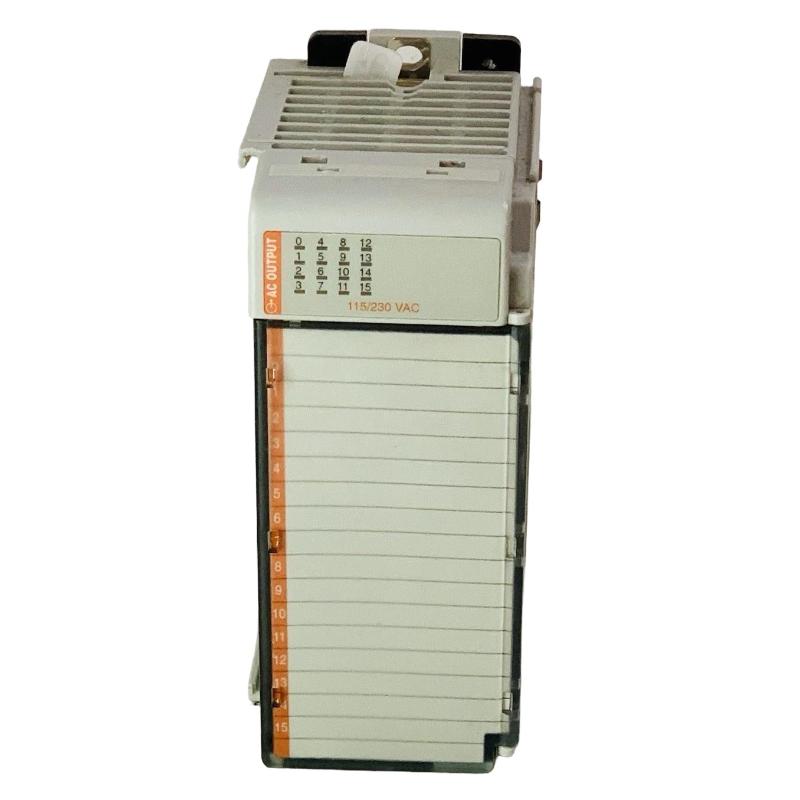

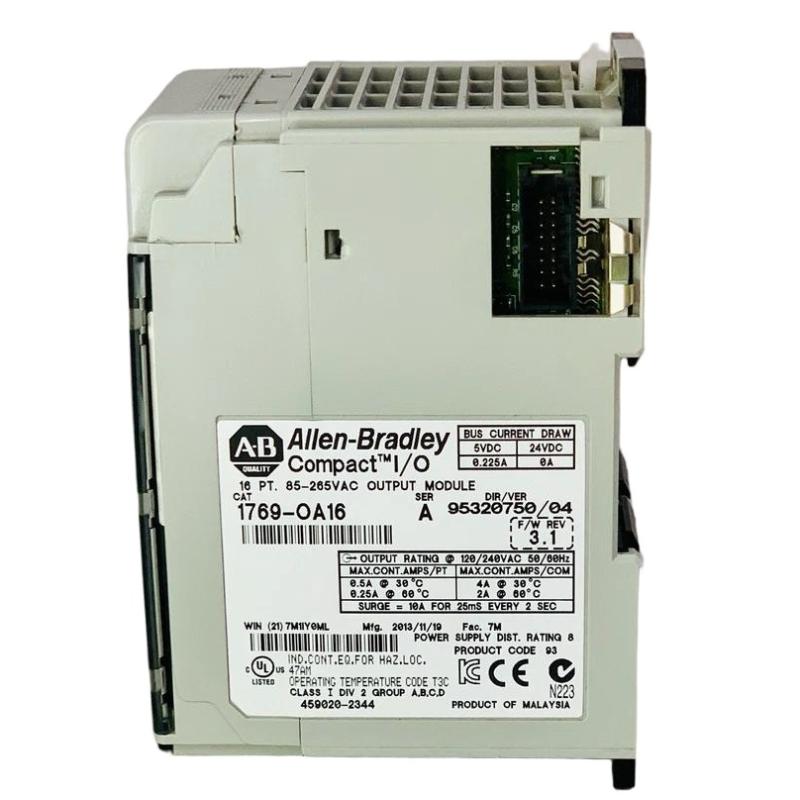

Allen Bradley 1769-OA16 CompactLogix 16-Point AC Output Module
| Release time | Jun 25, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1769-OA16 |
| Country Of Origin | USA |
| Dimensions | 118 x 52.5 x 87 mm |
| Weight | 0.41 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 1769-OA16 is a CompactLogix 16-point AC output module designed for reliable industrial switching applications. It provides stable AC output control for field devices such as relays, contactors, and actuators within CompactLogix systems.
General Information
Part Number: 1769-OA16
Manufacturer: Allen Bradley
Brand: Allen Bradley
Country of Origin: United States
Series: CompactLogix 1769 I/O
Product Type: AC Digital Output Module
Output Channels: 16-point AC outputs
Mounting Type: 1769 Compact I/O rack system
Application: Industrial automation output control
Power Specifications
Operating Voltage: 85–265 V AC
Output Current: Up to 0.5 A per channel (load dependent)
Backplane Power: Supplied via CompactLogix system
Power Dissipation: Low thermal design
Isolation Voltage: Channel-to-backplane isolation
Protection Features: Short-circuit and surge protection
Status Indicators: LED indicators per channel and module status
Communication & Interface
System Communication: CompactLogix 1769 backplane integration
Control Method: PLC-controlled discrete switching
Diagnostics: Channel fault detection and module status monitoring
Response Time: High-speed backplane update
Wiring: Removable terminal block
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial standard
Shock Resistance: Suitable for harsh industrial environments
Protection Rating: Installed in control cabinet
Dimensions & Weight
Dimensions (H × W × D): 118 × 52.5 × 87 mm
Weight: 0.41 kg
