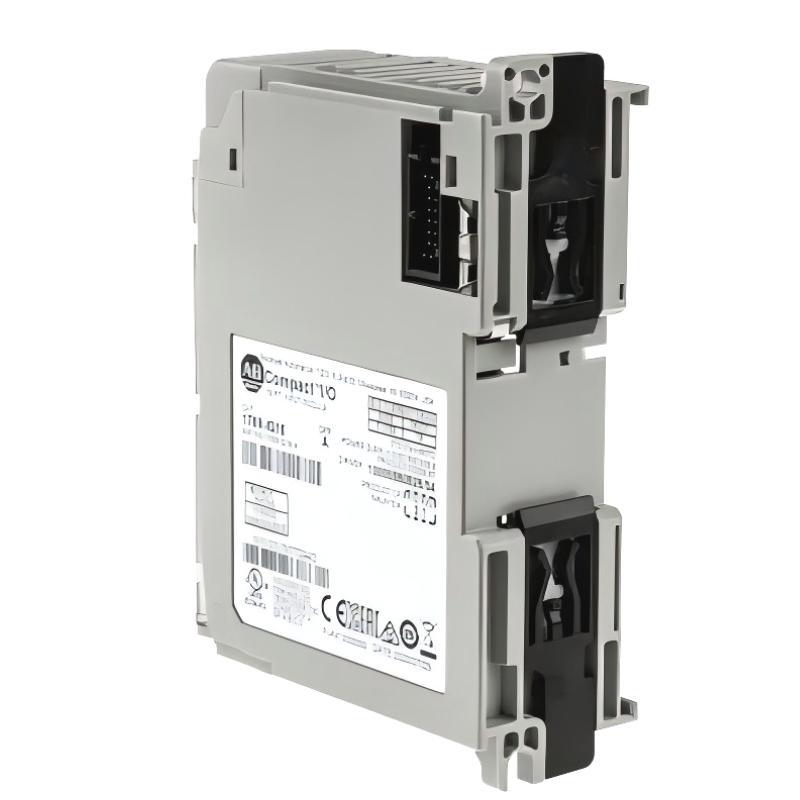

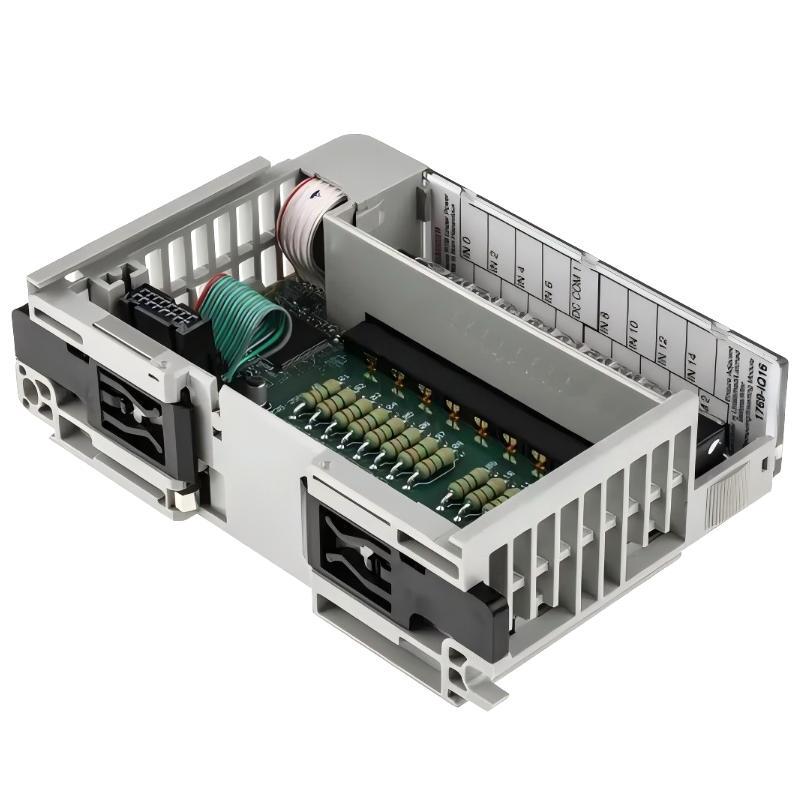

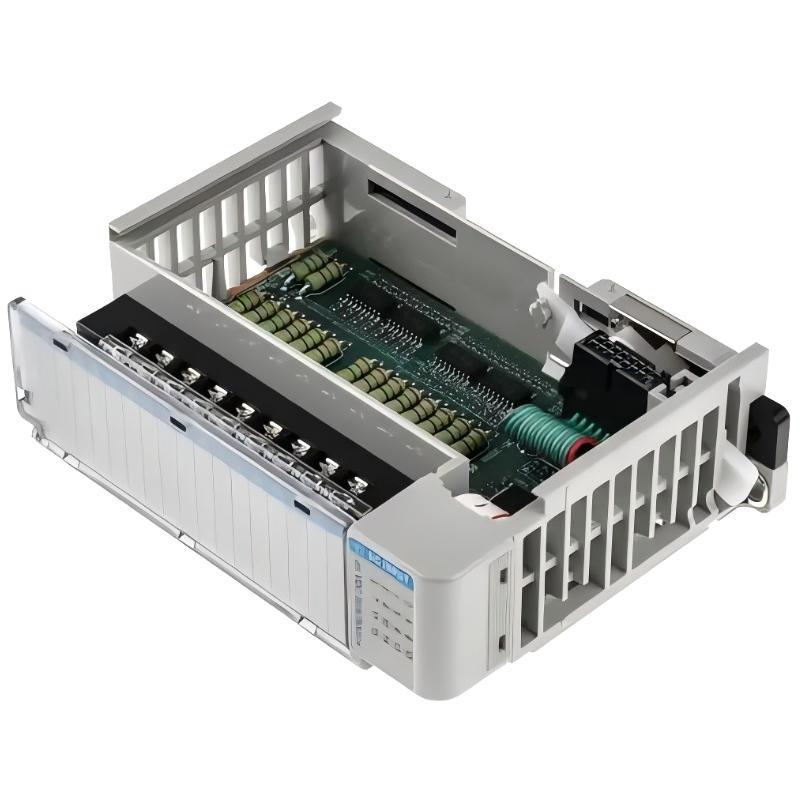

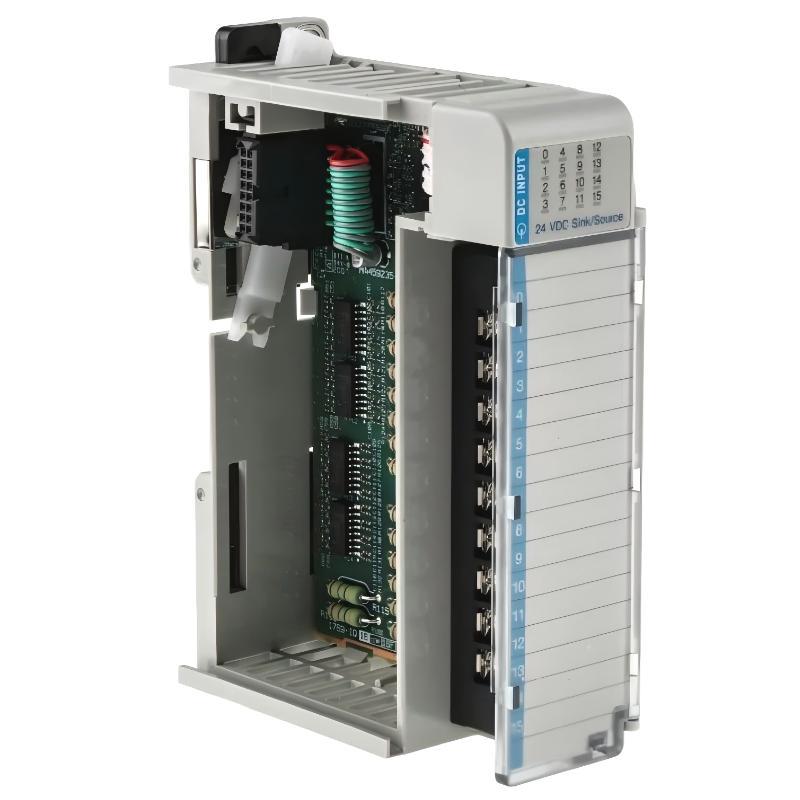

Allen Bradley 1769-IQ16K CompactLogix Compact I/O Digital Input Modules

Overview

The Allen Bradley 1769-IQ16K is a CompactLogix digital input module designed for reliable acquisition of discrete DC signals in industrial automation systems. It is commonly used for monitoring sensors, switches, and control devices in machine and process control applications, providing stable and accurate input data for CompactLogix PLC platforms.

General Information

Part Number: 1769-IQ16K

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: Compact DC Digital Input Module

Function: Converts 24V DC field signals into digital status information for PLC processing

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: Opto-isolated DC input detection for stable signal acquisition

Power Specifications

Operating Voltage: 24V DC input signals

Backplane Power: Supplied via CompactLogix 1769 backplane

Power Consumption: Low power industrial I/O module

Input Protection: Channel isolation with surge protection and noise filtering

Indicators: LED status indicators for module and input channels

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 16-point DC digital inputs

Signal Type: 24V DC switching signals from field devices

Data Transfer: Real-time input status transmission to PLC controller

Diagnostics: Built-in module and channel-level fault detection

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for enclosed panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.25 kg

Reliable Industrial I/O Performance — Built for Stable Control Systems!
