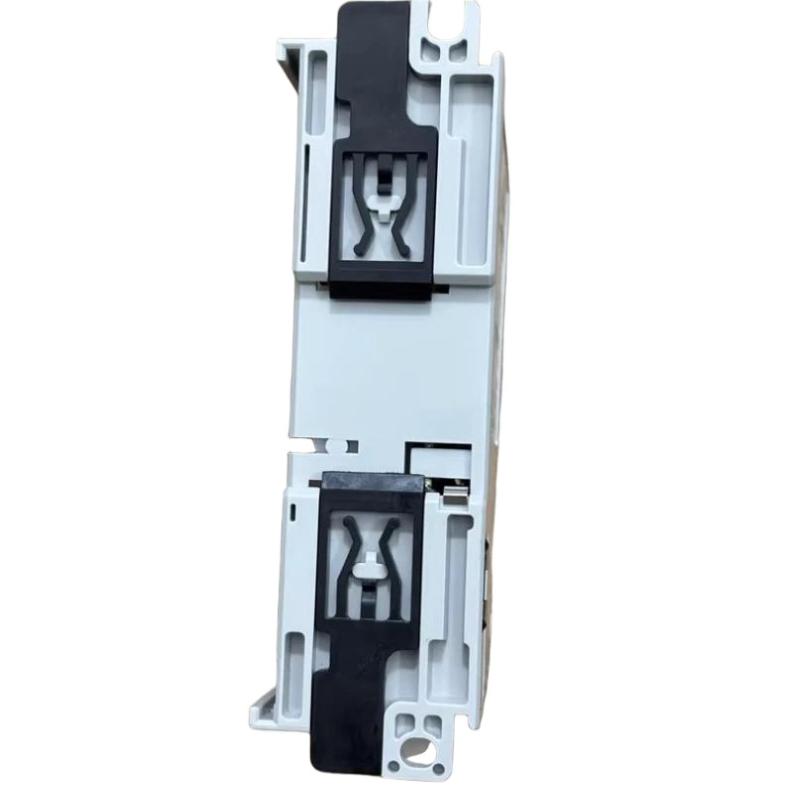

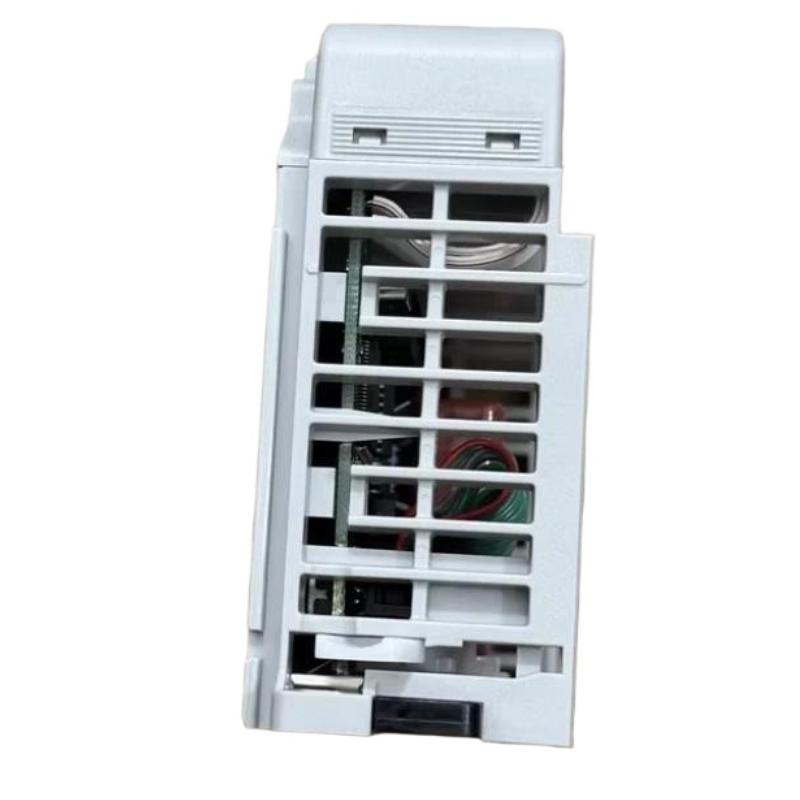

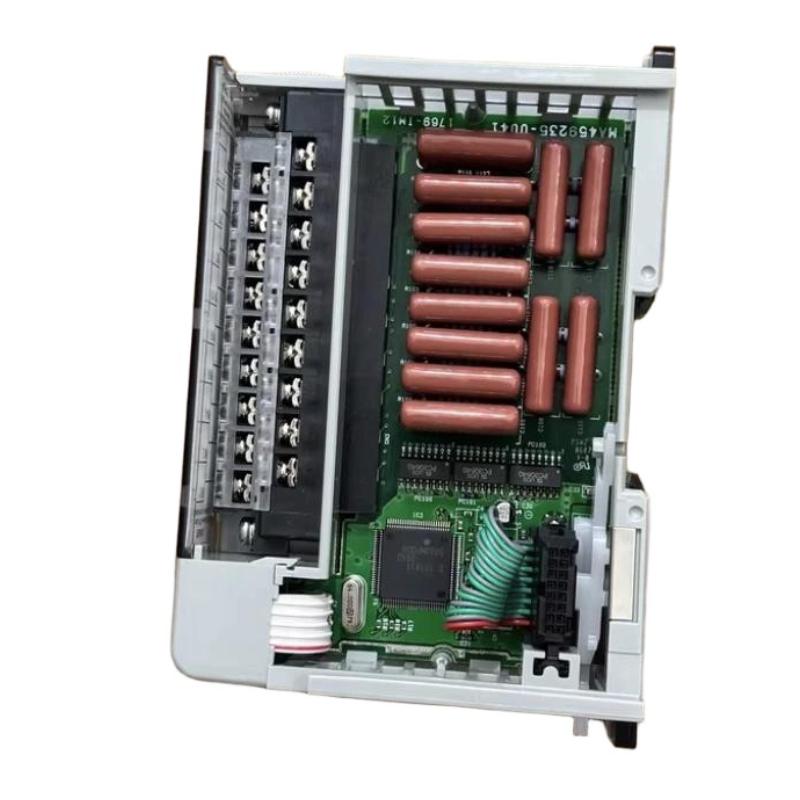

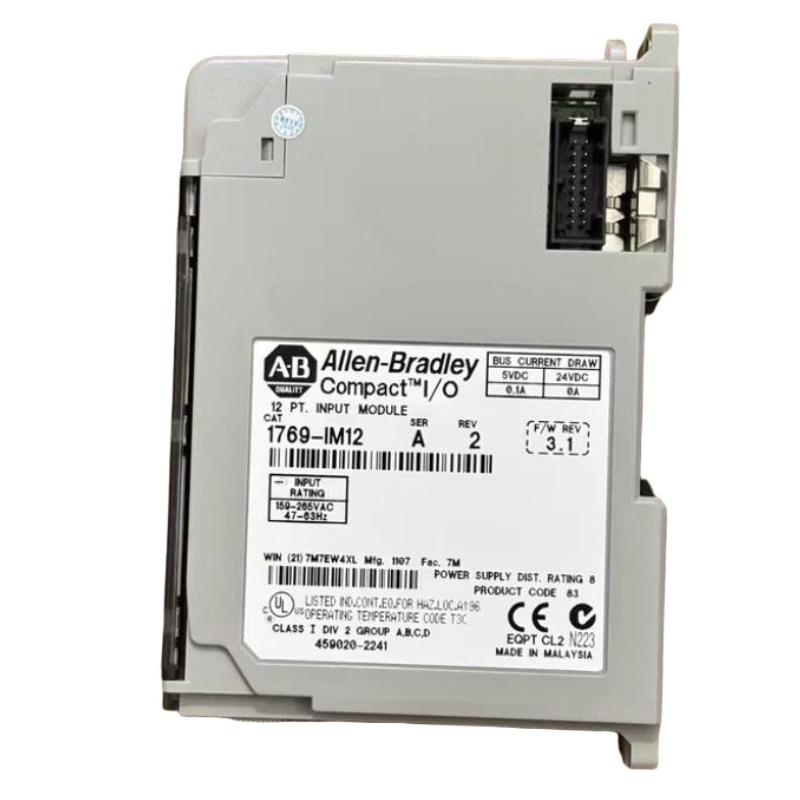

Allen Bradley 1769-IM12 CompactLogix Compact AC Input Module

Overview

The Allen Bradley 1769-IM12 is a CompactLogix AC digital input module designed for reliable acquisition of AC field signals in industrial automation systems. It is commonly used to monitor switches, relays, and control devices operating on AC voltage, providing stable and accurate signal conversion for PLC processing. The module ensures dependable performance in machine control and process monitoring applications.

General Information

Part Number: 1769-IM12

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: AC Digital Input Module

Function: Converts AC input signals into digital status data for PLC systems

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: Opto-isolated AC input detection for industrial signal integrity

Power Specifications

Operating Voltage: AC field input signals (industrial AC control range)

Backplane Power: Supplied via CompactLogix 1769 backplane

Power Consumption: Low power I/O module

Input Protection: Electrical isolation and surge protection per channel

Indicators: LED status indicators for module and input channels

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 12-point AC digital inputs

Signal Type: AC switching signals from field devices

Data Transfer: Real-time input status updates to PLC controller

Diagnostics: Built-in module fault detection and channel diagnostics

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.3 kg

Industrial AC Input Reliability — Built for Stable Control Systems!
