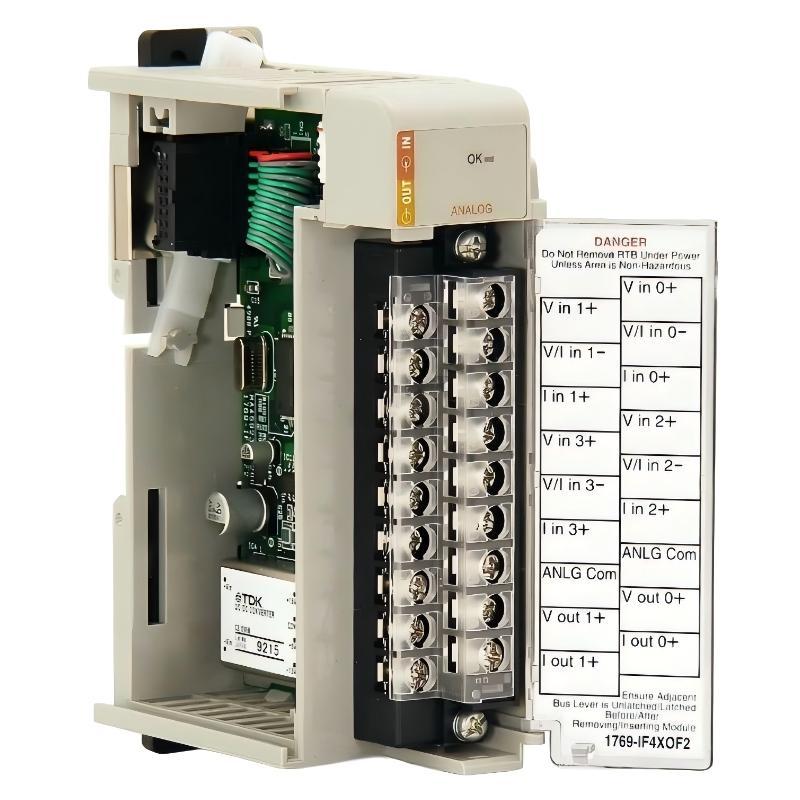

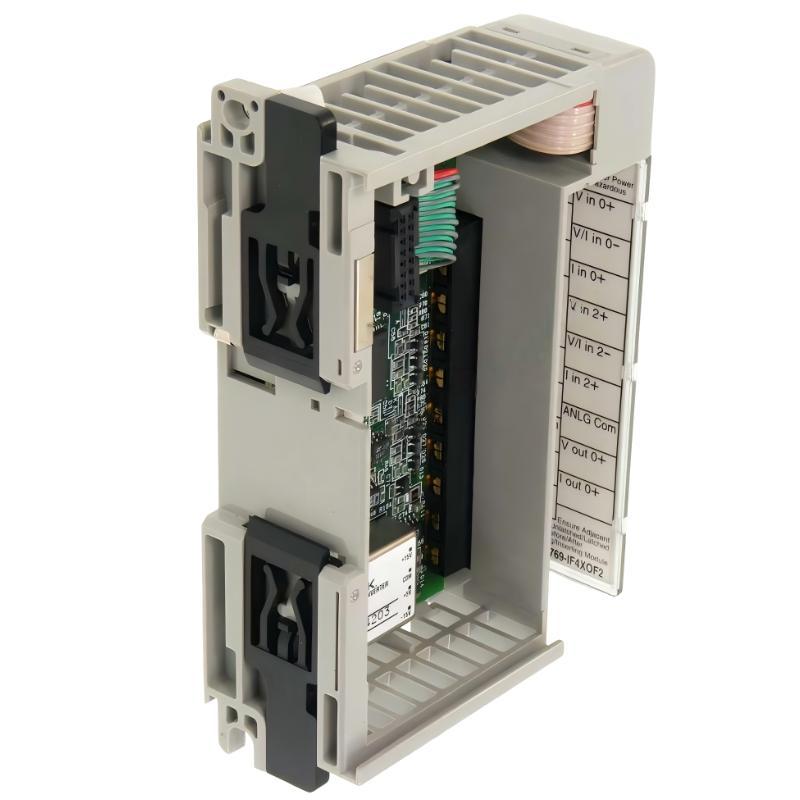

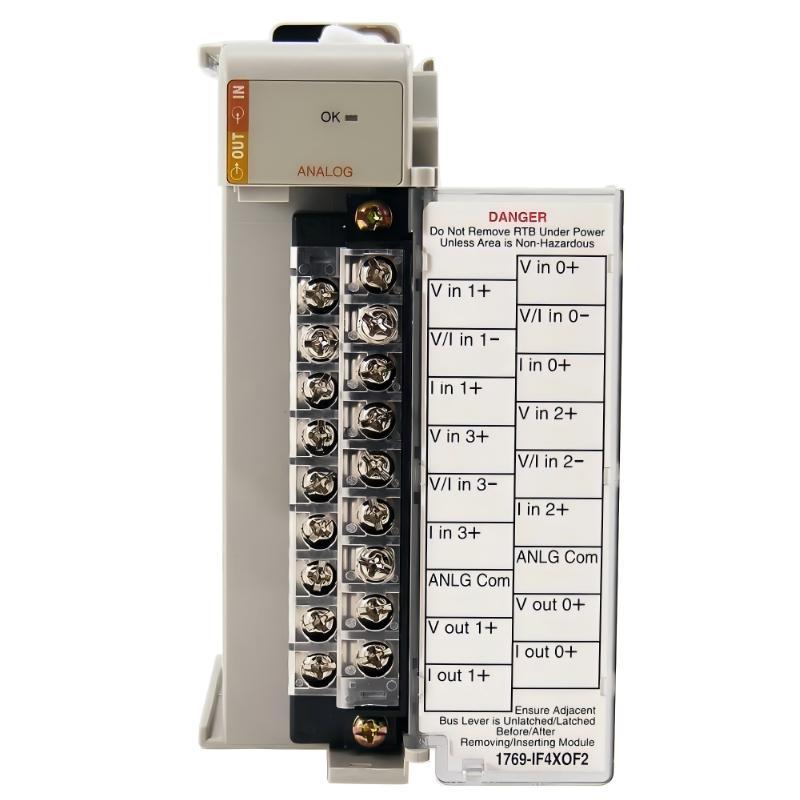

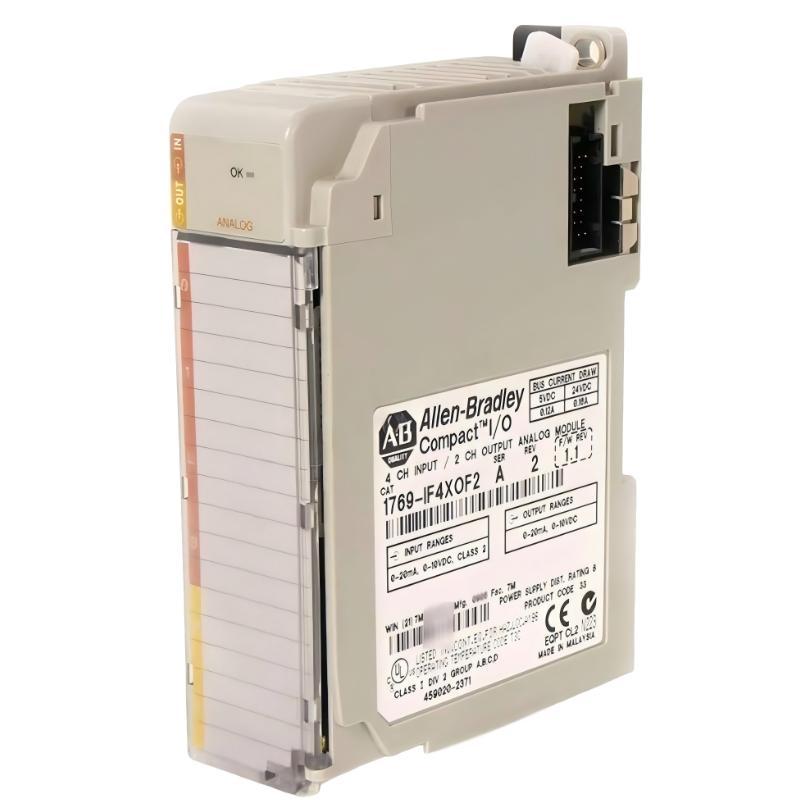

Allen Bradley 1769-IF4XOF2 CompactLogix Compact Combination Analog I/O Module

Overview

The Allen Bradley 1769-IF4XOF2 is a CompactLogix combination analog I/O module designed to handle both analog input and analog output signals within a single compact unit. It is used in industrial automation systems where space-saving, flexible signal processing, and real-time analog control are required. The module enables efficient integration of process measurement and control functions in CompactLogix architectures.

General Information

Part Number: 1769-IF4XOF2

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: Combination Analog Input/Output Module

Function: Processes analog input signals and generates analog output signals for control applications

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: Integrated analog signal acquisition and output control with high-resolution conversion

Power Specifications

Operating Voltage: 24 V DC (system backplane supply)

Power Consumption: Low power industrial analog module

Input/Output Signal Types: Industrial standard current and voltage signals (e.g., 4–20 mA, ±10 V DC)

Protection: Overvoltage protection and channel isolation for stable operation

Indicators: LED status indicators for module health and I/O channel activity

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 4 analog input channels

Output Channels: 2 analog output channels

Signal Type: Analog current and voltage signals

Data Transfer: Real-time bidirectional analog data exchange with PLC processor

Diagnostics: Built-in channel diagnostics and fault detection

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for enclosed panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.29 kg
