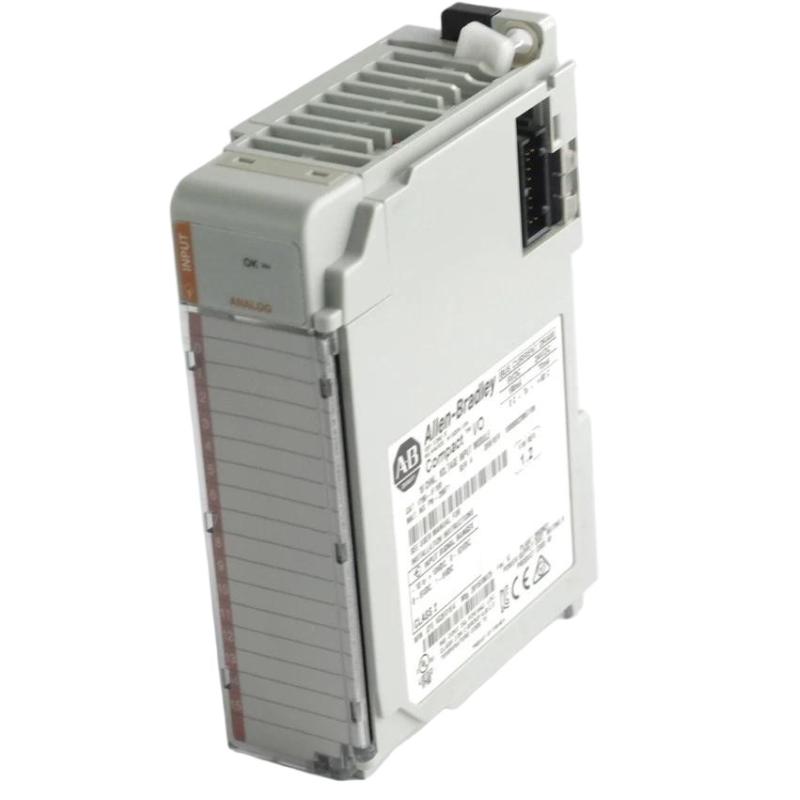

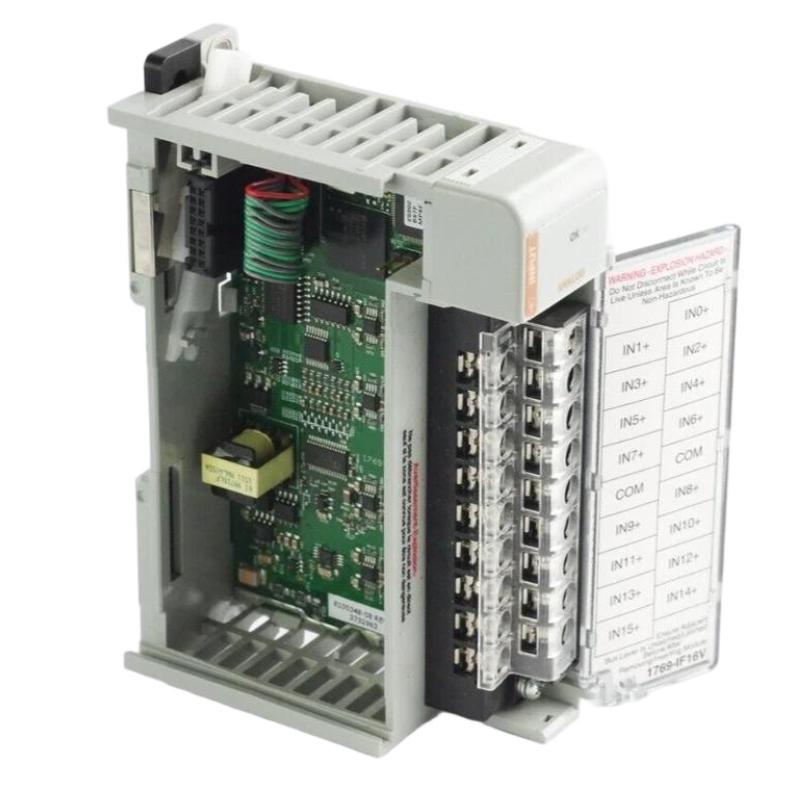

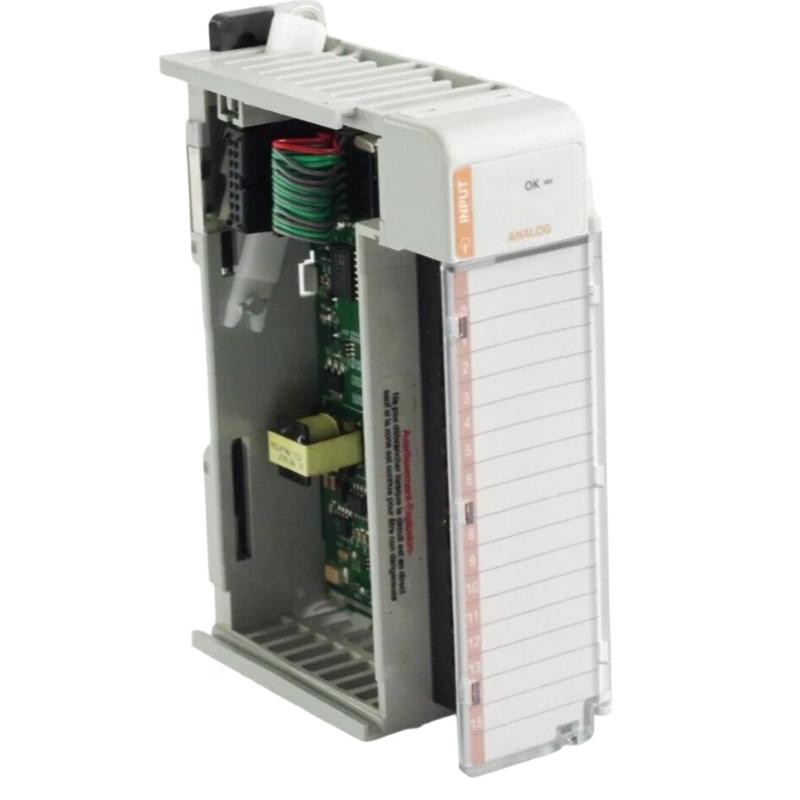

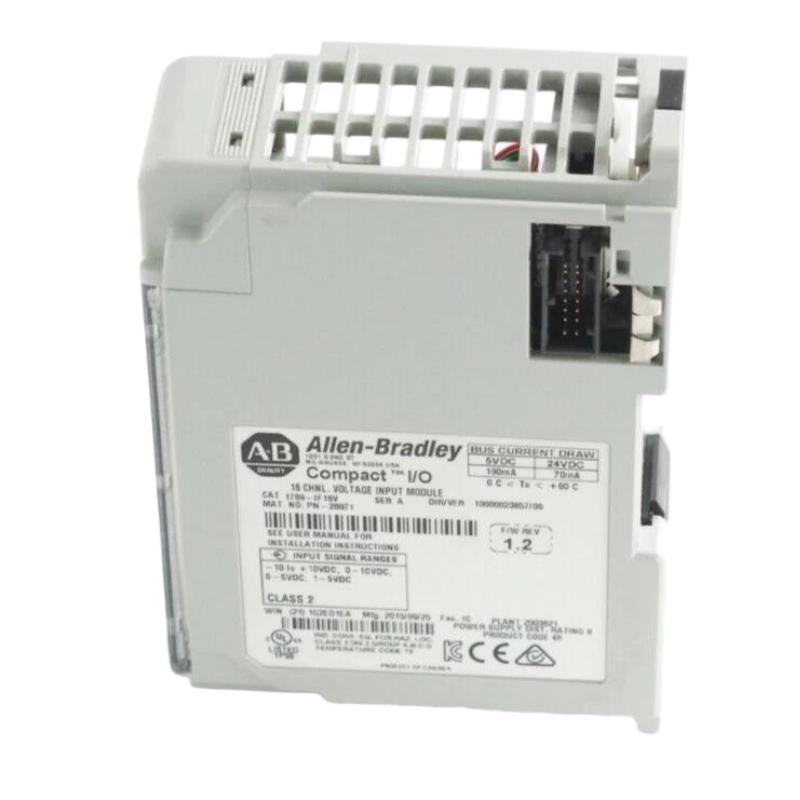

Allen Bradley 1769-IF16V CompactLogix Compact High-Density Analog Voltage Input Module

Overview

The Allen Bradley 1769-IF16V is a CompactLogix high-density analog voltage input module designed for precise acquisition of multiple voltage signals in industrial automation systems. It is widely used in process monitoring and control applications where accurate measurement of standard industrial voltage signals is required. The module provides stable, high-resolution analog-to-digital conversion for CompactLogix PLC platforms.

General Information

Part Number: 1769-IF16V

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: High-Density Analog Voltage Input Module

Function: Converts analog voltage signals into digital data for PLC processing

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: Multi-channel A/D conversion with high-resolution sampling architecture

Power Specifications

Operating Voltage: 24 V DC (system backplane supply)

Power Consumption: Low power industrial analog module

Input Signal Range: Standard industrial voltage input signals (e.g., ±10 V DC range)

Protection: Overvoltage protection and channel isolation

Indicators: LED status indicators for module health and channel activity

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 16 high-density analog voltage input channels

Signal Type: Industrial analog voltage signals

Data Transfer: Real-time analog signal conversion and transmission to controller

Diagnostics: Built-in channel diagnostics and module fault detection

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for enclosed panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.281 kg

In Stock Now — Reliable Performance for Precision Control Systems!
