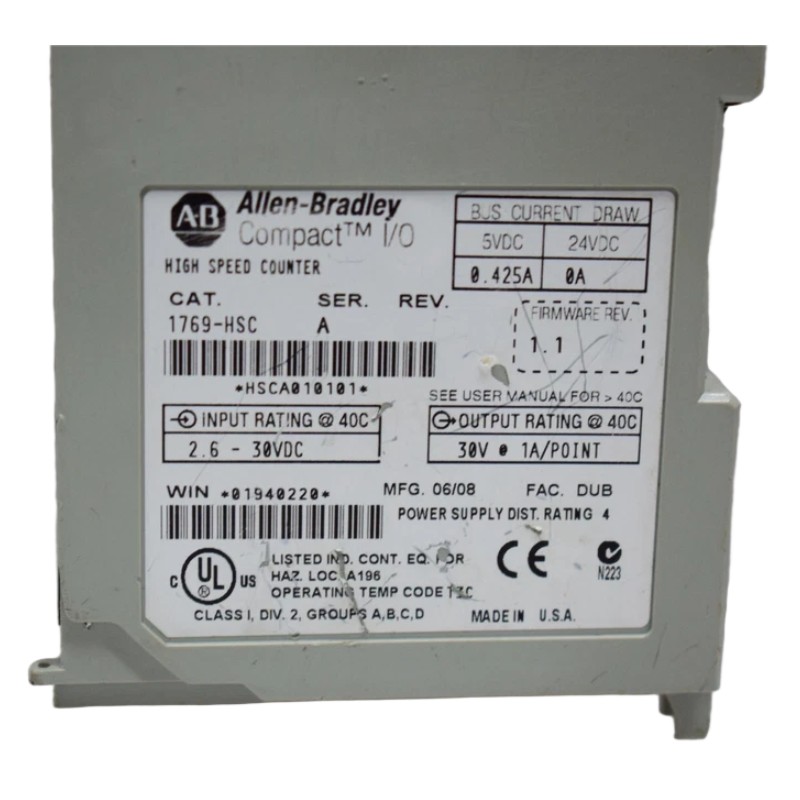

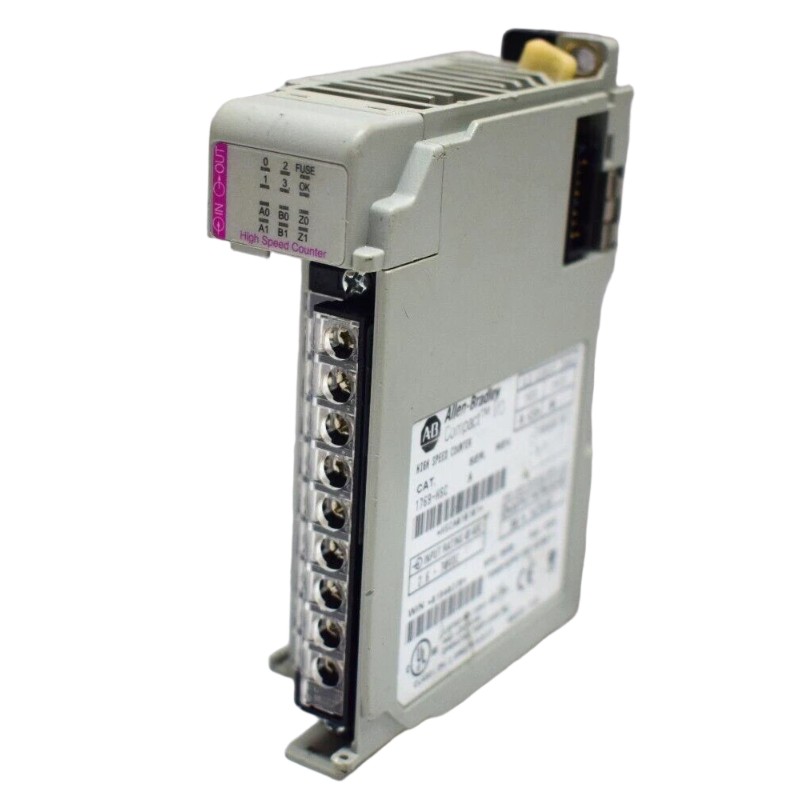

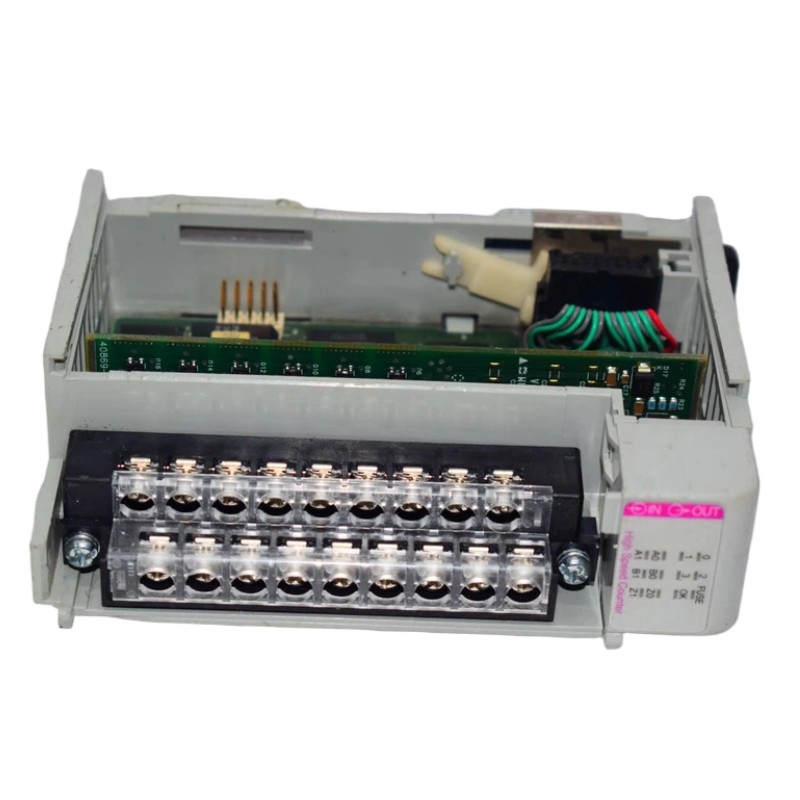

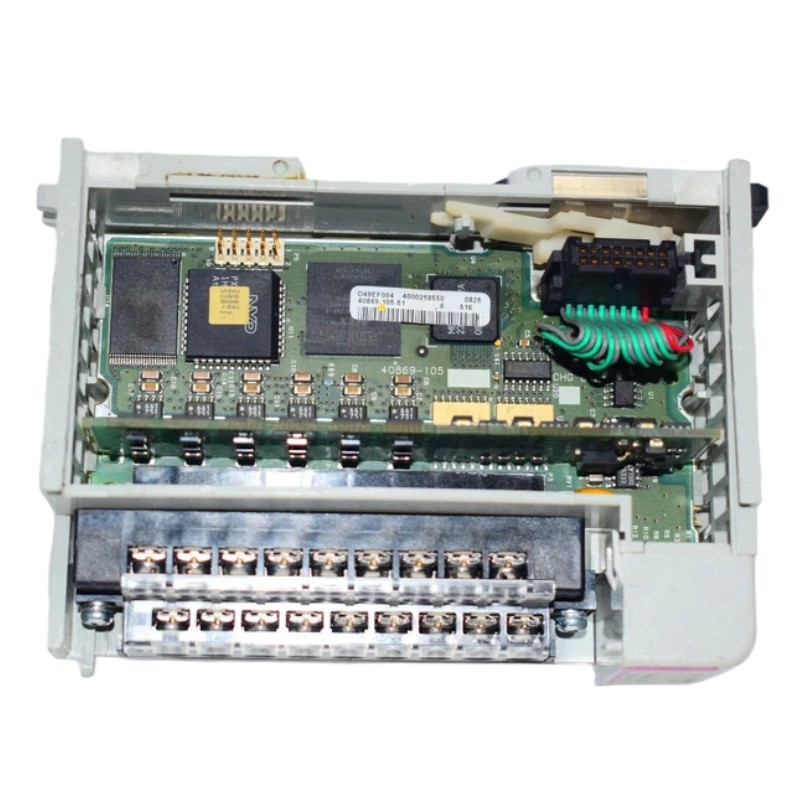

Allen Bradley 1769-HSC CompactLogix High-Speed Counter Module
| Release time | Jun 23, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1769-HSC |
| Country Of Origin | USA |
| Dimensions | 118 x 35 x 87 mm |
| Weight | 0.309 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 1769-HSC is a CompactLogix high-speed counter module designed for precise pulse counting and high-speed signal processing in industrial automation systems. It is used in applications requiring accurate measurement of fast digital inputs, such as motion control, flow measurement, and production line tracking. The module ensures reliable real-time counting performance within CompactLogix architectures.
General Information
Part Number: 1769-HSC
Manufacturer: Allen-Bradley (Rockwell Automation)
Brand: Allen-Bradley
Country of Origin: USA
Series: CompactLogix 1769
Type: High-Speed Counter Module
Function: High-speed pulse counting and frequency measurement for industrial control systems
Mounting: Installed on CompactLogix 1769 I/O chassis or rail system
Technology: Digital high-speed signal processing with real-time counter logic
Power Specifications
Operating Voltage: 24 V DC (via backplane or external supply depending on configuration)
Power Consumption: Low power industrial module (< typical PLC I/O module range)
Input Signal Level: Compatible with industrial 24 V DC digital inputs
Protection: Overcurrent and transient protection for input channels
Status Indicators: LED indicators for channel status and module health
Communication & Interface
Bus System: CompactLogix 1769 backplane communication
Input Channels: High-speed digital input channels for pulse detection
Signal Type: Pulse, frequency, and directional input support
Data Transfer: Real-time counter data exchange with controller CPU
Diagnostics: Built-in module fault detection and channel status monitoring
Environmental
Operating Temperature: 0 to 60 °C
Storage Temperature: −40 to 85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial control cabinet rated
Protection Rating: IP20 enclosure requirement
Dimensions & Weight
Dimensions (H × W × D): 118 × 35 × 87 mm
Weight: 0.309 kg
Fast Delivery – High Demand Automation Module!
QDo you provide technical support or installation services?
QCan I return products if they don’t meet my requirements?
QHow can I ensure compatibility with my existing systems?
QAre there discounts for new wholesale customers?
QCan I purchase different quantities of a product?
QWhat payment methods do you accept for wholesale orders?
QCan I get discounts for bulk purchases?
QWhat is the minimum order quantity (MOQ)?
QHow long does shipping take?
QHow can I verify the product before purchasing?
QDoes this product come with a warranty?
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613620394314 | |||||||
| +8613620394314 | ||||||||
| +8613620394314 | ||||||||
| Add | Room 1102, Jiuzhou Commercial Building, Siming District, Xiamen, China | |||||||
Warranty Conditions
At Qunlebu Co., Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
Normal wear and tear.
Negligence.
Extreme environmental conditions beyond product specifications.
