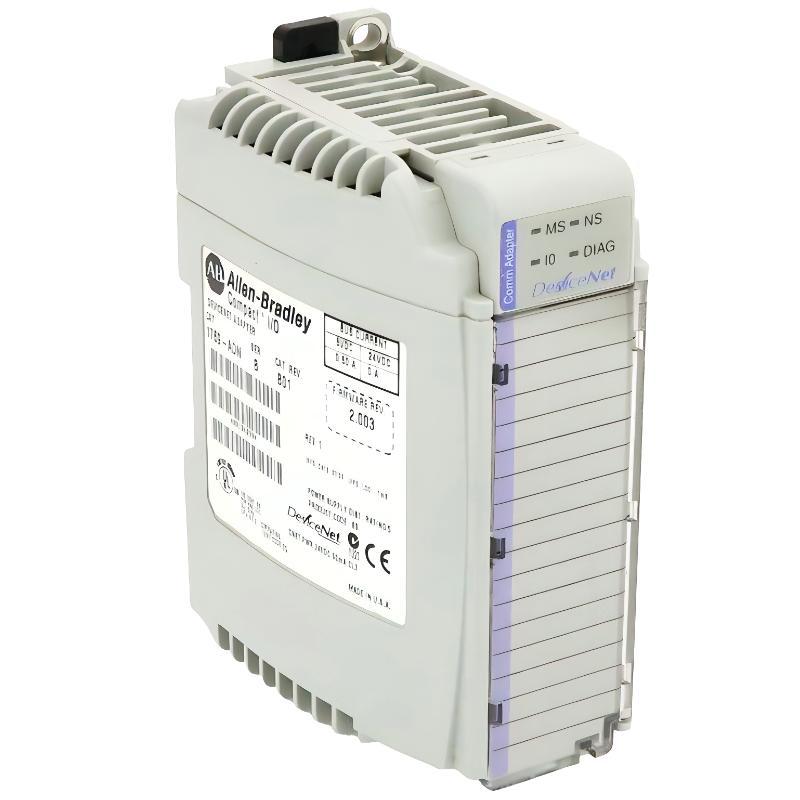

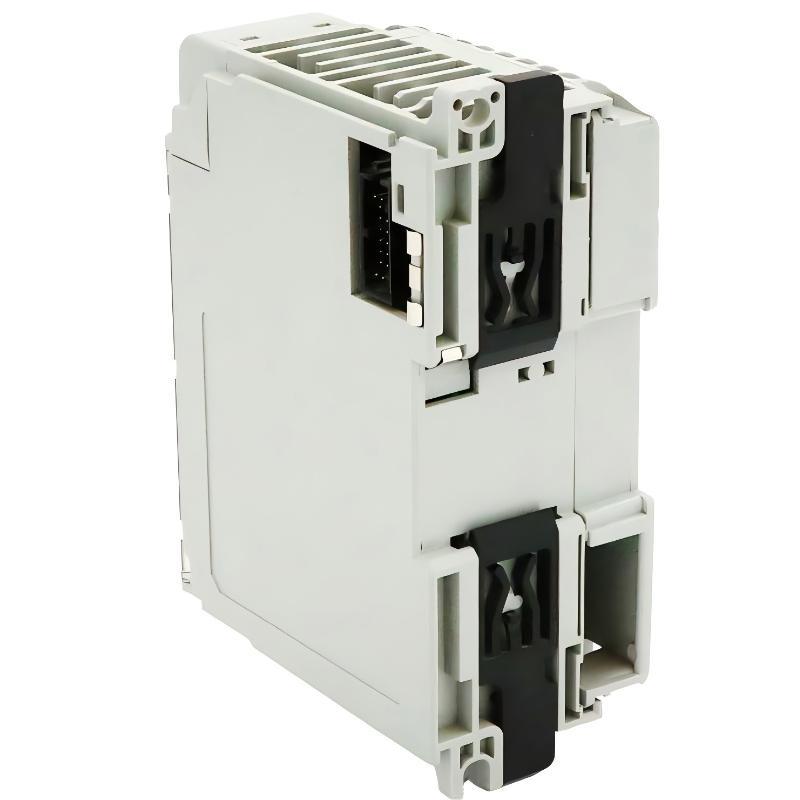

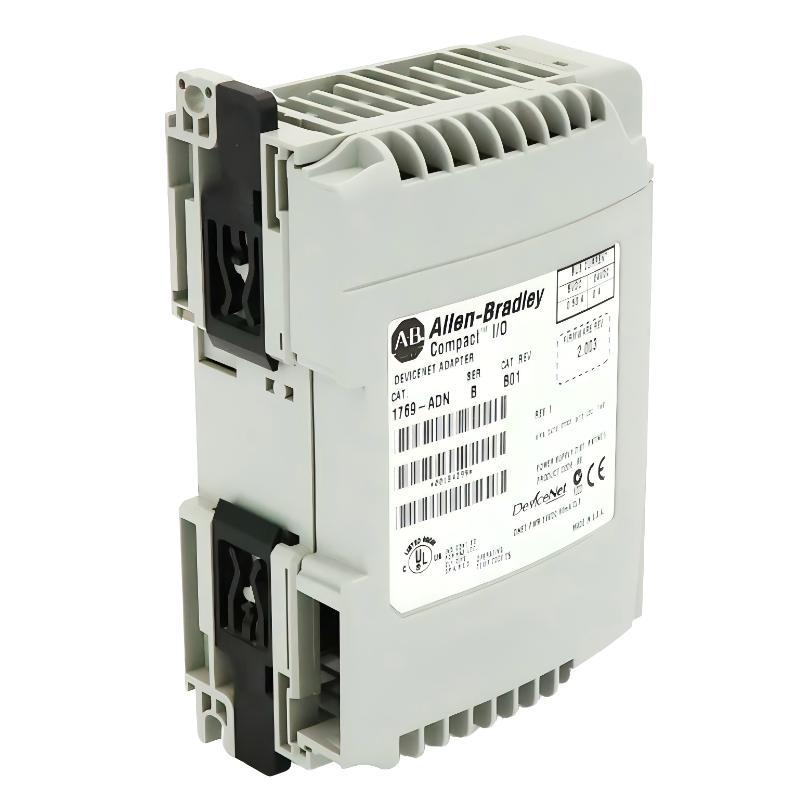

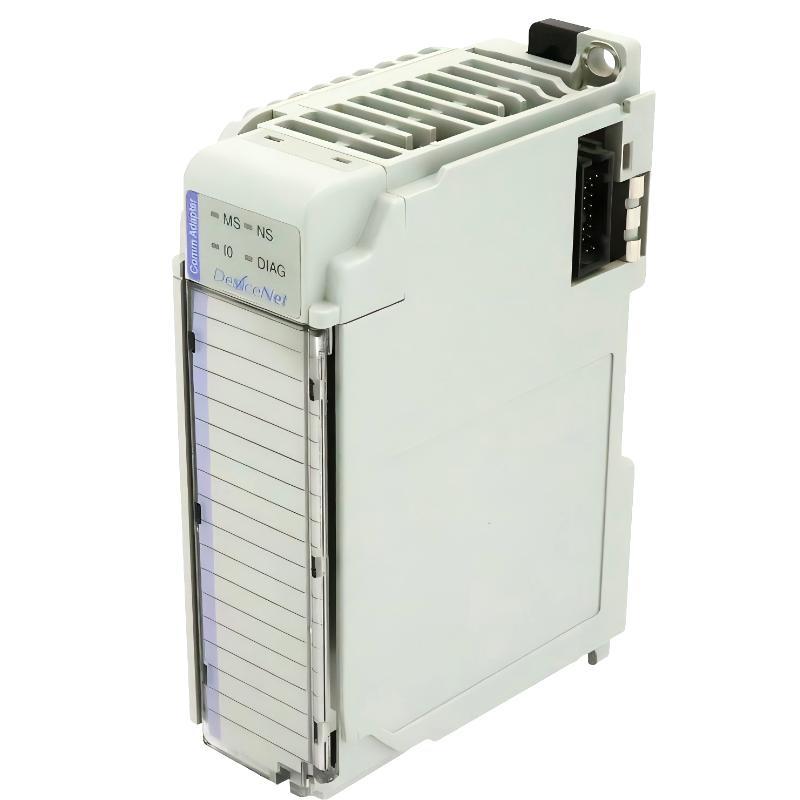

Allen Bradley 1769-ADN CompactLogix Compact I/O DeviceNet Adapter Module

Overview

The Allen-Bradley 1769-ADN is a CompactLogix Compact I/O DeviceNet adapter module designed to enable communication between Compact I/O systems and DeviceNet networks. It provides reliable data exchange between distributed I/O modules and higher-level controllers in industrial automation applications.

General Information

Part Number: 1769-ADN

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: CompactLogix 1769 Series

Type: DeviceNet Adapter Module

Installation: Mounted on 1769 CompactLogix DIN rail system

Function: Interfaces Compact I/O modules to DeviceNet communication networks

Application: Distributed I/O systems, machine automation, industrial control networks

Power Specifications

Supply Method: Powered via CompactLogix backplane and/or DeviceNet network power

Input Voltage: 24 V DC (system dependent configuration)

Power Consumption: Low power operation optimized for network communication

Protection: Electrical isolation and surge protection for industrial environments

Status Indication: LED indicators for network status, module status, and power

Communication & Interface

Network Protocol: DeviceNet

Data Rate: Up to 500 kbps (depending on network configuration)

Functionality: Connects Compact I/O modules to DeviceNet master controllers

I/O Support: Supports distributed input/output module communication

Diagnostics: Network fault detection, node status monitoring, and connection supervision

Configuration: Integrated via CompactLogix system configuration tools

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Relative Humidity: 5% to 95% non-condensing

Shock & Vibration: Industrial-rated DIN rail installation

Protection Rating: Suitable for industrial control cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 118 × 50 × 87 mm

Weight: 0.28 kg

Reliable Connectivity – Built for Seamless Industrial Network Integration!
