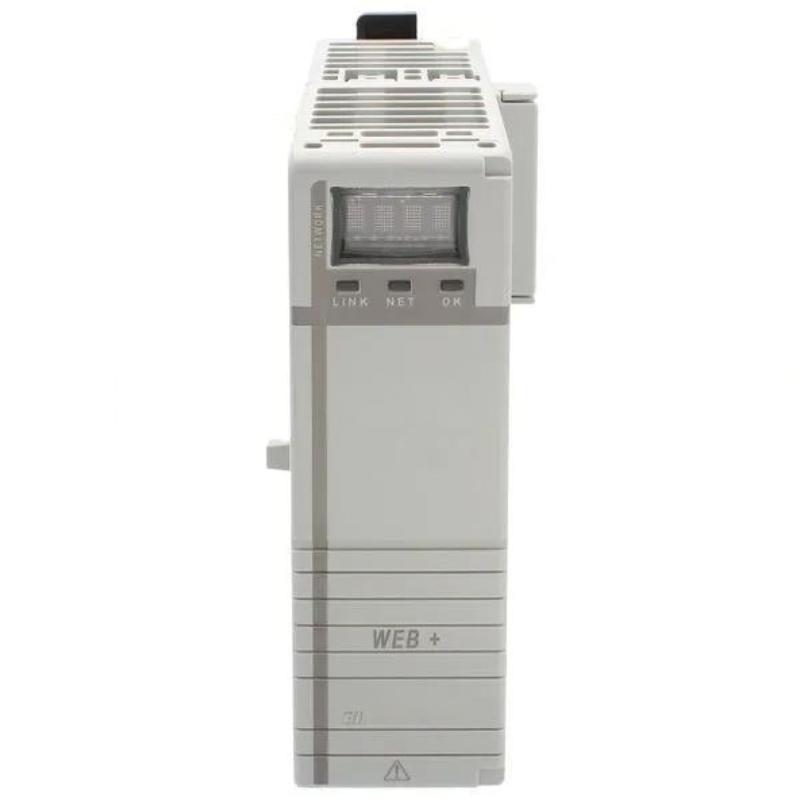

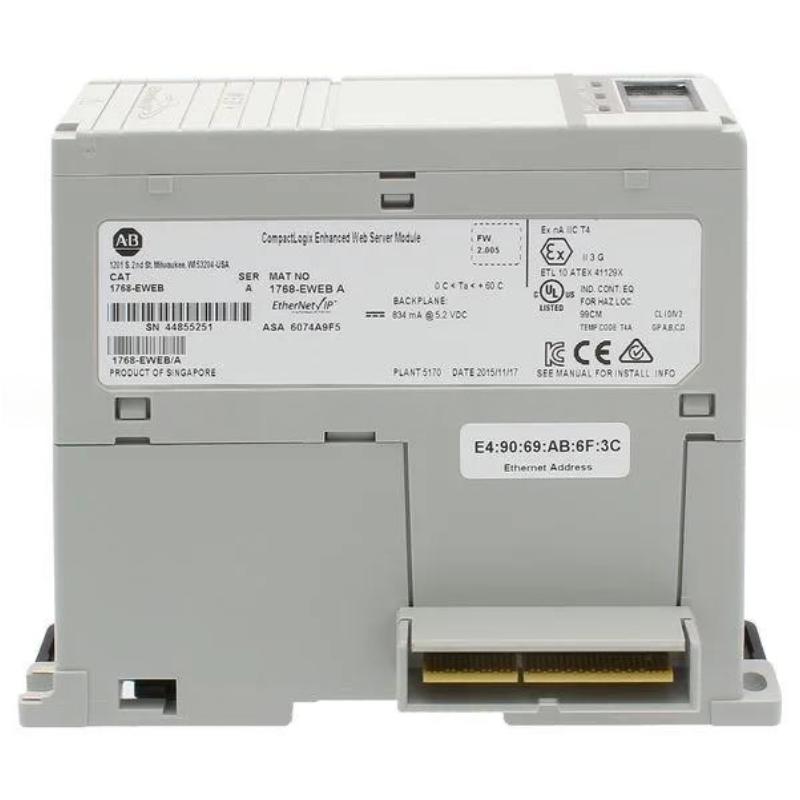

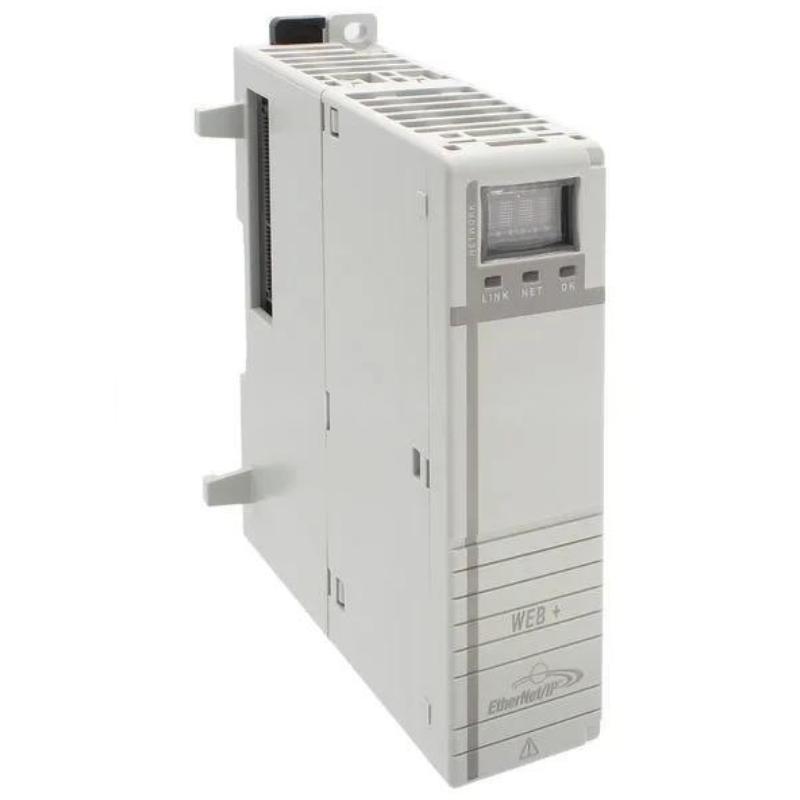

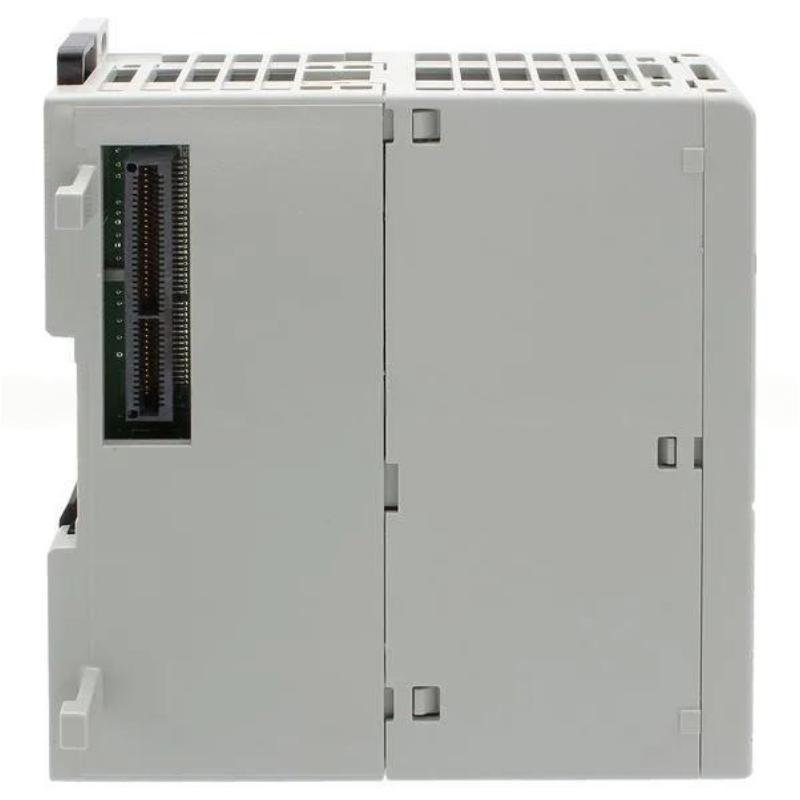

Allen Bradley 1768-EWEB CompactLogix EtherNet/IP Enhanced Web Server Module

Overview

The Allen-Bradley 1768-EWEB is a CompactLogix EtherNet/IP communication module with an integrated enhanced web server function. It provides remote access to controller data through standard web technologies, enabling monitoring, diagnostics, and system visibility in industrial automation networks.

General Information

Part Number: 1768-EWEB

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: CompactLogix 1768 Series

Type: EtherNet/IP Enhanced Web Server Communication Module

Installation: Mounted in CompactLogix controller chassis

Function: Ethernet communication with embedded web server capabilities

Application: Remote monitoring, industrial diagnostics, automation system visualization

Power Specifications

Supply Method: Powered via CompactLogix backplane

Input Voltage: 5 V DC (internal backplane supply)

Power Consumption: Low power consumption optimized for PLC system architecture

Protection: Electrical isolation through system backplane design

Status Indication: LED indicators for power, network status, and module health

Communication & Interface

Network Protocol: EtherNet/IP, HTTP web services

Interface: RJ45 Ethernet port

Functionality: Web-based access to controller diagnostics and data tags

Data Access: Real-time monitoring via embedded web server

Diagnostics: Network status, module health, and communication fault detection

Configuration: Integrated within Studio 5000 environment

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Relative Humidity: 5% to 95% non-condensing

Shock & Vibration: Industrial-rated performance for control cabinet environments

Protection Rating: Designed for standard industrial enclosure installation

Dimensions & Weight

Dimensions (L × W × H): 132 × 56.7 × 105.1 mm

Weight: 0.23 kg

New Stock Available – Ready for Immediate Dispatch!
