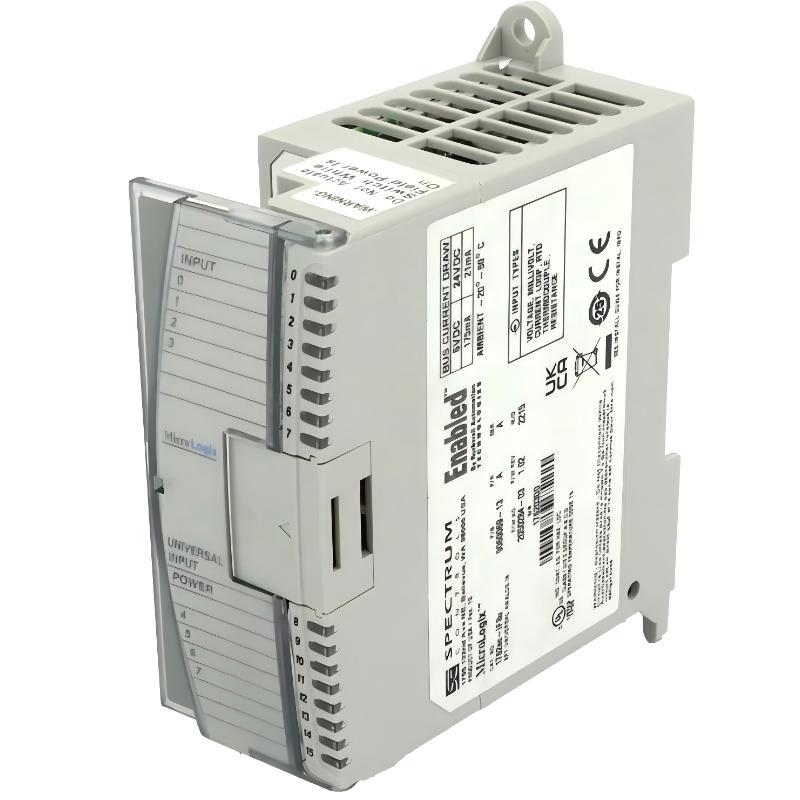

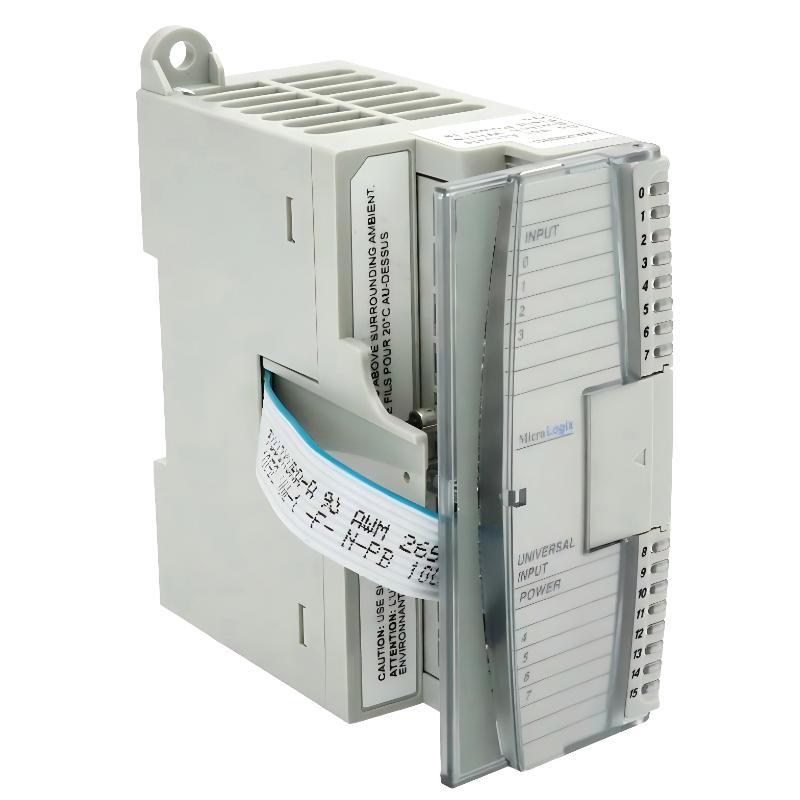

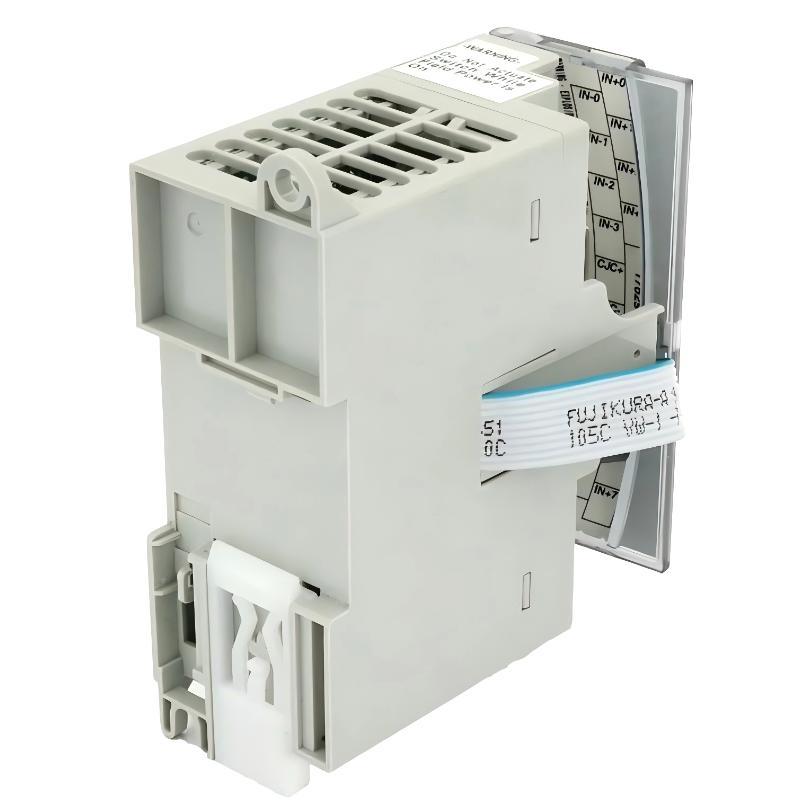

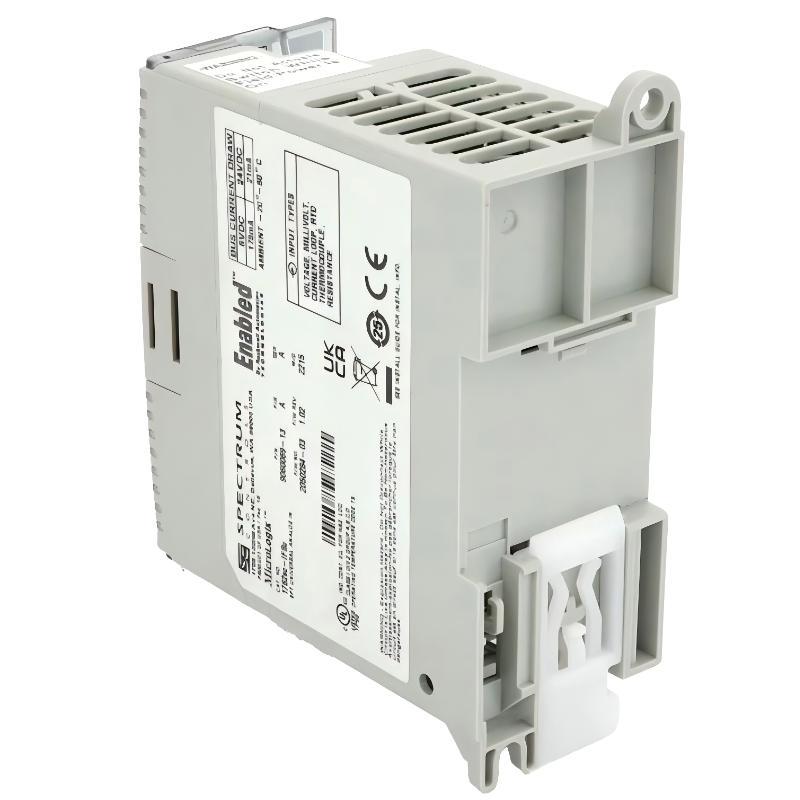

Allen Bradley 1762SC-IF8U MicroLogix 8-Channel General-Purpose Analog Input Module

Overview
The Allen-Bradley 1762SC-IF8U is an 8-channel general-purpose analog input module designed for MicroLogix 1200 and MicroLogix 1500 systems. It is used to acquire and convert analog signals into digital data for precise monitoring and control in industrial automation applications.

General Information
Part Number: 1762SC-IF8U

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: MicroLogix 1200 / 1762 Expansion I/O

Type: General-Purpose Analog Input Module

Input Channels: 8 channels

Input Signal Types: Voltage / current analog signals (process instrumentation)

Installation: DIN rail mounted expansion module

Configuration: Software-based via MicroLogix programming tools

Power Specifications
Supply Voltage: 24 V DC (system backplane powered)

Power Consumption: Low module-level consumption

Input Power Type: Backplane powered through controller system

Protection: Over-voltage and transient protection

Isolation: Channel-to-channel and logic isolation for stable signal acquisition

Communication & Interface
Backplane Communication: MicroLogix proprietary expansion bus

Signal Processing: High-resolution analog-to-digital conversion

Data Handling: Real-time analog signal sampling and scaling

Diagnostics: Channel fault detection and status indication

Programming Interface: RSLogix 500 / MicroLogix configuration software

Environmental
Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade durability

Protection Rating: Cabinet-mounted module

Dimensions & Weight
Dimensions (L × W × H): 90 × 40 × 87 mm

Weight: 0.268 kg

Stable Analog Signal Acquisition for Industrial Control Systems
