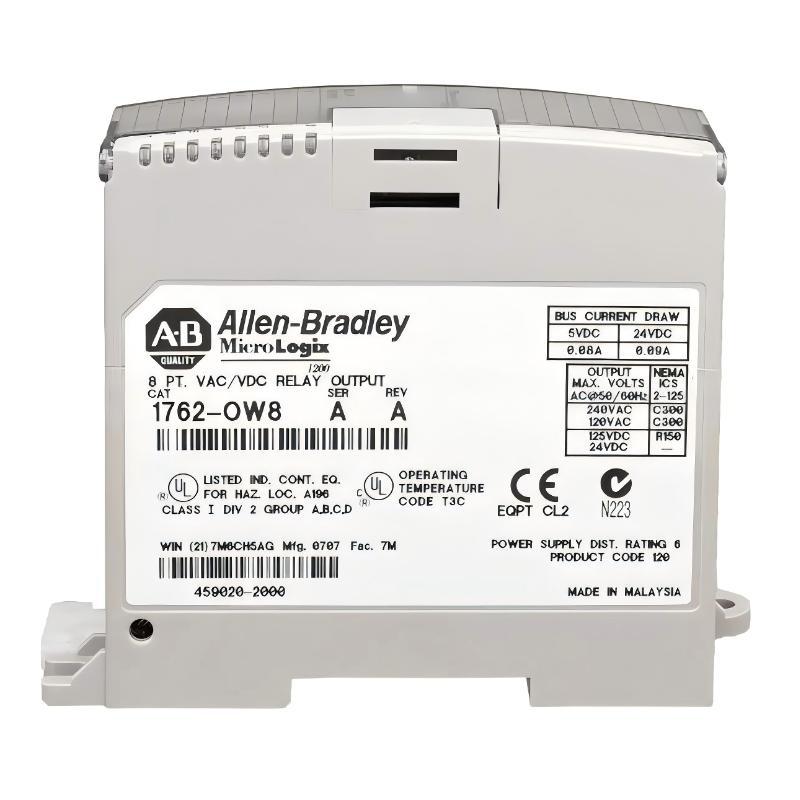

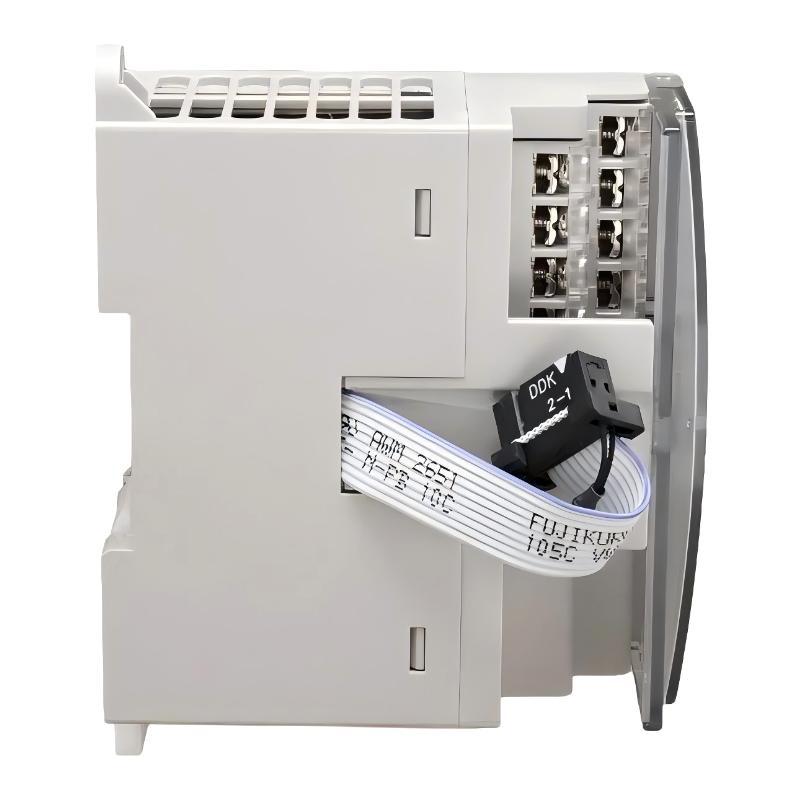

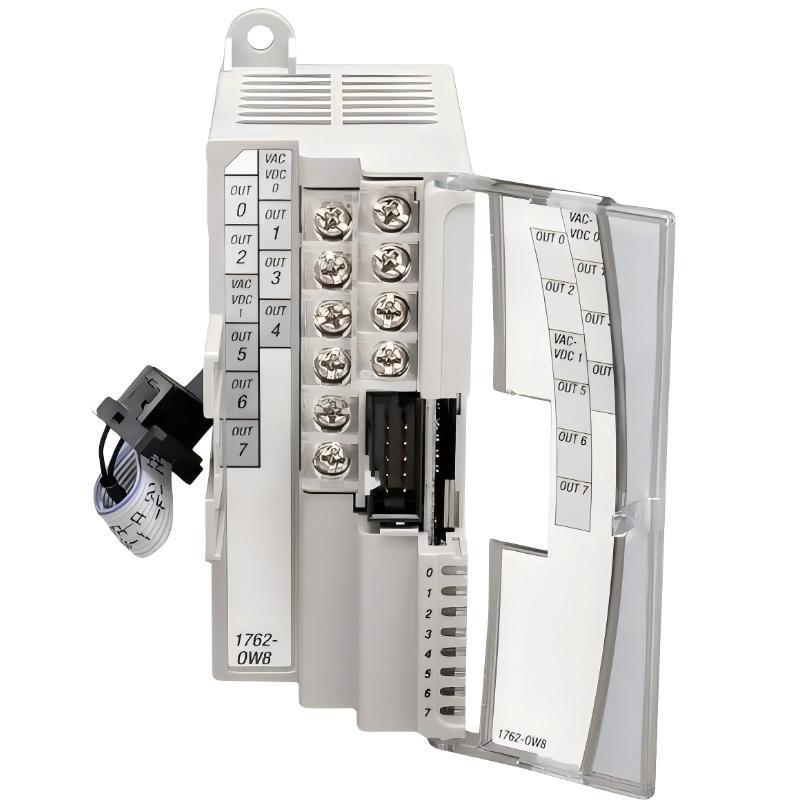

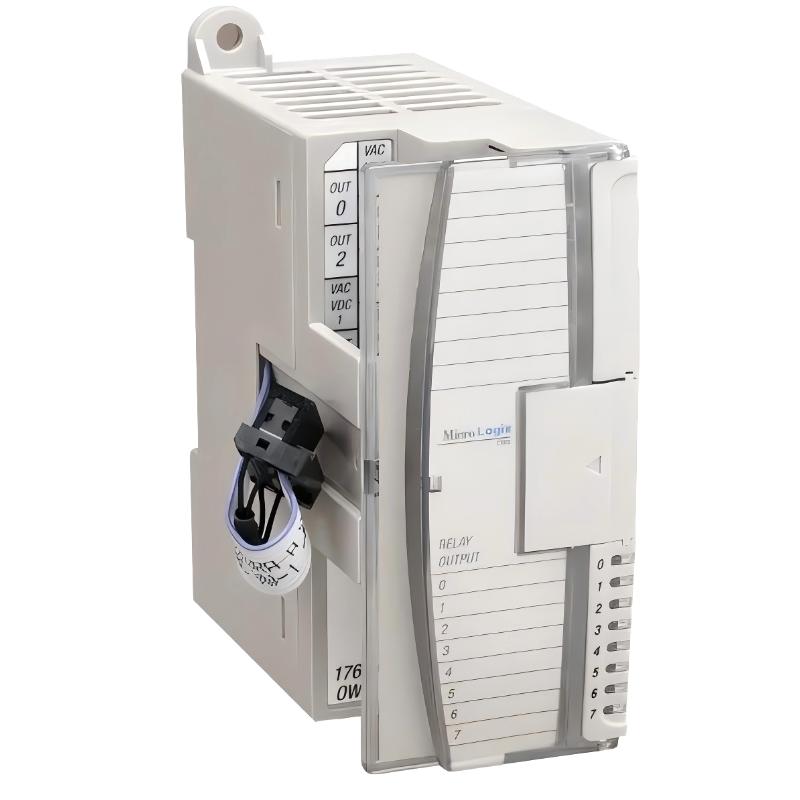

Allen Bradley 1762-OW8 MicroLogix 1200 8-Point Relay Output Module

Overview
The Allen-Bradley 1762-OW8 is a compact 8-point relay output module designed for MicroLogix 1200 and MicroLogix 1500 systems. It provides reliable electromechanical switching for both AC and DC loads, offering flexible control for industrial automation and machine applications.

General Information
Part Number: 1762-OW8

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: MicroLogix 1200 / 1762 Expansion I/O

Type: Relay Output Module

Output Points: 8 channels

Output Type: Electromechanical relay outputs

Installation: DIN rail mounted expansion module

Configuration: Software-based via MicroLogix programming tools

Power Specifications
Supply Voltage: 24 V DC (system backplane powered)

Contact Rating: Suitable for AC/DC load switching applications

Power Consumption: Low module-level consumption

Protection: Surge and contact protection

Isolation: Electrical isolation between channels and logic circuits

Communication & Interface
Backplane Communication: MicroLogix proprietary expansion bus

Output Control: PLC-driven relay switching

Response Time: Standard relay actuation time

Diagnostics: Individual channel status LED indicators

Programming Interface: RSLogix 500 / MicroLogix configuration tools

Environmental
Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade durability

Protection Rating: Cabinet-mounted open-type module

Dimensions & Weight
Dimensions (L × W × H): 90 × 40 × 87 mm

Weight: 0.228 kg

Reliable Relay Output Control for Industrial Automation
