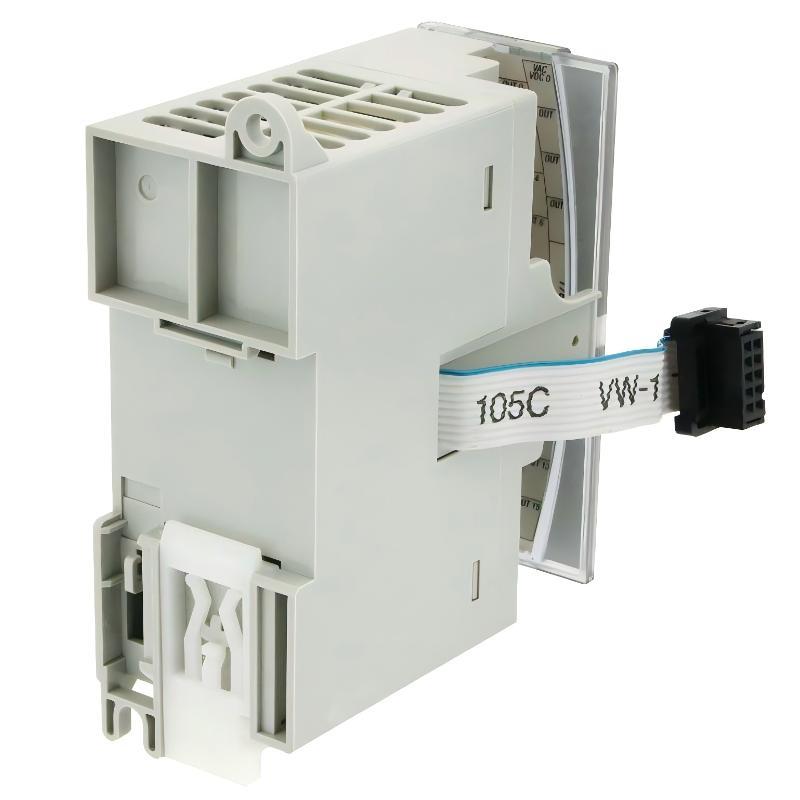

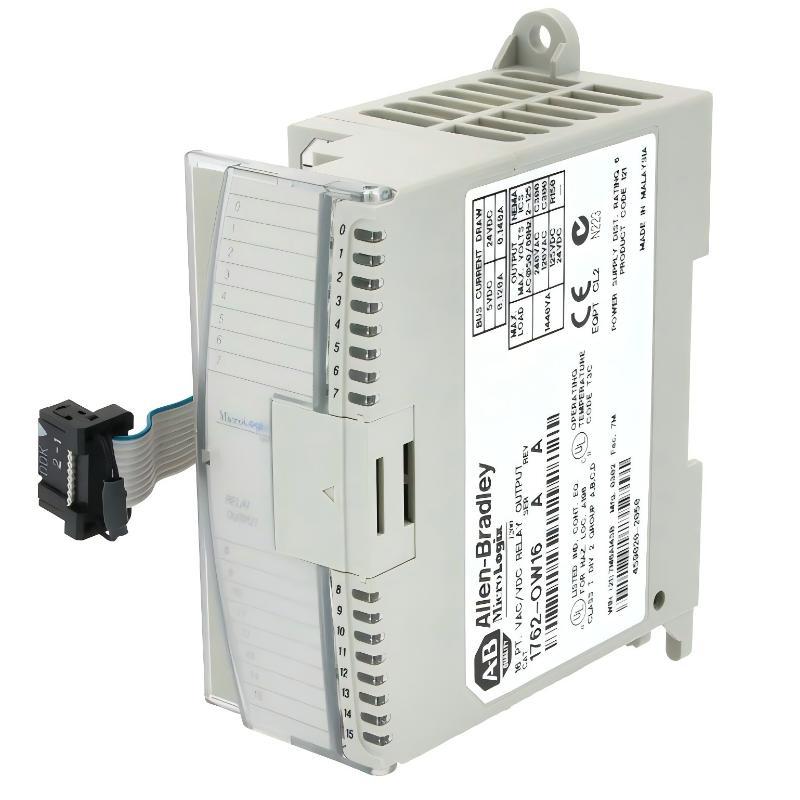

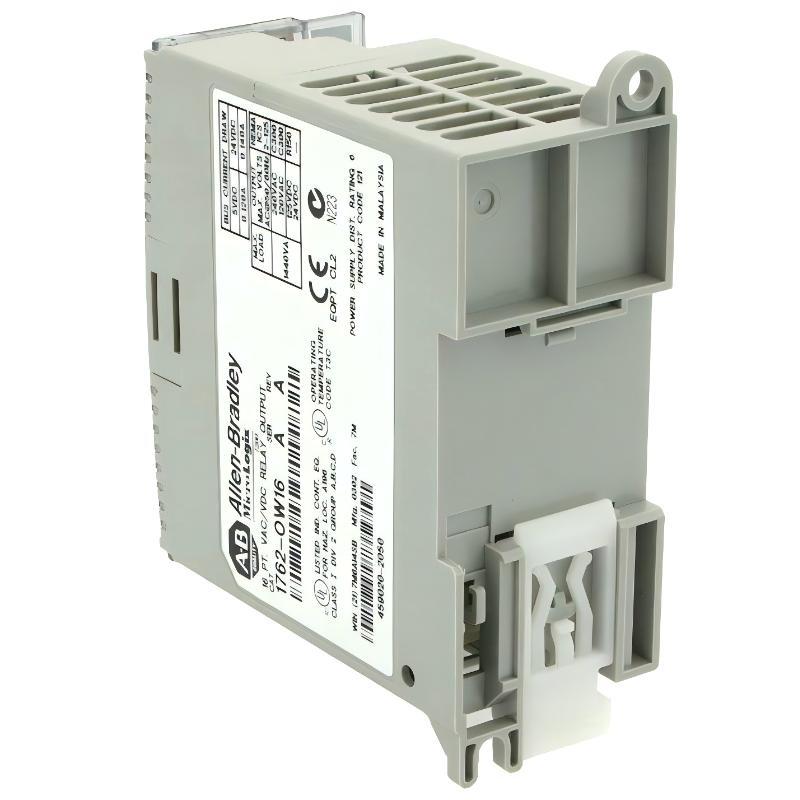

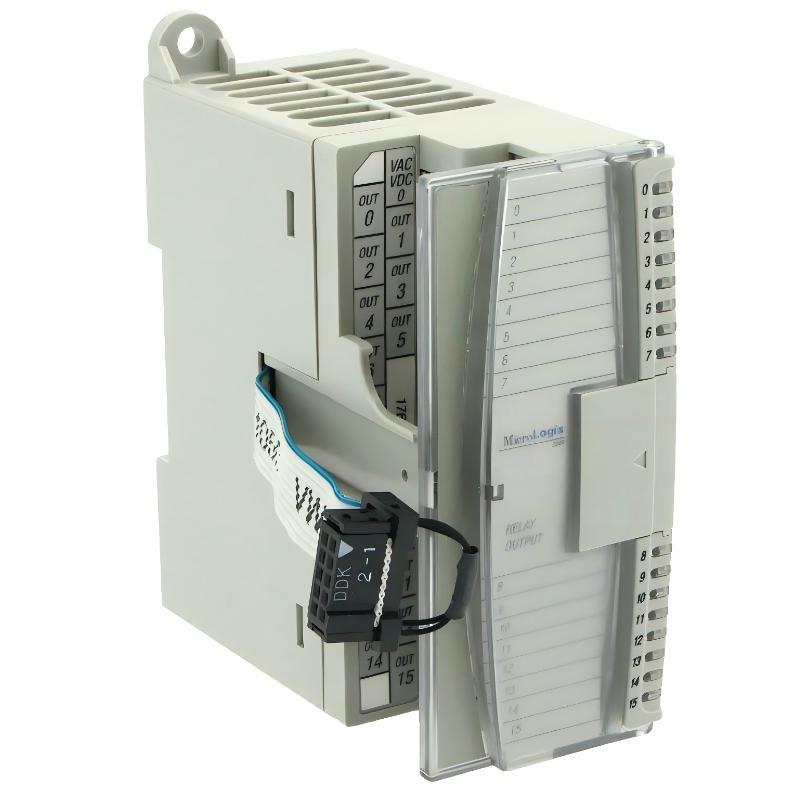

Allen Bradley 1762-OW16 MicroLogix 1200 16-Point Relay Output Module

Overview
The Allen-Bradley 1762-OW16 is a 16-point relay output module designed for MicroLogix 1200 and MicroLogix 1500 systems. It provides flexible switching capability for both AC and DC loads, making it suitable for a wide range of industrial control applications requiring isolated relay outputs.

General Information
Part Number: 1762-OW16

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: MicroLogix 1200 / 1762 Expansion I/O

Type: Relay Output Module

Output Points: 16 channels

Output Type: Electromechanical relay outputs

Installation: DIN rail mounted expansion module

Configuration: Software-based via MicroLogix programming tools

Power Specifications
Supply Voltage: 24 V DC (system backplane powered)

Contact Rating: Suitable for AC/DC load switching (industrial relay contacts)

Power Consumption: Low module-level consumption

Protection: Surge and contact protection

Isolation: Channel-to-channel and logic-to-field isolation

Communication & Interface
Backplane Communication: MicroLogix proprietary expansion bus

Output Control: PLC-driven relay switching

Response Time: Standard relay actuation response

Diagnostics: Channel status LED indicators

Programming Interface: RSLogix 500 / MicroLogix configuration tools

Environmental
Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade durability

Protection Rating: Cabinet-mounted open-type module

Dimensions & Weight
Dimensions (L × W × H): 90 × 40.4 × 87 mm

Weight: 0.285 kg

Flexible Relay Switching for Reliable Industrial Control
